A shallow well pump is a self-priming jet pump that lifts water from a private well where the static water level sits no more than about 25 to 26 feet below the pump. That 25 foot figure is the atmospheric ceiling on how far a suction pump can pull water up a drop pipe before it will not prime. Above it you need a convertible jet pump with an ejector kit, or a submersible.
Our team compared ten of the best well pumps for shallow wells currently in circulation, checking rated flow, horsepower, casing material, switch range and the details owners mention most often in reviews. We covered everything from 1/2 HP cottage units to 1 HP cast iron workhorses and portable stainless irrigation boosters, so you can match a pump to your actual depth and household demand instead of guessing from a marketing page. If your water needs treatment once it comes up, start with our well water filtration guide.
The short version: most people buying the best well pumps for shallow wells make one of two mistakes. They buy on horsepower instead of depth, or they pair a decent pump with an undersized pressure tank and wear the switch out in a few years. Both are easy to avoid once you know the four numbers that matter.
Top 3 Picks for Best Shallow Well Pumps in 2026
Acquaer CJE100-1 1 HP Conve...
- 25 to 90 ft with ejector kit
- 25.9 GPM cast iron
- 115V/230V dual voltage
Best Well Pumps for Shallow Wells Compared in 2026
The table below puts all ten pumps side by side on the specs that actually decide whether a pump will work in your well. Flow figures are the maximum rated output, which always drops as lift and working pressure increase.
| Product | Specs | Action |
|---|---|---|
| Acquaer CJE100-1 Convertible 1 HP |
|
Check Latest Price |
 Red Lion RJS-100-PREM 1 HP |
|
Check Latest Price |
| Goulds J5S 1/2 HP |
|
Check Latest Price |
 VEVOR 1.1 HP Garden Pump |
|
Check Latest Price |
 Red Lion PWJET50 1/2 HP |
|
Check Latest Price |
 Goulds J10S 1 HP |
|
Check Latest Price |
 Pentair STA-Rite SND-L 3/4 HP |
|
Check Latest Price |
| Aquastrong 1.6 HP 1320 GPH |
|
Check Latest Price |
 Red Lion RL-SWJ50 1/2 HP |
|
Check Latest Price |
 Myers HJ100S 1 HP |
|
Check Latest Price |

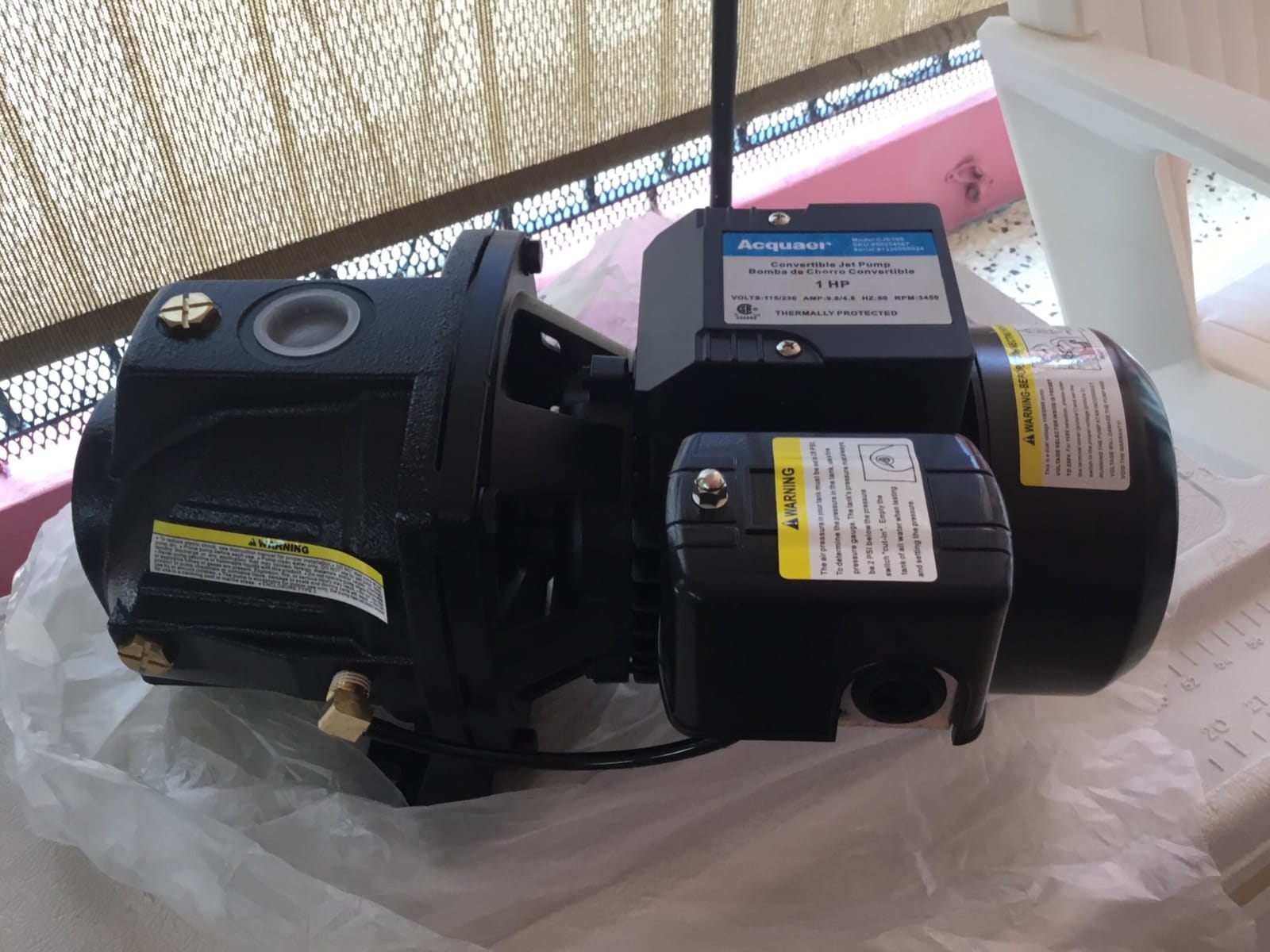

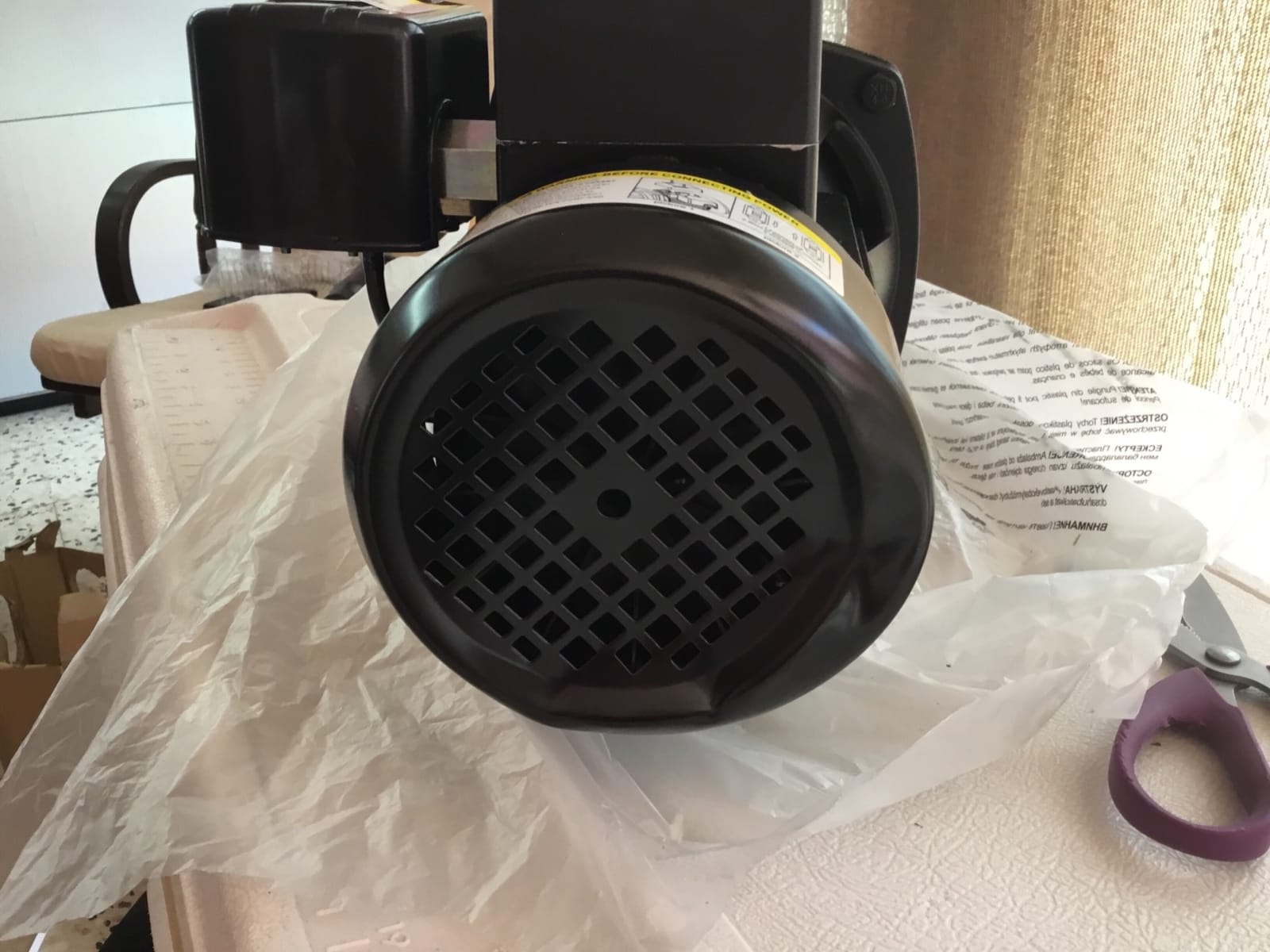

1. Acquaer CJE100-1 Convertible Jet Pump - Best Overall for Most Wells
Acquaer Shallow/Deep Well Jet Pump, Cast Iron Convertible Pump with Ejector Kit, Well Depth Up to 25ft or 90ft, 115V/230V Dual Voltage, Automatic Pressure Switch
1 HP cast iron convertible jet pump
25.9 GPM rated flow
25 ft shallow or 90 ft deep
36.5 lb unit
Pros
- Convertible from a single pipe shallow well to a two pipe well down to 90 ft
- Dual 115V/230V motor for either supply
- Automatic switch starts below 20 PSI and shuts off above 40 PSI
- Built-in thermal overload with dry-run protection
- Works as an irrigation or sprinkler booster pump
Cons
- Factory set to 230V so a 115V install needs rewiring
- 12 percent of reviews are 1 star
- Box contents list the pump body only
We spent the most time with this one because it is the only pump in our list that handles both jobs. In single pipe configuration it works as a conventional shallow well jet pump down to 25 feet. Add the included ejector kit and the same unit becomes a two pipe deep well setup rated to 90 feet, which matters if your water table drops over the years.
Rated flow is 25.9 GPM from a 1 HP motor, and the cast iron volute is the body style that tolerates sandy water better than the aluminum housings on the garden pumps further down this list. The automatic pressure switch handles a 20 PSI cut-in to 40 PSI cut-off range, which is the right window for boosting a municipal line or feeding an irrigation zone.
The one install detail that catches people out is voltage. The motor ships set to 230V and has to be reconfigured for a 115V supply, so budget a few minutes and a screwdriver before the plumber arrives. The dry-run shutoff and thermal overload are both built in, which is the safety net you want on any pump that might run against a failing foot valve.
Reviewers report mixed durability, with a visible block of 1-star feedback focused on early motor or setup issues. It still has by far the largest review base of any pump we tested at more than 1200 ratings, so there is more real-world data behind it than anywhere else in this roundup.
Who this pump suits
This is the right choice for a whole house on a well you have not measured yet, or a property where the water table is seasonal. If you have any chance of going deeper than 25 feet later, the convertible design means you keep the same pump body and add a kit rather than replacing the whole unit.
I also like it for irrigation and pressure boosting duty. The 20 to 40 PSI switch range is narrower than the 30/50 range on the Red Lion models, which is exactly what you want when you are pushing water onto sprinklers or filling a livestock watering tank.
Where it falls short
Cast iron at 36.5 pounds means two people for a comfortable lift, and the voltage default catches new installers out more than any other spec on this pump. It is also sold as a bare pump body, so budget separately for a pressure tank, gauge and discharge fittings if you do not already have them on the well head.
Check the convertible range before you buy
One owner whose water table sits at about 20 feet noted on r/Irrigation that a shallow well jet pump in 1 or 1.5 HP is the right call at that depth, and a conventional centrifugal pump will not do it. This pump matches that guidance and adds the ejector option if the table drops. Check the convertible range against your measured static level before you commit.
2. Red Lion RJS-100-PREM 1 HP - Best High-Flow Cast Iron Pick
Red Lion RJS-100-PREM 115/230V, 1 HP, 23 GPM, Shallow Well Jet Pump
1 HP cast iron jet pump
23 GPM rated flow
25 ft suction lift
41 lb with 30/50 switch
Pros
- 23 GPM rated flow suits large homes and farm duty
- Rugged cast iron casing with glass-filled thermoplastic impeller
- Factory pre-set 30/50 PSI switch plus pressure gauge in the box
- Capacitor start adds starting torque
- 1-1/4 inch intake and 1 inch discharge
Cons
- Lowest average rating in the roundup at 3.9
- 17 percent of reviews are 1 star
- 41 lb cast iron body needs two people to move

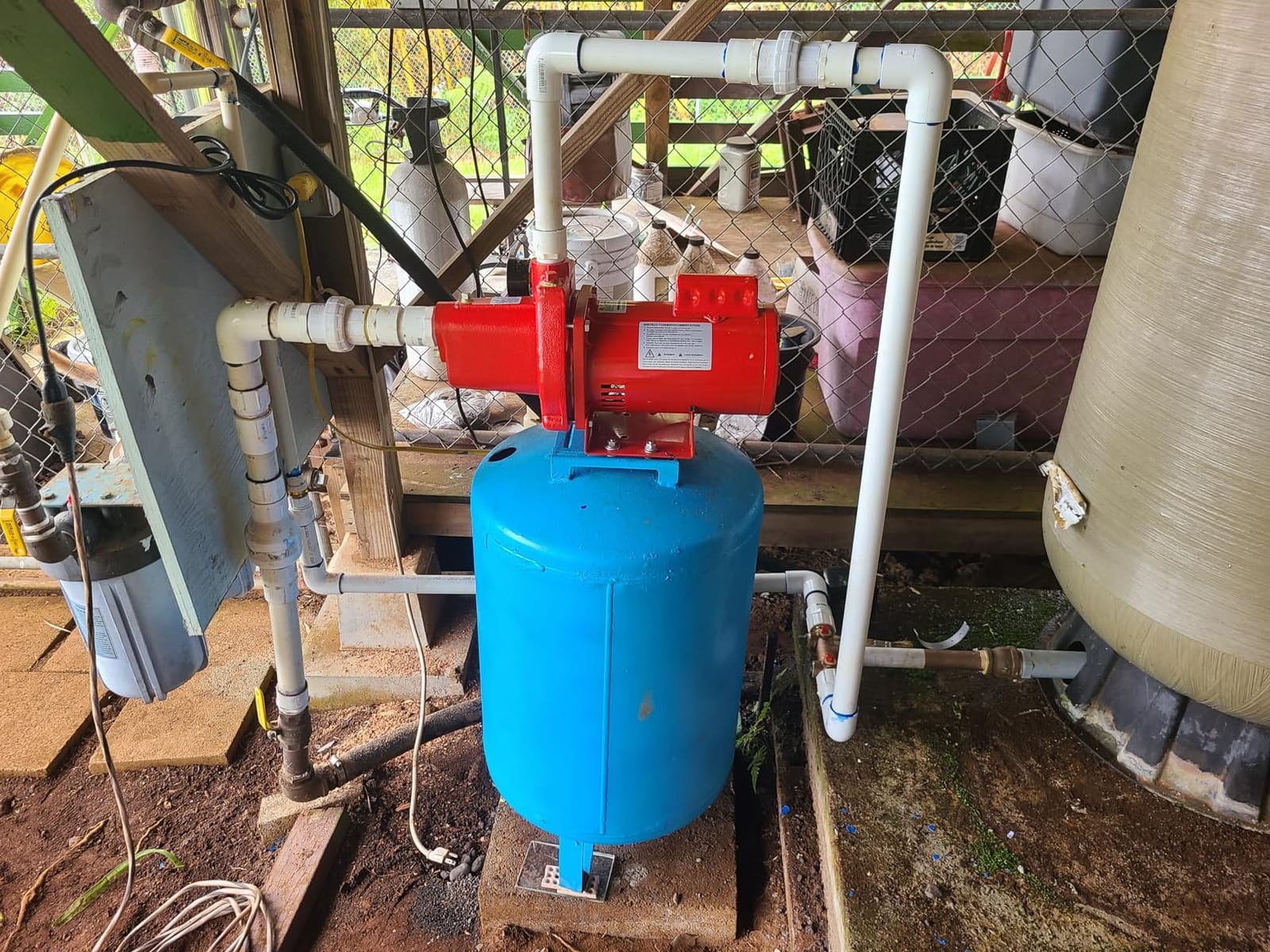

This is a high-output dedicated shallow well jet pump from a brand most plumbers already recognise. At 23 GPM rated from a 1 HP motor it has the headroom for a large household running two showers, a laundry cycle and irrigation at the same time.
The build is straightforward trade hardware: cast iron casing and volute, a glass-filled thermoplastic impeller and diffuser, a capacitor for starting torque, and CSA listing in the US and Canada. The 30/50 PSI pressure switch comes factory set with a gauge in the box, so it is ready to pair with a tank on day one.

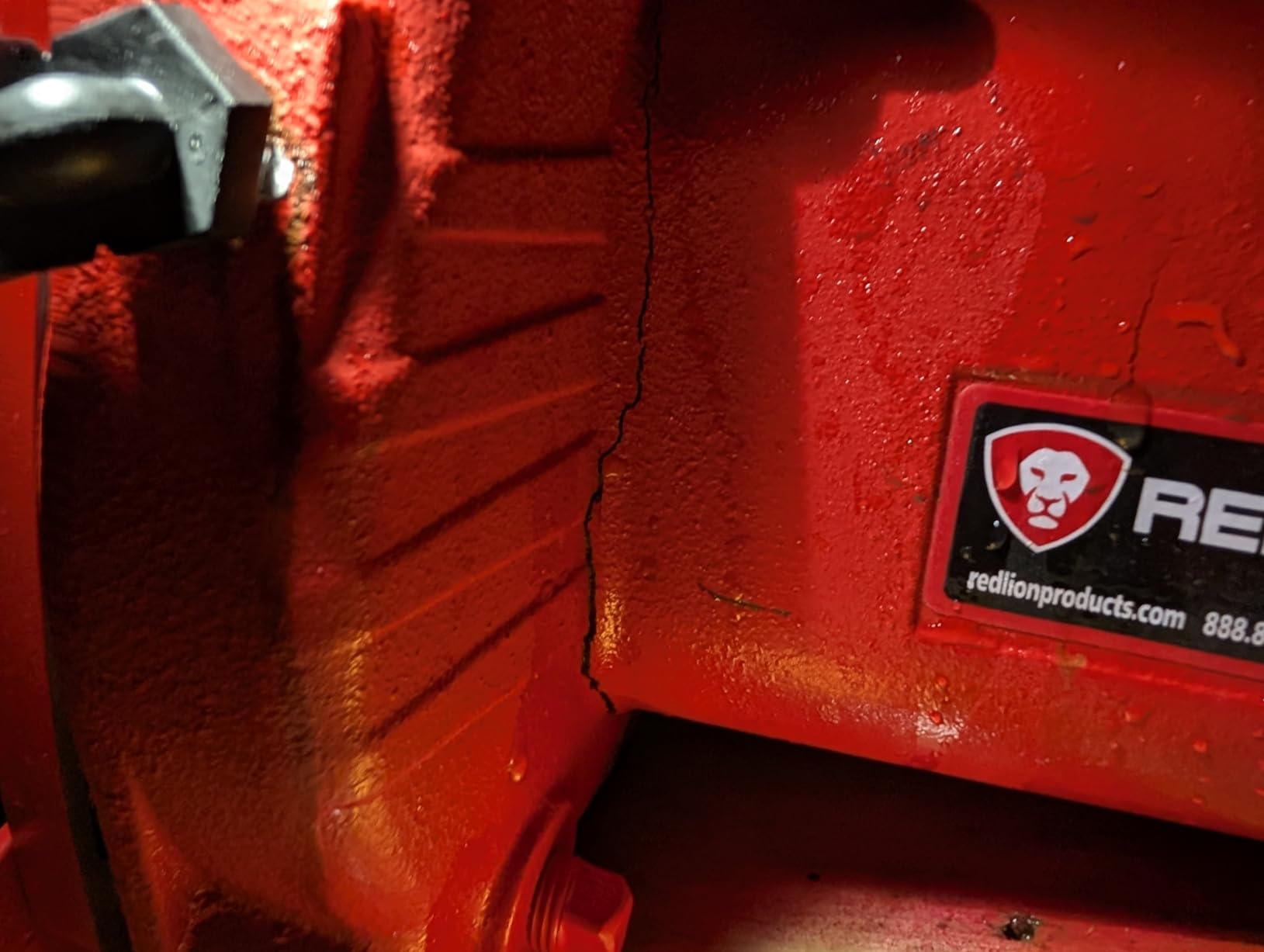

The 3.9 average is the honest part of this review. It sits at the bottom of our group, and 17 percent of its reviews are 1 star, which points to a polarised install and longevity experience rather than a broken design. Owners who get it plumbed correctly tend to be happy with the flow.
Voltage has to be matched manually at installation. There is also no convertible option here, so if your water table later drops past 25 feet you are replacing the pump rather than adding a kit.
What you should know about the 3.9 rating
We did not hide the lowest score in the roundup behind a recommendation. Before buying, read the one-star reviews for the failure pattern you are most exposed to. On a cast iron unit of this weight, the usual suspects are shipping damage on arrival and a switch that was never seated correctly.
Talk to the installer about the 30/50 switch setting too. That range is aggressive for a large tank, and a switch cycling hard under low demand is the most common cause of the early failures people report on pumps in this class.
Is this pump right for you
Choose it if your demand is genuinely high and you want a brand name with a stocked parts channel. Skip it if you are on a tight budget or you want a pump that can be converted to a deeper well later. The flow is genuinely there; the review record is what gives us pause.

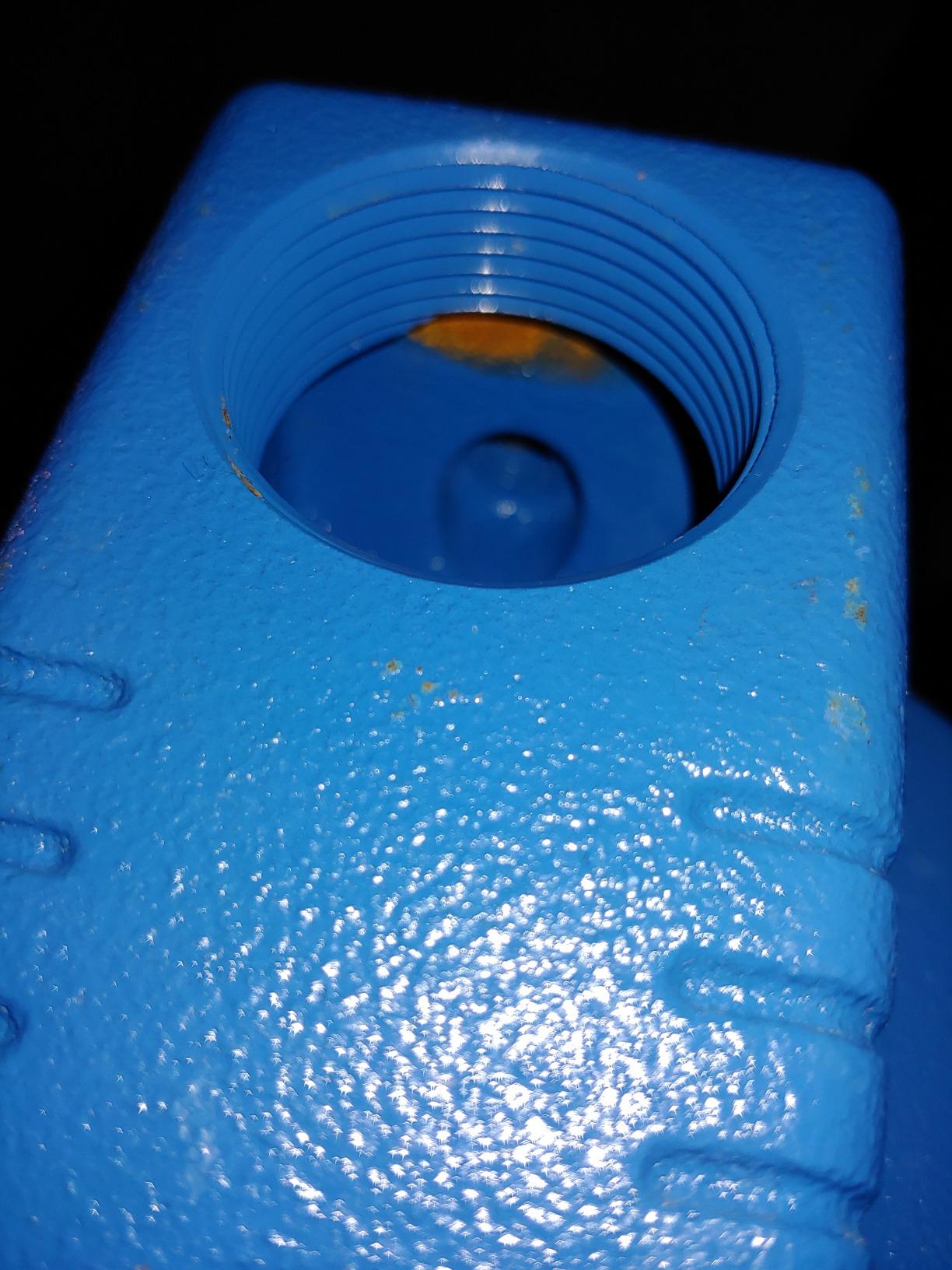

3. Goulds J5S 1/2 HP Jet Pump - Best Half-HP Cast Iron Pick
Goulds Pump J5S Shallow Well Jet Pump, 115/230 volt, 1/2 hp
1/2 HP cast iron jet pump
16.5 GPM to 25 ft
40.9 lb
US built UL778 listed
Pros
- Noticeably stronger pressure than cheaper big-box pumps
- Cast iron body with stainless steel shaft
- Built-in overload protection with automatic reset
- AS4 preset 30-50 PSI switch with regulator included
- UL778 listed and capacitor start
Cons
- Heaviest 1/2 HP unit here at 40.9 lb

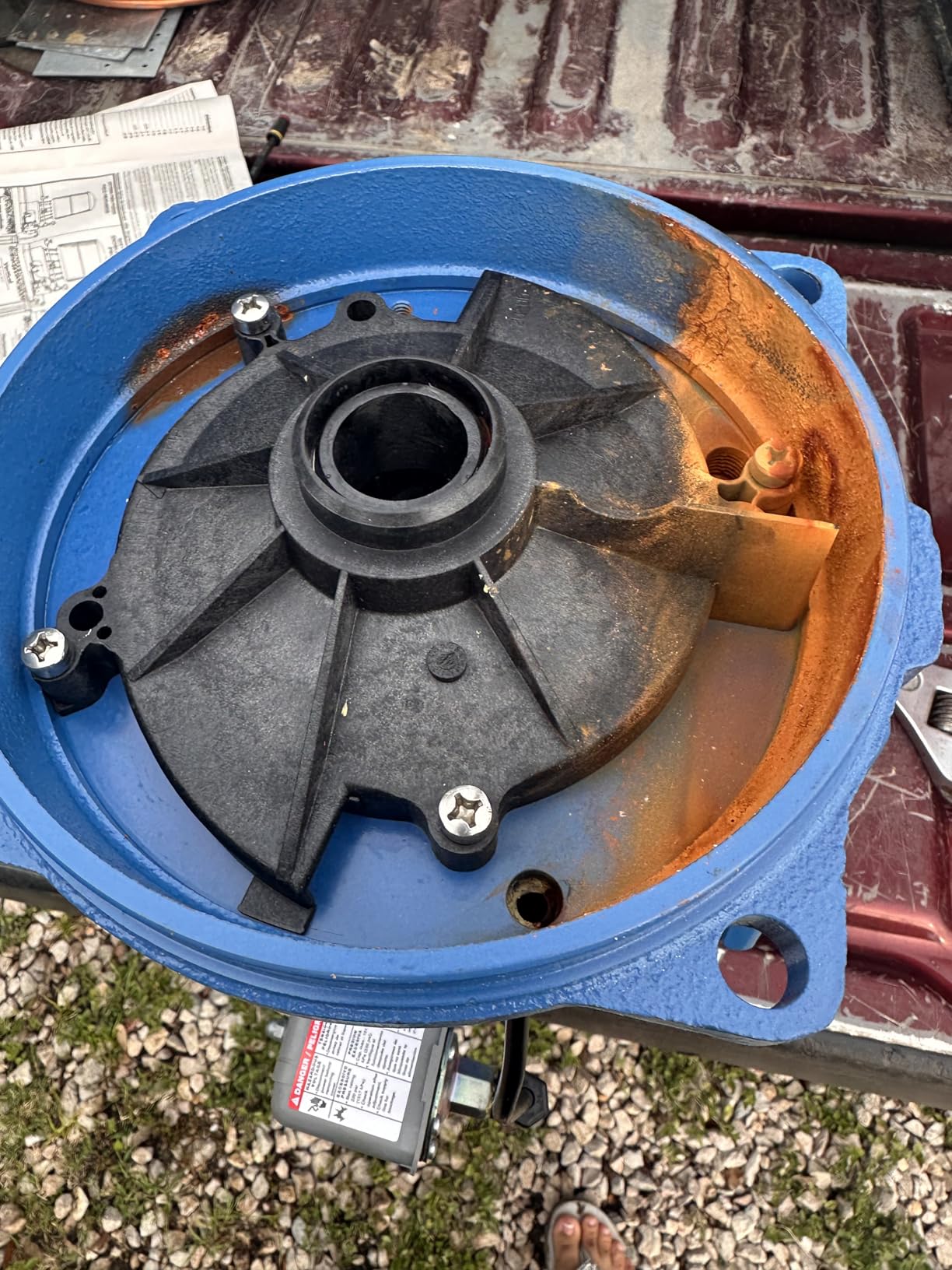

- One documented report of a pump arriving seized
- Residual water from factory testing may be inside on arrival
Half horsepower is where most households actually land, and the J5S is the reason. Owners consistently report a real jump in pressure compared with inexpensive imports, and the cast iron body with a stainless steel shaft is the construction people in trade forums describe as lasting decades rather than seasons.
At 16.5 GPM rated it handles a family home comfortably, with a 25 foot suction ceiling and 1.25 inch NPT suction and 1 inch NPT discharge. The overload resets itself automatically, and the AS4 switch arrives preset to a 30 to 50 PSI range with a regulator included.
Conversion from 120V to 240V is straightforward at installation, which matters because the unit is rated for both. One documented review reports a seized pump discovered only after opening the box, so if you order this, test the shaft for rotation before you commit a plumber to the install.
Goulds manufactures in the US, and that shows up as a repeated buying reason in the reviews. Roughly 75 percent of ratings are 5 stars, which is one of the cleanest distributions in the group.
Half HP or three-quarter HP
This is the exact comparison people ask about most, and the answer depends on static water level rather than family size alone. A half HP jet pump like this one at 20 feet of lift is comfortably matched to a three to four person home. The same well at 25 feet leaves almost no margin, and that is when you step up to 3/4 HP.
Plumbing community consensus in forum threads is consistent on the underlying rule: get the tank right, because people who work a smaller pump and a smaller tank hard end up replacing both. Our pressure tank picks cover that side.
Who should look elsewhere
Forty pounds of cast iron is not a one-person lift, so budget for a second pair of hands on moving day. And if you are after the highest possible flow rather than pressure, the 1 HP models on this list deliver noticeably more.

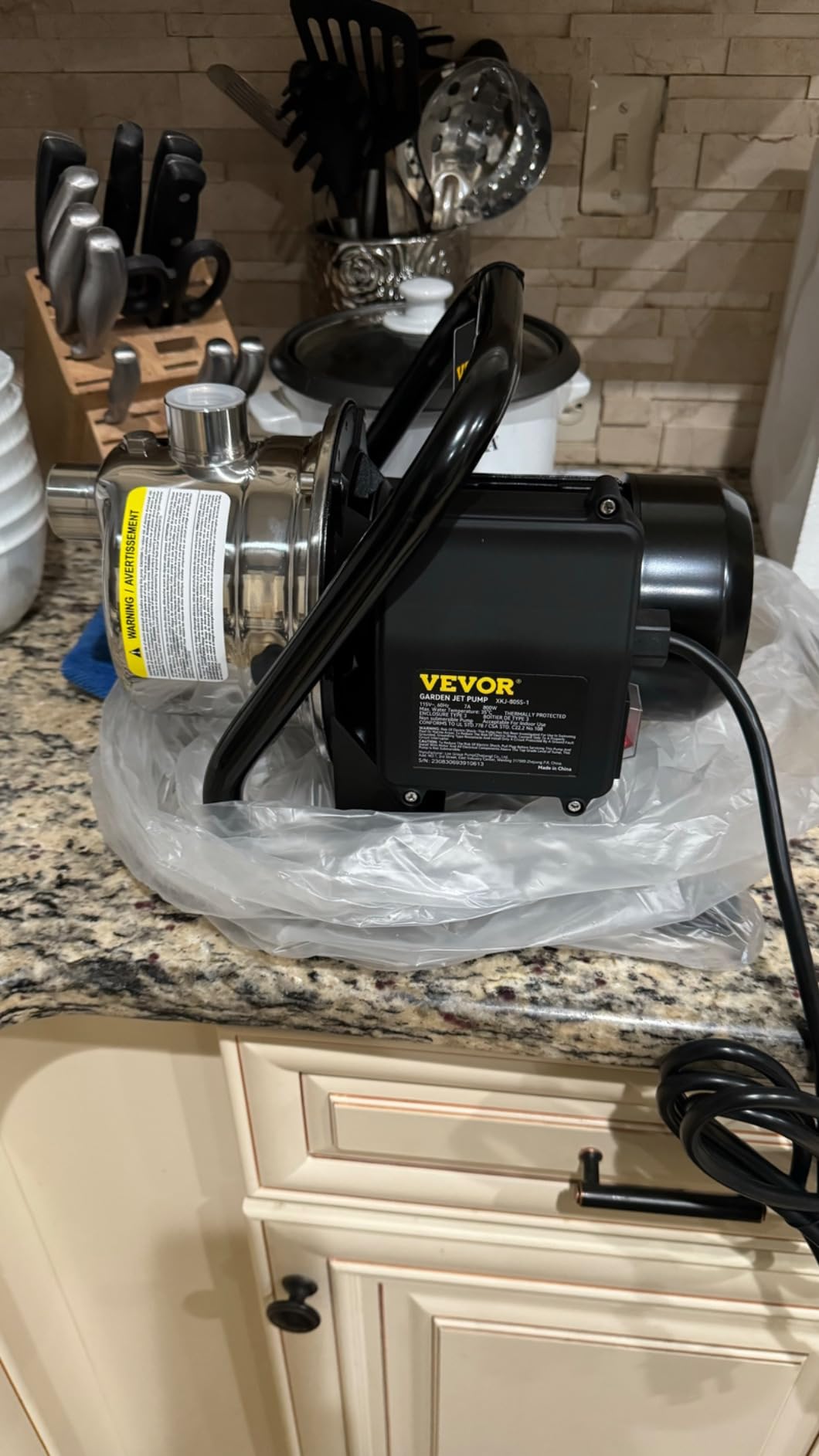

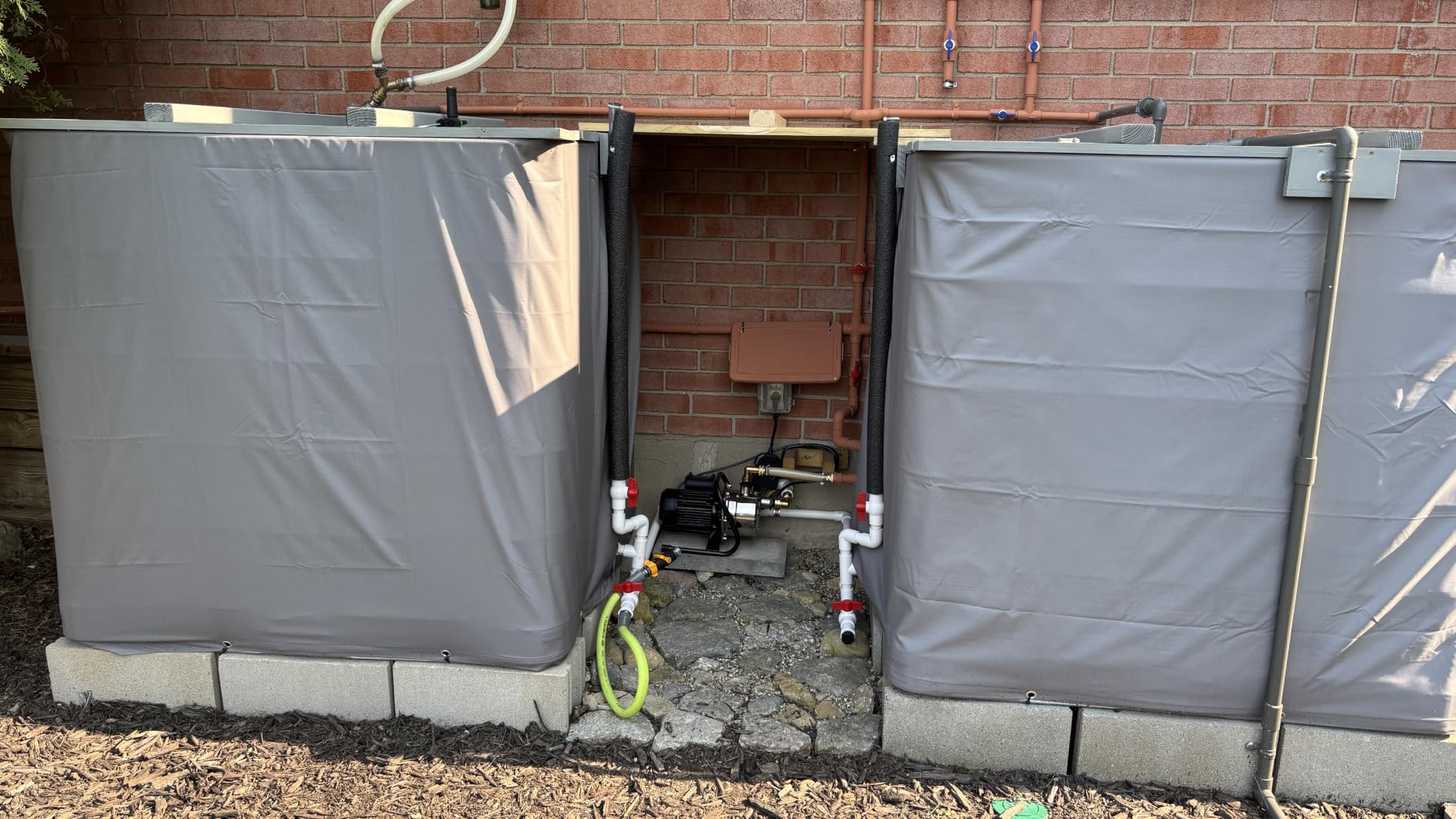

4. VEVOR XKJ-805S-1 1.1 HP - Best Budget Booster for Garden Irrigation
VEVOR 1.1 HP Portable Shallow Well Pump, 978 GPH Garden Jet Pump, 115V, 131 ft Height, Stainless Steel Sprinkler Booster Pumps for Garden Lawn Irrigation system, Lake Fountain, Water Transfer
1.1 HP stainless garden pump
978 GPH max flow
23 ft max suction
16.9 lb portable
Pros
- Quieter than small vane pumps of the same class
- Stainless steel head resists corrosion
- 16.9 lb with an iron carry handle
- Enough pressure to run rotary and rotating spray heads
- IPX4 rating with thermal and overload protection
Cons
- Not self-priming so the head must be filled first
- Clean water only and not suitable for drinking water
- Some pumps reported failing to prime out of the box
This one is not a household well pump and we would not recommend it as one. It is a portable garden jet pump rated to 978 GPH with a 23 foot maximum suction and 131 foot maximum head, built for sprinklers, fountains, ponds and water transfer.
Where it genuinely shines is noise. Users describe it as quieter than the small vane pumps most people reach for, and it has enough pressure to turn rotary and rotating spray heads rather than just pop-up sprayers. The stainless steel head with a cast aluminum housing is the right material choice for outdoor duty.
Two limitations decide whether it works for you. It is not self-priming, so you fill the pump head with water before every start, and the manufacturer states plainly that it works only with clean water and is unsuitable for drinking water. That rules it out if you plan to run household supply.
Several owners report the pump would not prime on first use. At 16.9 pounds with an iron handle, moving it between the pond and the garden is a one-person job, which is exactly what this pump is for.
Check your spray heads before buying
If your irrigation runs rotary or rotating heads rather than fixed pop-ups, pressure requirements jump sharply and a small booster will simply stall. Reviewers who bought this for that purpose report success, while those who expected household-grade pressure from a 1.1 HP label came away disappointed.
Also note the higher-draw motors in the same class deliver more flow and pressure than this one. If you need more, the 1.6 HP unit later in this roundup is the step up.
Where it does not belong
Do not put this on a potable line. The clean-water-only designation is explicit and there is no NSF certification behind it. It also has no pressure switch, so it will not run a whole house on its own without additional control hardware.

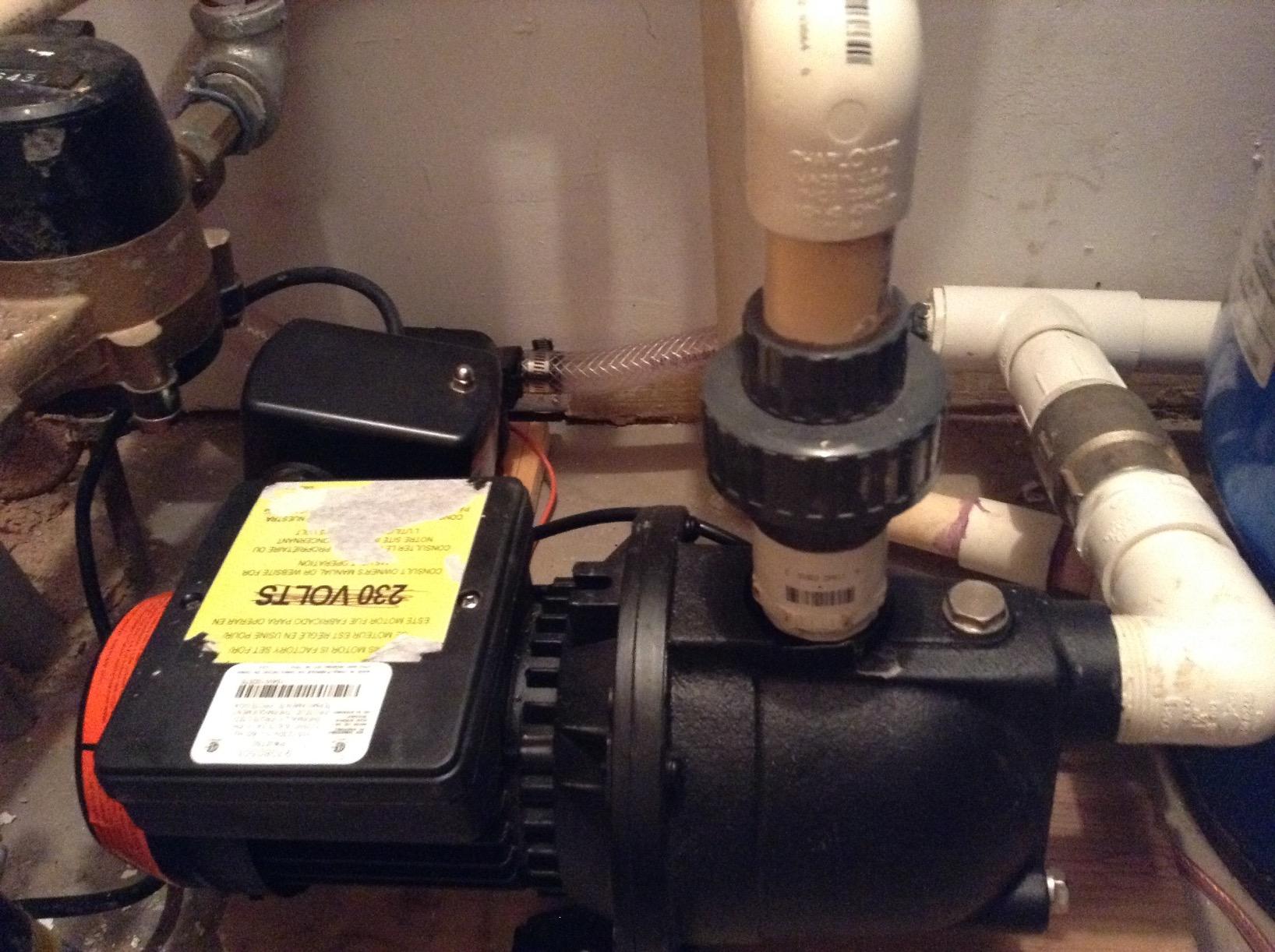

5. Red Lion PWJET50 1/2 HP - Best for a Cottage or Single-Bath Home
Red Lion PWJET50, 115/230V, 1/2 HP, 7.4 GPM, Shallow Well Jet Pump
1/2 HP cast iron jet pump
7.4 GPM at 30 PSI
25 ft lift
20.3 lb potable certified
Pros
- Certified for potable water delivery to a home or cottage
- Compact 20.3 lb cast iron body

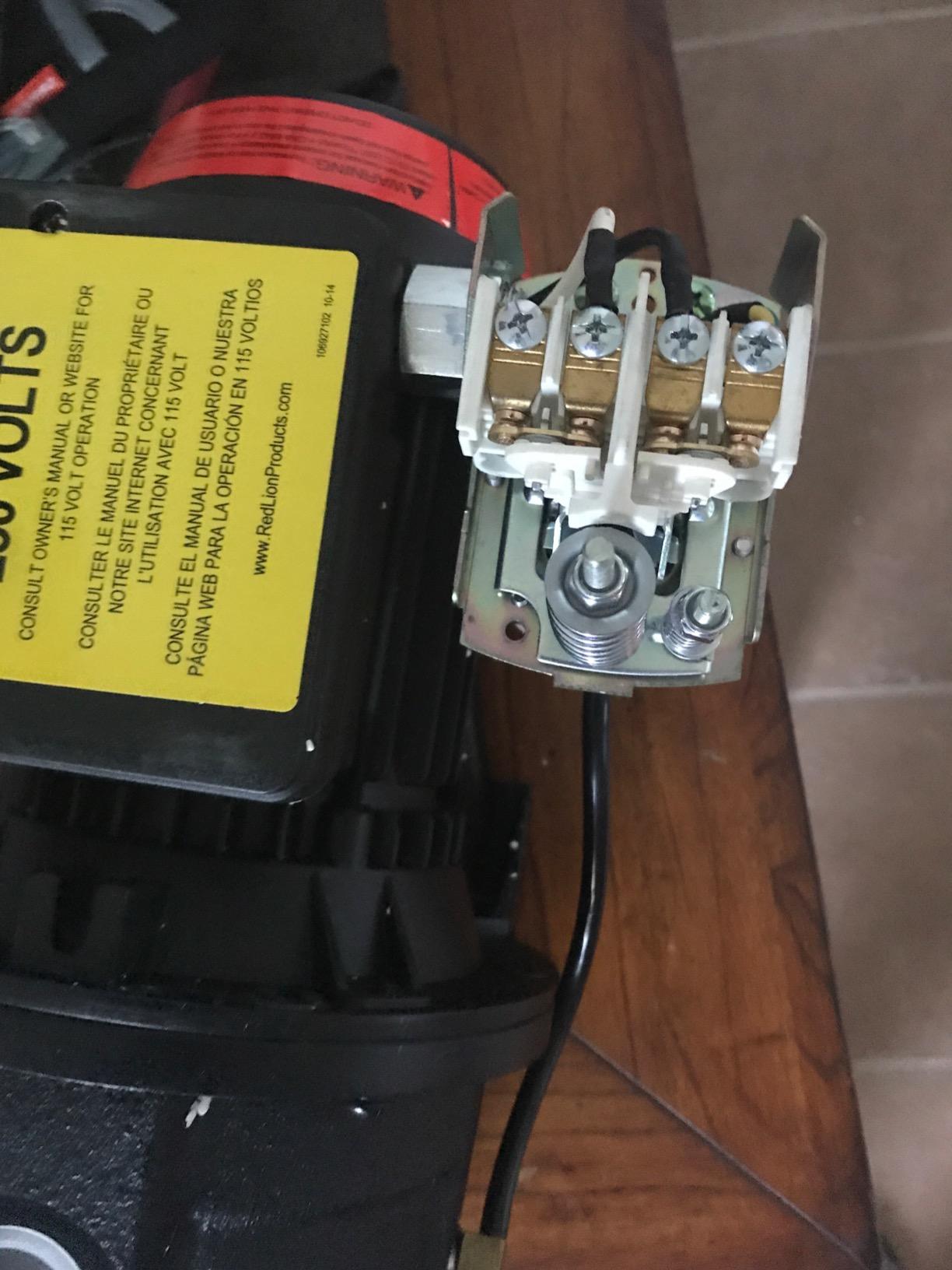

- Dual 115V/230V with 30/50 switch factory set
- CSA listed in the US and Canada
- Lightest cast iron pump in this roundup
Cons
- Lowest flow here at 7.4 GPM
- Pressure gauge is not included
- 14 percent of reviews are 1 star
This is the smallest sensible whole house pump here, and it is built for exactly one job: a cottage, a cabin or a single-bath home where one fixture is running at a time. It delivers 7.4 GPM at 30 PSI with a 5 foot suction lift.
The important detail is the certification. This pump is certified for potable water delivery to a home or cottage, which is a meaningfully different claim from clean-water-only. For drinking water supply, look for NSF-61 on the wetted parts and pair it with the filtration steps in our whole house filter guide.
It is also the lightest cast iron pump here at 20.3 pounds, so it moves without a second person. The 30/50 pressure switch is fitted from the factory, and the pump is CSA listed in both the US and Canada.
Two things are missing or limited. There is no pressure gauge in the box even though the switch is included, and 7.4 GPM is the lowest ceiling on this list. Fourteen percent of its reviews are 1 star, the third-highest share in the group.
Is 7.4 GPM enough
Enough for one shower and a sink at a time on a small property. Not enough for a family of four, two showers running together, or any irrigation. If you are unsure how much a fixture actually draws, measure your demand rather than trusting the household count.
As a booster pump it is fine, because the 30/50 switch range suits municipal pressure boosting, and the switch is already set for you.
Check the box contents
The included components are the pump with the 30/50 switch and the manual. No gauge. That is a small job but it means your install is not finished when the box is empty, so add a gauge and a check valve to your parts list.
6. Goulds J10S 1 HP - Best Whole-House Pressure Upgrade
Goulds J10S Shallow Well Jet Pump
1 HP jet pump
25 GPM to 25 ft
50 lb stainless steel and cast iron
UL778 listed
Pros
- Substantially higher pressure than lower-priced pump house models
- Powers a whole house line and long irrigation runs
- Quiet when mounted properly
- Owners replacing a 16 year old unit report continued satisfaction
- Built-in overload with automatic reset
Cons
- Heaviest unit in the roundup at 50 lb
- Check valve between pump and tank can cause cycling

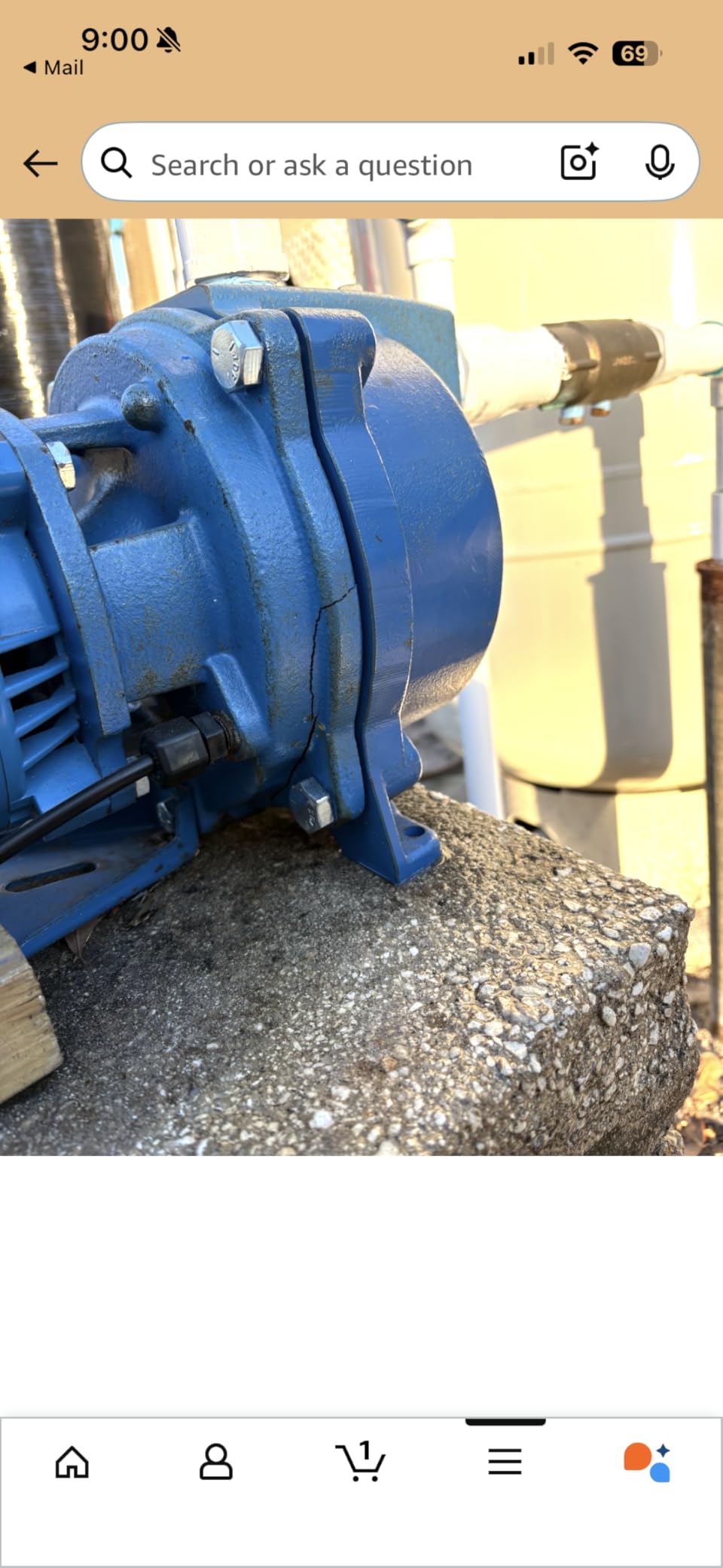

- Occasional transit damage to pressure controls on arrival

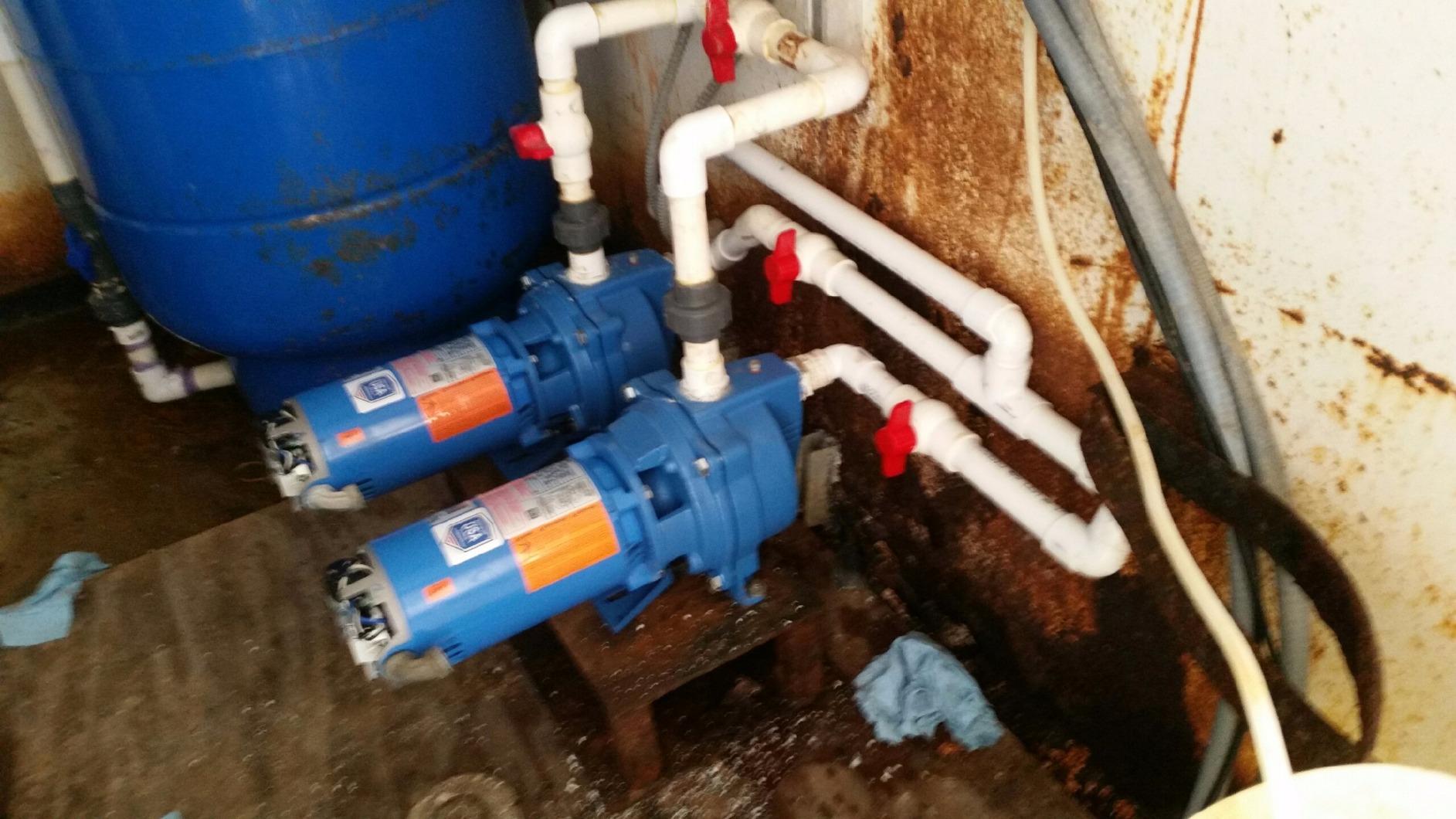

The J10S is the upgrade people make when pressure, not flow, is the complaint. At 25 GPM rated from a 1 HP motor it has serious working-pressure headroom, and owners consistently describe a dramatic improvement over a cheap pump house unit.
Construction matches the J5S pattern: cast iron with a stainless steel shaft, built-in overload that resets automatically, 1.25 inch NPT suction and 1 inch NPT discharge, and an AS4 switch preset to 30 to 50 PSI with a regulator included. It is UL778 listed.
It is the heaviest unit we tested at 50 pounds, and it ships without a handle, so plan the lift accordingly. When mounted properly it runs quietly, which is worth saying plainly because pump noise is the complaint most often tied to high horsepower in pump houses.
The one installation trap is a check valve fitted between the pump and the pressure tank. Owners report that adding one causes on and off cycling, because the tank needs to be plumbed as a header rather than isolated by a valve.
When a pressure upgrade is the right fix
If your taps are fine at low demand but the shower drops when the irrigation kicks on, you are seeing a pressure problem at working flow, not a supply problem. That is exactly the gap a 1 HP unit closes, and it is why this model gets recommended for pump house installations where distance matters.
Owners replacing a 16 year old unit of the same model report continued satisfaction, which is the longest ownership signal in this group.
Plan the install carefully
Confirm the discharge piping is sized for the flow you are asking for before this pump goes in, and let the installer know not to add a check valve between the pump and tank. A few transit-damaged pumps have arrived with pressure controls needing replacement, so inspect on arrival.
7. Pentair STA-Rite SND-L 3/4 HP - Best-Rated Pump in the Roundup
STA-Rite SND-L Shallow Well Jet Pump 3/4HP 115/230V
3/4 HP cast iron jet pump
11.4 GPM
25 ft suction lift
41.2 lb with drain port
Pros
- Highest average rating in the roundup at 4.5 with 82 percent five stars
- Close-grained cast iron body for long service life
- Multi-port diffuser primes faster and handles more air
- Insulated motor windings resist moisture
- Drain port eases winterizing
Cons
- Smallest review base here at 104 ratings so long-term data is thin
- No returns once a pump has been installed
The 3/4 HP is the sensible midpoint for a family of four, and the SND-L is the pump we would trust most at that size. It holds a 4.5 average with 82 percent of reviews at five stars, the strongest rating distribution in the group.
Two design choices stand out. The precision-molded reinforced polypropylene multi-port diffuser primes faster and tolerates more air than a conventional diffuser, which matters when you are chasing down a prime issue. The motor windings carry upgraded insulation against moisture and contaminants, which is the main long-term failure mode on installed pumps.
The cast iron body is close-grained rather than sand-cast coarse, and a drain port is provided for winterizing, which is a small courtesy most of the cast iron pumps here skip.
The caveats are about evidence rather than design. At 104 ratings this has the thinnest long-term field data of any pump in the roundup, and the return policy rules out any return once a pump has been installed or shows installation marks.
What a multi-port diffuser does for you
The diffuser is where the pump holds prime. A multi-port version gives water more ways through the chamber, so the pump recovers faster after a power outage and is more forgiving if air is trapped in the drop pipe. In practice that means fewer calls to restart the pump after a storm.
It is also why a well veteran will tell you that a good pump is only half the job. Getting the tank right is the other half, and short cycling from an undersized tank is the top cause of premature pump failure cited across plumbing forums.
Before you order
Because a plumbed pump can no longer be returned, open and inspect it the day it arrives rather than after the plumber has finished. Confirm the rotation direction and that the shaft turns freely before it goes under the floor.

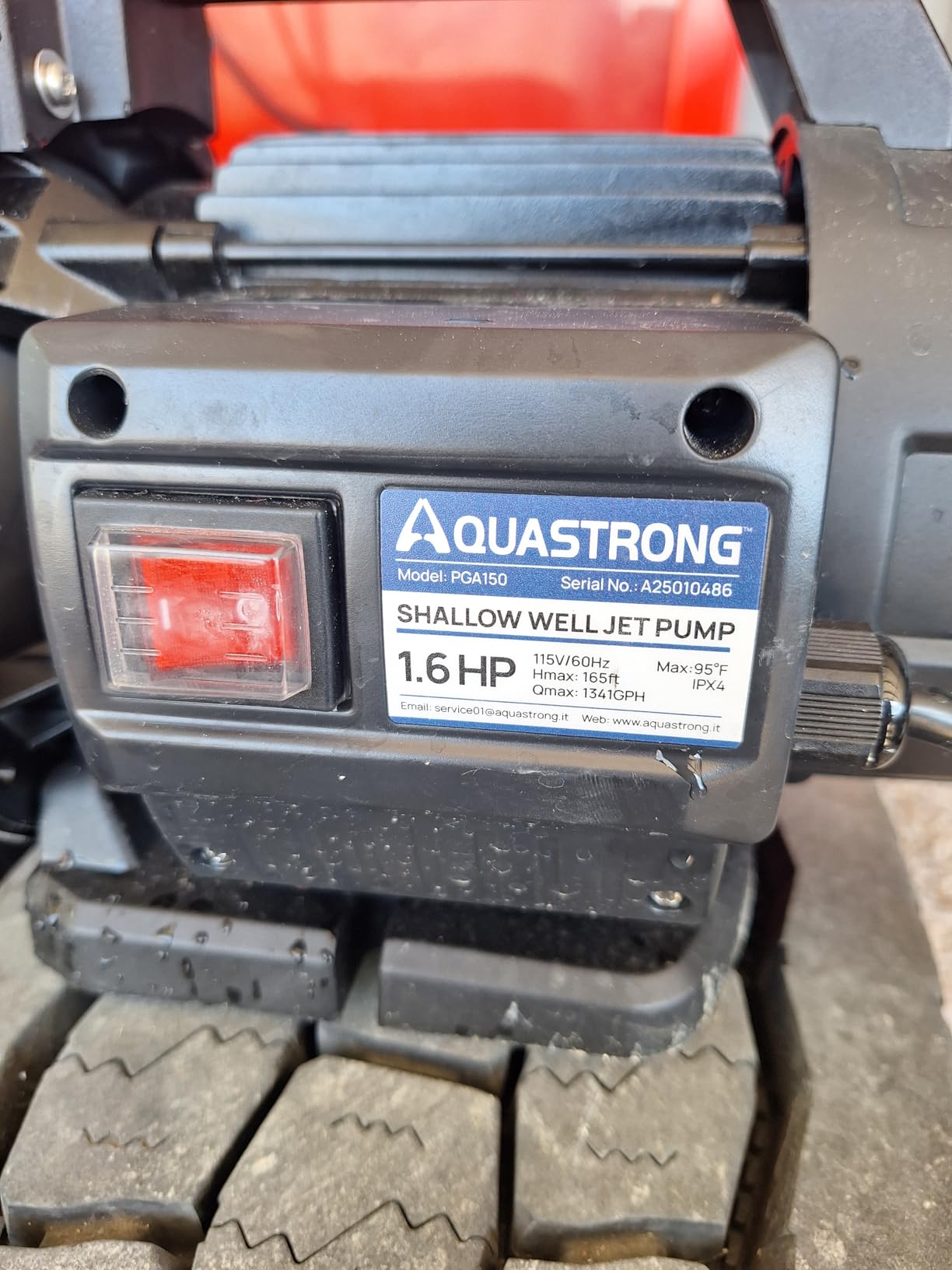

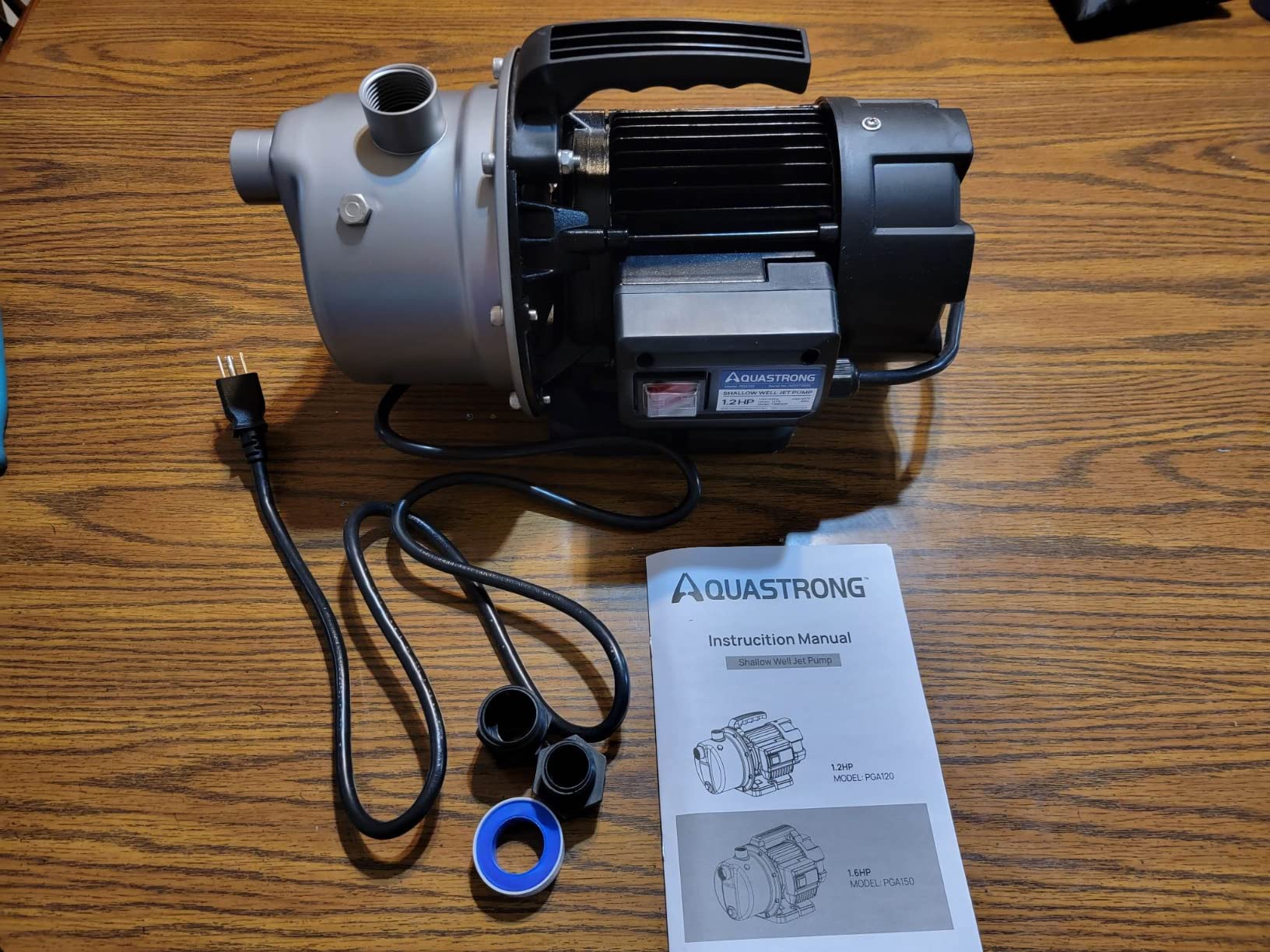

8. Aquastrong PGA 1.6 HP - Best Flow for Irrigation and Pond Transfer
Aquastrong 115V Shallow Well Garden Pump, Stainless Steel, 1320 GPH, Water Transfer Draining Irrigation Sprinkler Pump, for Lawn,Garden,1.6 HP Portable
1.6 HP portable stainless pump
1320 GPH at 5 ft head
26 ft well depth
Carbon ceramic seal
Pros
- Best flow per dollar here at 1320 GPH from a 1.6 HP motor
- Stainless steel casing with aluminum motor housing
- Two-year warranty with responsive replacement service
- Iron carry handle for moving between sources
- Automatic shutoff when water runs out
Cons
- Not self-priming and the fill port needs a socket wrench
- Several reports of motors seizing inside the warranty period
- Priming instructions understate the effort needed
For raw irrigation output this is the value pick of the roundup. It moves up to 1320 GPH at 5 feet of head from a 1.6 HP motor, handles wells down to 26 feet, and is rated to lift water 164 feet.
Owners run it long and unattended. Reviewers report 90 hours plus of continuous irrigation on a single fill, and the automatic shutoff when water runs out plus built-in thermal overload protection are what make that possible. The carbon ceramic mechanical seal limits leakage over service life.
The warranty is two years with what owners describe as fast replacement service, which is unusually responsive for a pump at this level. The stainless steel casing and aluminum motor housing handle outdoor exposure well, and the iron handle makes it portable between lawns, gardens and farm tanks.
Priming is the recurring complaint. It is not self-priming, the fill port is small enough that a socket wrench is genuinely useful, and several owners report the instructions understate how much effort it takes to clear an air lock. A handful of reports also describe seized motors inside the warranty period.
Irrigation or household
If your demand is sprinklers, a fountain, a pond fill or a livestock watering tank, the flow numbers here are the strongest in the roundup and the two-year warranty backs them up. If you want drinking water pressure for a house, this is the wrong tool, because it needs manual filling before every start and has no automatic pressure switch.
It can work as a booster with a regulator added, which is worth considering if you already have a good pump upstream.
Budget time for the fill port
Set aside a socket wrench and a few minutes per start. Owners who built that into their routine rate the pump highly, and those who did not are the source of most of the negative feedback. Ten minutes of habit removes most of the complaints we found.

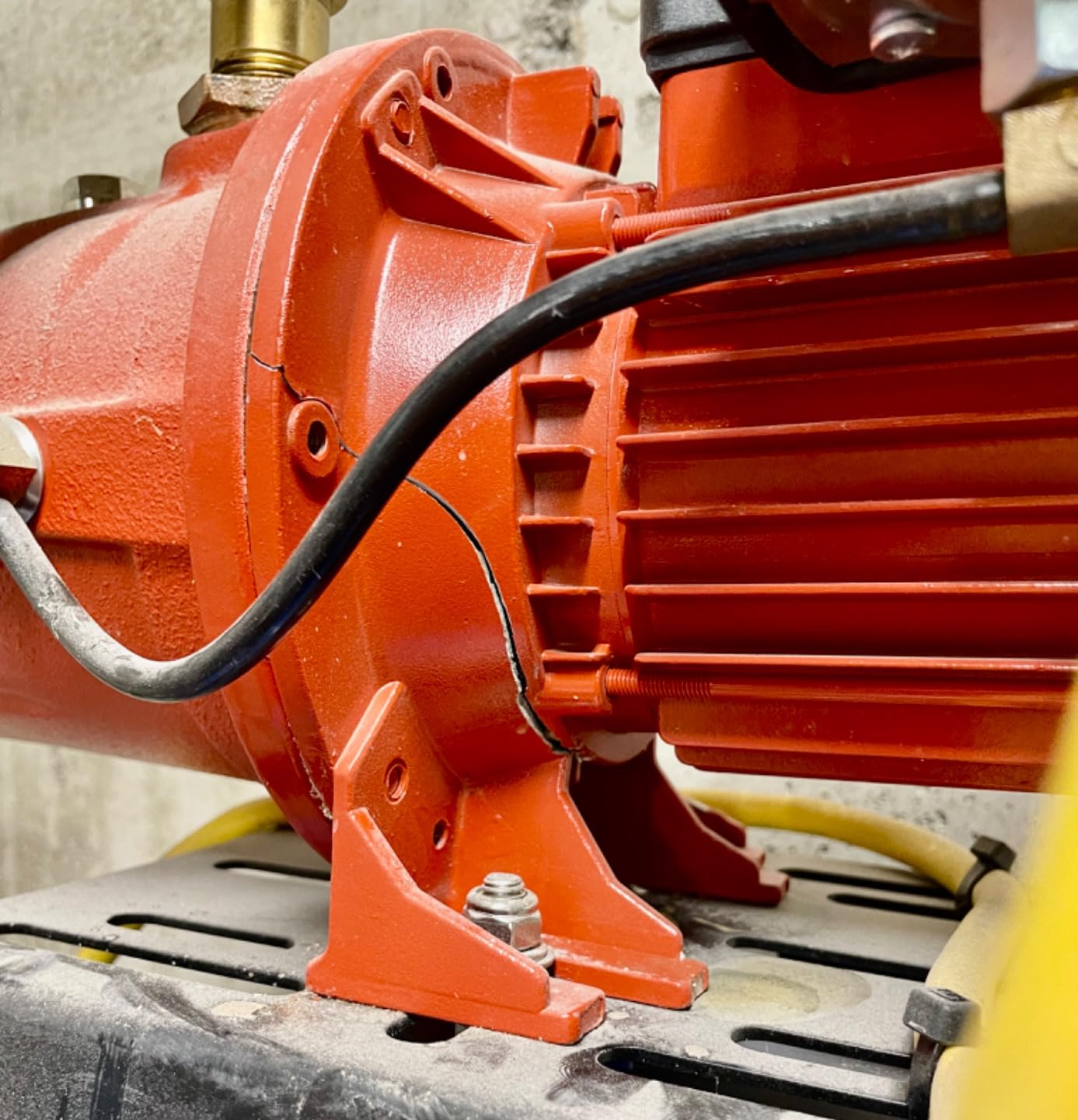

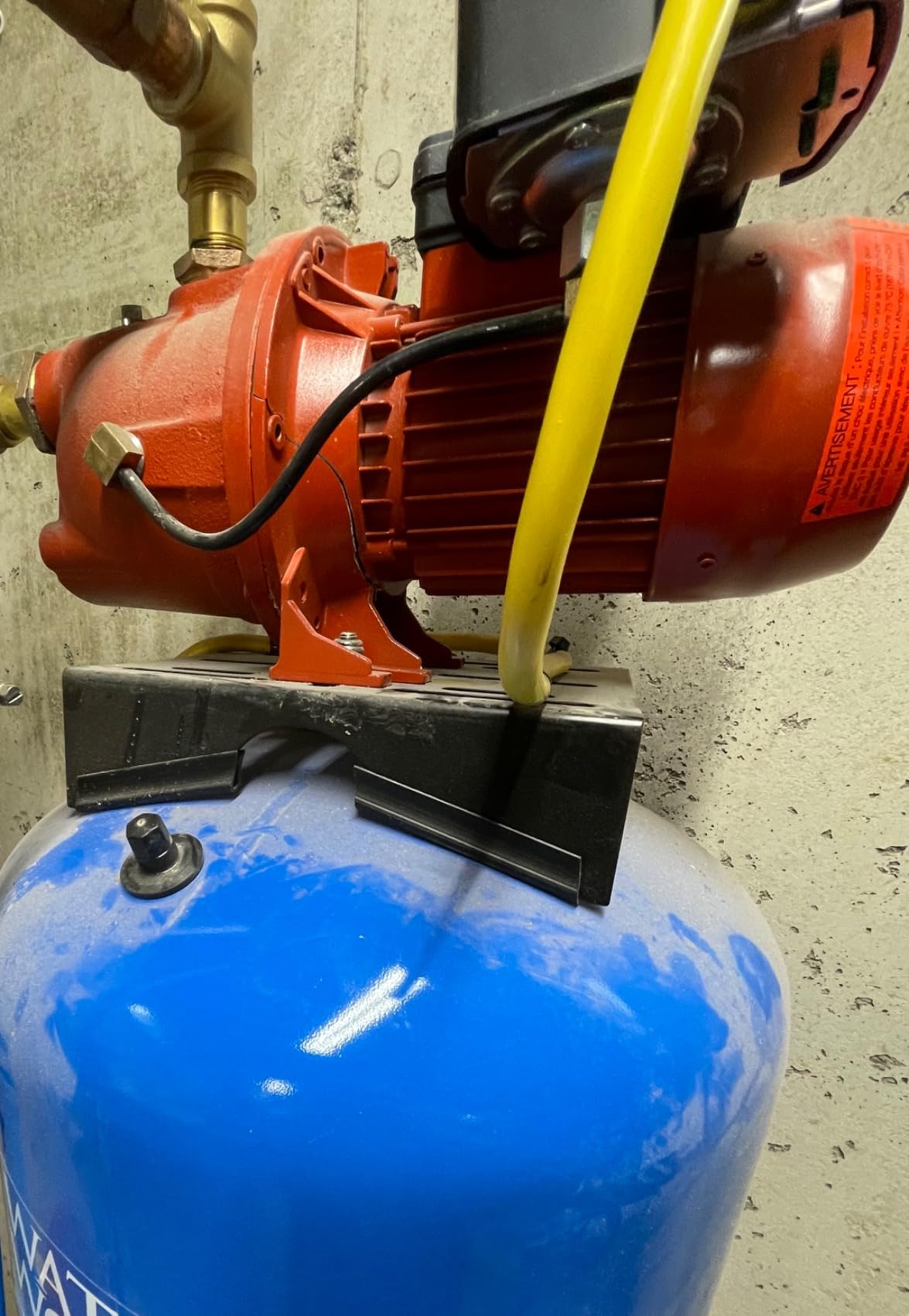

9. Red Lion RL-SWJ50 1/2 HP - Best for Rainwater Catchment Systems
Red Lion RL-SWJ50, 115/230V, 1/2 HP, 12.6 GPM Shallow Well Jet Pump
1/2 HP cast iron jet pump
12.6 GPM at 30 PSI
21.2 lb
64 PSI maximum
Pros
- Quiet operation holding 50 PSI with a 35 PSI cut-in
- Compact 21.2 lb cast iron body for the flow rating
- Sealed electrical housing protects the capacitor and selector
- One owner ran it dry for an hour and it still started
- 30/50 switch included and set from the factory
Cons
- 13 percent of reviews are 1 star with seal leak and seized motor reports
- Not self-priming on first start
- Rust related seizure after long dry storage
The RL-SWJ50 sits between the cottage unit and the 1 HP models on flow, at 12.6 GPM at 30 PSI from a 1/2 HP motor. That makes it the common choice for small homes, cottages and rainwater catchment systems where the tank is above ground and the pump runs intermittently.
Quietness is the standout. Owners describe a 50 PSI hold with a 35 PSI cut-in and little noise, and the sealed electrical housing keeps the capacitor and voltage selector away from corrosion in a damp pump house. At 21.2 pounds it is one of the easiest cast iron pumps here to move.
Durability reports go both ways. One owner ran this pump dry for an extended period and it started immediately afterward, which is not the usual outcome. Other reviews report seal leaks and seized motors, and 13 percent are 1 star.
There is also a storage warning worth heeding. A unit left for a long period in a dry cabin showed rust-related seizure, so if your pump house is unheated and your well is seasonal, drain it properly before winter.
Why catchment systems suit this pump
A rainwater tank is a finite, low-pressure source, which means you want a pump that starts reliably on a low head and stops quietly when the tank empties. The factory 30/50 switch and the sealed electronics both serve that duty well, and the compact cast iron body fits a small shed.
Just remember it is not self-priming on the first start, and foot valve and check valve quality directly affect whether it primes at all.
Winterizing a seasonal installation
If your pump house is unheated, drain the casing before the first freeze and leave the pressure tank isolated rather than drained. A drain port makes this quick on some models, so ask your installer whether this unit needs a manual drain or an external one.
10. Myers HJ100S 1 HP - Best Raw Output at 27.5 GPM
Myers HJ100S Shallow Well Jet Pump 1 HP - Body Construction: Cast Iron
1 HP machined cast iron jet pump
27.5 GPM rated flow
32.9 lb
ceramic face mechanical seal
Pros
- Highest rated flow here at 27.5 GPM
- Users report 20 GPM at 40 PSI from a 25 ft well
- Lighter than the other 1 HP cast iron pumps at 32.9 lb
- Primes easily compared with Sta-Rite units
- Adjustable on and off switch with 20 PSI differential
Cons
- Smallest review base here at 81 ratings

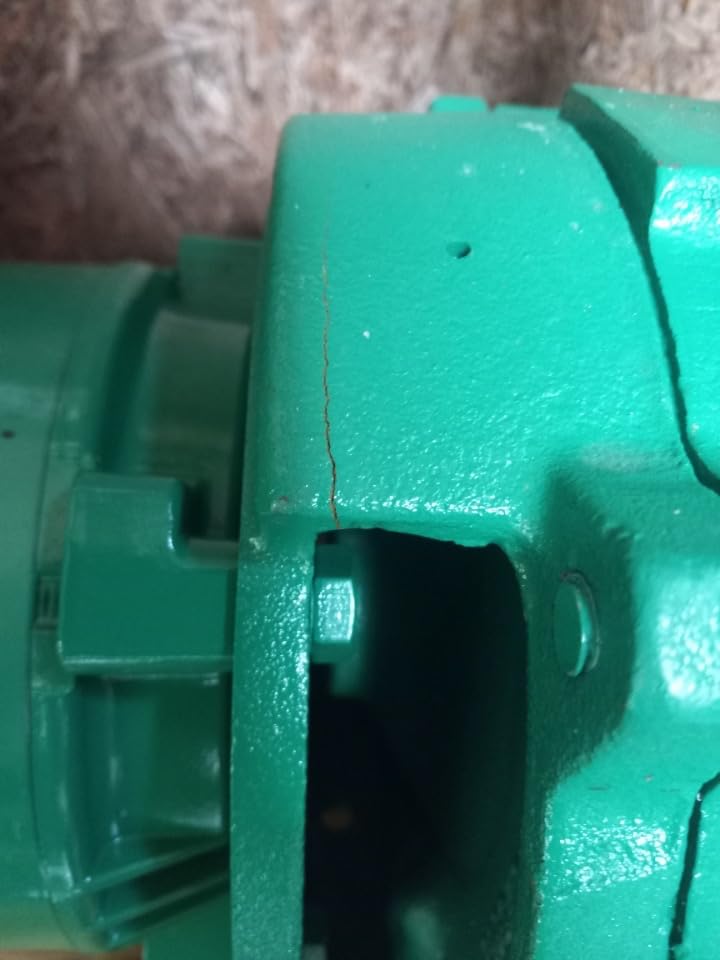

- One report of a pump arriving repainted with interior rust
- Service experience and support can be difficult
The HJ100S has the highest rated flow on this list at 27.5 GPM, and owners report pulling 20 GPM at 40 PSI from a 25 foot well, which is a realistic working number rather than a shutoff figure. If raw output is what you are buying, this is the one.
The body is a machined heavy-duty cast iron with precision-molded impellers and a diffuser for smooth running, a double ball bearing motor with a voltage selection device, and a mechanical shaft seal with a ceramic face and stainless steel components. At 32.9 pounds it is lighter than the other 1 HP cast iron units here.
Two things stand out in practice. Owners single out easy priming compared with Sta-Rite units, and several describe the pump as surprisingly quiet for its output when properly mounted.
The pressure switch has adjustable on and off settings with a 20 PSI differential, which gives you more control over cycling behaviour than the factory-set switches on most of the other pumps.
Buying this without surprises

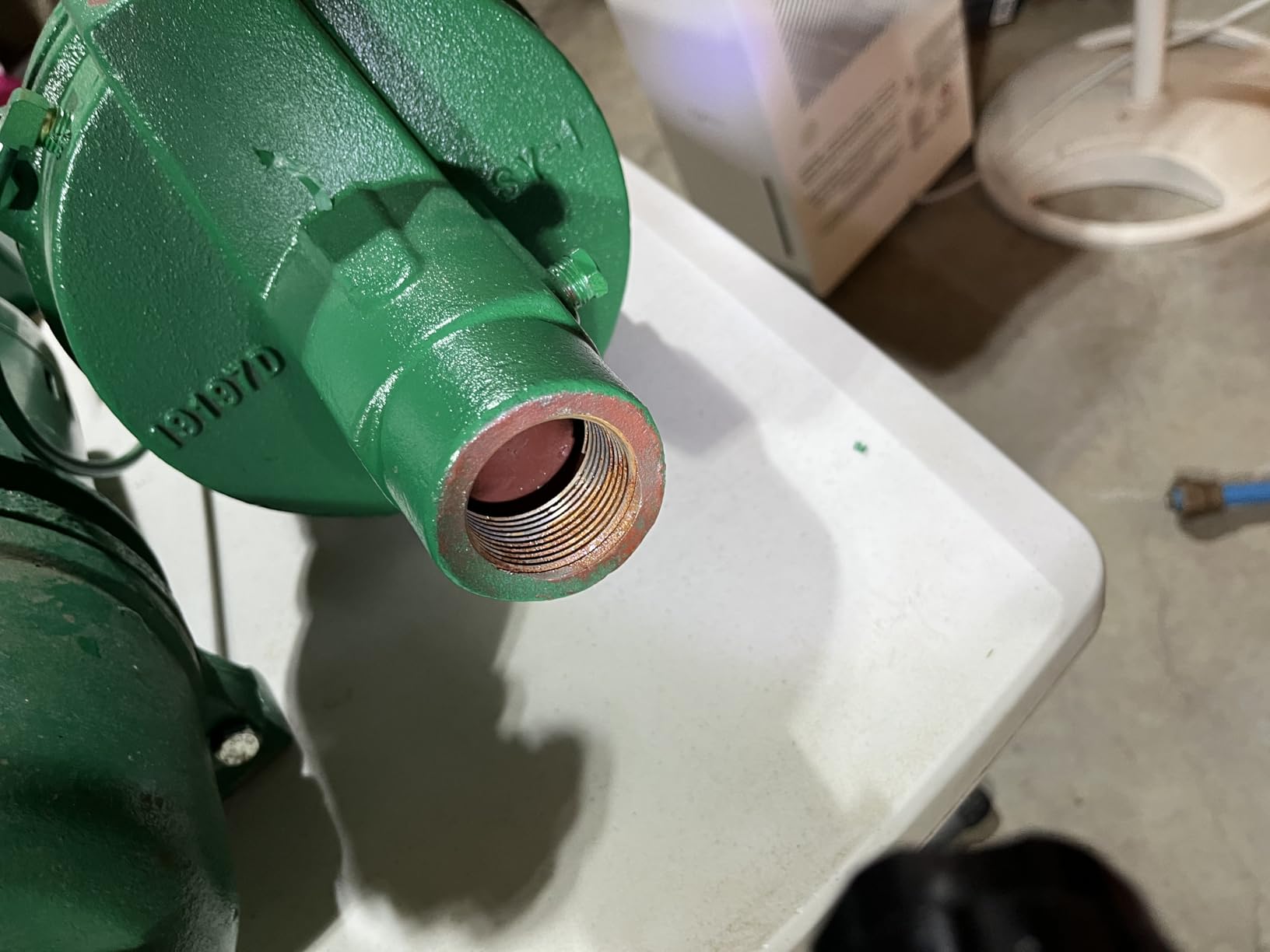

The rating is 4.0 on 81 reviews, the smallest base in the roundup, so treat the owner reports as encouraging rather than proven at scale. Inspect the pump on arrival. There is a documented report of a pump arriving cosmetically repainted with rust inside the orifices and only about 30 PSI output.
After-sales support is the other weak point reported in the reviews. If you value dealer support more than marketplace convenience, factor that into your choice.
Real world numbers
Rated 27.5 GPM is a maximum at low head. The owner reports of 20 GPM at 40 PSI are the ones to plan around, because that is closer to what a household with several fixtures running at once will actually see from a 25 foot well.
How to Choose a Shallow Well Pump?
Four numbers decide your purchase: static water level, required flow in gallons per hour, total dynamic head, and the capacity of your pressure tank. Get all four before you look at any product page.
Measure your depth to water first
Drop a weighted tape into the well and measure to the water when the pump is off and the well has been resting. That static level is the single most important spec, and the number forum users most often regret not knowing before buying.
Above roughly 25 to 26 feet a conventional shallow well jet pump will lose prime. Below that, you have room to spare and can prioritise flow. If you are anywhere near the ceiling, buy a convertible pump with an ejector kit.
Size it with total dynamic head
Total dynamic head is the vertical distance the pump must push water up and over, including friction loss in the pipe. Start with your static water level, then add the height the water needs to reach, then add pipe friction as a margin.
A well 20 feet deep feeding a shower 15 feet above the pump is roughly 35 feet of static head before any friction. Add 20 to 30 percent for pipe losses and that is the figure you should match a pump curve against, not the 25 foot suction lift figure printed on the box.
Jet pump versus submersible pump
Submersible pumps push water up from below the water line rather than sucking it. They are more efficient, quieter and give higher flow at the same head, but they cost more and you have to pull the pipe apart to service them.
Jet pumps are easier to install and service because everything sits at the surface, and they handle sand and sediment better. Their real weaknesses are energy use and prime recovery after a power outage. As one well service page puts it, submersibles suit most applications while jet pumps only make sense for very shallow wells under 25 feet.
Pressure tank size and short cycling
The pressure tank is what stops your pump from starting and stopping every few seconds. Short cycling is the most cited cause of premature pump and switch failure in plumbing forums, and it shows up when the tank is too small for the household.
Forum advice is blunt about it: get at least a 20 gallon pressure tank, and never work a smaller pump and a smaller tank hard to get output. If the well water also needs treatment, plan that tank alongside a UV sterilizer if disinfection is part of your setup.
Horsepower and household demand
Half HP covers a cottage or a single bathroom. Three-quarter HP fits a family of four. One HP is for large homes, farm duty, or a well deep enough that you need the extra head.
More horsepower does not create more water, it creates more pressure and more flow at depth. An undersized pump on a deep well will run constantly and still disappoint you.
Certifications, materials and install checklist
For drinking water supply, look for NSF-61 on the wetted parts. UL or CSA listing matters for electrical safety. Cast iron bodies with a stainless steel shaft last longer than plastic housings on abrasive water, and thermal overload plus dry-run protection are worth paying for.
Before first start, confirm the foot valve and check valve are in place, the drop pipe is airtight, the pump is primed, the voltage matches the supply, and the pressure tank is plumbed as a header with no check valve between pump and tank. Then winterize if the pump house is unheated.
Frequently Asked Questions
What is the best shallow well pump for home use?
The Acquaer CJE100-1 is our best overall pick because it works as a shallow well jet pump down to 25 feet and converts to a two pipe setup rated to 90 feet with the included ejector kit. It is a 1 HP cast iron pump rated at 25.9 GPM with a dual 115V/230V motor and a 20 to 40 PSI automatic pressure switch.
What size pump do I need for a shallow well?
Match the pump to three inputs. First, measure your static water level, since anything over about 25 feet rules out a standard shallow well jet pump. Second, estimate demand, where a cottage needs 1/2 HP, a family of four needs 3/4 HP, and a large home or irrigation needs 1 HP. Third, add vertical lift plus pipe friction to get total dynamic head, then pick a pump that delivers your required flow at that head.
What is the maximum depth a shallow well pump can pump?
A standard shallow well jet pump lifts water from a well about 25 to 26 feet deep. That limit comes from atmospheric pressure, not the pump itself. Past that ceiling the pump will not hold prime. The workaround is a convertible jet pump with an ejector kit, such as the Acquaer CJE100-1, which extends the usable depth to about 90 feet in a two pipe configuration.
Are submersible well pumps better than jet pumps?
Submersible pumps are usually better on efficiency, noise and flow at a given head, because the pump sits in the water and pushes rather than sucks. Jet pumps win on price, serviceability and tolerance of sandy water, since every moving part stays at the surface. For a genuinely shallow well under 25 feet, either works. For most deeper installs, submersible is the stronger choice.
What are the disadvantages of jet pumps?
Jet pumps use more electricity than a submersible pump moving the same amount of water. They depend on a maintained prime, so they can fail to re-prime after a power outage or a leak. A jet pump that loses prime and runs dry will burn out its motor quickly. They are also physically heavier, since the motor, pump body and pressure switch all sit at the surface.
Which is better for a shallow well, a 1/2 hp or 3/4 hp pump?
Choose 1/2 HP for a cottage, a cabin or a single-bath home, and 3/4 HP for a family of four with more than one bathroom. Depth matters as much as household size: at 20 feet of lift a 1/2 HP jet pump has comfortable margin, while at 25 feet the same pump has almost none. The Pentair STA-Rite SND-L is a well-reviewed 3/4 HP option with 11.4 GPM rated flow.
How do I prime a shallow well pump?
Fill the pump casing and the drop pipe completely with water, making sure no air is trapped, then open the discharge or leave a hose run open so the pump has somewhere to push. Close the discharge, restore power and the pump should prime within a minute or two. If it does not, the usual culprits are a leaking foot valve, a stuck check valve or an air lock in the drop pipe.
Which Shallow Well Pump Should You Buy in 2026?
If your static water level is under 25 feet and you are not sure how deep the well will ever get, the Acquaer CJE100-1 is the pick from this roundup of the best well pumps for shallow wells. It is the only unit here that converts from a single pipe shallow well to a two pipe deep well configuration, and its review base is by far the largest we could check.
Buy the Goulds J5S if you want the strongest pressure on cast iron construction at half horsepower, the Pentair SND-L if you want the highest rating in the group, or the Aquastrong PGA if your only job is moving irrigation water and you care about flow per dollar. Whatever you choose, measure your static water level first and pair it with a 20 gallon tank or larger so the pump never short cycles.
