A dial bore gauge is a precision inside-diameter tool that measures cylinder bore diameter, main bearing and big-end bearing clearance, taper, and out-of-round. It does not read an absolute size the way a caliper does. It compares the bore against a zero you set with an outside micrometer, which is exactly why a cheap gauge with a 0.001 inch dial can still hand you a wrong number if you zero it against the wrong journal.
We put ten of the strongest bore gauges for engine rebuilding through their paces, weighing published accuracy in absolute units, bore range coverage, the number of anvils in the case, self-centering behavior, and measuring depth. The Beslands 6 Pc Telescoping Gage Set takes our Editor's Choice for raw coverage and repeatability, the Fowler 52-646-300-0 earns Best Value as the deep-reach dial workhorse, and the HFS 2-6 inch Dial Bore Gauge Set is the BUDGET PICK that punches above its tier.
If this is your first teardown, budget for the supporting gear too. Our guides to the best engine stands for rebuilding and the best engine hoists for engine removal cover the heavy work that happens long before you pick up a gauge. A bore gauge measures; it does not lift.
Top 3 Picks for Engine Rebuilding (October 2026)
Beslands 6 Pc Telescoping Set
- 5/16 inch to 6 inch range
- Six gauges plus vinyl case
- Ground hardened steel contact points
Fowler 52-646-300-0 Dial Gage
- 2 inch to 6 inch range
- 0.0005 inch graduations
- 9.5 inch measuring depth
HFS 2-6 inch Dial Bore Gauge Set
- 12 interchangeable anvils
- 0.0005 inch graduations
- 6 inch measuring depth
All 10 Bore Gauges Compared Side by Side
Every gauge below lists its range and resolution in absolute units, because vague precision claims are worthless when you are chasing a bearing clearance that sits in the low thousandths. Sort this table by the column that matches your engine, not by brand.
| Product | Specs | Action |
|---|---|---|
| Beslands 6 Pc Telescoping Gage Set |
|
Check Latest Price |
| Fowler 52-646-300-0 Dial Bore Gage |
|
Check Latest Price |
 Neoteck Digital Bore Gauge Set |
|
Check Latest Price |
| HFS 2-6 inch Dial Bore Gauge Set |
|
Check Latest Price |
 Accusize 6-Piece Telescoping Gage Set |
|
Check Latest Price |
 QWORK Telescopic Gauge Set |
|
Check Latest Price |
 HDLNKAK Dial Bore Gauge Set |
|
Check Latest Price |
 Mitutoyo 155-903 Telescoping Set |
|
Check Latest Price |
 Accusize Dial Bore Gauge Set 1.4-6 in |
|
Check Latest Price |

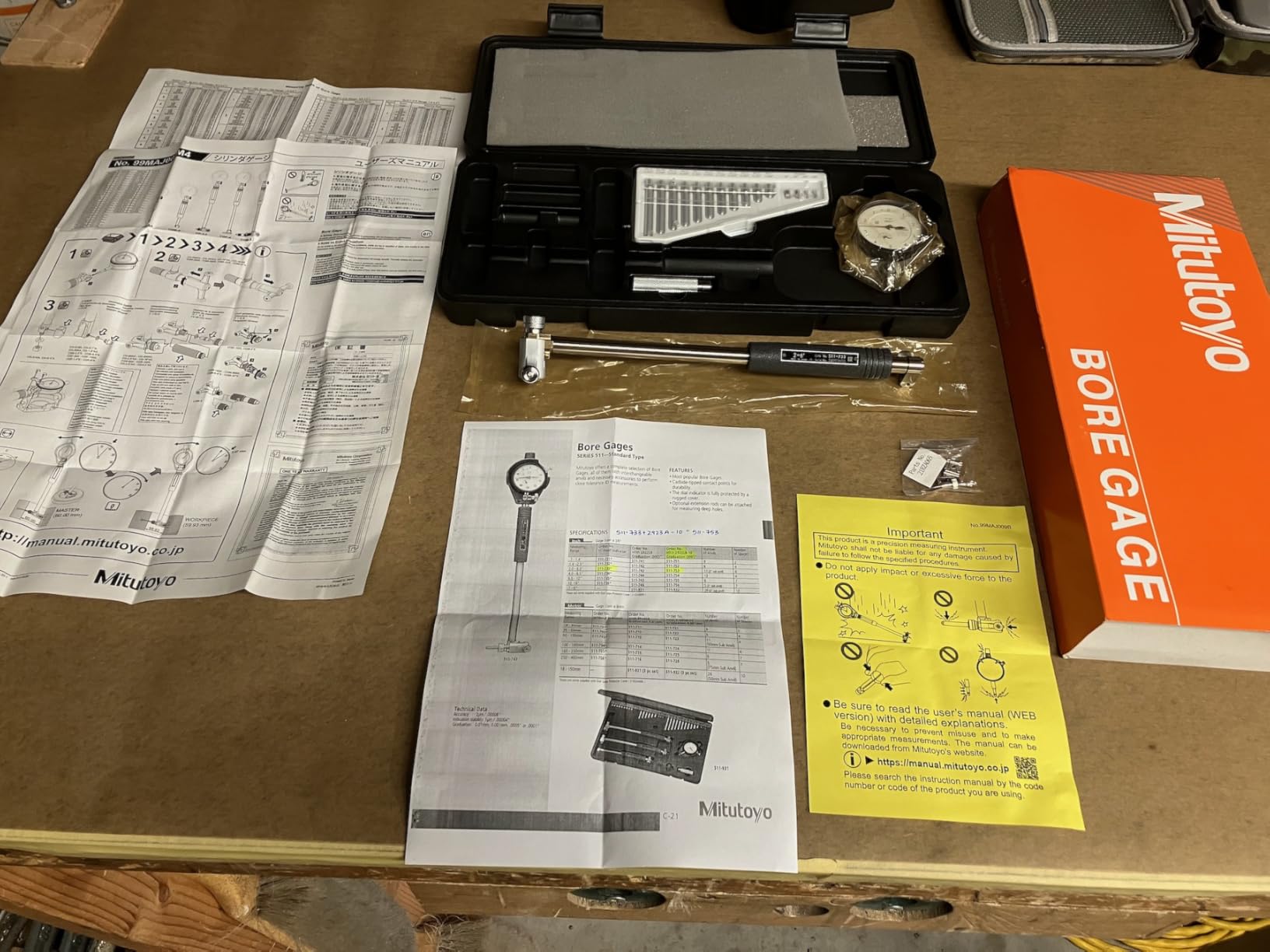

 Mitutoyo 511-753 Dial Bore Gage |
|
Check Latest Price |

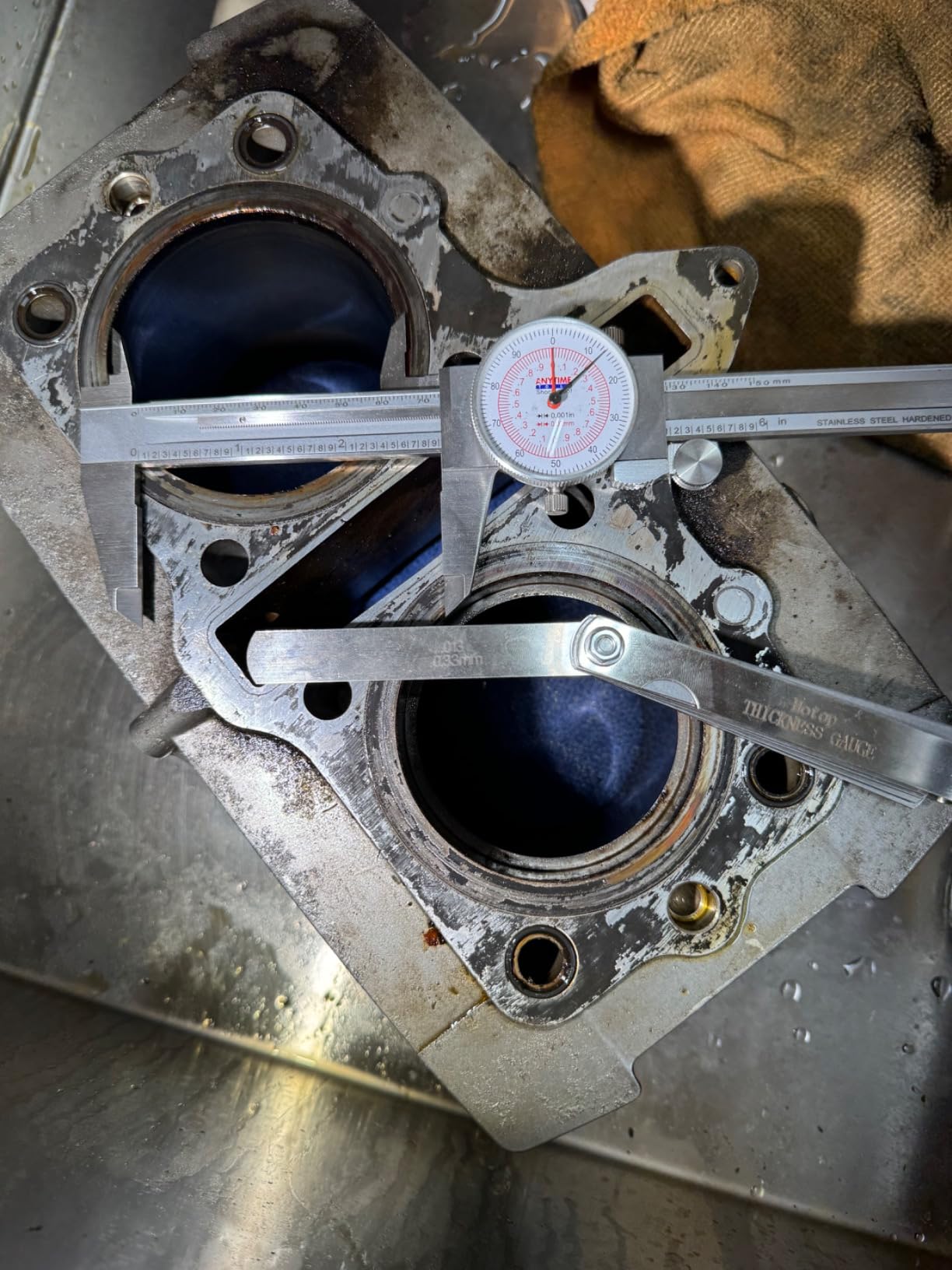

1. Beslands 6 Pc Telescoping Gage Set - Widest Bore Coverage for the Money Spent
Beslands 6 Pc Telescoping Gage Set, 5/16" - 6" Range, T-Bore Hole Gauges w/Pouch, High Precision Telescopic Bore Gauge T-Gage Set (5/16" to 6")
5/16 inch to 6 inch range
6 gauges, stainless steel
Hardened ground contact points
Pros
- Six gauges covering 5/16 inch to 6 inch
- Hardened ground contact points give repeatable readings
- Useful for cylinder bore and uneven wear checks
- Good backup or travel tool when a dial gauge is unavailable
Cons
- Reading must be transferred to a micrometer or calipers
- Some units described as notchy and prone to jamming
- Vinyl pouch cracks with use
The Beslands set covers 5/16 inch to 6 inch, which is 8mm to 150mm, across six telescoping gauges in a single vinyl case. That single fact does more for a home builder than any accuracy spec, because a 2 inch floor will not touch a motorcycle cylinder and a 2 inch minimum is exactly where a lot of rebuilds begin.
What you do with a telescoping gauge is a two-step transfer. You expand the plunger in the bore, lock it with the knurled knob, pull it out, and then read the collapsed length with a micrometer or calipers. The construction is stainless steel with hardened tool steel contact points that are fine ground within the final measuring radius, which is the detail that decides whether the reading repeats.
Owners rate this set 4.6 across 917 ratings, and the praise is consistent: precise, easy to use, good value. The common thread in that feedback is that the gauges do their job for general engine and woodworking bore checks, including checking cylinder bore diameter and uneven wear.
The honest limitation appears in almost every critical review. A telescoping gauge produces no number of its own, so its accuracy is capped by whatever micrometer or calipers you transfer the reading to. If you own a 0.0001 inch micrometer set, this set will reflect that precision. If you do not, it will not create it.
Who this set suits
This is the pick for a first rebuild, a multi-engine shop, or anyone measuring a mixed fleet of small-bore and automotive cylinders. Six sizes from 5/16 inch to 1/2 inch up through 3-1/2 inch to 6 inch means you cover valve guides, small-block bores, and large bores from one case.
It also works as a cross-check tool. Many builders keep a telescoping set alongside a dial gauge specifically to confirm a suspicious dial reading, because a transfer measurement and a differential measurement failing in different ways tells you the fault lies in the setup rather than the bore.
Where it falls short
If your work lives entirely inside the 2 inch to 6 inch band and you need tenth-of-a-thousandth readings, this is the wrong instrument. A subset of owners reports that the telescoping action can be rough or jam, and the supplied vinyl pouch is not a long-term home for ground steel parts.
Measure it as a companion, not as a replacement. For clearance work on a fresh build, use a dial gauge zeroed on a micrometer. For quick diameter and wear checks across odd sizes, this set does the job at a fraction of the fuss.

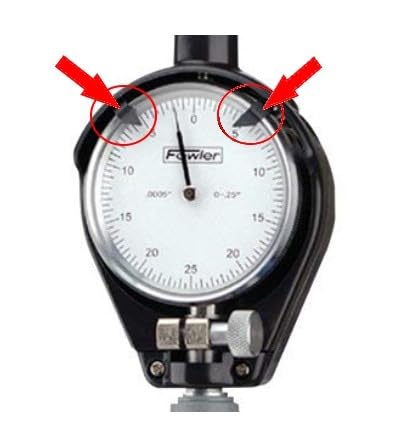

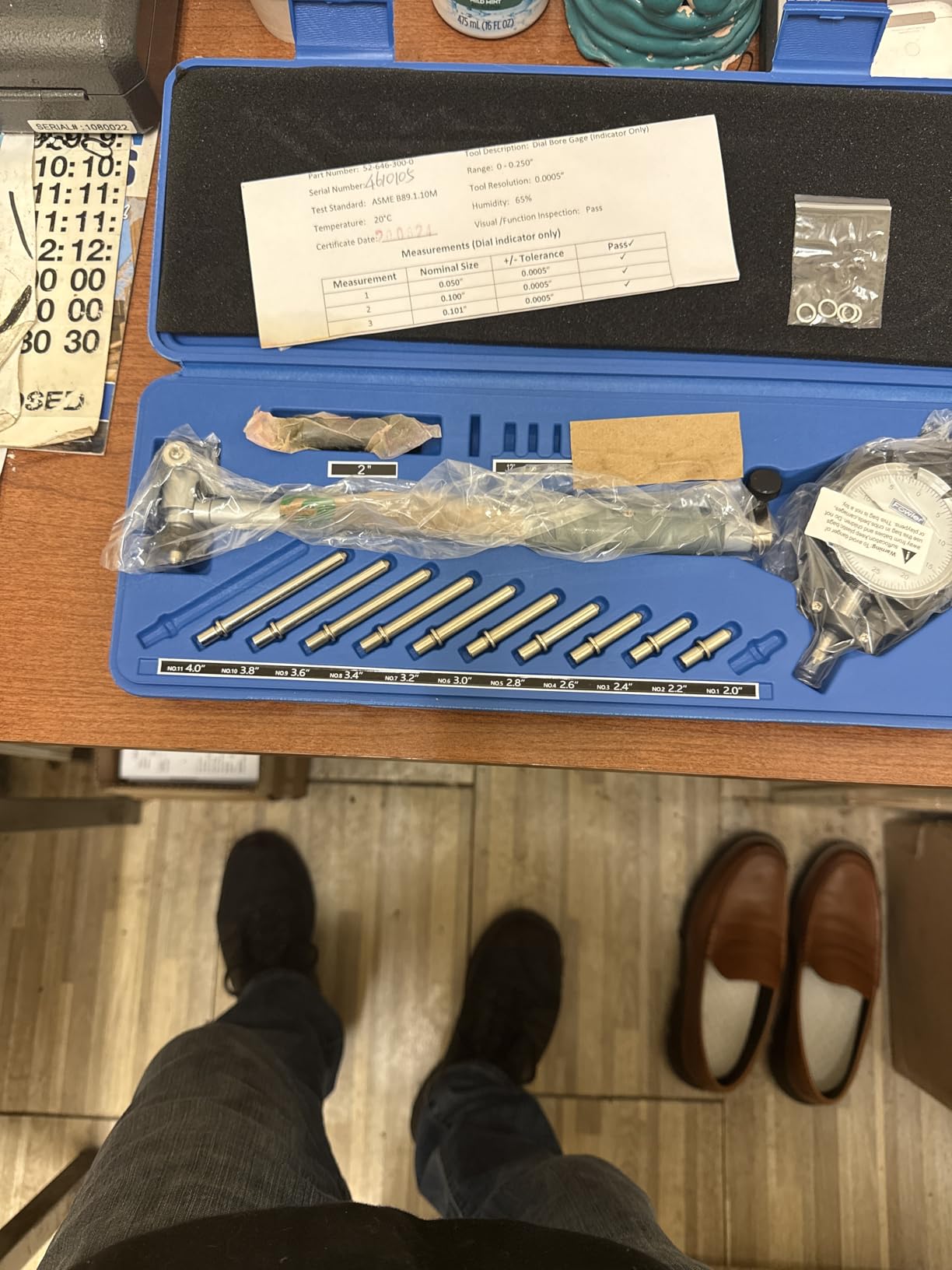

2. Fowler 52-646-300-0 Cylinder Dial Bore Gage - The Deep-Reach Workhorse
Fowler 52-646-300-0, Cylinder Dial Bore Gage with 6" Measuring Range
2 inch to 6 inch range
0.0005 inch graduations
9.5 inch measuring depth
Pros
- Long 9.5 inch measuring depth for deep bores
- Carbide-tipped contacts resist wear
- Self-centering design speeds repeat measurements
- Includes fitted case and 2 inch extension
Cons
- You need an external micrometer to zero the dial
- Costs more than entry-level 2-6 inch kits
The Fowler 52-646-300-0 has been in the hands of shops and racers for years, and it shows in the details that matter on a long block. The 9.5 inch measuring depth is the headline number here, and it is the reason this gauge reaches the bottom of a deep cylinder or down a main bearing tunnel where a 6 inch gauge stops short.
The dial reads in 0.0005 inch graduations across a 2 inch to 6 inch range. Contact is a two-point system with carbide-tipped anvil contact points, and the whole head is self-centering and adjustable, so you can set it to the bore and take repeat readings without re-zeroing every time the head orientation changes.
Buyers consistently report accurate, repeatable readings and solid build, with the deep reach singled out for engine work. It carries 4.4 from 575 ratings, and the complaints are about cost and the need for an external micrometer to zero the dial. Both are true of nearly every quality bore gauge on this list.
On practical machinist and garage journal forums, Fowler is regularly named as the value consensus pick, with the 52 646 300 and its siblings cited as good starting points. That is not marketing talk from us. It is the brand most often recommended when someone asks what to buy without naming a budget.
Who this gauge suits
This is the gauge for a home rebuild where you want one tool that handles bores, main bearing tunnels, and rod journals without a second purchase. The 2 inch extension in the box gets you into geometry a bare head cannot reach, and the fitted case means it survives a crowded bench.
It also suits builders who work big blocks. Carbide contacts hold up against the abrasive environment of a deburred or freshly honed block, and the self-centering head reduces the number of times you have to reposition and re-read.
Where it falls short
The 2 inch floor is the hard limit. Small-bore motorcycle cylinders, some four-stroke dirt bike bores, and small diesel liners sit below it, and extending below 2 inch means buying additional anvils or a different instrument entirely.
At 0.0005 inch graduations you are not reading 0.0001 inch. That is adequate for typical bearing clearance work where the target is roughly 0.002 to 0.0025 inch, but if you are chasing tolerance stack-ups at the tenth-of-a-thousandth level, look at the Accusize or Mitutoyo dial sets further down.

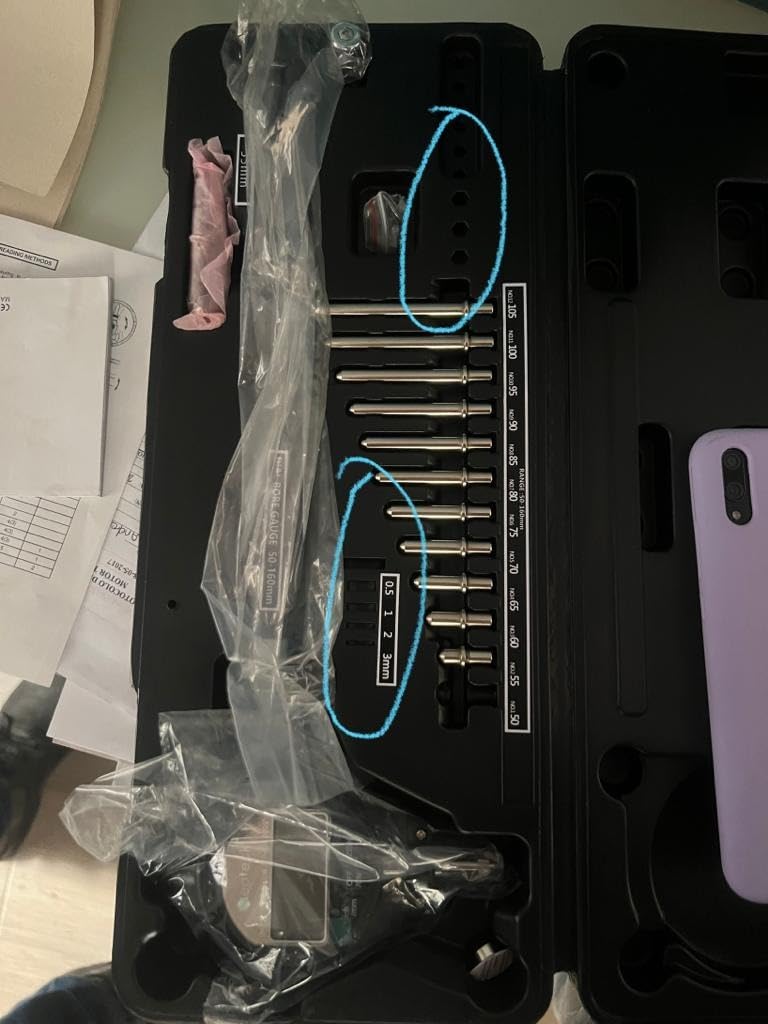

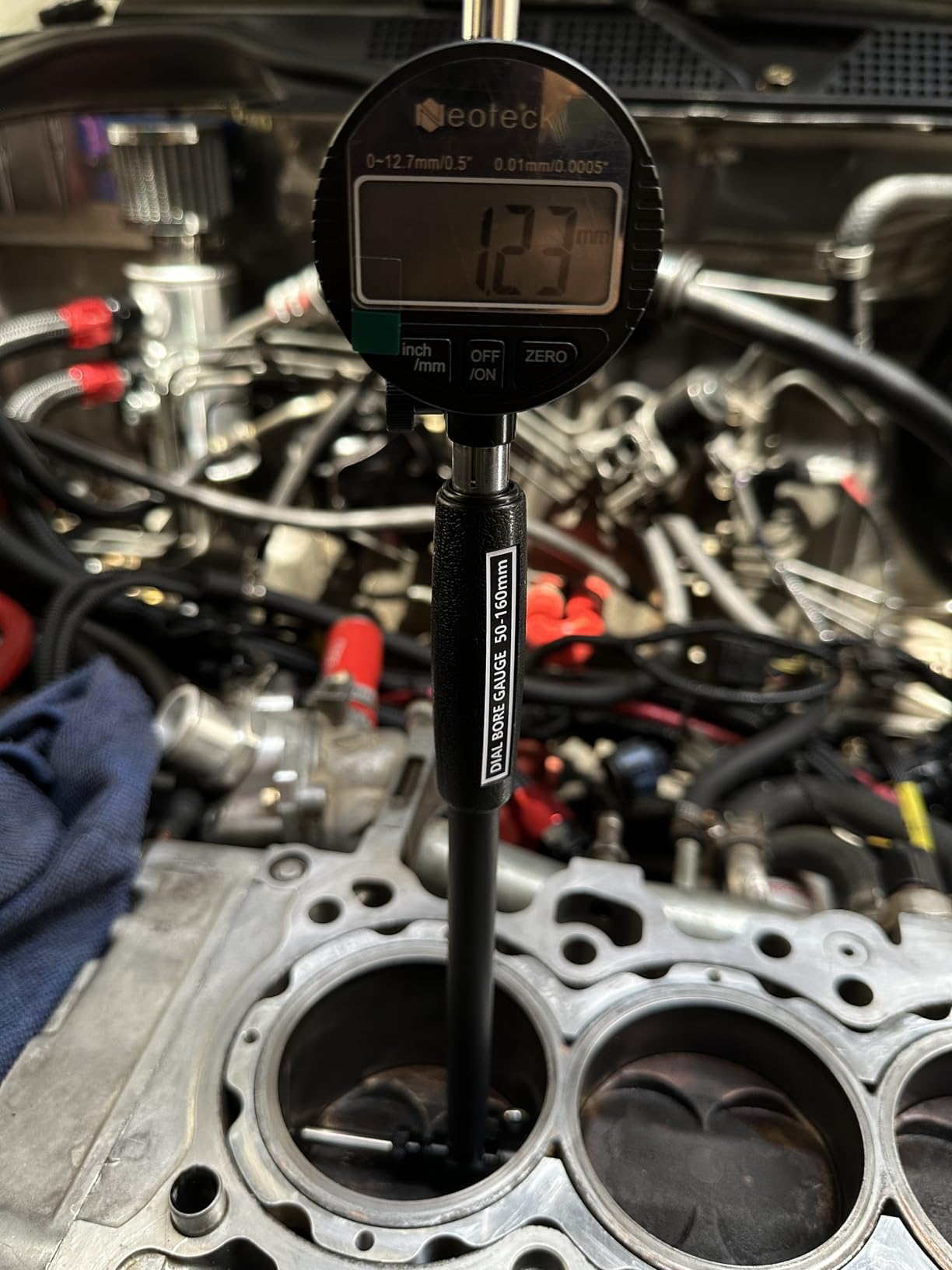

3. Neoteck Digital Bore Gauge Set - A Digital Readout You Can Work Without Squinting
Neoteck Bore Gauge Set Digital Indicator Dial Bore Gauge (2-6"/0.0005")
2-6 inch (50-160mm) range
Digital 0.0005 inch indicator
12 gauge heads, 150mm depth
Pros
- Digital readout removes dial interpretation
- Twelve interchangeable heads from 50 to 105mm
- Complete kit with rod
- accessories and case
- All-metal clamping device holds the head steady
Cons
- Must be manually zeroed before each session
- Digital head adds weight and bulk
- Lowest average rating in this group
Every other dial gauge on this list makes you read a needle. The Neoteck set replaces that with a digital indicator covering 0 to 0.5 inch of travel at 0.0005 inch resolution, and that single change removes the most common beginner error in bore measurement, which is misreading a needle tilted away from you at the bottom of a bore.
The range is 2-6 inch, listed as 50-160mm, with 5.9 inch (150mm) of measuring depth. Twelve gauge heads come in the case, running 50mm pre-installed plus 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, and 105mm, so the head swaps cover most metric and imperial bores you will meet.
The hardware is built for a shop rather than a drawer. You get an all-metal clamping device with an insulated grip, a sealed gauge head, an aluminum housing with a glass mirror cover, a measuring rod, accessories, and a storage case, plus the LR44 battery it needs.
Two-point contact detects ovality and taper, and the self-centering design handles positioning. One CR44-style battery cell powers the indicator, and the whole assembly tips the scales at 2.24 pounds in a package measuring 15.51 by 6.26 by 2.72 inches.
Who this set suits
Buy this if you wear glasses, work in poor light, or simply want a number that cannot be misread. Digital output is also easier to log across a teardown, which matters if you are tracking taper at several depths and want a written record rather than a mental average.
The twelve-head spread makes it a strong first digital pick for a builder working in both unit systems. A 50mm head and a 100mm head cover the small four-cylinder and the small-block V8 without a separate purchase.
Where it falls short
The 4.2 average from 551 ratings is the lowest among the well-reviewed sets here, and a notable share of one-star reviews point at setup, zeroing, and consistency compared with analog professional gages. A digital indicator must be manually zeroed before every measuring session, and a knob you must remember to set is a knob you will eventually forget.
At 2.24 pounds with a full case, it is bulky next to a slim analog head. And on a shop bench where analog sets are the norm, the head is the part that fails first, and a failed digital head is a dead gauge until a replacement arrives.

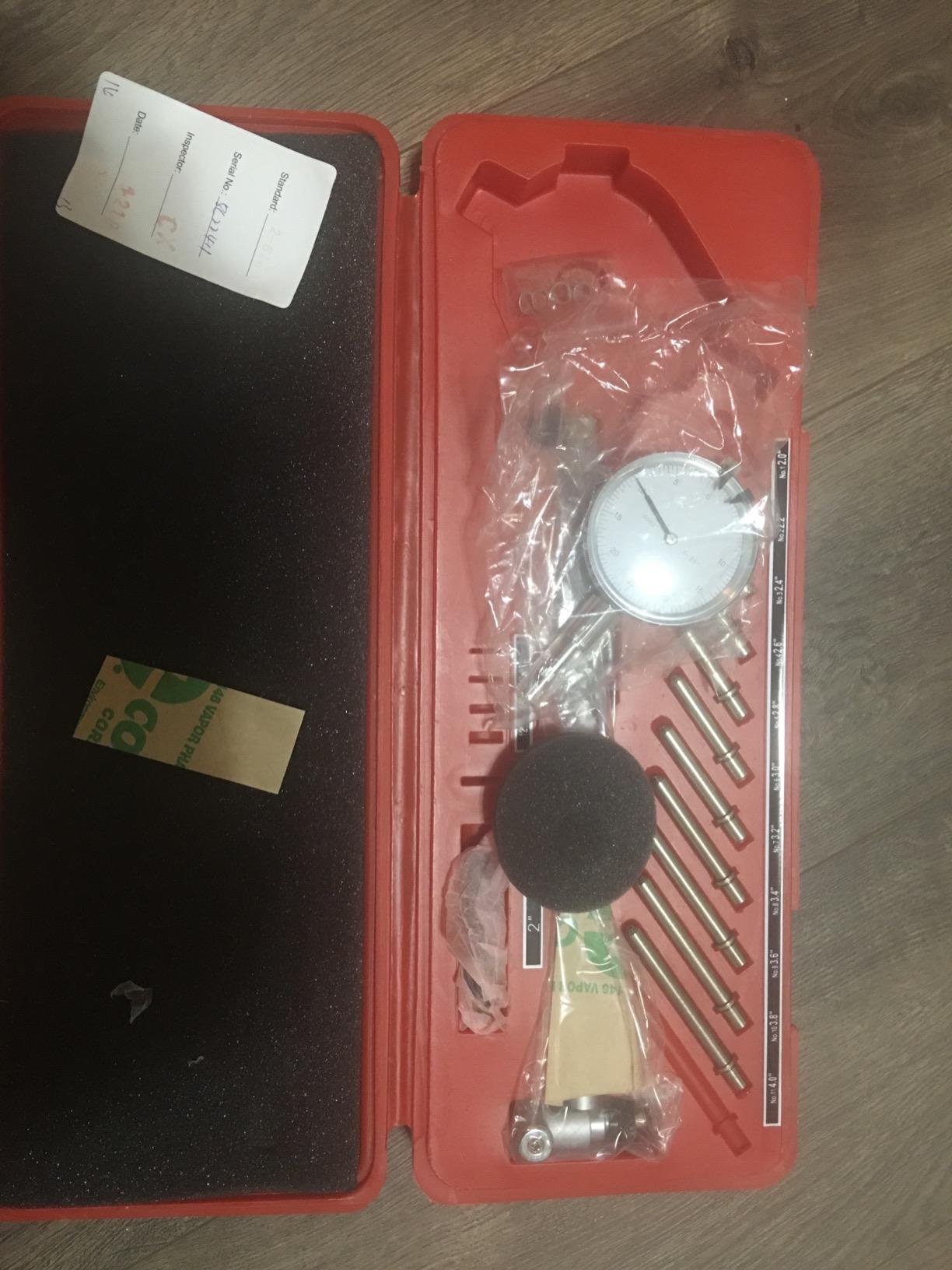

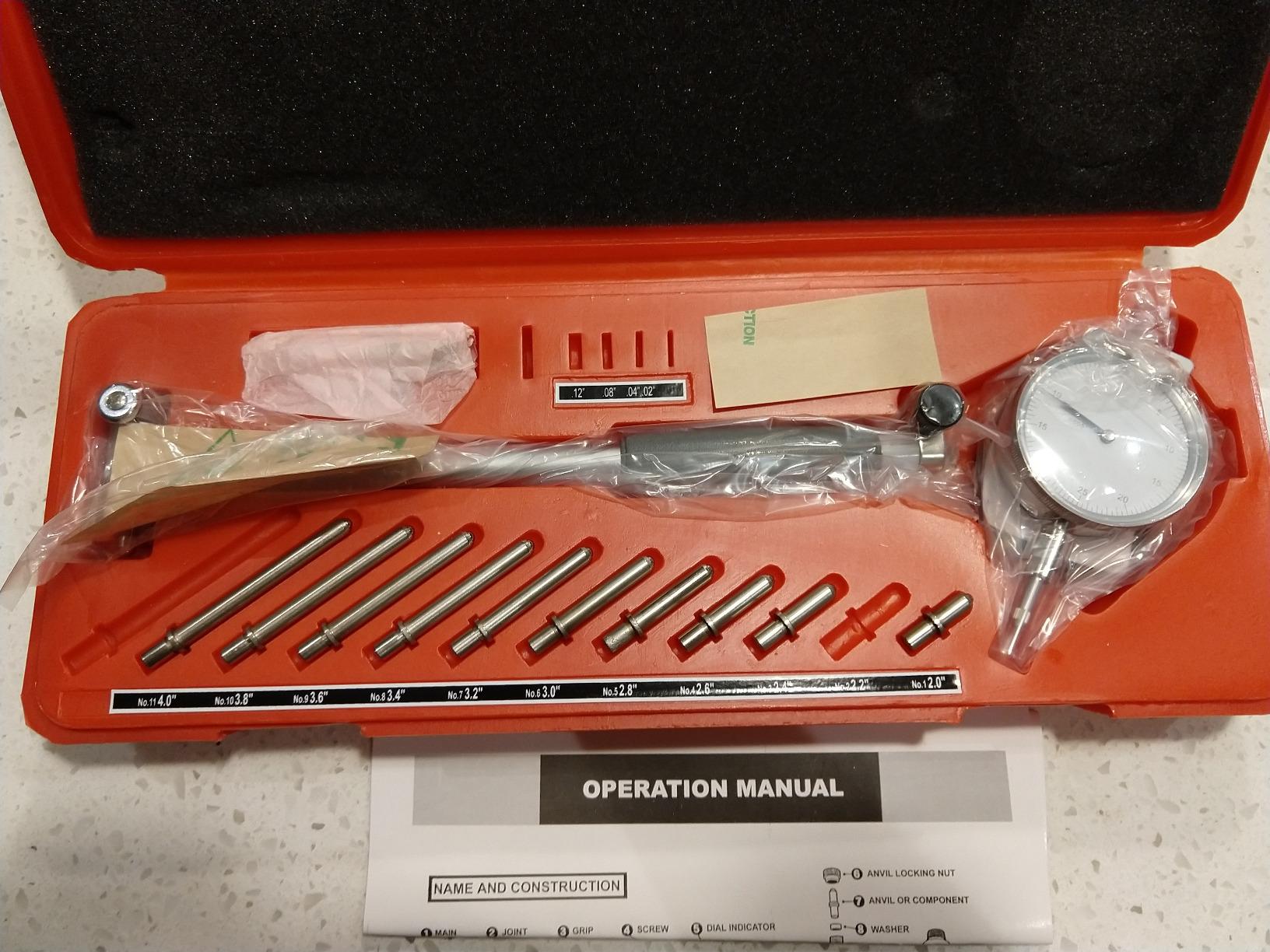

4. HFS 2-6 inch Dial Bore Gauge Set - The Complete Mid-Range Kit
HFS 2-6 inch Dial Bore Gauge Set, 0.0005 inch Graduation, 6 inch Measuring Depth
2-6 inch range
0.0005 inch graduation
12 anvils, 4 spacers, 1 extension
Pros
- Accurate and repeatable once set up
- 12-anvil set covers most automotive bores
- Holds up against named premium brands
- Does not mark the bore wall
Cons
- Supplied gauge lacks the dial guard shown in listing photos
- Snap-on pointers are not usable while measuring
- Spring-loaded sliding section described as loose
The HFS set answers a simple question: what does a complete 2-6 inch kit need to contain? You open this case and find a dial indicator, 12 interchangeable anvils, 4 spacers, 1 extension, and an ABS case, which is more coverage than several higher-tier kits include.
Graduations are 0.0005 inch, and effective measuring depth reaches up to 6 inch (150mm) with the shaft length at 10 inch. Contacts are self-centering and spring-loaded, and the chrome-plated shaft carries an insulated grip so the reading does not change because your hand warmed the metal.
Owners who also own Starrett and Mitutoyo in their toolbox report accurate, repeatable measurements for bearing clearances and taper checks, and specifically call out that it does not mark the bore wall during measurement. That is the 4.5 average from 468 ratings showing up in practice rather than in the spec sheet.
Zero it with an outside micrometer or a setting ring. Neither is included, and that is the single most common piece of confusion for new buyers who open the case expecting a working instrument rather than a component.
Who this kit suits
This is the pick for a builder doing one solid rebuild of a common V8 or four-cylinder with no exotic bore sizes. Twelve anvils plus four spacers cover the range from 2 inch up through 4 inch and beyond, and the extension handles the depths you would otherwise have to guess at.
It also suits anyone who wants to try a dial bore gauge without committing to a premium head. Practice the zeroing and rocking technique on this set, and move up later if the readings demand it.
Where it falls short
Build quality is the gap. A subset of owners describe the spring-loaded sliding section as loose and sloppy, and one reviewer reported readings that differed from an ARP reference. The snap-on pointers are not usable while measuring, and the supplied gauge lacks the black dial guard shown in the listing photos.
Verify it against a known dimension before you trust it on a bearing clearance. A gauge you cannot check is worse than no gauge, because it produces numbers that look authoritative and are not.

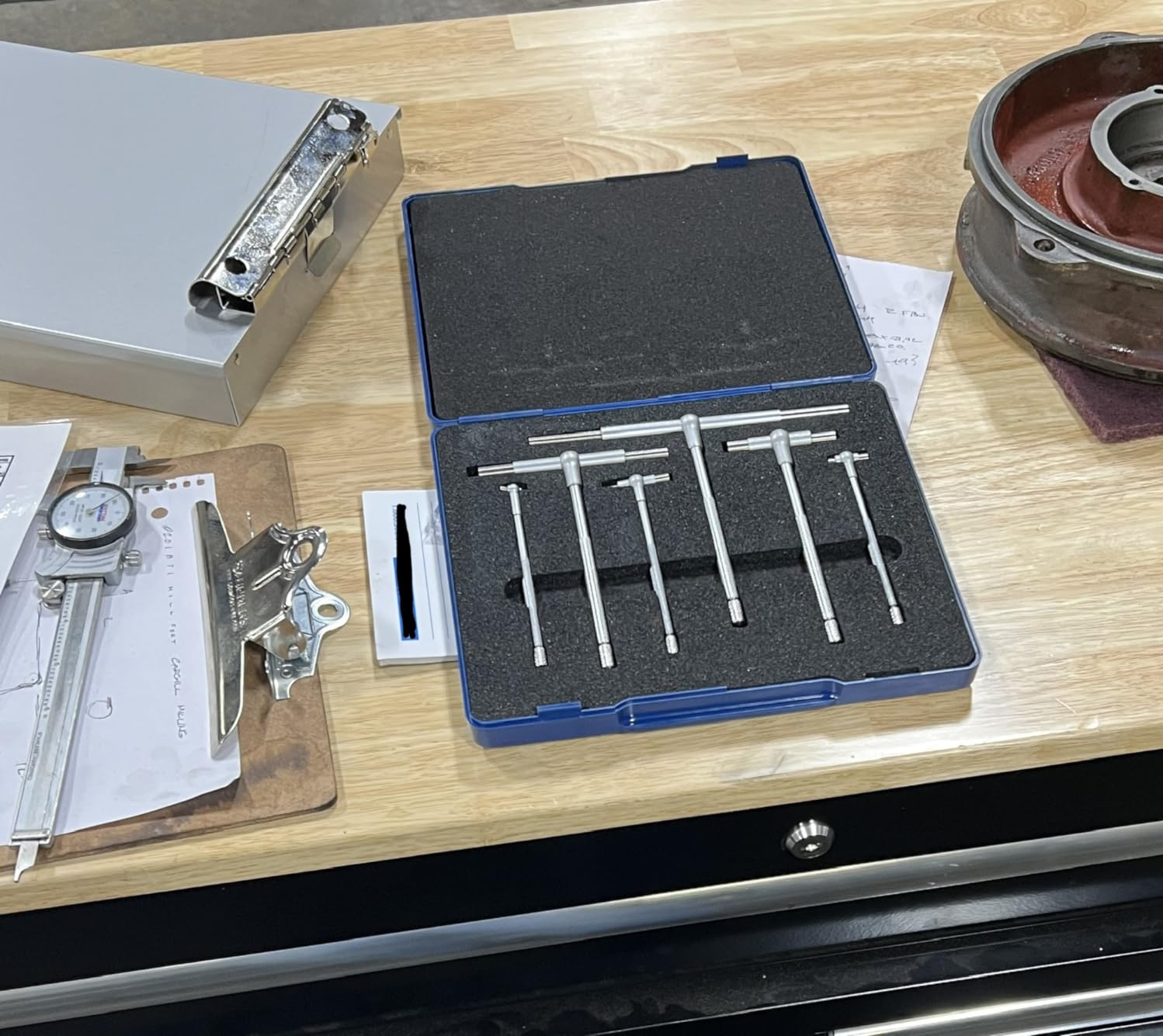

5. Accusize 6-Piece Telescoping Gage Set - Smooth Action in a Full Size Spread
Accusize 6-Piece Telescoping Gage Set, 5/16 in to 6 in Range
5/16 inch to 6 inch range
6 pieces, satin chrome
Hardened ground contact points
Pros
- Complete six-gauge range in a fitted case
- Hardened precision-ground contact points
- Rigid self-centering handle with smooth tension
- Metal construction with satin chrome finish
Cons
- Reading must be transferred to a micrometer or calipers
- Vinyl case is less durable than a hard case
The Accusize telescoping set is built around feel. Owners describe smooth and constant spring tension, and a rigid handle with a self-centering system, which are exactly the two things that separate a telescoping gauge you trust from one that jams in a bore halfway through a rebuild.
The six sizes are 5/16 inch to 1/2 inch, 1/2 inch to 3/4 inch, 3/4 inch to 1-1/4 inch, 1-1/4 inch to 2-1/8 inch, 2-1/8 inch to 3-1/2 inch, and 3-1/2 inch to 6 inch. Contact points are hardened tool steel, precision ground on the end measuring radius, finished in satin chrome, model 3602-5018.
It holds a 4.6 average from 258 ratings with 75 percent five-star ratings. The feedback focuses on the ground contact points, an easy-to-use self-centering handle, and a full size spread in one case. That combination is what earns the badge for cylinder bore work specifically.
Weight is 14.1 ounces and the set measures 9.45 by 8.27 by 1.57 inches. That is a genuinely portable kit, and it travels better than a boxed dial set if you are working on an engine away from your bench.
Who this set suits
Choose this over the other telescoping sets here if you care about the smoothness of the plunger action. Long rebuilds mean many insertions, and a gauge that feels consistent at insertion thirty is worth more than one that felt crisp at insertion one.
It is a strong companion to a dial gauge on a mixed shop floor, covering everything from valve guides up to large bores, and the satin chrome finish resists the rust that shows up on unplated budget steel after a season in a damp garage.
Where it falls short
Same limitation as every telescoping set: it produces a length, not a diameter, so you need a micrometer or calipers to read it. And the supplied case is vinyl or plastic rather than a hard shell, which means the ground contact points can be knocked out of true if the case is dropped.
It is not a bearing clearance instrument on its own. Treat it as the tool that tells you whether a bore is what you think it is, then confirm clearance with a zeroed dial gauge.

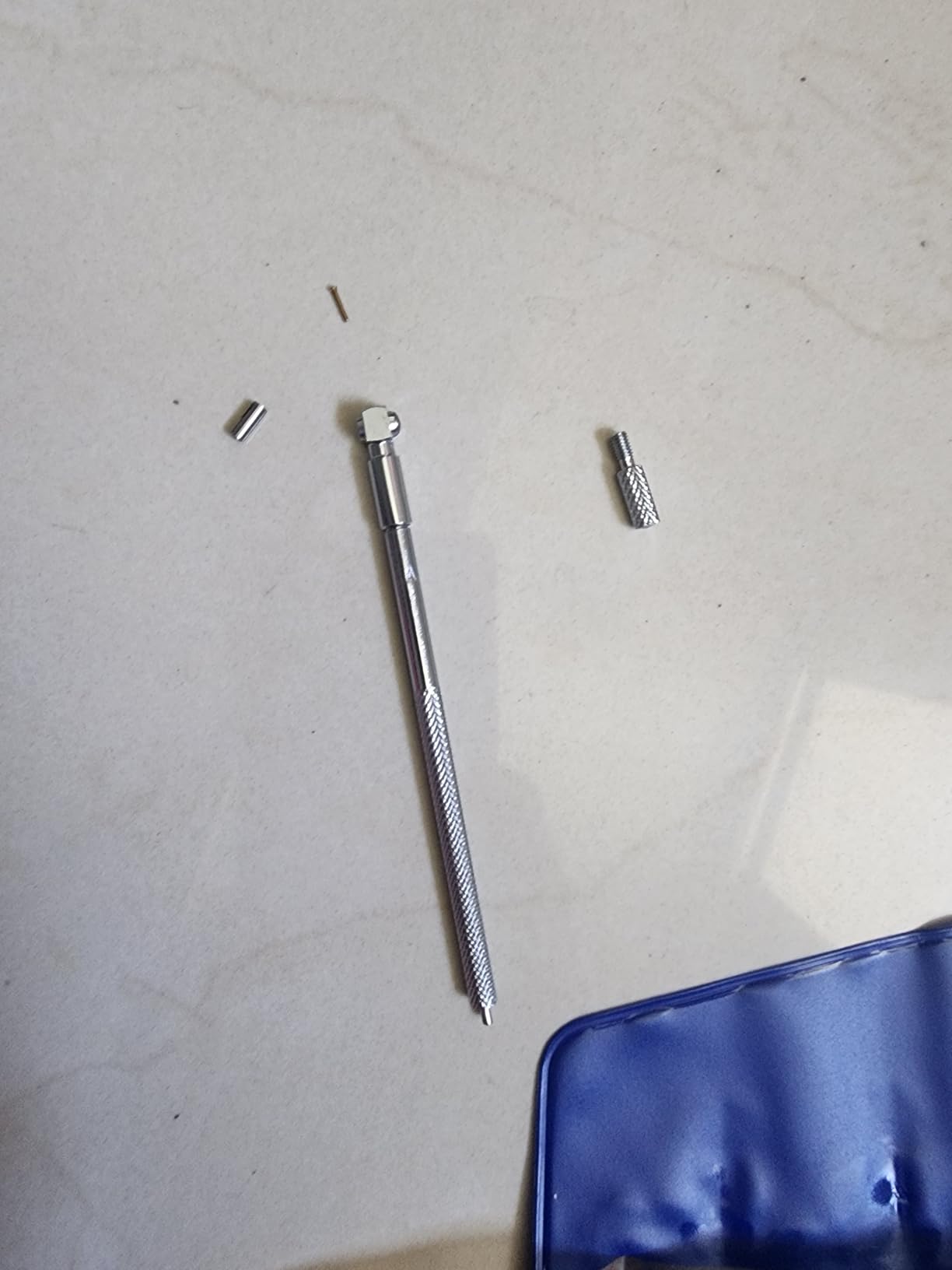

6. QWORK 5/16 to 6 inch Telescopic Gauge Set - Budget Steel for General Bore Checks
QWORK 5/16" to 6" Telescopic Gauge Bore Gauge, 6 Pack Hole Gauge Set, Premium Steel T-Bore Hole Gauges Set, Measurement Tool, Telescoping Full Round Bore Gauge
Six sizes from 5/16 inch to 6 inch
Heat-treated 65 manganese steel
Plus or minus 0.05mm accuracy
Pros
- Heat-treated 65 manganese steel resists corrosion
- Smooth sensitive adjustment for feel
- Six gauge sizes in a fitted case
- Works in deep holes
- slots and grooves
Cons
- Stated plus or minus 0.05mm accuracy is coarse for engine work
- Reading must be transferred to a micrometer or calipers
The QWORK set is the cheapest complete telescoping group on this list, and the specification that matters is heat-treated 65 manganese steel with corrosion resistance. Steel that resists rust keeps its spring tension and its ground faces over a multi-year rebuild, which is where most budget tooling quietly gives up.
Six gauges cover 0.3125 inch to 6 inches. The listed accuracy is plus or minus 0.05 millimeters, and that number tells you plainly where this tool belongs. It is a rough check for general bore work, not a precision instrument for clearance decisions.
Buyers treat it as a capable low-cost set for general bore checks, praising the steel construction and the smooth, sensitive adjustment for feel. It also works in deep and shallow holes, slots, and grooves, and the manufacturer calls out checking valve guide cleanliness and wear as a use.
It holds 4.4 from 180 ratings, and the 4.4 reflects the honest ceiling of the tool: adequate for rough checks, not the choice when thousandths-level precision is required. Weight is 198.5 g, model WD4644.
Who this set suits
Buy this if you need bore coverage across a lot of sizes and the measurements are go or no-go checks rather than tolerance decisions. A weekend project where you want to know whether a bore is close to nominal before committing a hone is exactly what this handles.
It also works as a shop consumable, one that lives in a drawer and gets used when a bigger gauge is already committed elsewhere. Six sizes in a fitted case for a modest outlay is a sensible way to cover valve guides and small bores you would not otherwise measure.
Where it falls short
Plus or minus 0.05mm accuracy cannot resolve a bearing clearance. That is roughly 0.002 inch of uncertainty, and clearances live at 0.002 to 0.0025 inch, so the measurement is inside the tolerance before you start.
Budget-tier finish is the other gap, with reviewers comparing the steel unfavorably to Accusize or Mitutoyo examples. Keep this set for indication and size range work, and use a resolution gauge for anything that determines bearing fit.

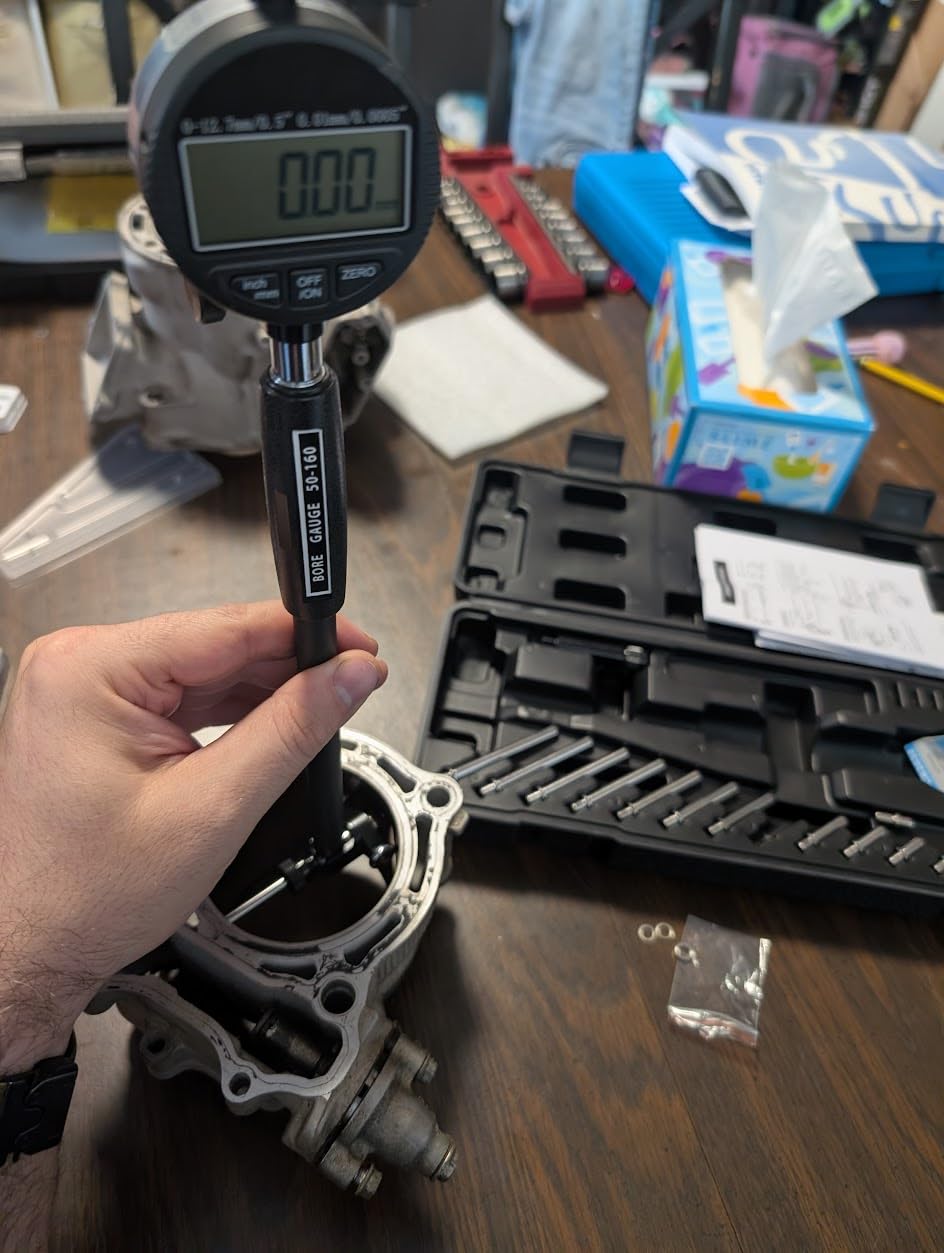

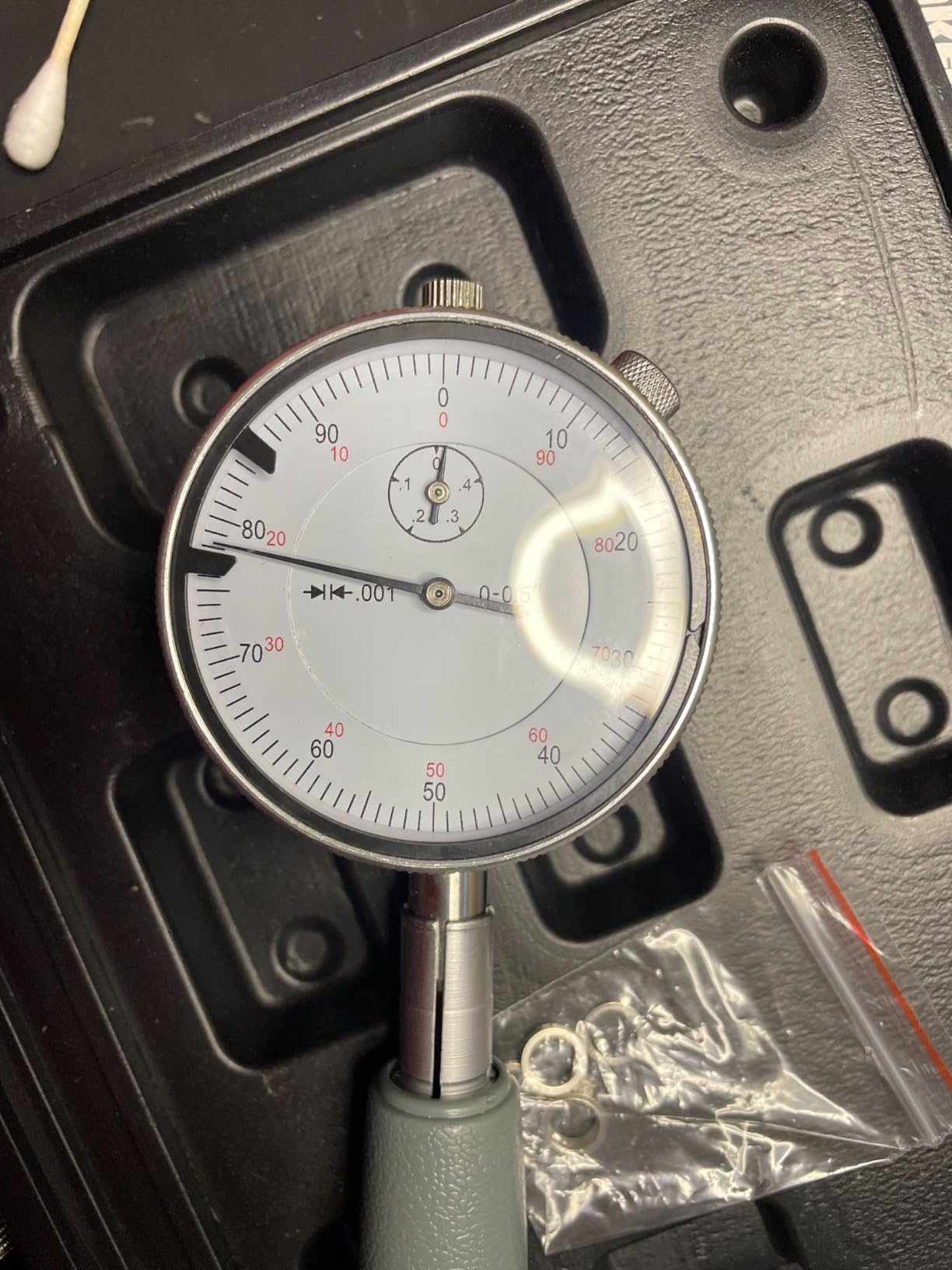

7. HDLNKAK Dial Indicator Bore Gauge Set - Deep Bore Access With 12 Anvils
HDLNKAK Dial Indicator Bore Gauges Set with 2"-6" Range, 0.001" Accuracy
2 inch to 6 inch range
0.01mm (0.0003 inch) accuracy
12 anvils, carbide-tipped plunger
Pros
- Measures deep enough to check out-of-round without pulling pistons
- Carbide-tipped plunger and two-point contact for ovality and taper
- 12 anvils plus washers give real range flexibility
- 0.0005 inch indicator resolution suits clearance work
Cons
- One reviewer reports non-repeatable readings on the same bore
- Color variants may change the unit
- Thin instructions push users to video walkthroughs
The HDLNKAK set is the one here built specifically for reaching down a bore and assessing out-of-round without pulling the pistons. The listing states measurement up to 10 inch deep, and a package that includes extended heads, a chrome-plated handle, an ABS case, and four adjusting washers, which is a more considered package than most kits at this level.
Range is 2 inch to 6 inch, or 50mm to 160mm, with 5.9 inch (150mm) of listed bore depth. The dial indicator covers 0 to 12.7mm (0 to 0.5 inch) at 0.01mm, which is 0.0005 inch, resolution, and the stated accuracy is 0.01mm, or 0.0003 inch.
Contact is a carbide tip on the measuring plunger with two-point contact that detects ovality and taper, and you get 12 inserting anvils at 2 inch, 2.2 inch, 2.4 inch, 2.6 inch, 2.8 inch, 3 inch, 3.2 inch, 3.4 inch, 3.6 inch, 3.8 inch, and two 4 inch sizes, plus the four washers for fine spacing between them.
Feedback is genuinely mixed. Several users get repeatable, accurate bore readings and find the kit complete for what they spent, and the 4.1 average from 180 ratings comes with a 13 percent one-star share about inconsistent readings on high-horsepower engines and differences between color variants.
Who this kit suits
This is the set for a builder checking out-of-roundness on an assembled short block, where pulling pistons is a real cost in time and parts. The reach is the feature, and two-point contact with a carbide tip is the right pairing for reading a honed wall without marking it.
The 12 anvils at 0.2 inch intervals are unusually fine-grained for this tier, and the washers extend that further, which makes it practical on engines with bores that do not land on standard sizes.
Where it falls short
Repeatability is the reported weak point. One reviewer reports non-repeatable readings on the same bore, and others mention a loose outer shell and limited dial travel on some units. The variant issue is worth noting too, since color choices may ship different units, including metric sets.
Instructions are thin enough that users are steered to video walkthroughs for setup. If you are new to differential bore measurement, this is not the kit to learn on. Learn the technique on a better instrument first, then use this for volume checks.

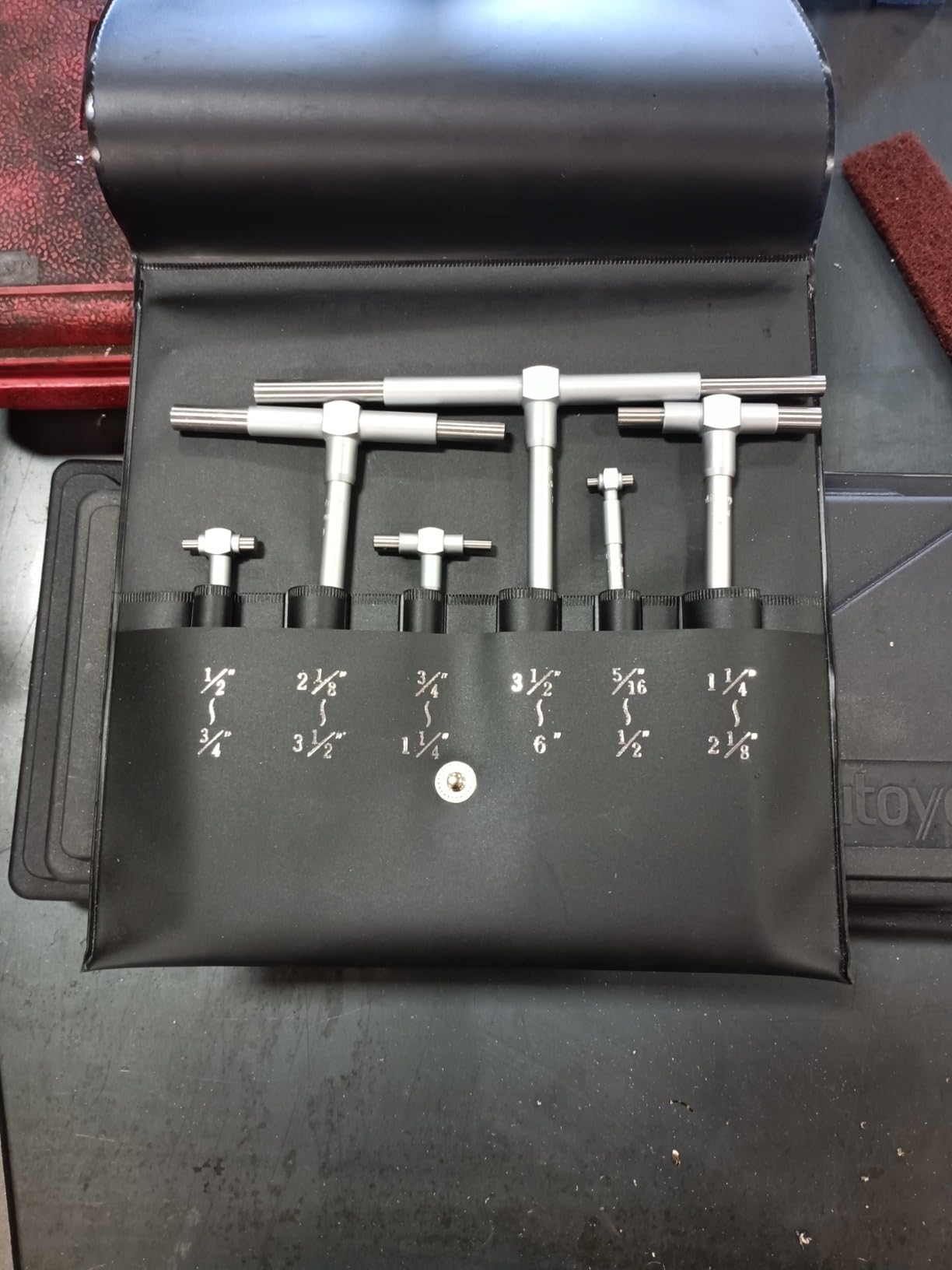

8. Mitutoyo 155-903 Telescoping Gage Set - 0.0001 Inch Accuracy in a Telescoping Set
Mitutoyo 155-903, 5/16" to 6", 6 piece Telescoping Gage Set
5/16 inch to 6 inch range
Plus or minus 0.0001 inch accuracy
Hardened faces, satin chrome
Pros
- Plus or minus 0.0001 inch accuracy across the full range
- Hardened measuring faces hold calibration
- Spring-loaded plunger works in very small holes
- Comes in a fitted pouch
Cons
- Costs well above generic sets covering the same range
- Still needs a micrometer or calipers for an absolute reading
This is the one telescoping set here where the accuracy figure changes what you can do with it. The Mitutoyo 155-903 is rated plus or minus 0.0001 inch across a 0.3126 inch to 6.0000 inch range, which puts it in the same resolution class as the precision dial gages further down this list.
Construction is hardened measuring faces with a satin chrome finish and a knurled handle clamp rod. The spring-loaded plunger expands for extremely small holes and narrow grooves, which is what makes it useful on valve guides as well as bores. Model 155-903, weight 35 g, supplied in a fitted plastic pouch.
Owners cite Mitutoyo build quality and repeatable accuracy as the reason to pay more, and 75 percent of the 117 ratings are five-star. The trade-off buyers name is price relative to generic telescoping sets that cover the same size range.
That comparison misses part of the picture. A plus or minus 0.0001 inch specification on a telescoping gauge only means something if the micrometer you transfer the reading to holds that same resolution. Pair it with a 0.0001 inch micrometer set and the specification is real.
Who this set suits
Choose this if you want one instrument that covers 5/16 inch to 6 inch at a tolerance you could defend in a dispute. That matters in shop work where a second rebuild is not an option and a marginal reading means scrapping a set of mains or bearings.
It also serves as a cross-check against a dial gauge, giving you two independent measurement paths to the same bore. When a dial reading and a transfer reading disagree, you have a fault-finding tool rather than a guessing game.
Where it falls short
It is still a transfer measurement, so the ceiling is still your micrometer. And for a first rebuild where you are only checking that bores are close to nominal, the accuracy class is money spent on precision you will not use.
Forum consensus treats Mitutoyo as the machinist default, which makes this the conservative answer rather than the value answer. If your work stays inside 2 inch to 6 inch, a dial gauge is usually the better primary instrument and this is the backup.

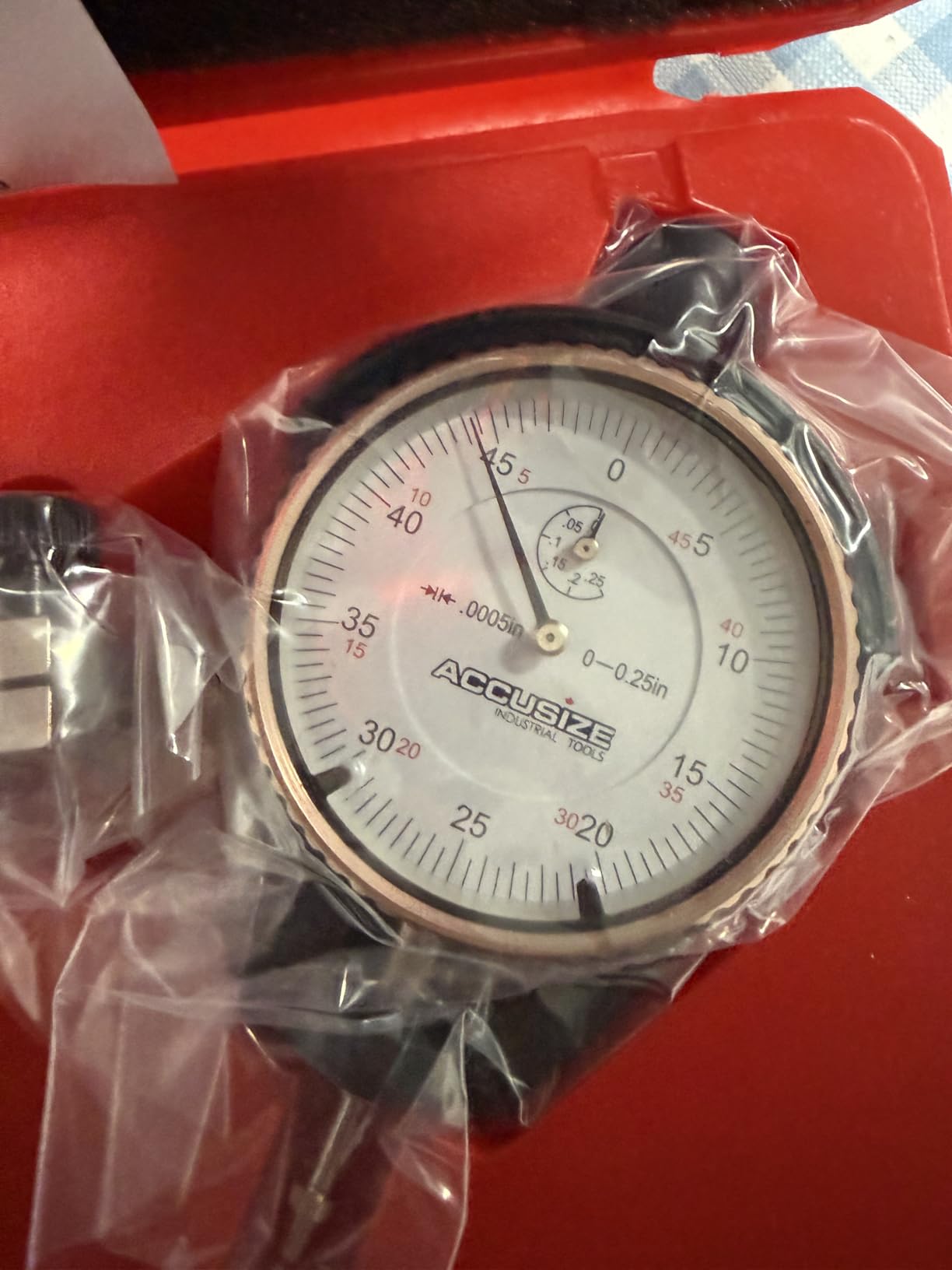

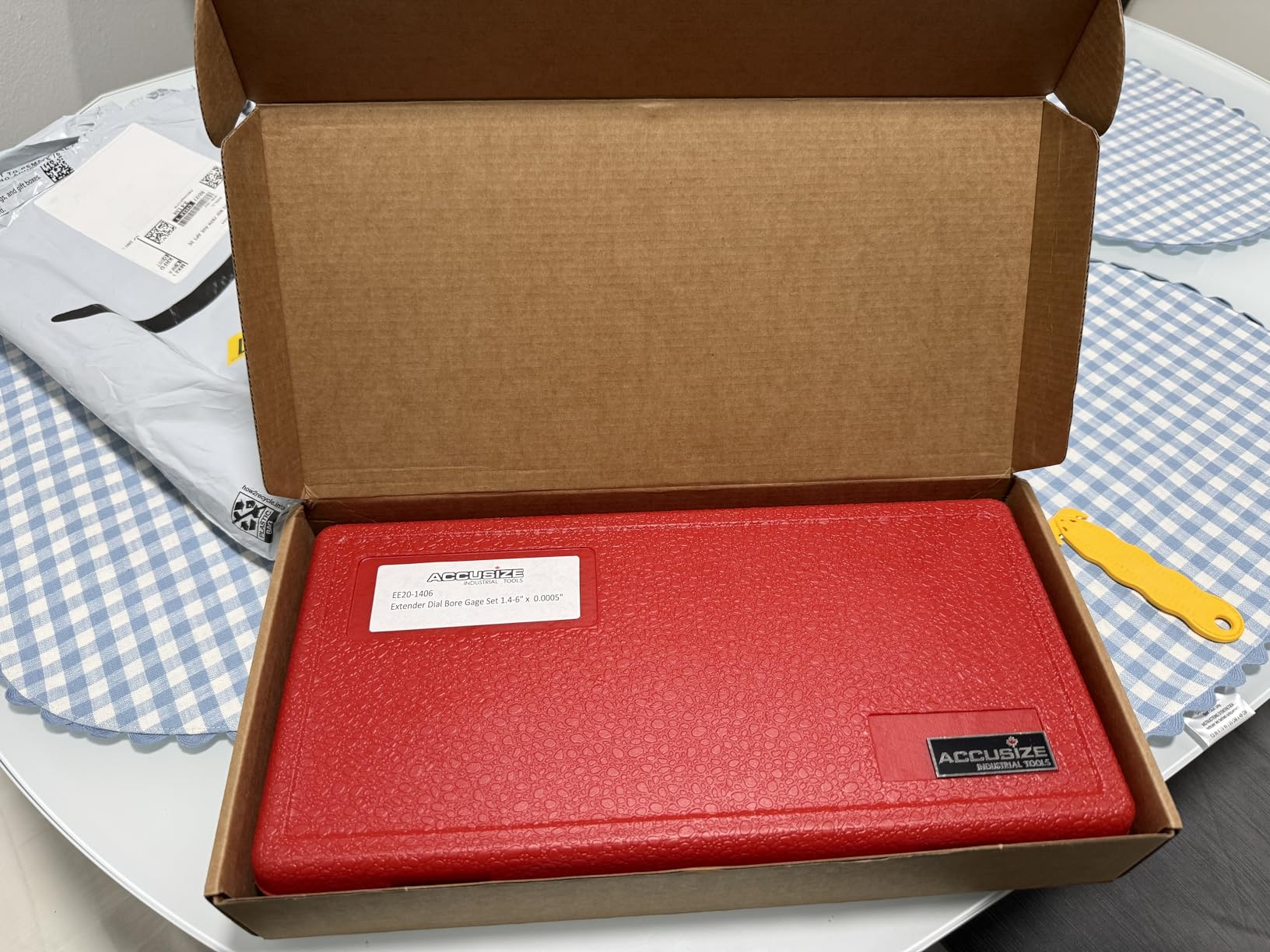

9. Accusize Dial Bore Gauge Set 1.4-6 inch - Motorcycle and Small-Block Coverage
Accusize Dial Bore Gauge Set, 1.4-6 in Range, 0.0001 in Grad.
1.4 inch to 6 inch range
0.0001 inch graduation
AGD Group 2 indicator, 0-0.05 inch
Pros
- 0.0001 inch graduation with a tolerance marker on the dial
- Carbide contacts and self-centering heads
- 1.4 inch floor covers small motorcycle and small-block bores
- Bezel lock holds the zero between checks
Cons
- Premium pricing for a dial bore gauge kit
- Must be zeroed with an external micrometer or ring
Most 2-6 inch kits are built for automotive bores. This Accusize set drops the floor to 1.4 inch while keeping the 0.0001 inch graduation, which opens it up to motorcycle cylinders, small four-stroke bores, and any engine where 2 inch is not a realistic starting point.
The dial is an AGD Group 2 indicator with a 0 to 0.05 inch measuring range graduated in 0.0001 inch, and it carries a tolerance marker on the dial face. That marker is a small thing that saves real time, because you can see at a glance whether a reading has crossed a limit instead of doing subtraction in your head.
Contact points are carbide-tipped for wear and abrasion resistance, the measuring heads are self-centering on a chrome-plated handle, and a bezel lock holds your zero setting between checks so the gauge does not have to be re-zeroed every time you come out of the bore.
Feedback on this newer release is positive on fit and finish, with cost and the zeroing requirement named as the trade-offs. It holds 4.4 from 113 ratings. The set includes an extension holder and fitted case, model EE20-2416, weighing 2.72 pounds.
Who this kit suits
This is the pick for a mixed shop or a builder whose engine sits below 2 inch on one end and above it on the other. Motorcycle restorers, small-engine rebuilders, and anyone measuring a marine or scooter cylinder gets coverage that a standard kit simply does not offer.
The bezel lock is the detail that wins repeat work. On a teardown where you are taking the same reading at four depths across eight cylinders, not re-zeroing between positions removes an entire class of error.
Where it falls short
It is priced with the premium dial kits, and the 0-0.05 inch indicator range means you are working in a tighter window than a 0-0.5 inch head. Fine for a diameter comparison, less forgiving if you zero slightly off.
At 2.72 pounds the package is heavy, and the case measures 15.75 by 7.87 by 2.56 inches. You still need an external micrometer or setting ring to establish the zero, so budget for that alongside the gauge rather than after it.
10. Mitutoyo 511-753 Dial Bore Gage - The Reference Standard for Fine Work
Mitutoyo-511-753 Dial Bore Gage, 2-6 in, 0.0001 in Res
2-6 inch range
0.0001 inch resolution and accuracy
Carbide contacts, made in Japan
Pros
- 0.0001 inch resolution across a 2-6 inch range
- Carbide contact material
- Made in Japan with Mitutoyo accuracy reputation
- Highest five-star share of any gauge in this roundup
Cons
- Highest cost in this roundup
- Single fixed 2-6 inch range with no lower sizes included
The 511-753 is the instrument we would want zeroed against a crank journal on a build where a bearing failure is expensive. Resolution and accuracy are both 0.0001 inch across a 2-6 inch range, contact material is carbide, and it is made in Japan. There is no interpretation room in that specification.
This is the gauge that makes the resolution rule workable. The most common piece of shop advice on bore measurement is that gauge resolution must match micrometer resolution, because a 0.0001 inch gauge checked against a 0.001 inch micrometer is a 0.001 inch gauge with a better dial.
It carries 4.5 from 93 ratings, and the 80 percent five-star share is the highest here. Recurring feedback praises the 0.0001 inch resolution and the build, and names cost as the consistent trade-off. A single fixed 2-6 inch range with no lower sizes included is the other limitation.
Weight is 2 pounds, and the package measures 38.608 by 16.764 by 6.096 cm. An instruction guide is included, which sounds minor until you are trying to set the head on a hot block at midnight.
Who this gage suits
Buy this if you are measuring to tight tolerance on a build where a scrapped bearing set or a pulled engine is a real outcome, or if you are verifying work finished elsewhere. Its value is as a reference standard you check other gauges against.
Professional shops and serious builders get the most from it. Set it on a known main journal, confirm the reading is stable across two sweeps, and you have a baseline that makes every other gauge on the bench accountable.
Where it falls short
It is the most expensive option in this roundup, and forum consensus repeatedly makes the same point from the other direction. A Sunnen-class instrument is overkill for 0.001 inch work, and the same logic applies here for most rebuilds.
The 2 inch floor also closes it out for small engines. If your bores sit below 2 inch or above 6 inch, the telescoping sets in this roundup cover you better, and the Accusize 1.4-6 inch set is the bridge if you need both a low floor and fine graduation.
How to Zero and Rock a Dial Bore Gauge Correctly?
Most disappointing readings are technique failures, not gauge failures. These four steps are the difference between a number you can build an engine around and one you have to check twice with different tools.
Zero the Dial on a Micrometer Set to the Diameter You Are Measuring Against
For bearing clearance, zero the gauge against the journal you are measuring. Close the outside micrometer on the crank main journal, lock it, and set the bore gauge dial to zero on that setting. Insert the gauge and read the difference, and that difference is your clearance directly.
For bore diameter, zero against the anvil setting or nominal bore rather than a journal. Using a main journal as the baseline for a bore measurement is the most common error on this list, and it produces a plausible number that means nothing.
Rock the Gauge Until the Needle Stops Moving - That Is the Minimum Reading
Yes, you should rock a dial bore gauge back and forth. Tilt it in several directions while the contacts are inside the bore, and watch the needle. It will swing, settle, swing again, and then settle at a value. That final settled value is the minimum reading, and it is the true bore diameter.
A bore that is out-of-round reads differently depending on contact angle. If you insert once and record, you may read a diameter that is half the taper larger than reality, and you will size pistons or a hone to a number that does not exist.
Measure at Three or Four Depths to Find Taper and the Wear Ridge
Take a reading near the top of the bore, mid-bore, and near the bottom, then again at a second clock position. The difference between top and bottom is taper. The difference between clock positions at the same depth is out-of-round. Plot the numbers and the bore profile becomes obvious.
Pay attention to the top ring. The ridge that forms at the top of a worn bore is a wear feature, not damage, and it is where taper reads largest. A measurement taken only at mid-bore will tell you your engine is fine when it is not.
Clean the Anvils and Let the Block Reach Room Temperature First
Steel expands. A block that came out of a warm wash bay or sat near a heater will measure differently from the same block after an overnight settle. Let the block and the gauge reach ambient temperature and keep them there while you work, or your taper and clearance numbers will drift during the session.
Clean the anvils before and after every measurement. A chip of hone dust or a fingerprint on a carbide contact point changes the reading silently, and there is no indication on the dial that anything is wrong. This is the single cheapest habit that protects the accuracy you paid for.
What to Look for When You Buy a Bore Gauge
The market for bore gauges spans a wide range of quality and capability, and the gap between the cheapest and the most expensive is not a simple quality scale. Some of it buys resolution, some of it buys range, and some of it buys nothing more than a brand name. Here is how to tell them apart.
Match the Gauge Resolution to Your Micrometer Resolution
This is the rule that matters most. A gauge graduated in 0.0001 inch checked against a 0.001 inch micrometer cannot deliver 0.0001 inch accuracy, because the reference is the weak link. If your micrometer set reads in 0.001 inch, a 0.0005 inch dial gauge is the sensible match.
The gauges in this roundup cluster at 0.0005 inch graduations, which suits most rebuilds where target clearance sits around 0.002 to 0.0025 inch. The 0.0001 inch options matter for tolerance stack-ups and for verifying work you did not perform yourself.
Buy the Range Your Engine Actually Needs
Range mismatch is the most common purchasing error. A 2-6 inch kit cannot measure a 1.4 inch motorcycle cylinder or cover a small diesel bore. The telescoping sets in this roundup start at 5/16 inch precisely so they bridge that gap.
Metric engines need to be considered too. Kits quoted as 50-160mm cover the diesel and marine range that inch-based sets miss, and several of the telescoping sets here are specified in both units for that reason.
Carbide Contacts and a Bezel Lock Are Worth More Than Extras
Carbide-tipped contact points do not mark a honed wall and hold accuracy under abrasive conditions. If a listing does not mention the contact material, ask, because it is a quiet differentiator between a shop gauge and a general-purpose one.
A bezel lock that holds your zero between checks removes a real source of error during multi-depth teardown measurements. Cases and extensions are nice. Those two features do actual work.
Buy a Dial Gauge or a Telescoping Set - Not Both on Day One
Dial gauges give you a direct differential reading in the bore, which is what you want for clearance and taper. Telescoping sets give you a transferable size, which is what you want for odd diameters, valve guides, and anything below 2 inch.
Start with whichever matches your engine, and add the other when a job calls for it. The full set of tools on this list covers everything from a 4.1 average budget kit to a Japanese-made 0.0001 inch reference gage, so there is a sensible next purchase whenever you hit that wall.
Frequently Asked Questions
Which bore dial indicator is the most accurate?
Accuracy comes from the combination of graduation and build quality, not brand alone. The finest specification in this roundup is the Mitutoyo 511-753 at 0.0001 inch resolution and accuracy over a 2-6 inch range, with carbide contacts and Japanese manufacture. The Accusize 1.4-6 inch dial set also reads 0.0001 inch but covers smaller bores. A telescoping gauge can never be more accurate than the micrometer you transfer the reading to.
How accurate are dial bore gauges?
A quality dial bore gauge typically resolves to 0.0005 inch and is accurate to within that figure, while premium sets reach 0.0001 inch. Accuracy only holds if you match the gauge to your micrometer resolution and zero it against the correct journal or anvil setting. Cheap imports drift out of calibration, which is why verifying a new gauge against a known dimension matters more than the printed spec.
Should a dial bore gauge be rocked back and forth?
Yes. Rock the gauge in several directions while the contacts are inside the bore and watch the needle until it stops moving. The final settled value is the minimum reading, which is the true bore diameter. A single insertion without rocking can read large on an out-of-round bore and lead you to size pistons or hone to a diameter that does not exist.
What micrometer setting should I zero a bore gauge against?
For bearing clearance, zero against the crank journal you are measuring so the dial reads clearance directly. For cylinder bore diameter, zero against the anvil setting or nominal bore instead. Using a main journal as the baseline for a bore measurement is the most common error and produces a plausible number that means nothing.
Do I need a small hole gauge for valve guides?
A dial bore gauge will not reach most valve guide bores because they fall below the 2 inch minimum of standard kits. A telescoping small hole gauge is the right tool. Three sets in this roundup cover down to 5/16 inch, and the QWORK set is specifically noted for checking valve guide cleanliness and wear.
Is a 0.001 inch bore gauge accurate enough for an engine rebuild?
A 0.001 inch dial can complete a rebuild, since target bearing clearances sit around 0.002 to 0.0025 inch. The catch is repeatability, not absolute precision. If your readings vary by a thousandth between attempts at the same location, you cannot trust the number, and a 0.0005 inch gauge reduces that spread.
Conclusion: Which Bore Gauge Should You Buy
For most engine rebuilders in 2026, the Beslands 6 Pc Telescoping Gage Set is the best bore gauge for engine rebuilding because it covers 5/16 inch to 6 inch across six sizes, holds a 4.6 average across 917 ratings, and gives you ground hardened contacts that repeat their readings. The Fowler 52-646-300-0 is the pick when your bores sit between 2 and 6 inch and you want a 9.5 inch measuring depth and carbide tips, and the HFS 2-6 inch Dial Bore Gauge Set covers the standard automotive range with 12 anvils at a mid-range outlay.
Match the gauge to your engine and your micrometer before you buy, keep the anvils clean, and rock to the minimum reading every time. Then check out our tire pressure gauge picks and paint thickness gauge guide for the other measurements that decide whether a vehicle is worth rebuilding.
