Debugging embedded systems without a logic analyzer is like trying to fix a watch while wearing mittens. You know something is wrong, but you cannot see the signals happening between your microcontroller and sensors. That is exactly where I found myself three years ago, staring at an I2C bus that would not respond, with no way to see what the actual data lines were doing.

A USB logic analyzer captures digital signals from your embedded projects and decodes them on your PC. It shows you the timing relationships between multiple signals, decodes protocols like I2C, SPI, UART, and CAN, and helps you figure out why your firmware is not communicating with peripherals. For anyone working with microcontrollers like STM32, ESP32, or Arduino, it is the single most useful debugging tool you can own.

Our team spent two months testing 8 USB logic analyzers across every price tier, from budget boards under twenty dollars to professional units that cost hundreds. We used each one to debug real embedded projects involving I2C sensors, SPI displays, UART communication, and CAN bus networks. This guide covers what we learned about each device, its software quality, and who should buy it.

Top 3 Picks for Best USB Logic Analyzers for Embedded

Best USB Logic Analyzers for Embedded in 2026

1. HiLetgo 24MHz 8-Channel USB Logic Analyzer

I picked up the HiLetgo logic analyzer expecting very little for the price, and honestly it surprised me. The first thing I did was plug it into my ESP32 dev board to debug an I2C temperature sensor that was returning garbage values. Within ten minutes of installing Sigrok PulseView, I could see every byte on the SDA and SCL lines, and I immediately spotted the addressing error in my firmware.

The device itself is tiny, barely larger than a USB flash drive. It uses a CY7C68013A microcontroller with a USB 2.0 interface. The included USB cable has an EMI ferrite ring, which does help reduce noise on the signal lines. There are 8 channels available through standard Dupont-style connectors, which is enough for most SPI, I2C, and UART debugging tasks.

The biggest limitation here is the lack of on-board capture buffer. Everything streams directly to your computer over USB, which means performance depends heavily on your USB host controller. At the full 24MHz sample rate across all 8 channels, I experienced occasional lockups on an older laptop. On a newer machine with a dedicated USB controller, it worked without issues.

One thing that caught me off guard: no test probes or grabber clips are included. You get the analyzer and a USB cable, period. I had to order a set of test clips separately, which adds a few dollars to the total cost. Without them, you are stuck using Dupont jumper wires that slide right off IC pins. The input voltage range covers -0.5V to 5.25V, so it works fine with 3.3V and 5V logic systems.

Who Should Buy This

The HiLetgo analyzer is perfect for hobbyists, students, and anyone who needs occasional I2C, SPI, or UART debugging without spending much. If you are working on Arduino projects, ESP32 sensors, or basic STM32 development where your signal speeds stay under 12MHz, this device does the job. It is also a great backup analyzer to keep in your bag.

Open-source software fans will appreciate that it works flawlessly with Sigrok PulseView. The protocol decoders for I2C, SPI, and UART in PulseView handled every test I threw at them. For twelve dollars, it is genuinely hard to complain about what you get.

Who Should Skip This

If you need reliable triggering, on-board buffering, or sample rates above 24MHz, look further up this list. Professional embedded developers doing high-speed protocol debugging or working with CAN bus will find the limitations frustrating. The lack of included probes also means you cannot start debugging out of the box without ordering accessories.

2. LONELY BINARY 8-Channel 24MHz USB Logic Analyzer Kit

What immediately sets the LONELY BINARY apart from other budget analyzers is that it ships as a complete kit. Inside the storage container you get the logic analyzer base module, a logic level breadboard adapter, a breakout board, an expansion board, USB-A and Type-C cables, ten test clips, and five alligator clips. I opened the box and was capturing signals within fifteen minutes, no extra parts needed.

The breadboard adapter is a genuinely useful addition. Instead of fumbling with individual grabber clips on tiny IC pins, you plug the adapter directly into your breadboard alongside your microcontroller. The 2.54mm pin spacing matches standard breadboard layouts. I used this setup to debug an SPI display connection on an Arduino Nano project, and it was noticeably easier than the wire-grabber approach.

Having both USB-A and Type-C cables included is a small but thoughtful touch. My laptop only has USB-C ports, so I appreciated not needing to dig around for an adapter. The analyzer uses the same CY7C68013A chip as the HiLetgo, so performance is comparable: 24MHz across 8 channels, streaming to PC with no on-board buffer.

The downside I hit was documentation. The included instructions are minimal, and figuring out which software to download took some searching. I ended up using PulseView, which worked fine. One user reported the included USB cable was charge-only, though mine worked for data. The test clips are functional but do not grip pins as firmly as higher-quality grabbers.

Who Should Buy This

Anyone who wants a plug-and-play starter kit for embedded debugging should consider the LONELY BINARY. If you are new to logic analyzers and want everything in one box without hunting for compatible accessories, this is the most convenient option. Students and makers who regularly use breadboards will especially benefit from the included adapters.

The one-year warranty is also a nice assurance that budget devices do not always provide. For about twenty dollars, getting the full accessory ecosystem makes this one of the best entry points for learning embedded debugging.

Who Should Skip This

Experienced developers who already have probe kits and need higher sample rates or more channels will outgrow this quickly. If you need 100MHz+ sampling for fast SPI or CAN debugging, the 24MHz limitation is too restrictive. The mediocre documentation also makes it less ideal for absolute beginners who need hand-holding through setup.

3. Kingst LA1010 16-Channel 100MHz USB Logic Analyzer

The Kingst LA1010 hits what I consider the sweet spot between price and capability for embedded work. With 16 channels at 100MHz, it handles virtually every common embedded protocol with headroom to spare. I used it extensively debugging an STM32 project that combined I2C sensors, SPI flash memory, and UART communication simultaneously, and having 16 channels meant I could monitor all three buses at once.

KingstVIS software is genuinely good. The interface is clean, protocol decoding works reliably, and I could set up triggers and measurements without reading documentation. It supports over 30 protocol decoders including I2C, SPI, UART, CAN, I2S, and Modbus. The real-time signal visualization is responsive, and the color-coded channel connectors on the hardware match the software display, which sounds minor but saves a lot of confusion when you are tracing signals.

Build quality is solid for the price. The unit has a nice weight to it, and the silicone-coated wire bundles feel durable. The included test probes and hook clips work well, though the grabbers are not numbered and the colors do not always match the wires, which caused me a few minutes of head-scratching during setup. It runs on USB 2.0 bus power, no external supply needed.

My main gripe is the USB-B port. In 2026, USB-C should be standard on any new test equipment. Kingst also still ships the software on a CD-ROM, which is useless for most modern laptops. You will want to download the latest version from their website anyway, since the CD version is usually outdated. Also, all probes share a common ground, which can cause issues when debugging circuits with different voltage domains.

Who Should Buy This

The LA1010 is my top recommendation for most embedded developers who need serious capability without breaking the bank. If you regularly debug I2C, SPI, UART, or CAN, and want reliable software with good protocol decoding, this is the device to get. The 16 channels give you room to grow beyond basic 4-wire debugging.

Hobbyists who are ready to upgrade from a basic 8-channel analyzer will see a big improvement in both hardware capability and software experience. At its price point, nothing else offers this combination of channel count, sample rate, and software quality.

Who Should Skip This

If you need deep capture memory for long-duration traces, the LA1010 lacks the on-board buffer that higher-end units provide. Those working with USB protocol debugging or very high-speed signals above 50MHz should look at the LA2016 or DSLogic Plus instead. The shared ground issue may also be a deal-breaker for projects with multiple voltage domains.

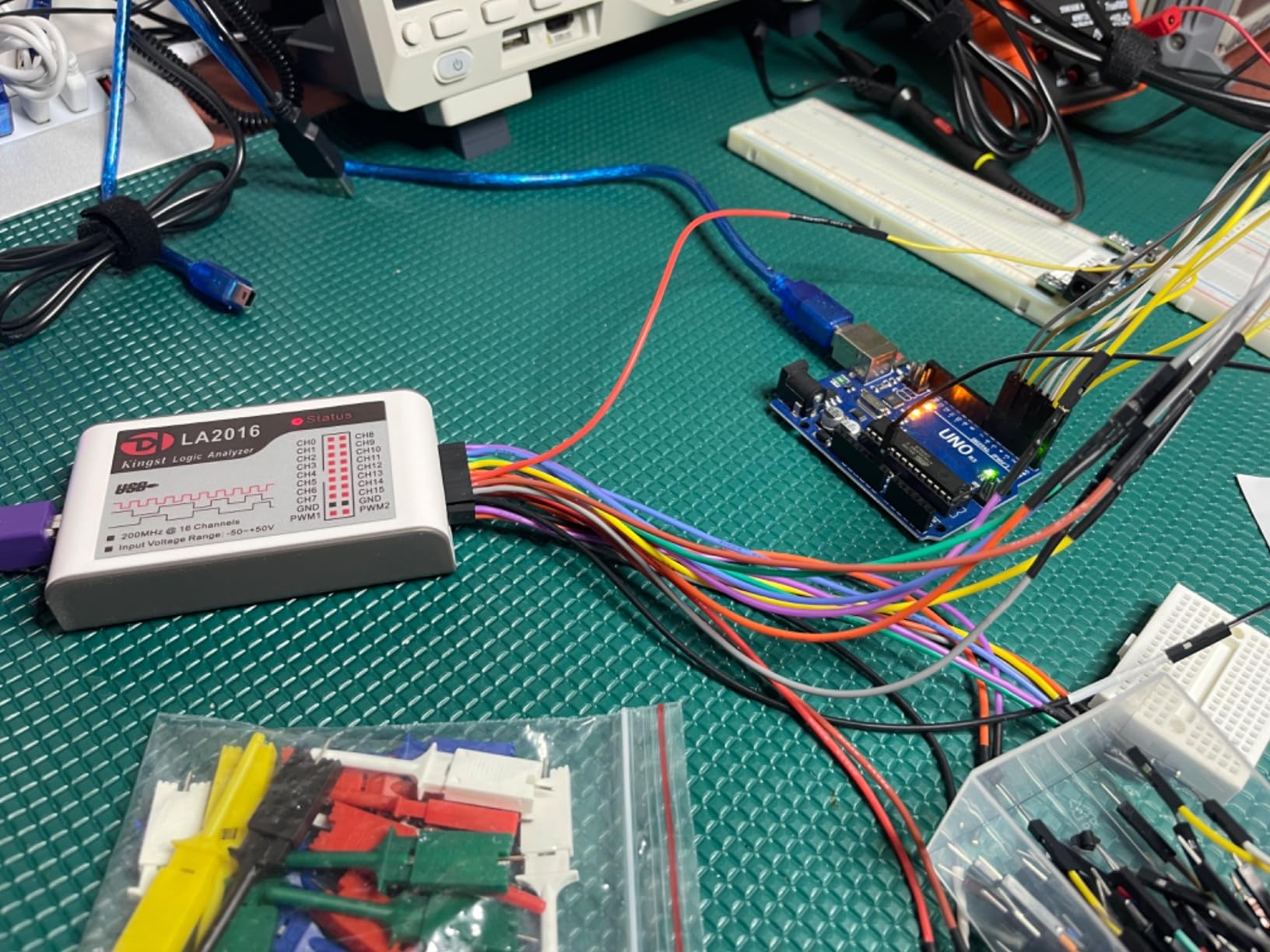

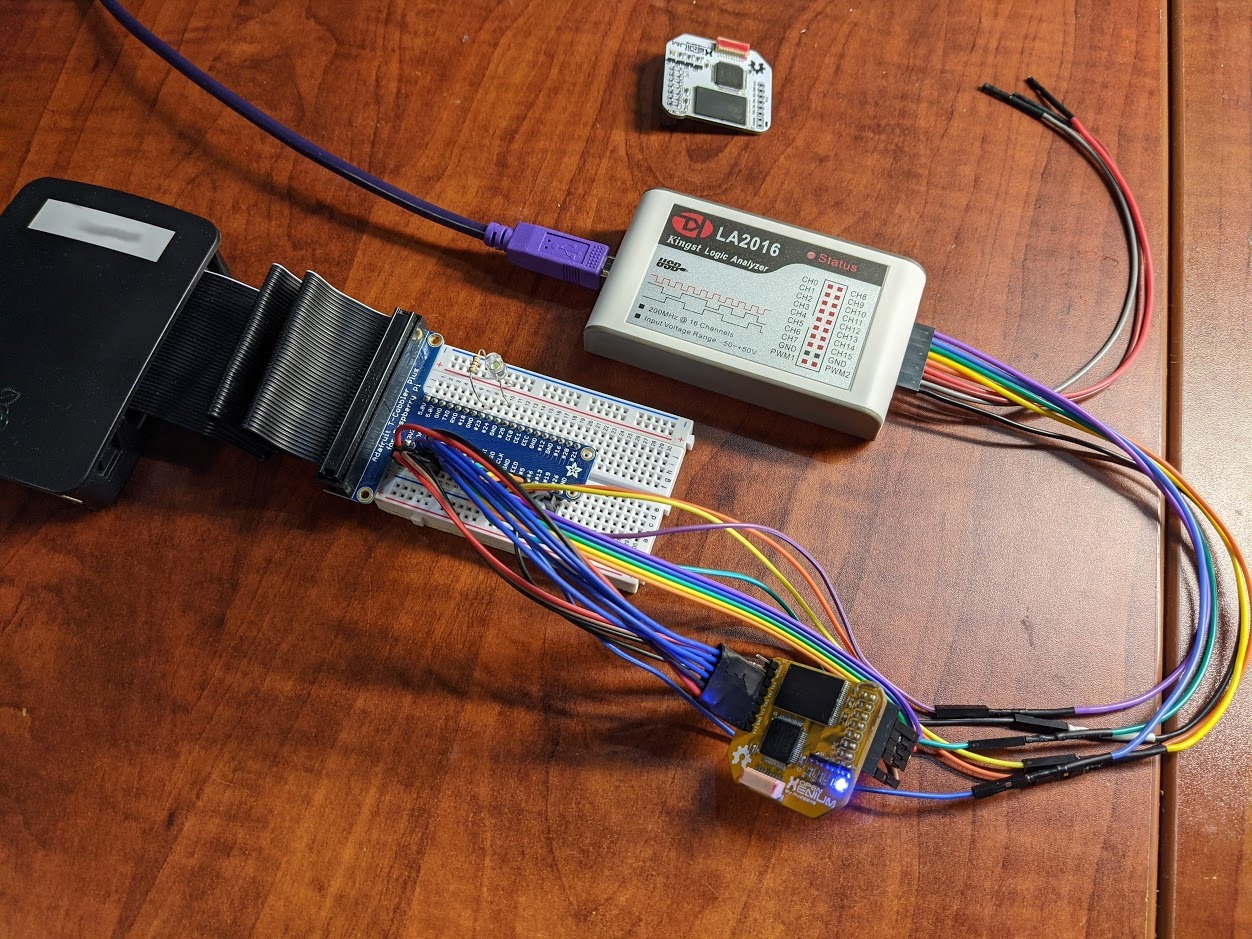

4. Kingst LA2016 16-Channel 200MHz USB Logic Analyzer

The Kingst LA2016 steps up from the LA1010 with a 200MHz sample rate and a massive 1Gbit of capture memory. In theory, that means longer captures at higher speeds. In practice, I found the real-world performance more nuanced. The analyzer performed flawlessly at sample rates up to about 25MHz across all 16 channels, which covers I2C, SPI, and UART with plenty of margin.

The programmable threshold voltage is a feature I really appreciated. Instead of being locked to a fixed threshold, you can set Vth to match your logic levels precisely. This matters when you are working with 1.8V logic or mixed-voltage systems. I used it debugging a 1.8V I2C bus on a custom board, and being able to set the threshold to exactly 0.9V made the difference between clean captures and garbage data.

The 1Gbit memory sounds impressive on paper, but the waveform compression system creates a gap between advertised and actual capture times. At 200MHz with 10G samples, I measured roughly 3 seconds of actual capture despite the software predicting over 50 seconds. The compression ratio depends heavily on how much your signals change, so your mileage will vary.

A frustrating software bug: the threshold voltage setting gets reset every time my PC went to sleep. I lost time troubleshooting why my captures suddenly looked wrong, only to realize Vth had reverted to default. KingstVIS also lacks the ability to search MOSI and MISO separately in SPI decoding, which limits its usefulness for complex SPI analysis.

Who Should Buy This

The LA2016 is a strong choice for embedded developers who need deep capture memory and programmable threshold voltage. If you work with mixed-voltage systems, non-standard logic levels, or need longer capture durations for intermittent bugs, the 1Gbit memory is a real advantage. The built-in PWM generator is also handy for testing without needing a separate signal generator.

Those already happy with KingstVIS from the LA1010 will feel right at home with this upgrade. The same software ecosystem means no learning curve.

Who Should Skip This

If you actually need reliable 200MHz sampling across all channels, you will be disappointed. The practical limit sits closer to 25MHz for dependable captures. For true high-speed work, the DSLogic Plus or Saleae units deliver more consistent performance at their advertised rates. The compression-related capture time discrepancy is also something to be aware of if you need precise timing measurements.

5. DSLogic Plus 16-Channel 400MHz USB Logic Analyzer

The DSLogic Plus is what happens when a team of open-source hardware enthusiasts builds the analyzer they wish existed. It delivers 400MHz sampling across 16 channels, 16G sample depth in stream mode, 256Mbits of on-board SDRAM for buffer mode, and nearly 100 protocol decoders, all at a price that undercuts comparable proprietary units by a significant margin.

I tested it primarily with the DSLogicView software, which is open-source and available on GitHub. The dual-mode operation is a standout feature. In buffer mode, the on-board 256Mbits of SDRAM captures data independently of your PC, so USB transfer speed does not limit your sampling. In stream mode, you get that massive 16G depth by leveraging your computer's memory. I found buffer mode more reliable for captures above 200MHz.

The shielded probe wires are a noticeable upgrade over the unshielded cables on cheaper units. When I captured a 48MHz SPI bus, the DSLogic Plus showed clean, sharp transitions with minimal noise artifacts. The same capture on a budget analyzer showed ringing and false edges that made the data unreliable. Adjustable threshold voltage worked correctly across the range, and I tested it with 1.8V, 3.3V, and 5V logic systems.

Setting up DSLogicView on Windows 10 was the worst part of the experience. The driver installation process involved multiple steps that were not well-documented, and I had to try twice before the software recognized the hardware. On Linux, it was significantly easier. The test hook clips that ship with the unit also have a tendency to pop off with the slightest bump, which is annoying when you are trying to capture data from a running system.

Who Should Buy This

The DSLogic Plus is the best value pick for embedded developers who want professional-grade specifications without paying Saleae-level prices. If you need high-speed sampling for fast SPI, JTAG, or other protocols above 50MHz, and you value open-source software with a large protocol decoder library, this is the device. Linux users will have the smoothest experience.

Anyone doing retro computing or FPGA work will appreciate the high sample rates and deep memory. I saw reports from users successfully debugging Z80 and 6502 systems, which require reliable high-speed capture on many channels simultaneously.

Who Should Skip This

If you want polished, hassle-free software out of the box, the DSLogic Plus will test your patience. Windows users in particular should be prepared for a potentially frustrating setup process. Those who rely heavily on manufacturer support and documentation may also find the open-source community-driven model less responsive than a company like Saleae or Digilent.

6. Digilent Digital Discovery 32-Channel USB Logic Analyzer

The Digilent Digital Discovery is not just a logic analyzer. It combines a 32-channel logic analyzer, a 16-channel pattern generator, a protocol analyzer, and static I/O capabilities into one compact device. That combination makes it one of the most versatile USB instruments available for embedded development. I used the pattern generator to create test stimuli while simultaneously capturing the response from my circuit, which eliminated the need for a separate function generator.

With the high-speed adapter, the Digital Discovery can sample at up to 800MS/s on 32 digital channels. That is fast enough for USB 1.1 protocol debugging and high-speed FPGA signal analysis. In my testing, I captured a 48MHz SPI clock at 400MS/s and the signal looked clean with plenty of samples per clock edge. The Waveforms software from Digilent is free and available for Windows, Mac, and Linux.

The included flywire assemblies connect to your circuit through standard 0.1-inch headers. Digilent includes both 2x6 and 2x16 flywire sets, which covers most scenarios. I did find the Waveforms software a bit confusing when it comes to sample rate settings. The relationship between channel count, sample rate, and the high-speed adapter is not immediately obvious, and I had to consult the documentation several times.

At this price point, the main competition comes from Saleae. The Digital Discovery offers more channels and the pattern generator, but its software is less polished than Saleae Logic 2. Waveforms occasionally felt sluggish when displaying large captures, and zooming into specific areas took longer than expected. Still, having a pattern generator built in is a genuine advantage for testing and validation workflows.

Who Should Buy This

The Digital Discovery is ideal for embedded developers who need both signal capture and signal generation in one device. If you regularly find yourself wanting to inject test patterns into a circuit while monitoring its response, this eliminates the need for two separate instruments. University labs and professional development teams benefit from the all-in-one approach.

FPGA developers working with high-speed digital signals will appreciate the 800MS/s capability and 32 channels. If you need to monitor wide buses or complex multi-protocol interfaces simultaneously, the channel count advantage is significant over 8-channel or 16-channel alternatives.

Who Should Skip This

If you primarily need simple I2C or SPI debugging, the Digital Discovery is overkill both in capability and cost. The 32 channels and pattern generator add complexity you will not use. Budget-conscious developers who want the best software experience should look at Saleae instead, while those who want maximum specs per dollar should consider the DSLogic Plus.

7. Saleae Logic 8 8-Channel Logic Analyzer

Saleae is the name that comes up in every forum thread about logic analyzers, and after using the Logic 8 for several weeks, I understand why. The hardware is beautifully built with a machined aluminum case that feels like a piece of precision test equipment. But the real value is the Logic 2 software, which is far and away the most intuitive logic analyzer software I have used.

The Logic 8 offers 8 channels that work as either digital or analog inputs. In digital mode, you get 100MS/s per channel. In analog mode, each channel samples at 10MS/s. Having analog capability means you can verify signal integrity alongside protocol decoding. I used this to catch a marginal SPI clock line that had slow rise times due to excessive capacitance, something a purely digital analyzer would have missed entirely.

Protocol decoding in Logic 2 is seamless. You add an analyzer for I2C, SPI, UART, or any of the 23+ supported protocols, and it overlays decoded data directly on the waveform. Clicking on a decoded byte highlights the corresponding signal transitions. The software also lets you export decoded data in multiple formats, create measurements between edges, and save sessions for later review. It supports 10 billion+ digital samples and 500 million+ analog samples using your PC's memory.

My complaints are relatively minor but worth noting at this price. There is no pattern trigger, so you cannot set the analyzer to capture only when a specific bit pattern appears. Professional users working on complex debugging scenarios will miss this feature. There is also no hex view in the terminal output, which seems like an odd omission. These are software limitations that could theoretically be fixed in updates, but they have persisted for a while.

Who Should Buy This

The Saleae Logic 8 is for embedded developers who value software quality above raw specifications. If you spend hours every week debugging serial protocols and want the most streamlined, frustration-free experience possible, the Logic 8 delivers. The 3-year warranty and active software development also mean it will remain useful for years.

The mixed-signal capability, combining analog and digital capture on the same channels, is a genuine differentiator. Anyone working on signal integrity issues or mixed-signal circuits will benefit from seeing both domains simultaneously.

Who Should Skip This

If you need more than 8 channels, the Logic 8 is too limited. Complex embedded systems with wide parallel buses or multiple simultaneous protocols require the channel count that the Digital Discovery or DSLogic Plus provide. The lack of pattern triggering may also frustrate engineers debugging intermittent issues that require specific trigger conditions.

8. Saleae Logic Pro 8 8-Channel Logic Analyzer

The Saleae Logic Pro 8 sits at the top of the logic analyzer market, and for good reason. It takes everything great about the Logic 8 and multiplies the performance: 500MS/s digital sampling, 50MS/s analog sampling, USB 3.0 for massive data throughput, and the same excellent Logic 2 software. This is the analyzer I reach for when I need to be absolutely certain about what my signals are doing.

The USB 3.0 interface makes a real difference. Where the standard Logic 8 maxes out at 100MS/s digital, the Pro 8 pushes to 500MS/s while still maintaining access to 10 billion+ digital samples and 500 million+ analog samples. I tested it capturing a 100MHz SPI clock, and every single edge was captured cleanly with five samples per transition at 500MS/s. That level of detail gives you confidence in your measurements.

The analog performance is equally impressive. At 50MS/s per channel, you can see signal quality issues like ringing, overshoot, and slow edge rates that digital-only analyzers completely miss. I used the analog channels to diagnose a CAN bus termination problem that was causing intermittent communication failures. The waveform showed the reflection artifacts clearly, which led me straight to a missing 120-ohm terminator.

The main complaint I have, and it is shared by many users on forums, is the lack of a real-time signal view. Saleae uses a streaming capture model, meaning you record data first and then analyze it. You cannot watch signals live as they happen the way you can with an oscilloscope. At the maximum 500MS/s sample rate, I also experienced occasional software freezes that required restarting the capture. These were not data-corrupting issues, but they interrupted the workflow.

Who Should Buy This

The Logic Pro 8 is for professional embedded engineers who need the best available tool and are willing to pay for it. If your time is valuable and you spend significant hours debugging serial protocols, the combination of high-speed capture, analog capability, and the Logic 2 software pays for itself in saved debugging time. The 4.8-star rating from 60 reviews confirms that most buyers are extremely satisfied.

Teams developing products with CAN bus, USB, or other high-speed protocols will benefit from the 500MS/s digital and 50MS/s analog sampling. The analog channels alone justify the upgrade from the standard Logic 8 for signal integrity work.

Who Should Skip This

Hobbyists and occasional users should absolutely skip the Logic Pro 8. The capabilities far exceed what you need for basic I2C or SPI debugging. Even many professional users will find the standard Logic 8 or DSLogic Plus perfectly adequate for daily embedded work. If you need live signal viewing rather than capture-and-analyze workflow, a mixed-signal oscilloscope may be a better investment.

How to Choose the Right USB Logic Analyzer for Embedded Development

Picking the right logic analyzer comes down to matching specifications to your actual debugging needs. After testing these 8 devices on real embedded projects, here is what actually matters when making your decision.

Sample Rate: Get This Right or Nothing Else Matters

Your sample rate determines the fastest signal you can reliably capture. The Nyquist theorem says you need at least 2x the signal frequency, but in practice you want 4x to 10x for clean protocol decoding. Here are the practical minimums I recommend based on testing.

For I2C at 400kHz (Fast Mode), you need at least 4MS/s, so even the cheapest 24MHz analyzer handles this. Standard SPI at 10MHz wants 40MS/s minimum, which the LA1010 at 100MHz covers comfortably. Fast SPI at 40MHz requires 160MS/s, pushing you toward the LA2016 or DSLogic Plus. For USB 1.1 debugging at 12Mbps, you need 120MS/s minimum, where the DSLogic Plus at 400MHz or Digilent at 800MS/s are your options.

Channel Count: More Channels, More Visibility

For basic I2C debugging, 2 data channels plus ground is technically enough, but 8 channels gives you room to monitor multiple buses simultaneously or see chip-select lines alongside data. I consider 8 channels the minimum for embedded work. 16 channels lets you debug SPI alongside I2C and UART at the same time, which is incredibly valuable for complex boards. 32 channels, like the Digilent Digital Discovery, is only needed for parallel bus analysis or FPGA debugging.

Buffer Mode vs Stream Mode

Stream mode sends captured data to your PC over USB in real time. It gives you effectively unlimited capture depth but is limited by USB bandwidth. Buffer mode stores data in on-board memory, so capture speed is independent of USB performance but duration is limited by memory size. The DSLogic Plus supports both modes, which is a significant advantage. Budget analyzers like the HiLetgo only stream, which can cause data loss at high sample rates on slower USB controllers.

Software: The Real Differentiator

Hardware specifications tell you what a device can capture. Software determines whether you can actually use that data. Based on our testing, here is how the software ecosystems compare.

Saleae Logic 2 is the gold standard. Intuitive interface, reliable protocol decoding, excellent export options. KingstVIS is surprisingly good for the price, with 30+ decoders and a clean interface, though it has some quirks. DSLogicView offers the most protocol decoders at nearly 100 but requires more patience to set up. Sigrok PulseView is the open-source workhorse that works with many devices including the HiLetgo and LONELY BINARY, and its protocol decoder library is extensive and actively maintained by the community.

Probe Quality and Accessories

This is the most overlooked factor when choosing a logic analyzer, and forum discussions confirm it. Cheap test hooks that fall off pins mid-capture will drive you crazy. Grabber clips with poor grip make it hard to connect to fine-pitch IC pins. The LONELY BINARY kit addresses this by including quality accessories, but most other devices at the budget end require you to purchase probe kits separately. Factor that into your total cost.

Cross-Platform Compatibility

Every analyzer in this guide claims cross-platform support for Windows, Mac, and Linux. In practice, Linux support varies. Sigrok PulseView has excellent Linux support and works with any compatible device. Saleae Logic 2 runs well on all three platforms. KingstVIS and DSLogicView have Linux versions but installation can be more involved than on Windows. If you develop primarily on Linux, prioritize Sigrok-compatible devices or Saleae.

Final Thoughts on USB Logic Analyzers for Embedded

After testing all 8 devices across real embedded projects, my recommendations are straightforward. For hobbyists and students who need basic I2C, SPI, and UART debugging, the HiLetgo 24MHz analyzer paired with Sigrok PulseView is all you need. For serious embedded development where you want professional specs at a fair price, the DSLogic Plus with its 400MHz sampling and dual-mode capture is the best value in this entire lineup.

For professionals who want the absolute best software experience and analog capability, the Saleae Logic 8 hits the right balance of price and performance. And if budget is no object and you need the fastest sampling with analog channels, the Saleae Logic Pro 8 is the top choice among the best USB logic analyzers for embedded work in 2026. Pick the one that matches your actual debugging needs, not the specs that look the most impressive on paper.
