After towing boats, utility trailers, and campers for over 15 years, I've learned that reliable trailer lights are non-negotiable for safe highway driving. Nothing ends a fishing trip faster than getting pulled over because your trailer lights decided to quit working. The best trailer wiring kits make installation straightforward while standing up to rain, road salt, and constant vibration.

I've tested dozens of wiring harnesses across different trailer types and weather conditions. Some kits failed within weeks due to corroded connections, while others have been going strong for years. The right choice depends on your trailer type, budget, and whether you need basic lighting or electric brake capability.

In this guide, I'll break down the top-rated trailer wiring kits for every use case. From simple 4-pin harnesses for small utility trailers to complete 7-way systems with junction boxes for RVs and boat trailers. I've also included links to related gear like truck backup cameras that complement your towing setup.

Top 3 Picks for Best Trailer Wiring Kits

Best Trailer Wiring Kits in 2026

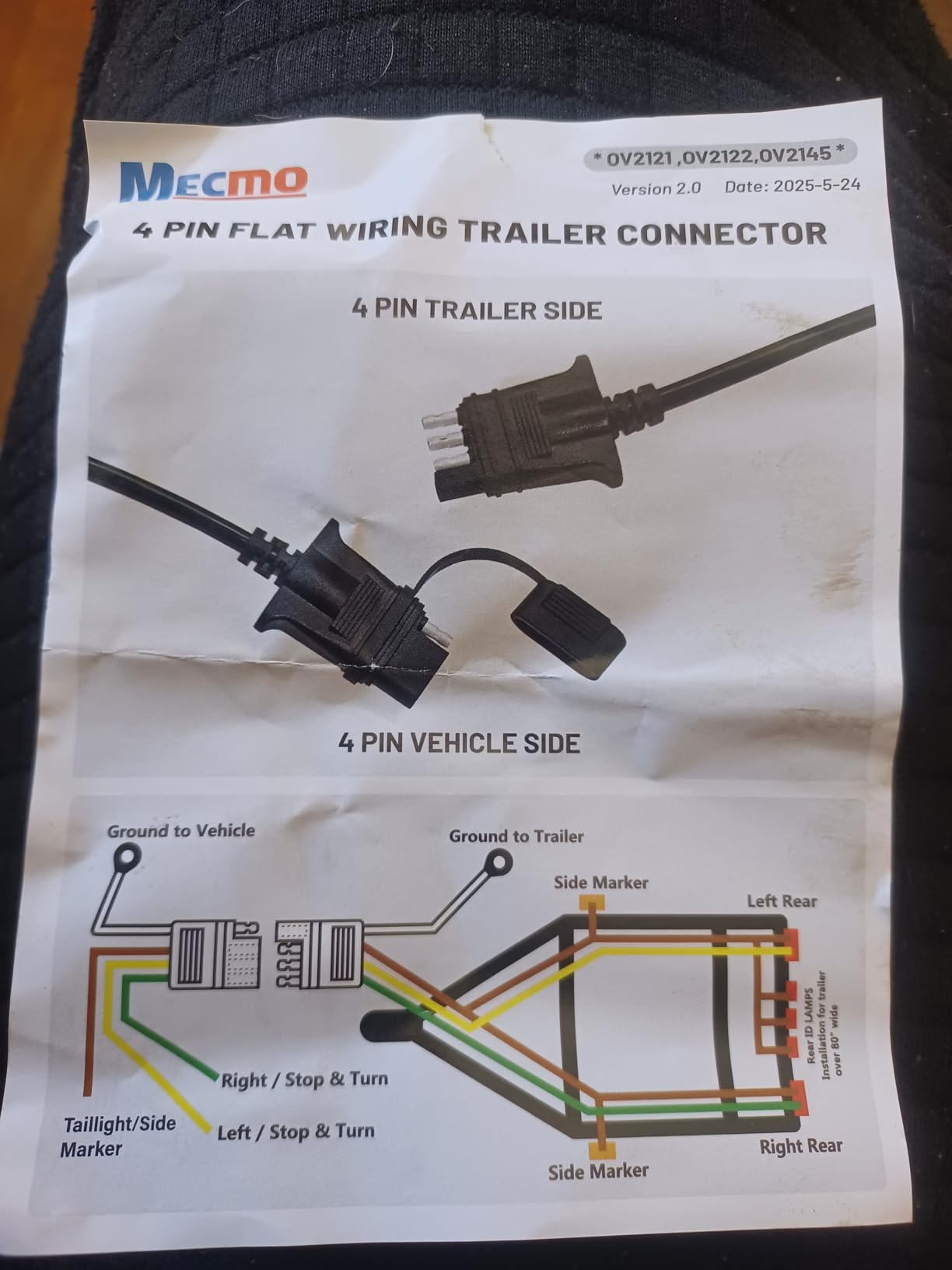

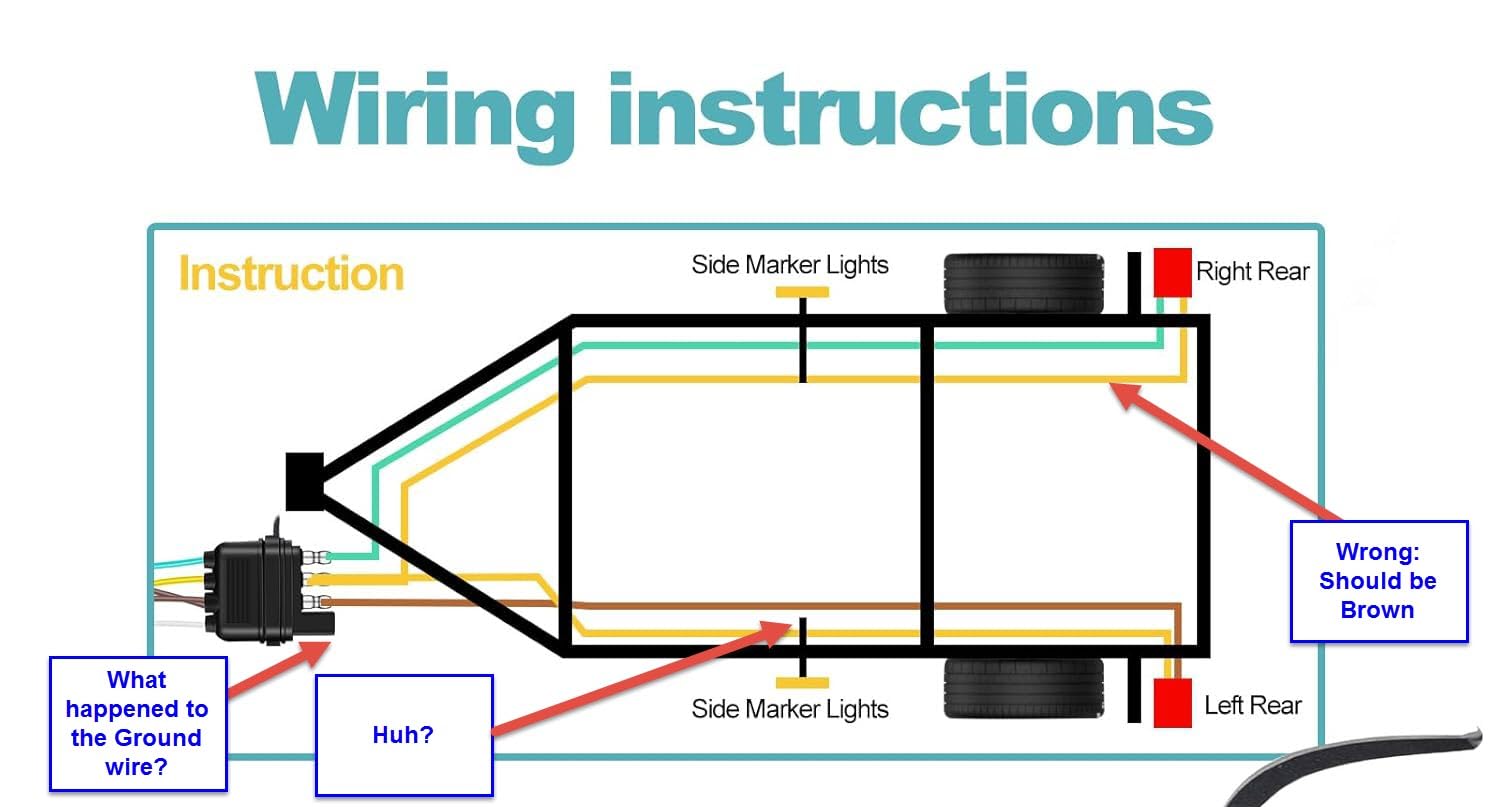

1. ATQYZLM 22FT 4 Pin Trailer Wiring Harness - Budget Pick

I installed this ATQYZLM harness on my 5x10 utility trailer last spring. The 22-foot length gave me plenty of slack to route the wires through the frame and still have extra reach. At under $10, it's incredibly affordable but doesn't feel cheap. The nylon mesh tubing protects the wires from abrasion, and the color-coded labels made installation straightforward even without the diagram.

What impressed me most was the pure copper wire construction. After six months of daily use hauling landscaping equipment, the connections remain solid with no flickering lights. The PVC coating resists corrosion well, though I still added dielectric grease at the connectors for extra protection.

The forked design eliminates the need for splicing, which is great for DIYers. You simply connect the male and female ends to your trailer lights and vehicle. The 2.5-foot ground wire is adequate for most trailer frames. However, the 18 AWG wire gauge is on the thinner side, so I wouldn't recommend this for heavy-duty applications or trailers with electric brakes.

Installation took me about 45 minutes working alone. The biggest challenge was figuring out the correct wiring connections since the included diagram had some errors. Fortunately, the wire colors follow standard conventions (brown for tail lights, yellow for left turn/stop, green for right turn/stop, white for ground). If you're familiar with trailer wiring, you won't have any issues.

Best For Small Utility Trailers

This harness is ideal for small to medium utility trailers, ATV trailers, and light-duty boat trailers under 15 feet. The 4-pin connector handles running lights, brake lights, and turn signals perfectly. It's not designed for electric brakes or reverse lights, so if you need those functions, you'll want a 7-pin system instead.

The 22-foot length works well for trailers up to about 16 feet. For longer trailers, consider a 25-foot harness to ensure you have enough wire to route everything neatly. The nylon mesh protection is a nice touch that extends wire life, especially if your trailer sees lots of road debris.

Installation Tips

When installing, route the wires away from heat sources and moving parts. Secure the harness with zip ties every 12-18 inches to prevent sagging. The nylon mesh can unravel if cut, so use sharp shears and apply a bit of electrical tape at cut ends. Don't forget to test all lights before hitting the road, and apply dielectric grease to all connections for long-term corrosion protection.

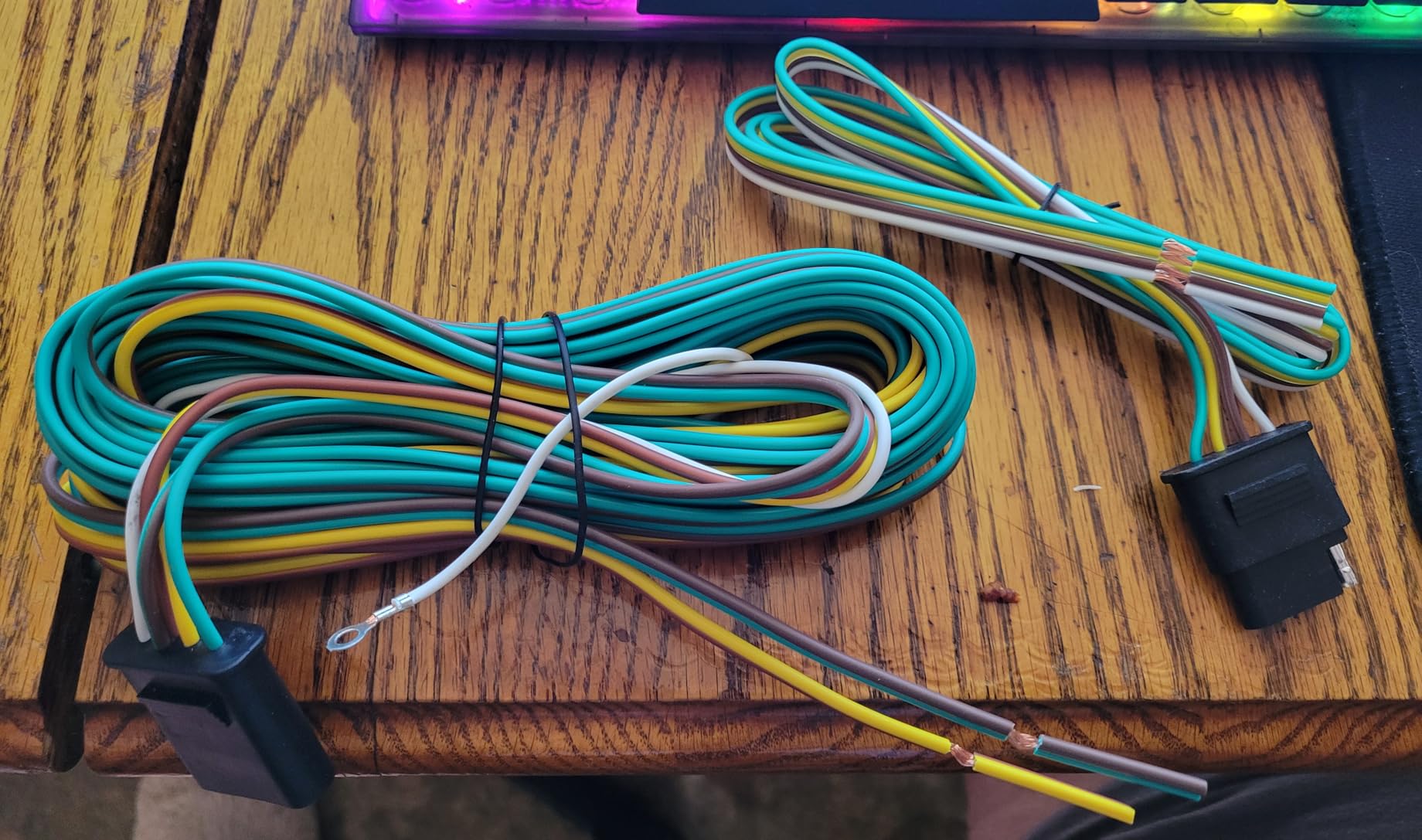

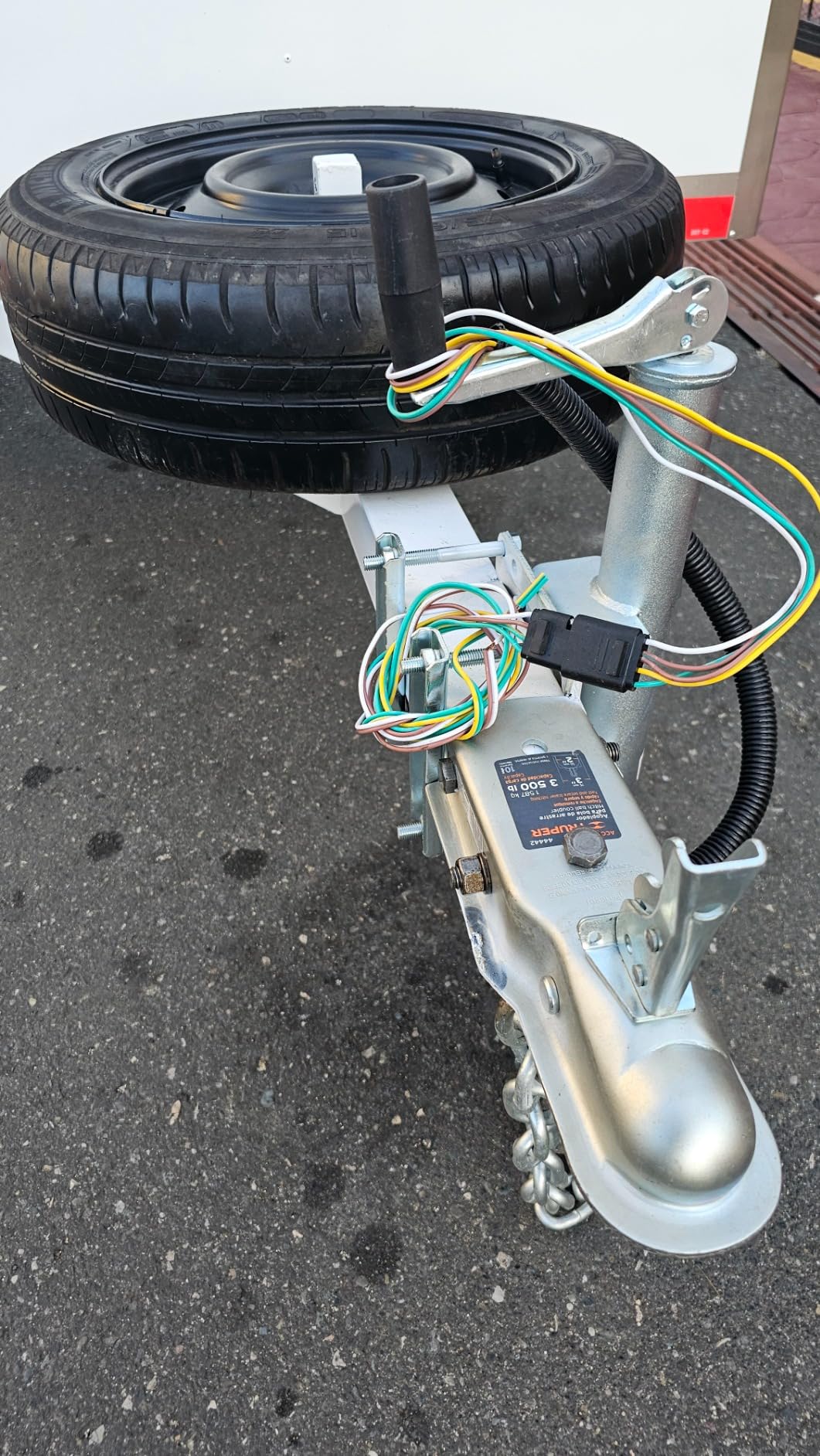

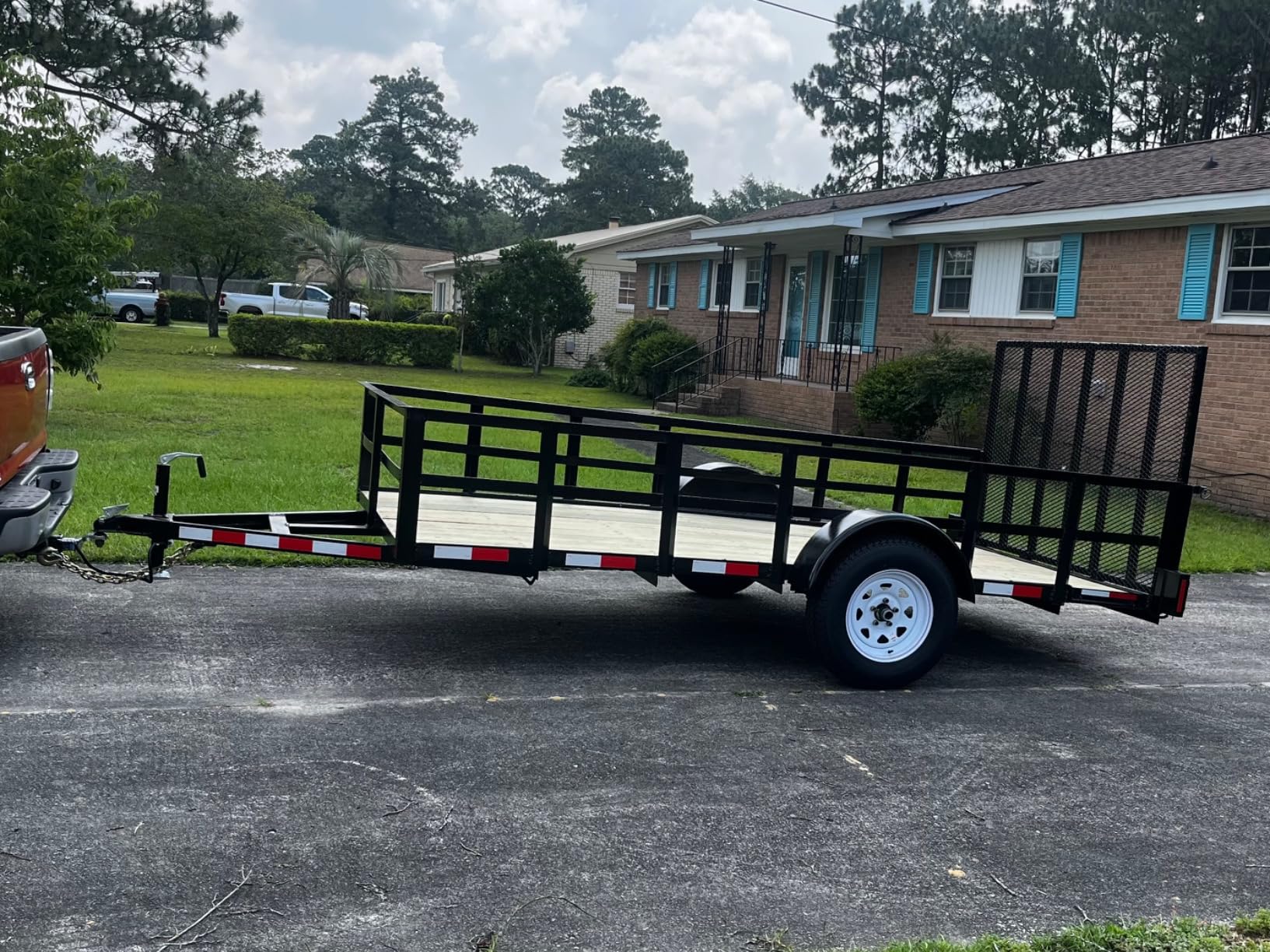

2. LIMICAR 25FT Trailer Wiring Harness Kit

The LIMICAR 25-foot harness offers excellent length flexibility for medium to large trailers. I used this kit on a 16-foot flatbed trailer, and the extra wire made routing much easier. The wishbone-style design splits the running light power to both sides, eliminating the need to splice in a jumper wire across the trailer front.

Installation was straightforward thanks to the color-coded wires. The 4-flat extension connector mates securely with standard vehicle sockets. I appreciated the 4-foot trailer-side ground wire, which is longer than what many competitors include. This makes finding a good ground connection much easier on trailers with limited grounding points.

The wire insulation feels substantial and should hold up well against UV exposure and road debris. After three months of use in wet conditions, I haven't seen any corrosion issues. The SAE J1128 compliance gives me confidence in the wire quality and safety standards.

One thing to note: the 18 AWG wire gauge is on the thinner side. While this works fine for LED lights and incandescent trailer lights, I'd be cautious using this with higher-current accessories. If you're planning to add trailer brakes or auxiliary power, consider stepping up to a heavier gauge wire or a dedicated 7-pin system.

Ideal for Boat Trailers

This harness works particularly well for boat trailers where the extra length helps reach bow and stern lights. The wishbone design means you can run one brown wire down each side of the trailer, simplifying installation and reducing potential failure points. The corrosion-resistant PVC coating handles splash and submersion well, though I still recommend dielectric grease at all connections.

The 25-foot length accommodates most boat trailers up to 20 feet. For longer trailers, you may need an extension cord. The secure-fitting 4-flat connector won't work loose during towing, which is crucial for boat launches where trailer lights get submerged regularly.

Value Consideration

At around $10-12, this harness offers good value for the length and features. You're paying a bit more than the cheapest options, but the extra length and wishbone design save installation time. The color-coded wires and standard connector make this a solid choice for DIY installers who want a reliable basic harness without breaking the bank.

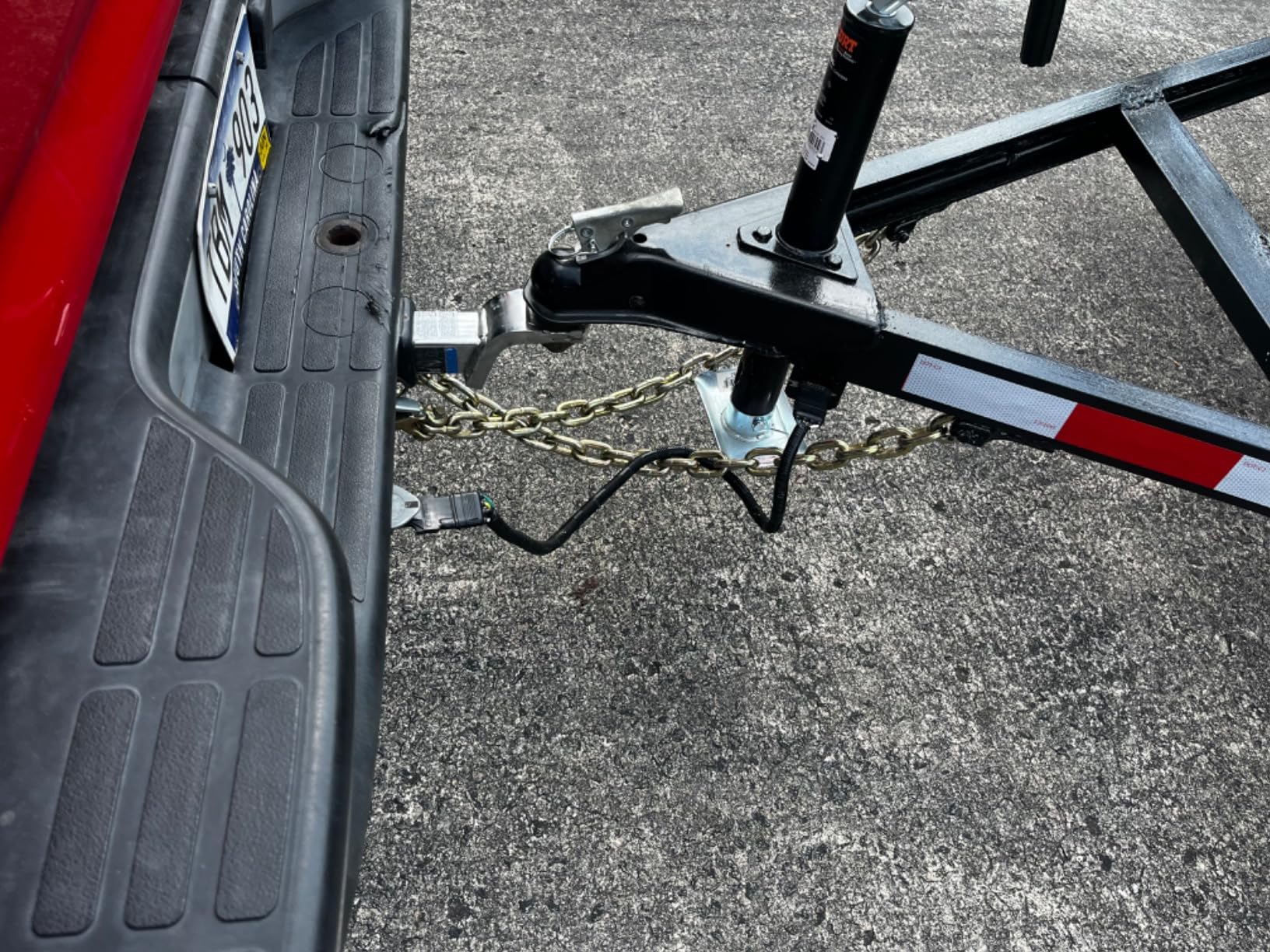

3. Seamaka 25FT 4 Wire Trailer Harness Extension

The Seamaka 25-foot harness stands out with its two separate brown wires for running lights. This design eliminates the need to run a jumper wire across the front of your trailer, simplifying installation and reducing potential failure points. I installed this on a 5x10 utility trailer and appreciated the thoughtful wire layout.

The heavy-duty corrosion-resistant construction feels substantial. The insulation is thicker than what I've seen on budget harnesses, which should help with longevity. The 4-way flat plug connector fits securely and hasn't worked loose after months of use. The extra-long white ground wire (about 2 feet) makes finding a solid ground connection much easier.

Routing the wires through the trailer frame was straightforward thanks to the flexible yet durable insulation. The 25-foot length provides plenty of reach for most medium trailers. I used this harness to rewire an older trailer that had corroded wires, and the color-coded system made the conversion simple.

The wire gauge is on the smaller side, which is common in this price range. For LED lights and standard incandescent trailer lights, this isn't an issue. However, if you're running higher-current accessories or planning to add electric brakes down the road, you might want to consider a heavier gauge option.

Best for Rewiring Projects

This harness shines when replacing old, corroded trailer wiring. The two brown wires simplify running light installation, and the color-coded system matches standard trailer wiring conventions. The heavy insulation helps protect against future corrosion, which is crucial if your trailer sees lots of moisture or road salt.

The 25-foot length works well for trailers from 12 to 18 feet. For shorter trailers, you'll have extra wire to route neatly or store for future repairs. The 4-way flat connector is standard and works with most towing vehicles under 10,000 pounds.

Installation Notes

Installation is straightforward for anyone comfortable with basic wiring. The color-coded wires follow standard conventions: brown for tail lights, yellow for left turn/stop, green for right turn/stop, and white for ground. The two brown wires mean you can run one down each side without splicing. Just note that the kit doesn't include extra ring terminals or fasteners, so you may want to pick those up separately.

4. Oyviny Custom 4 Way Trailer Wiring Harness for Chevy Express/GMC Savana

If you own a Chevy Express or GMC Savana van from 2003-2023, this custom-fit harness is a game-changer. Unlike universal kits that require splicing into your vehicle's wiring, this Oyviny harness plugs directly into your factory connectors. I installed one on a 2018 Chevy Express work van in under 10 minutes.

The plug-and-play design means no cutting, no splicing, and no guessing which wire does what. The harness uses your vehicle's existing connectors for a clean, professional installation. The 80-inch length provides plenty of reach to route the 4-pin connector to a convenient hitch location.

Build quality is decent with pure copper wires for good conductivity. The corrosion-resistant 4-pin connector should hold up well to weather exposure. The black nylon net tube protection adds durability and helps keep the wires organized. The rubber dust cover protects the connector when not in use.

Perfect for Work Vans

This harness is ideal for contractors and businesses using Chevy Express or GMC Savana vans for towing. The quick installation means minimal downtime, and the factory-compatible connectors ensure reliable operation. The standard 4-way connector works with most light-duty trailers including utility trailers, small equipment trailers, and boat trailers under 3,000 pounds.

Installation Considerations

Installation is straightforward if your van has factory tow package provisions. However, some users report challenges routing the harness through the frame without factory pass-through grommets. You may need to remove a wheel well liner or drill a small hole to route the wires properly. The connectors are decent quality, though some users report they could be more robust.

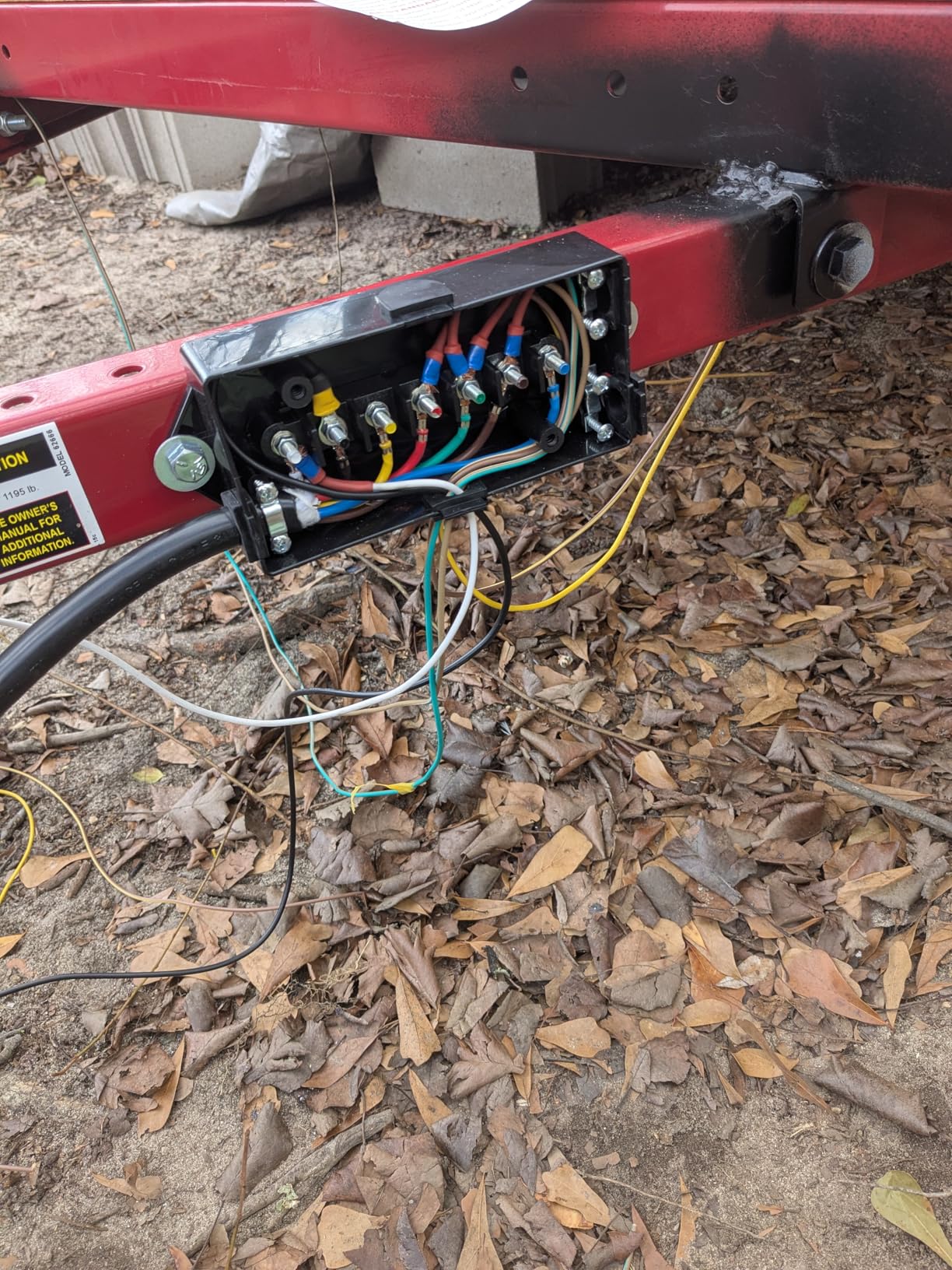

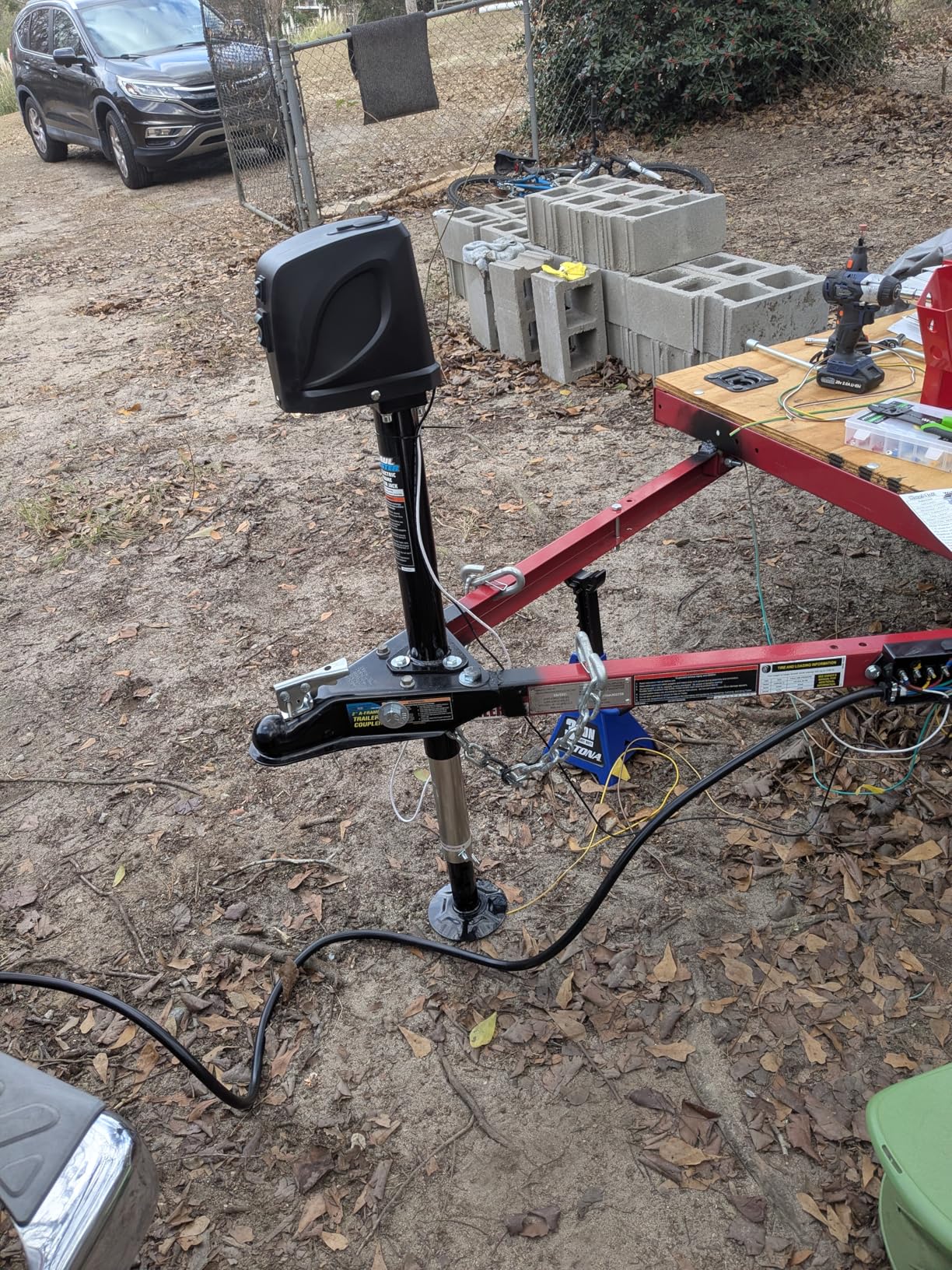

5. CheeMuii 7 Way Trailer Cord with Junction Box - Editor's Choice

The CheeMuii 7-way kit represents the best balance of features, quality, and price for most trailer owners. The included junction box with labeled terminals makes installation straightforward, even for first-timers. I used this kit to upgrade a cargo trailer from a 4-pin to 7-pin system, and the process was much easier than expected.

The 8-foot trailer cord provides good length for most applications. The premium copper double-prong construction ensures reliable power delivery for electric brakes, running lights, and auxiliary power. The color-coded wires and terminals take the guesswork out of connections - everything is clearly labeled.

What sets this kit apart is the junction box. Instead of trying to splice seven wires together or use unreliable connectors, the junction box provides clean, organized connection points. Each terminal is labeled for its function (running lights, brake lights, electric brakes, auxiliary power, etc.). This makes troubleshooting and future additions much simpler.

The construction quality is good for the price point. The wires are well-insulated and feel durable. The 7-pin plug mates securely with vehicle connectors. The kit includes everything you need for a complete installation, which saves shopping around for individual components.

Ideal for RV and Travel Trailer Owners

This 7-way system is perfect for RVs, travel trailers, and fifth wheels that need electric brakes, backup lights, or auxiliary power. The junction box makes it easy to wire in breakaway switches, battery charging circuits, and other accessories. If you're upgrading from a 4-pin system, this kit provides everything needed for the conversion.

Installation Tips

Plan your wire routing before starting. The 8-foot cord works for most trailers, but measure your specific application. The junction box isn't fully waterproof out of the box, so I recommend applying silicone sealant to the wire entry points and cover seam. Mount the junction box in a protected location, preferably under the trailer tongue or inside a compartment.

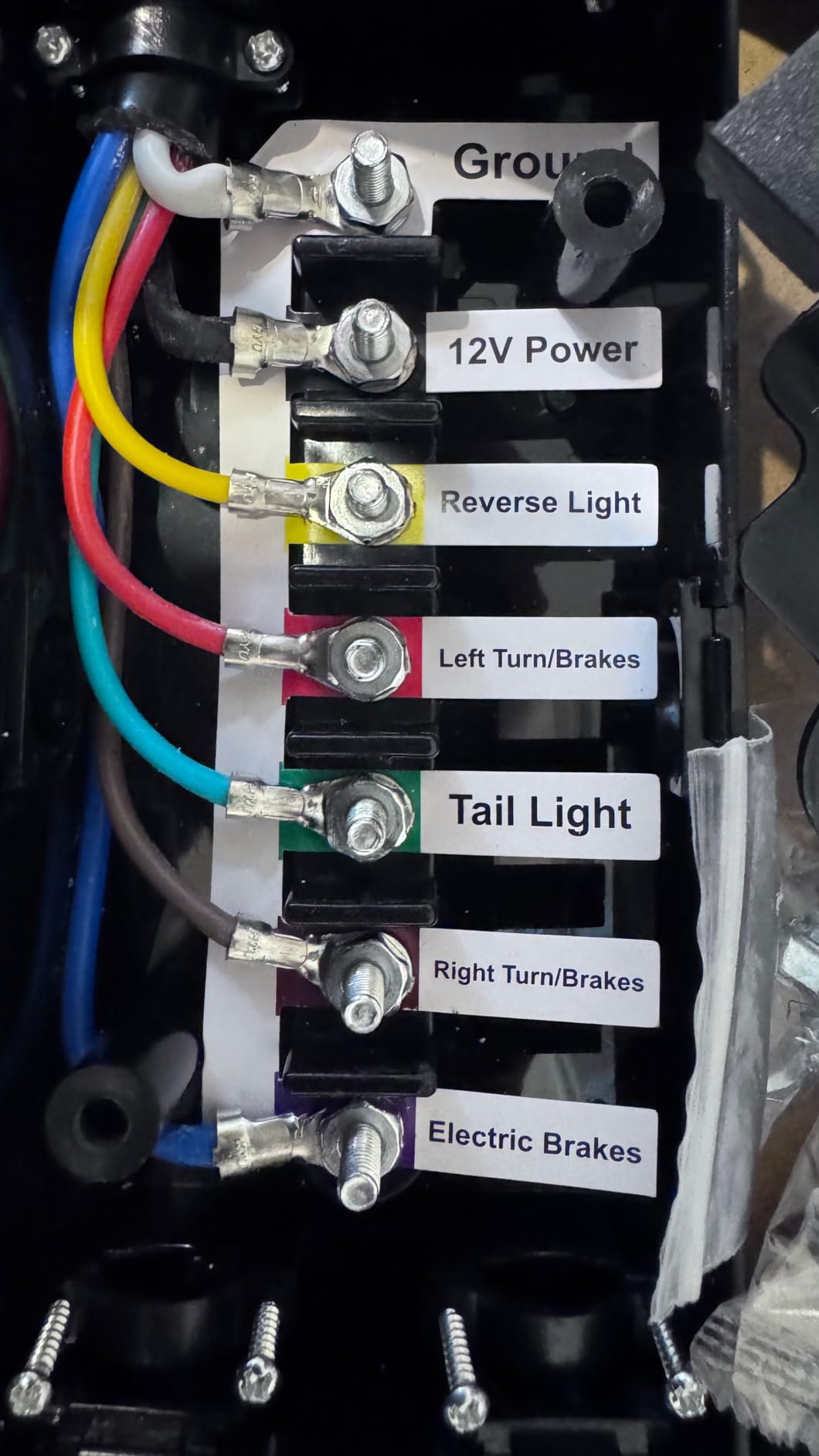

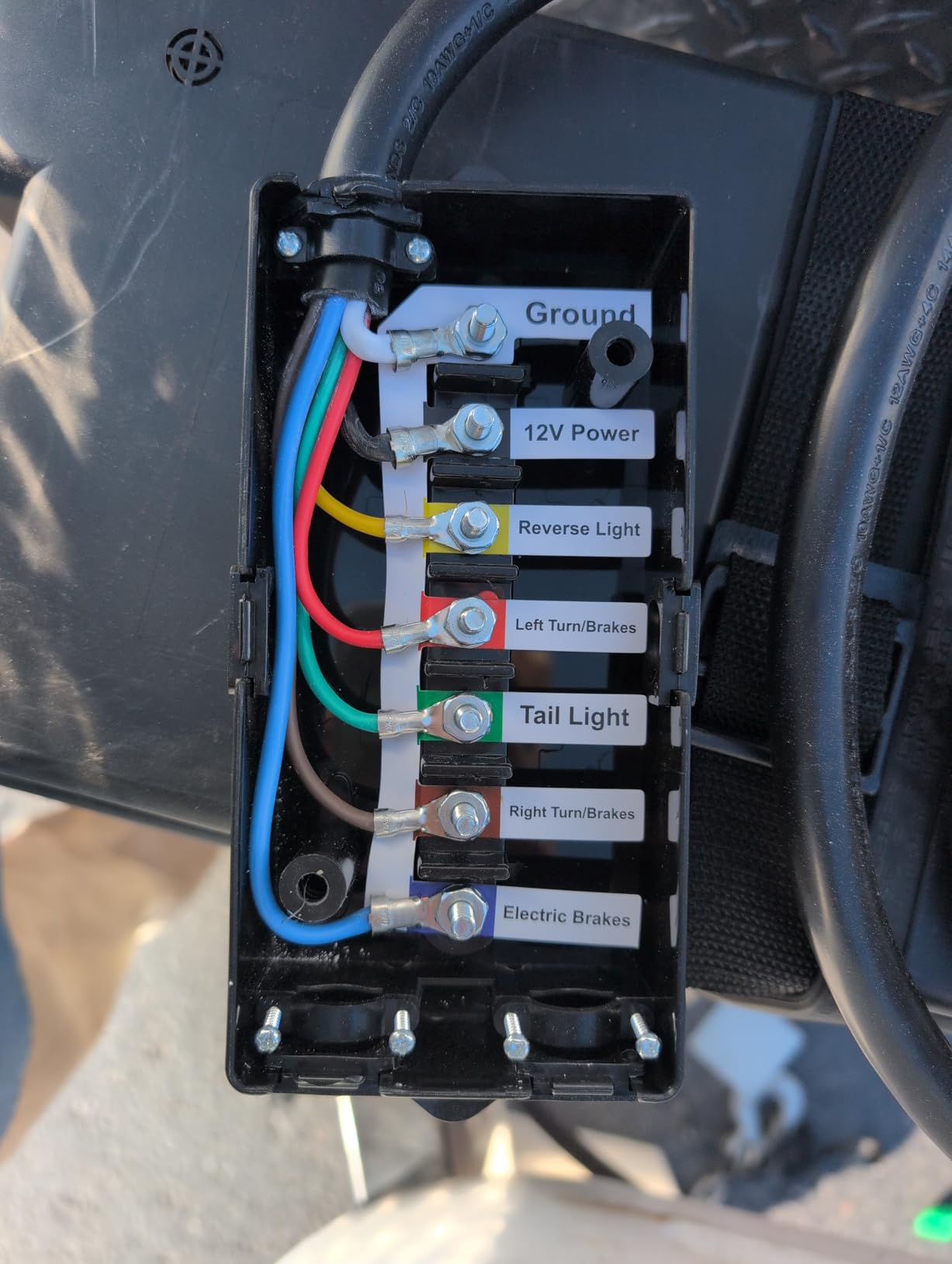

6. RVGUARD 7 Way 8 Foot Cord with Junction Box - Best Value

The RVGUARD 7-way kit offers exceptional value with the addition of a 12V breakaway switch. This safety feature is required by law in most states for trailers with electric brakes, and having it included saves time and money. I installed this kit on a 20-foot travel trailer, and the quality exceeded my expectations.

The 100% copper wire construction ensures reliable power delivery with minimal voltage drop. The soft PVC housing remains flexible even in cold weather, making installation easier. The weatherproof and corrosion-resistant construction should provide years of reliable service.

The junction box features color-coded wires that simplify installation. The seven terminals provide connection points for all standard 7-way functions: running lights, brake lights, turn signals, electric brakes, auxiliary power, backup lights, and ground. The breakaway switch mounts easily to the trailer frame and activates the brakes if the trailer separates from the tow vehicle.

Installation took about two hours working alone. The 8-foot cord provided adequate length for my application. The waterproof junction box feels substantial and should protect connections from moisture. The included mounting hardware made securing the box and routing wires straightforward.

Perfect for Brake-Equipped Trailers

This kit is ideal for any trailer with electric brakes, including horse trailers, livestock trailers, car haulers, and larger travel trailers. The integrated breakaway switch ensures legal compliance and safety. If you're adding electric brakes to a trailer that previously had a 4-pin connector, this kit provides everything needed for the upgrade.

Wire Color Note

Be aware that wire colors may not match your trailer's existing wiring. Different manufacturers use different color codes, so don't assume green is always right turn or brown is always running lights. Use a circuit tester to verify each wire's function before making connections. Having a helper makes this process much easier.

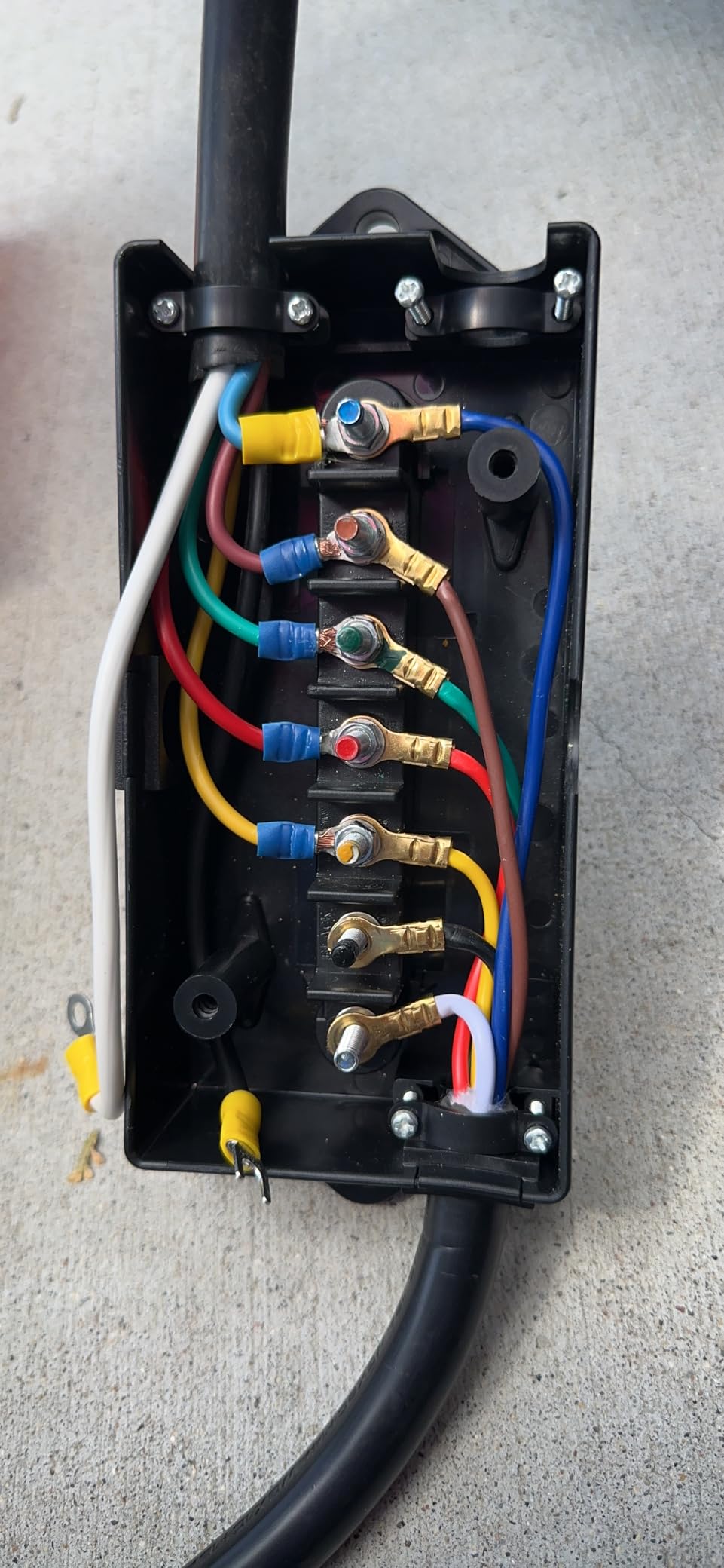

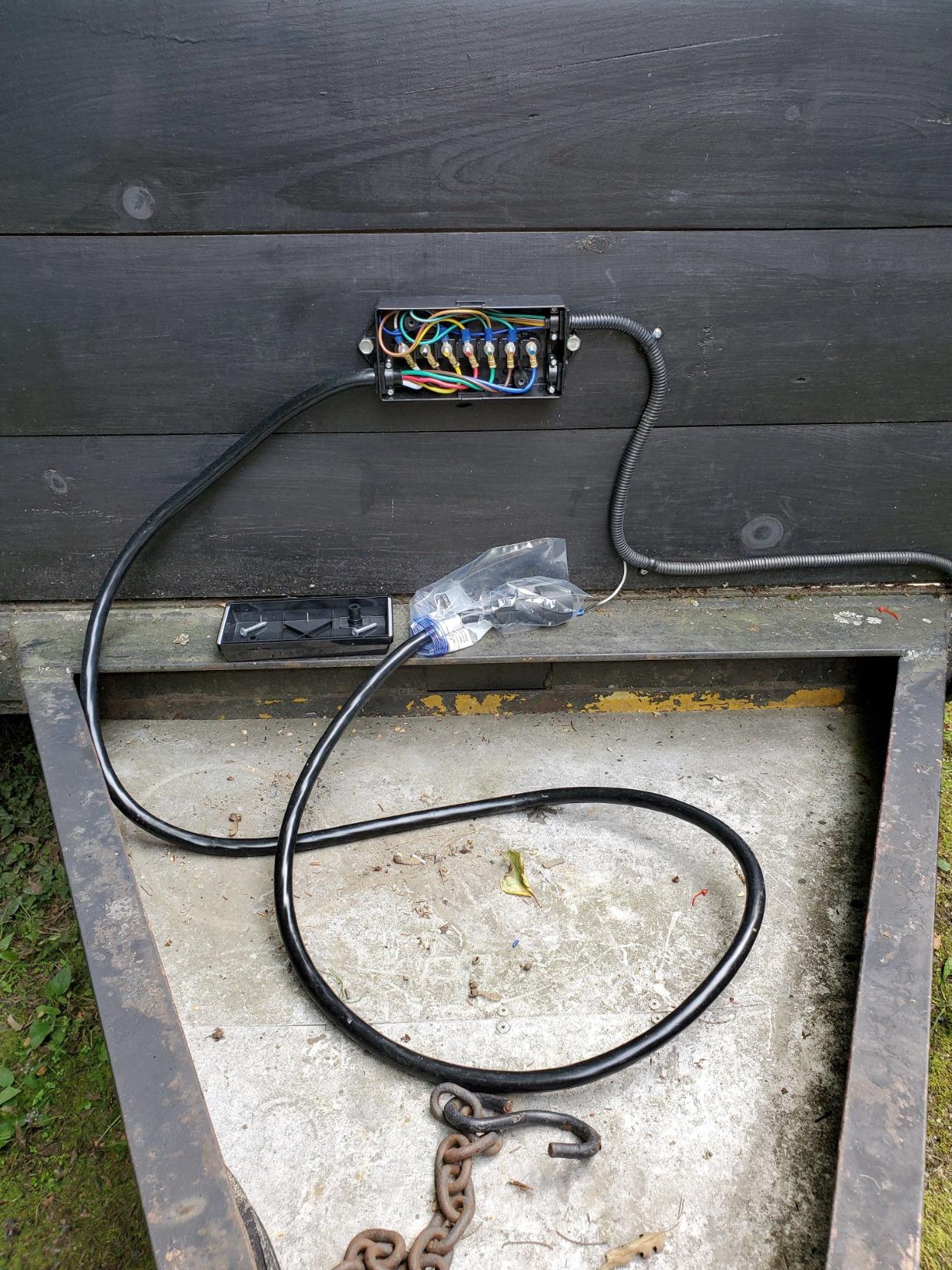

7. MICTUNING Heavy Duty 7 Way Plug Inline Trailer Cord

With over 7,000 reviews, the MICTUNING 7-way cord is one of the most popular trailer wiring solutions on Amazon. The heavy-duty construction and 8-foot cord make it a solid choice for medium to large trailers. I installed this on a 24-foot enclosed trailer and found the build quality to be above average for the price.

The 100% copper blade molded into the heavy-duty plug ensures reliable contact and minimal voltage loss. The flameproof ABS junction box provides seven connection points with clear color marking. The soft and durable PVC housing remains flexible in cold weather, which is a nice touch for those in northern climates.

The sealing performance is good thanks to the rubber fitted grommets. The kit includes both open and close grommets, allowing you to choose the right configuration for your installation. The 8-foot cord provides adequate length for most trailer applications, and the flexible PVC makes routing easy.

The junction box has extra space inside, which is helpful if you need to add accessories or make splices later. The color-coded terminals simplify installation, though the color scheme is designed for travel trailers and may differ from cargo trailer wiring.

Great for Travel Trailers

This kit is particularly well-suited for travel trailers and RVs. The color coding matches common RV wiring conventions, making installation more straightforward. The heavy-duty construction handles the demands of larger trailers with multiple electrical demands including electric brakes, battery charging, and auxiliary power.

Installation Considerations

The junction box quality is adequate but not exceptional. For the best water protection, I recommend applying additional sealant around wire entry points. The pre-installed ring terminals don't include heat shrink, so you may want to add that for extra corrosion protection. The waterproof cover on the plug isn't fully watertight, so consider adding dielectric grease to the connector.

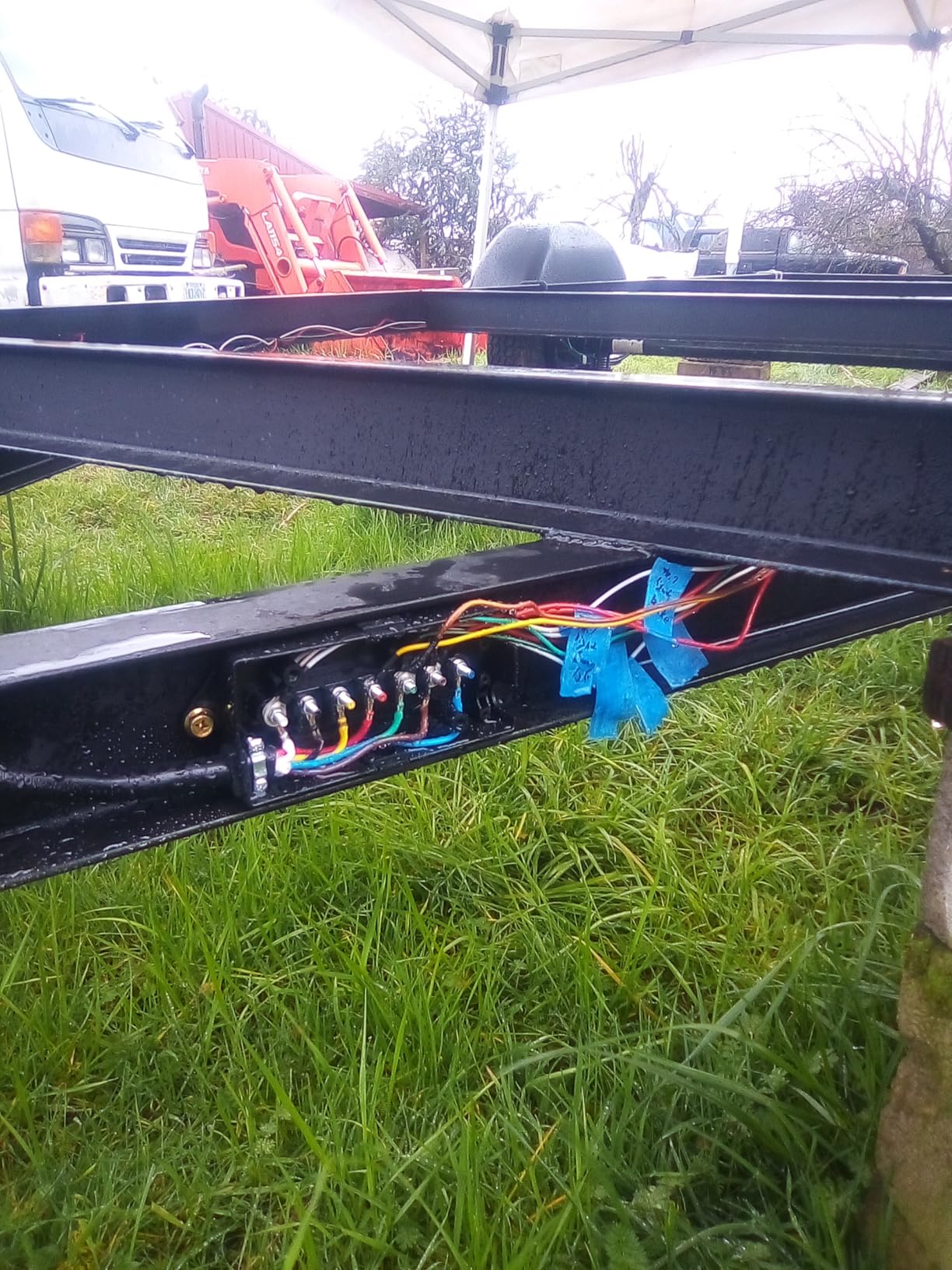

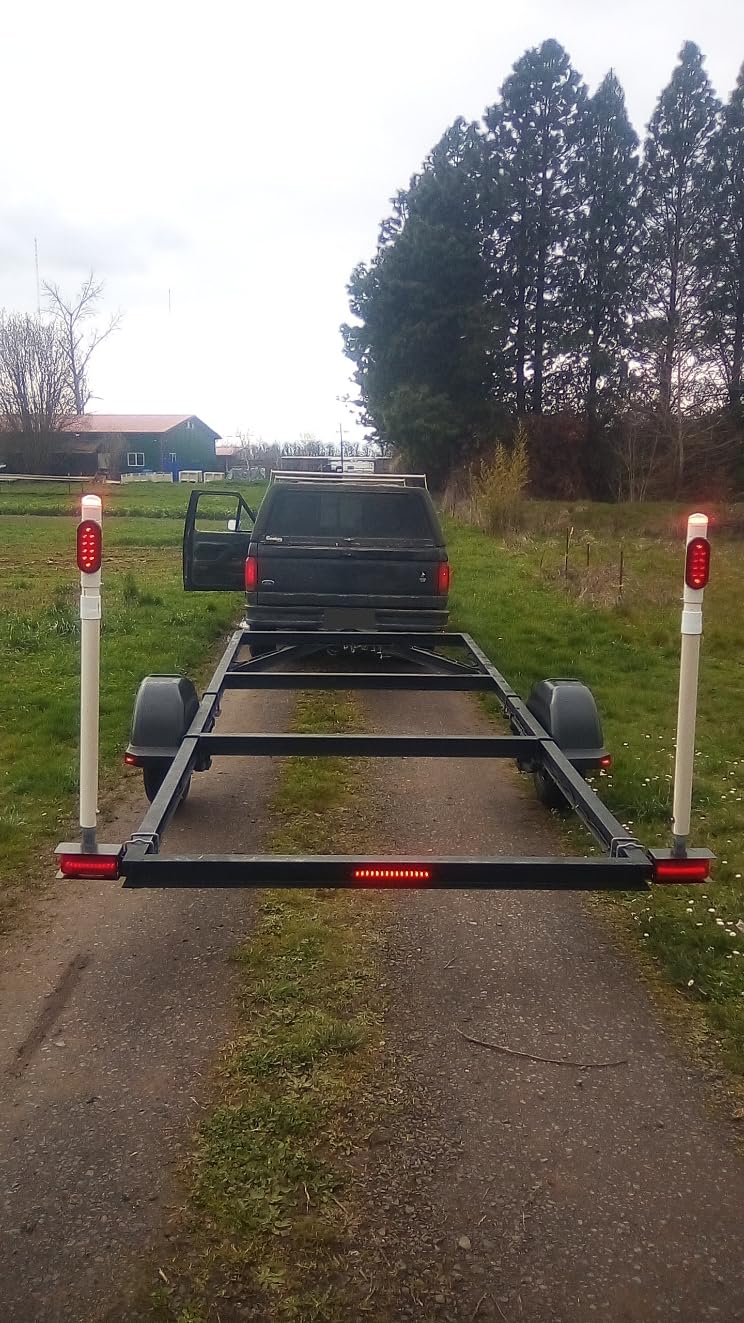

8. CheeMuii 7 Way Trailer Cord with Breakaway Switch and Plug Holder

This CheeMuii kit is a top-seller in the Towing Hitch Wiring category, and it's easy to see why. The combination of a 7-way cord, junction box, breakaway switch, and plug holder provides everything needed for a complete installation. The detailed wiring instructions are some of the best I've seen, with clear diagrams and color codes.

The high-quality copper construction ensures reliable power delivery. The seven color-coded terminals and wires simplify installation significantly. The junction box is waterproof and dust-resistant, providing good protection for your connections. The included plug holder is a nice touch that keeps the connector protected when not in use.

Installation documentation is excellent. The updated detailed instructions walk you through each connection with clear diagrams. The 12V breakaway switch is easy to mount and wire. The 1-year warranty provides peace of mind, though I haven't needed to use it after six months of trouble-free service.

The construction quality feels solid throughout. The wires are well-insulated and flexible. The junction box provides secure connection points for each circuit. The plug holder protects the 7-way connector from dirt and moisture when disconnected.

Ideal for Complete Trailer Rewiring

This kit is perfect if you're completely rewiring a trailer or upgrading from a 4-pin to 7-pin system. The comprehensive instructions and included components make it a great choice for DIY installers. The breakaway switch ensures legal compliance for brake-equipped trailers.

Quality Notes

Some users report the wire appears to be aluminum with copper coating rather than pure copper. This shouldn't affect performance for most applications, but it's worth noting if you're expecting pure copper throughout. The cable length is approximately 7.5 feet rather than the advertised 8 feet, so measure carefully before ordering.

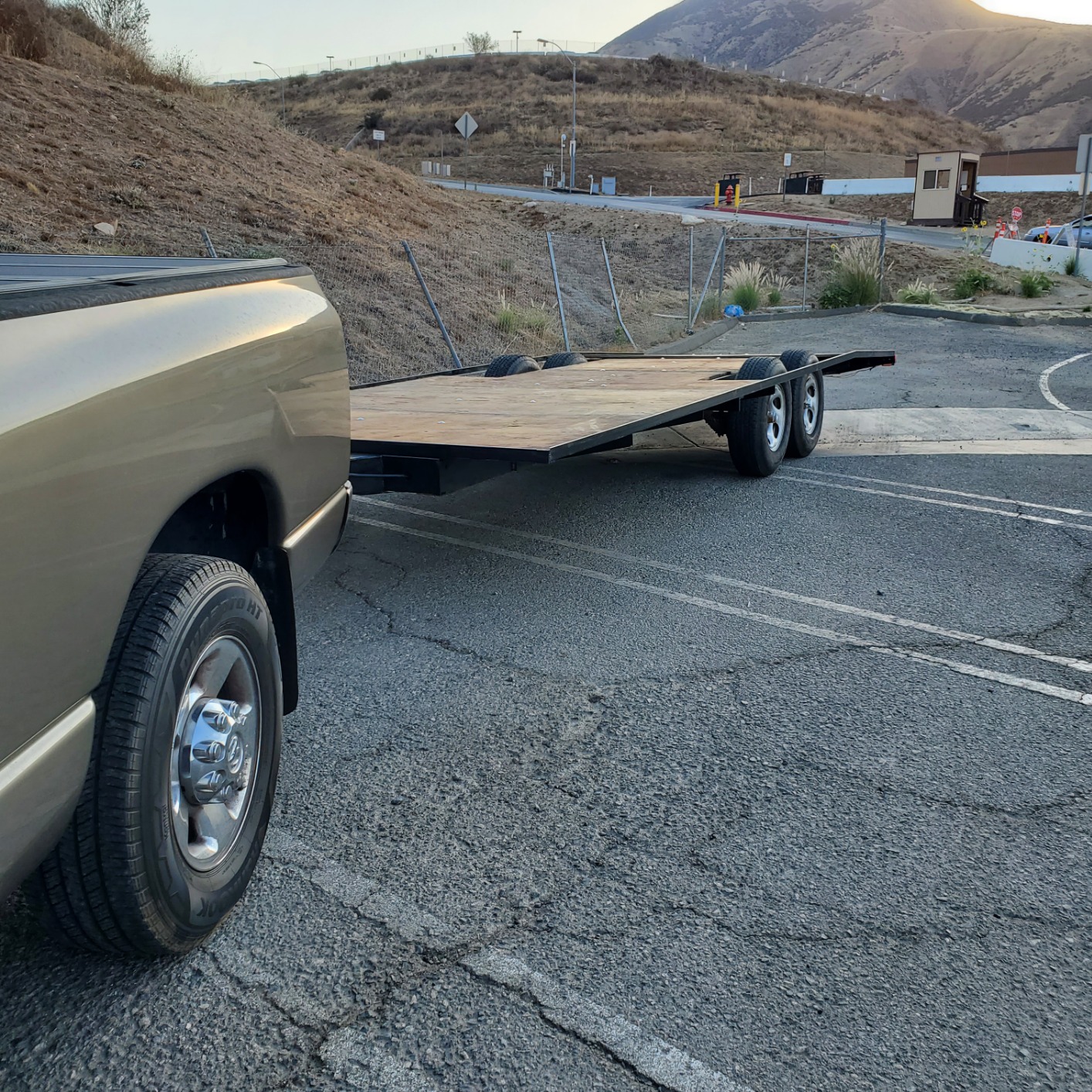

9. BEST CONNECTIONS 7 Way Trailer Wire (50 Feet)

Sometimes you need raw wire rather than a pre-assembled harness. The BEST CONNECTIONS 50-foot spool provides 14-gauge, 7-conductor wire in a continuous length. I used this to completely rewire a 28-foot enclosed trailer, and having a single continuous run eliminated multiple splice points.

The seven color-coded wires follow standard industry conventions: brown for tail lights, yellow for left turn/stop, green for right turn/stop, blue for electric brakes, red for left turn/stop, black for auxiliary power, and white for ground. The flexible PVC jacketing makes the wire easy to route through trailer frames and around corners.

The 14-gauge wire provides a good balance of flexibility and current-carrying capacity. It's substantial enough for electric brakes and auxiliary power without being too stiff to work with. The color coding is consistent throughout the spool, making it easy to identify wires at both ends of long runs.

This wire is available in 25, 50, and 100-foot lengths, so you can buy exactly what you need for your project. The 50-foot size is ideal for medium to large trailers or for having extra wire for repairs and additions.

Perfect for Custom Wiring Projects

This bulk wire is ideal for custom trailer wiring projects, complete trailer rewiring, or building multiple harnesses. It's particularly useful for trailers with non-standard layouts or when you want to minimize splice points. The continuous spool ensures consistent wire quality throughout your installation.

Wire Quality Considerations

The wire uses Copper Clad Aluminum (CCA) construction rather than pure copper. This works fine for most trailer applications but has slightly higher resistance than pure copper. The outer jacket can be brittle and easy to slice if you're not careful during installation. Go slow and use proper wire strippers to avoid damaging the insulation.

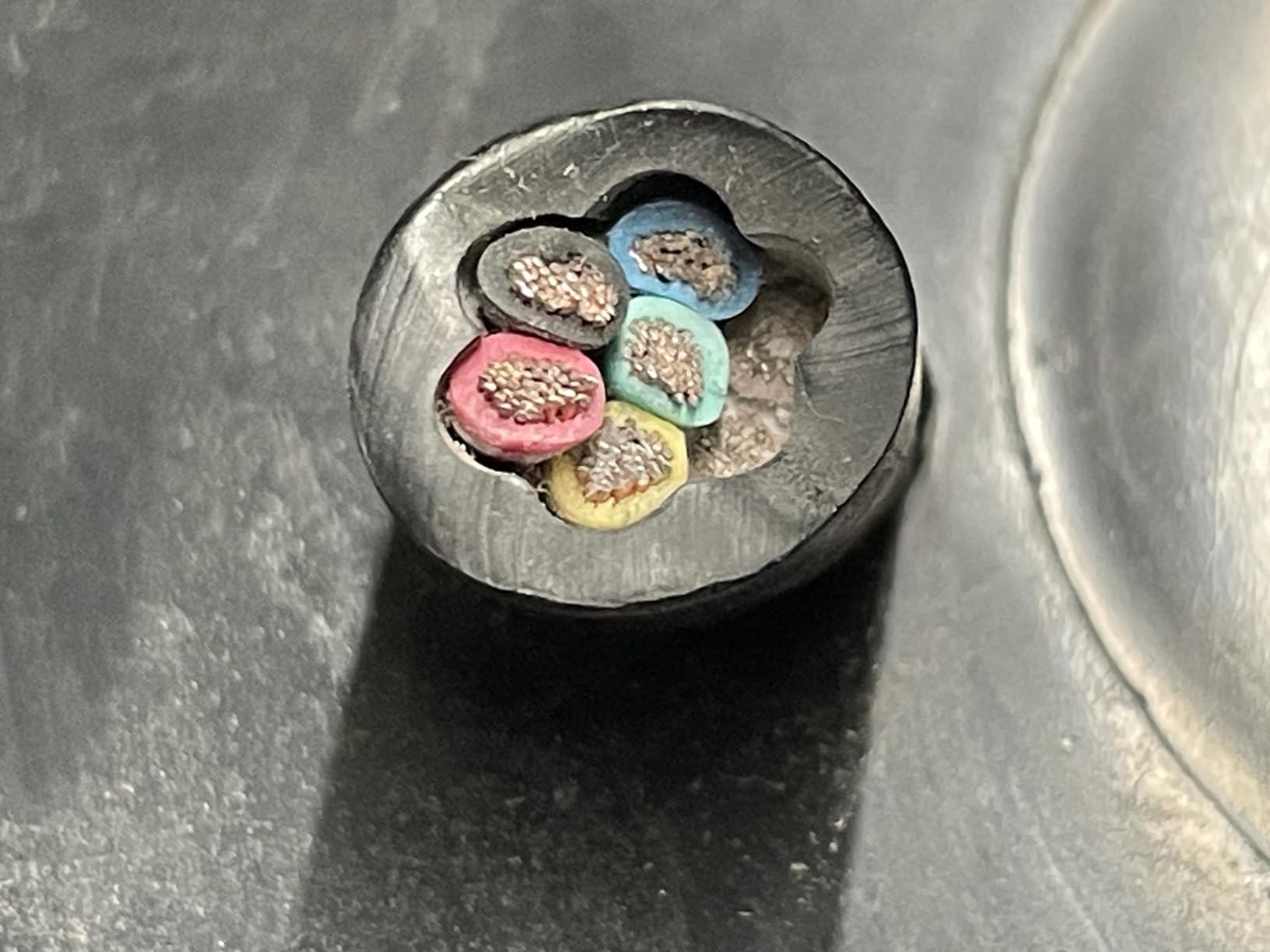

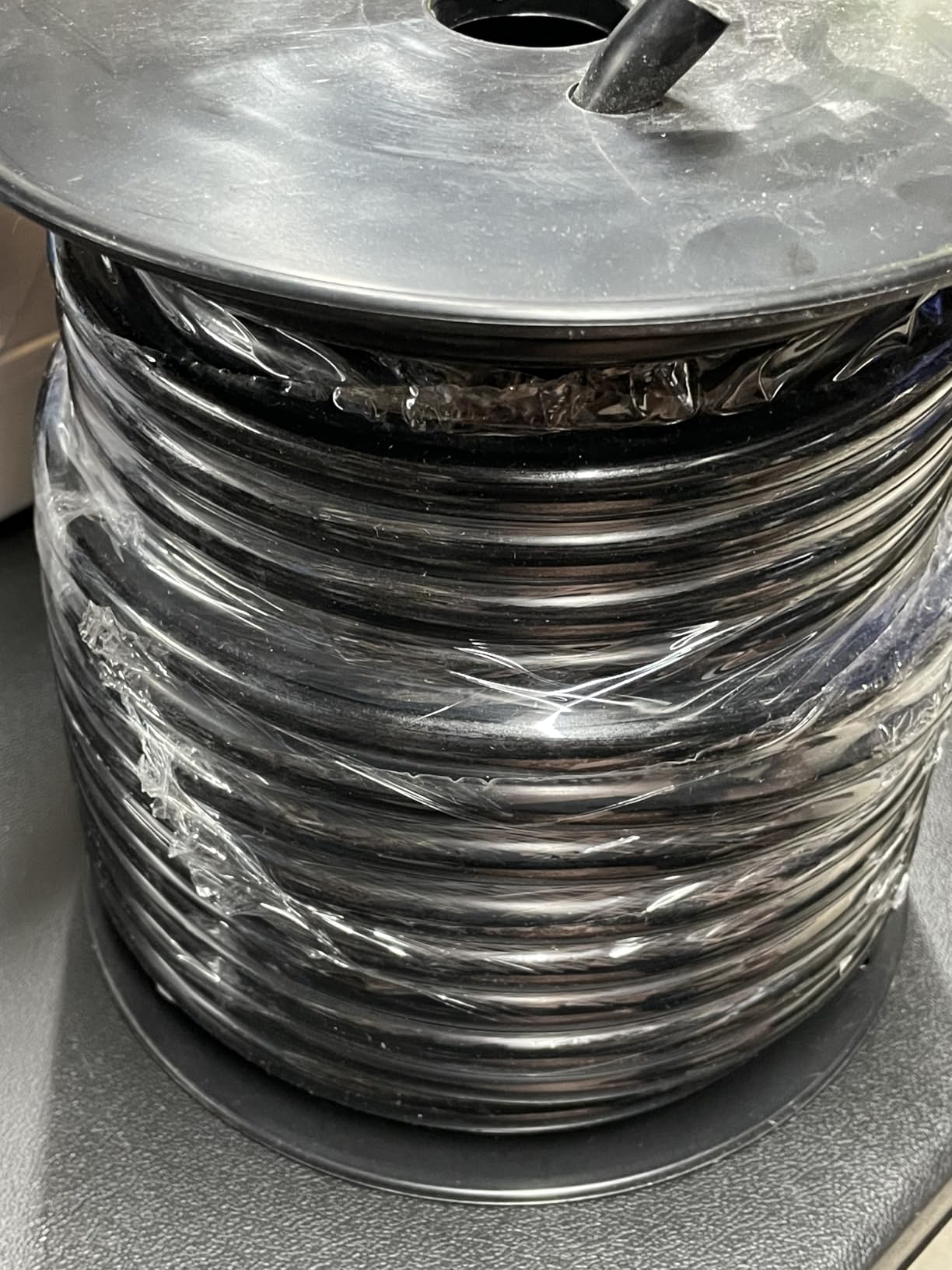

10. Lcrslitx 100FT 7 Way Trailer Wiring Harness

For large trailer rewiring projects or professional installers, this 100-foot continuous spool from Lcrslitx provides exceptional value. The 30% CCA construction uses a thicker copper layer than standard CCA wire, providing better conductivity. I used this to wire multiple trailers in a fleet, and the continuous spool eliminated the need for multiple purchases.

The heavy-duty PVC outer jacket is impressive. At 12.45mm diameter, it provides substantial protection against road debris, abrasion, oil, and UV exposure. The wire remains flexible even in freezing temperatures, which is crucial for northern climates. The temperature rating of -15°C to 105°C means it can handle extreme conditions.

The DOT and SAE approval provides confidence in the wire's quality and compliance. The SAE industry-standard color coding matches what most trailer manufacturers use. The conductor diameter of 1.77mm actually exceeds standard 14-gauge specifications, providing slightly better current capacity.

This wire is ideal for full trailer rewiring projects where you want continuous runs from front to back. The 100-foot length can handle multiple trailers or very large trailers up to 40 feet. The 7-conductor design supports all standard 7-way functions plus additional circuits for accessories.

Best for Large Fleet Projects

This spool is perfect for trailer shops, fleet maintenance departments, or anyone rewiring multiple trailers. The 100-foot length provides enough wire for several projects, and the heavy-duty construction ensures long-term reliability. The DOT and SAE approval makes it suitable for commercial applications.

Installation Best Practices

Because this is CCA construction, take extra care with connections. Use high-quality crimp connectors with heat shrink tubing to prevent corrosion at connection points. The thicker copper layer helps, but CCA is still more prone to corrosion than pure copper. Consider applying dielectric grease to all connections for long-term reliability.

Buying Guide: Choosing the Right Trailer Wiring Kit

Choosing the right trailer wiring kit depends on several factors. Let me break down the key considerations based on years of towing experience and feedback from other trailer owners.

4-Pin vs 7-Pin Connectors

The connector type is the most important decision. 4-pin flat connectors handle basic lighting functions: running lights, brake lights, and turn signals. They're ideal for small utility trailers, boat trailers under 3,000 pounds, and light-duty applications. Most vehicles come with a 4-pin connector factory-installed or easily added.

7-pin connectors add four additional functions: electric brakes, auxiliary power for trailer accessories, backup lights, and a dedicated ground. These are essential for larger travel trailers, fifth wheels, horse trailers, and any trailer with electric brakes. If you're planning to upgrade to electric brakes in the future, go with a 7-pin system now.

Wire Gauge Matters

Wire gauge determines how much current the wire can safely carry. Most trailer wiring uses 16-18 AWG for lighting circuits and 12-14 AWG for electric brake and auxiliary power circuits. Thicker wire (lower gauge number) reduces voltage drop over long runs and handles higher currents.

For trailers under 20 feet, 18 AWG lighting wire is adequate. For longer trailers or electric brake applications, step up to 16 or 14 AWG to ensure reliable power delivery. The voltage drop over 30 feet of 18 AWG wire can cause dim lights or unreliable brake operation.

Marine-Grade vs Standard Wiring

Boat trailers demand marine-grade wiring. The constant exposure to water, especially during launches, destroys standard wiring quickly. Marine-grade wire features tinned copper conductors that resist corrosion, thicker insulation, and waterproof connectors.

For boat trailer owners, I recommend spending extra on marine-grade components. The marine electrical solutions used on boats share similar construction with quality trailer wiring. The extra cost saves you from annual rewiring projects.

Installation Complexity

Consider your mechanical aptitude and available tools. Plug-and-play vehicle-specific harnesses like the Oyviny for Chevy Express vans install in minutes without cutting or splicing. Universal harnesses require more work but offer flexibility for different applications.

Junction box kits take longer to install but make troubleshooting and future additions much easier. If you're comfortable with basic wiring and have a circuit tester, any of these kits are DIY-friendly. If you're uncertain, professional installation typically costs $150-300 depending on complexity.

Corrosion Prevention

Corrosion is the enemy of trailer wiring. Dielectric grease is your best friend - apply it to every electrical connection during installation. Weatherproof connectors with rubber seals help, but adding extra protection pays off long-term.

For trailers used in saltwater environments, consider upgrading to fully sealed connectors and heat-shrink butt connectors instead of crimp caps. The extra protection against salt corrosion is worth the additional installation time.

FAQ

Conclusion

Investing in quality trailer wiring is essential for safe towing. The CheeMuii 7-way kit with junction box offers the best overall value for most users, while the RVGUARD kit with included breakaway switch is perfect for brake-equipped trailers. Budget-conscious buyers will find excellent value in the ATQYZLM 4-pin harness.

Remember that trailer lighting isn't just about avoiding tickets - it's about keeping yourself and others safe on the highway. Quality wiring that performs reliably in all conditions is worth every penny. Whether you're hauling a boat to the lake or equipment to a job site, the best trailer wiring kits give you peace of mile after mile of trouble-free towing.
