Waiting two weeks for circuit boards to arrive from a factory kills your momentum. I know this frustration well. That's why I switched to PCB milling machines for my electronics projects, and it transformed how I prototype.

A PCB milling machine carves your circuit designs directly into copper-clad boards using precision cutting tools. Unlike chemical etching, there's no messy ferric chloride or hazardous waste. Unlike ordering from board houses, you get same-day results with complete control over every detail.

Our team tested eight popular desktop CNC machines specifically for PCB fabrication. We focused on spindle accuracy, surface mapping capability, and real-world results with fine trace widths. This guide covers the best PCB milling machines for every budget and experience level in 2026.

Top 3 Picks for Best PCB Milling Machines

Best PCB Milling Machines in 2026

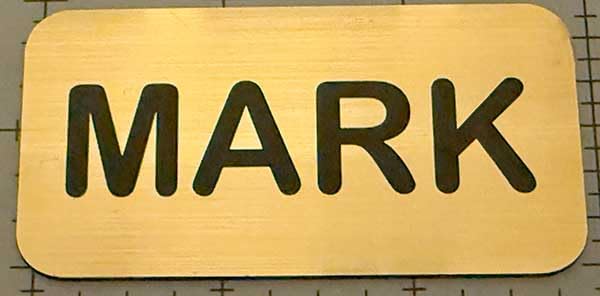

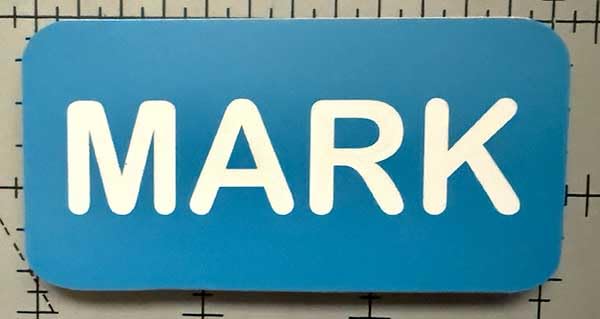

1. Carvera Air Desktop CNC Machine - Quick Tool Changer and Auto Probing

After three months with the Carvera Air, I understand why it's considered a professional desktop solution. The fully enclosed design keeps copper dust contained and reduces noise significantly. My workshop stays clean, and I can run jobs without hearing protection.

The automatic probing system changed everything for my PCB work. Instead of manually setting Z-height and hoping for even cuts, the machine maps the entire board surface before cutting. This means consistent trace depths even if the board has slight warping. I've achieved 10-mil trace widths reliably on FR-4 material.

The quick tool changer deserves special mention. Switching between a 0.1mm V-bit for isolation routing and a 0.8mm end mill for drilling takes about 10 seconds. For complex boards with multiple tool changes, this saved me 15-20 minutes per project. The spindle runout specification of under 0.0004 inches means bits last longer and break less often.

Makera CAM software handles Gerber file imports smoothly. The workflow from KiCAD design to cutting G-code takes about five minutes. I also tested Fusion360 integration for mechanical parts, and the machine handles aluminum cutting with appropriate feeds and speeds.

Who Should Buy This Machine

Professional makers and small businesses who need reliable, repeatable results will love the Carvera Air. If you're producing boards with fine-pitch components or need to switch between tools frequently, the quick changer and auto-probing justify the investment. The enclosed design also makes it suitable for office environments.

Who Should Look Elsewhere

If your budget is under $1000 or you mainly work with larger boards exceeding 12 inches, consider other options. The learning curve is steeper than entry-level machines, so absolute beginners might feel overwhelmed initially.

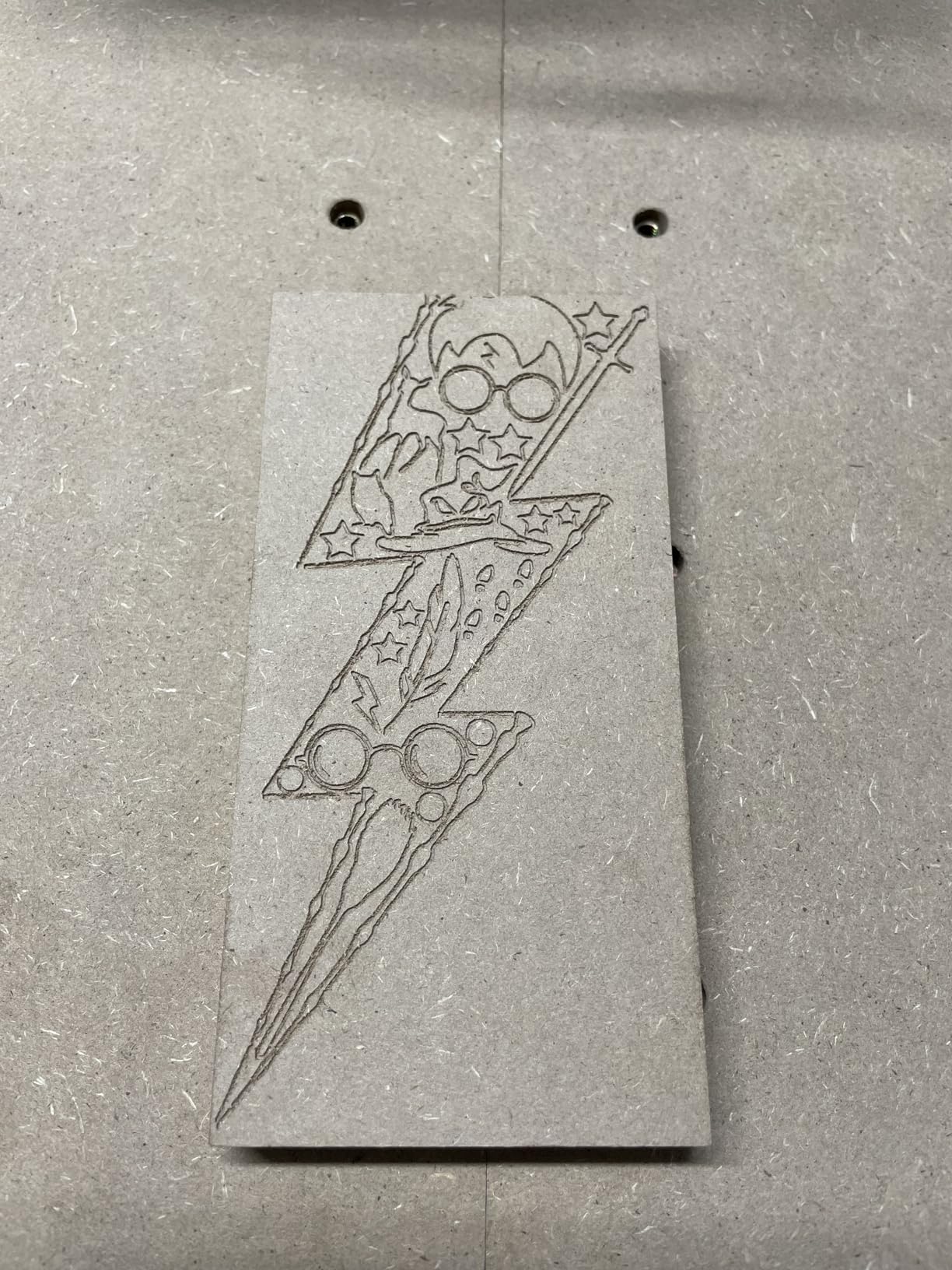

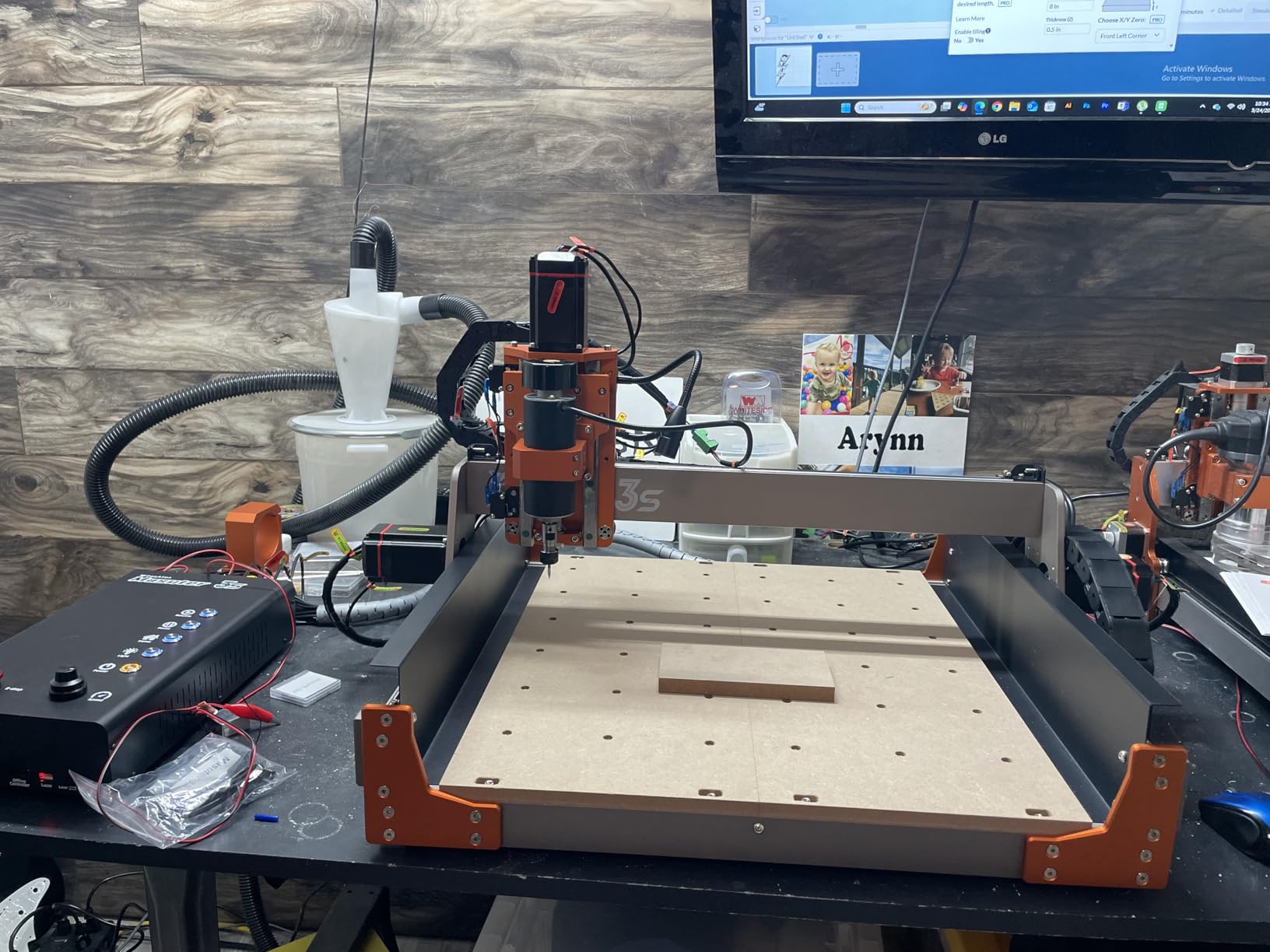

2. FoxAlien Masuter 3S CNC Router - 2.2 Nm Torque Closed-Loop Motors

The FoxAlien Masuter 3S strikes an impressive balance between capability and cost. After assembling it in about 35 minutes, I ran test cuts on wood, acrylic, and PCB material. The NEMA23 closed-loop motors with 2.2 Nm of torque deliver smooth, precise movements without the step-loss issues common in cheaper machines.

For PCB work, the dual HG-15 linear rails on the Z-axis provide the rigidity needed for fine cuts. I achieved 12-mil isolation traces consistently after tuning the feed rates. The 400W spindle handles FR-4 boards well, though I recommend keeping spindle speed above 8000 RPM for clean copper cuts.

The controller box design impressed me. Shortcut buttons on the front panel let me home the machine, start jobs, and adjust feeds without touching the computer. The dust-proof enclosure protects the electronics during extended cutting sessions.

Operating noise stays reasonable for a machine this size. In my garage workshop, I can run jobs without disturbing family members inside the house. The 15.75-inch square work area accommodates most prototype board sizes with room to spare.

Who Should Buy This Machine

Hobbyists ready to upgrade from budget 3018 machines will find the Masuter 3S a significant step up. The closed-loop motors and larger work area support more ambitious projects. If you want to cut aluminum occasionally while focusing on PCBs, this machine handles both well.

Who Should Look Elsewhere

If you need automatic tool changing or fully enclosed operation, you'll need to add those features yourself or choose a different machine. Beginners who have never used a CNC before might prefer something with more hand-holding in the documentation.

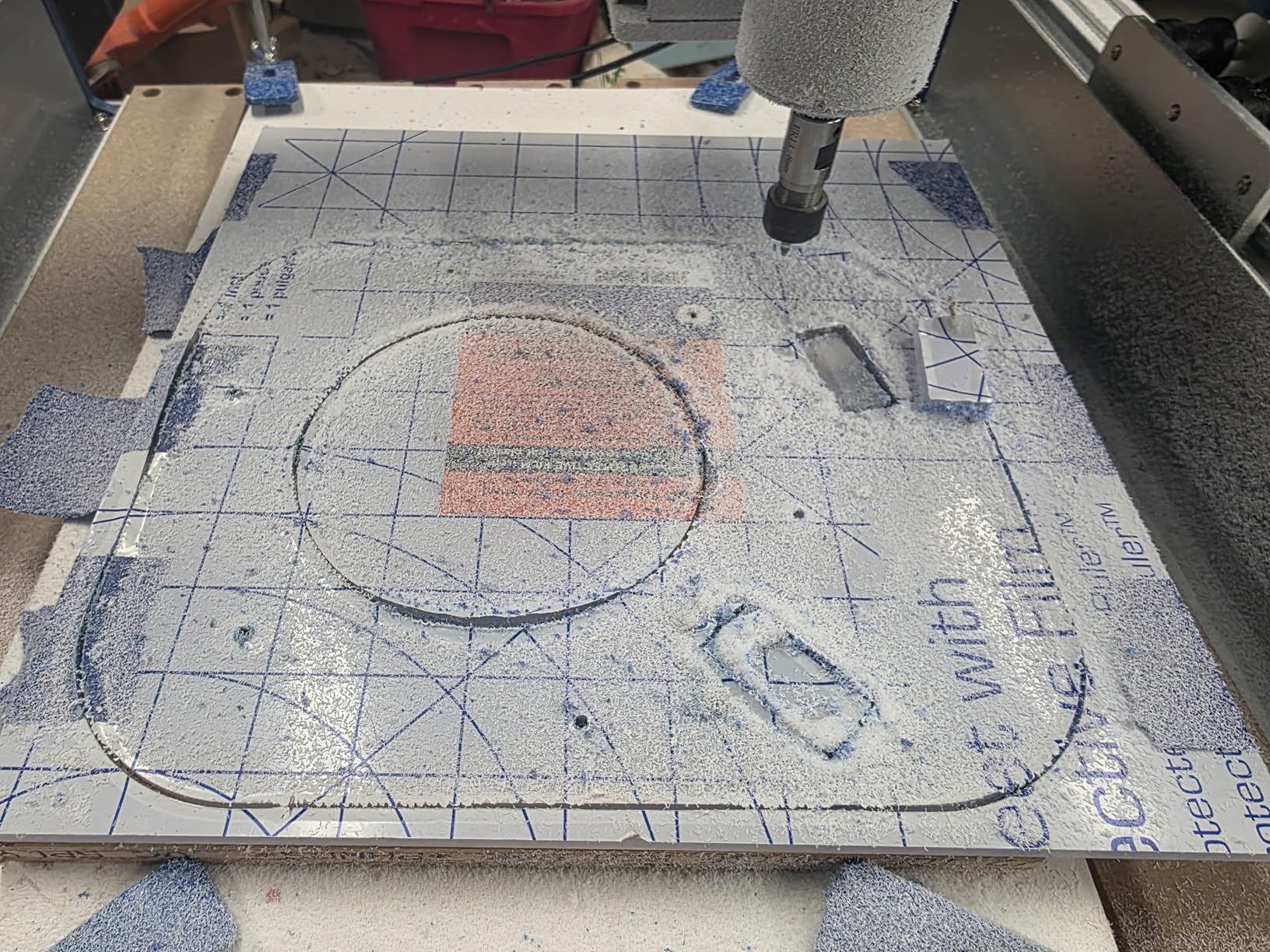

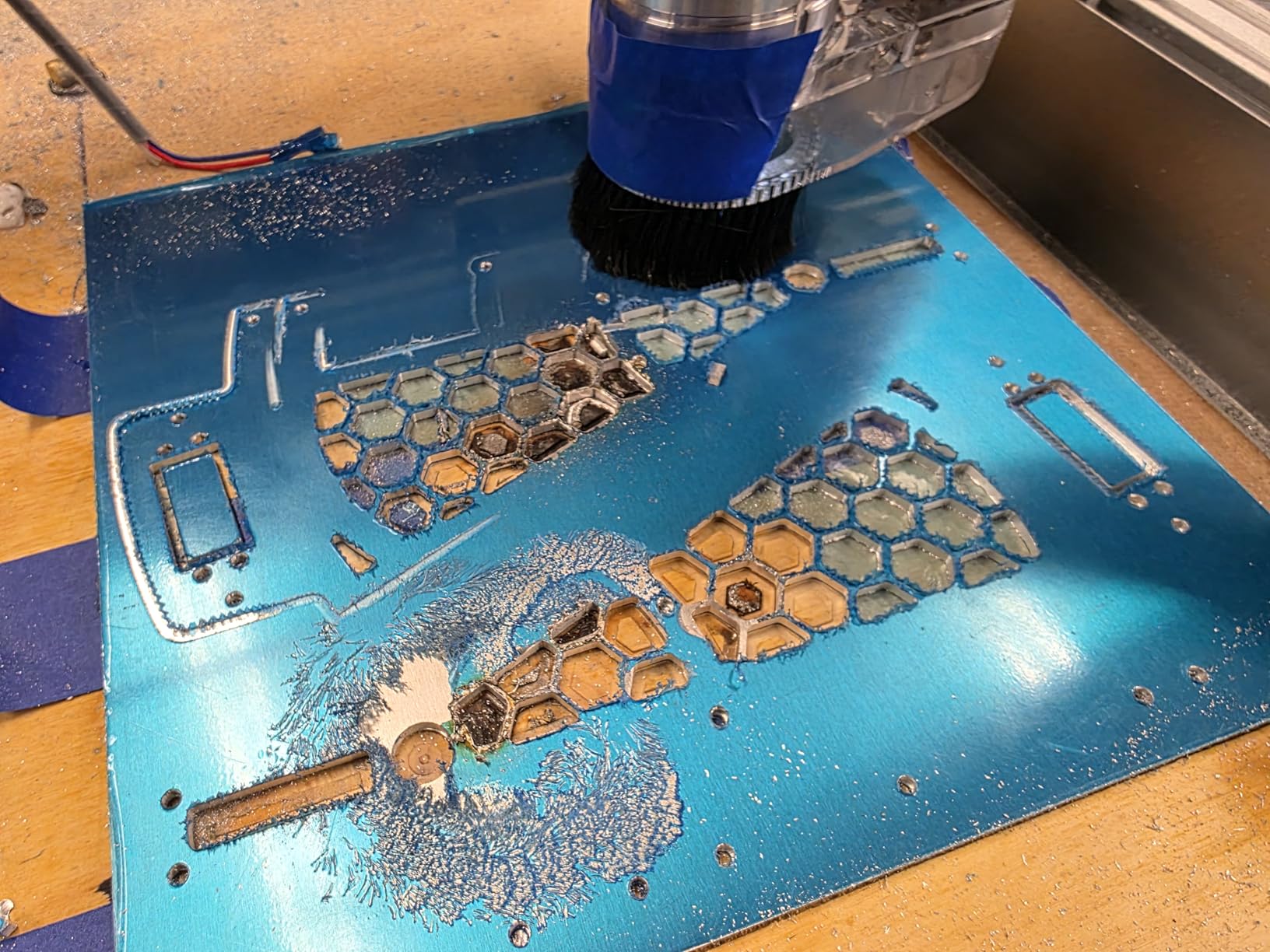

3. Genmitsu PROVerXL 4030 V2 - NEMA 23 Closed-Loop Stepper Motors

The PROVerXL 4030 V2 brings professional features to the serious hobbyist market. After two months of regular use, I appreciate the 400 by 300mm work area for larger circuit boards and panelized designs. The 110mm Z-axis travel handles thicker workpieces and taller fixturing setups.

Closed-loop NEMA 23 motors make a noticeable difference in cut quality. When cutting fine PCB traces at 5000 mm/min rapid speed, the motors recover position if they encounter resistance. This reliability matters when you're 45 minutes into a complex board and can't afford a lost step.

The 1204 ball screws on all three axes provide the precision needed for circuit board work. I measured repeatability within 0.02mm over multiple homing cycles. For isolation routing, this accuracy translates to consistent trace widths across the entire board surface.

Genmitsu's customer support proved helpful when I had questions about z-probe configuration in Candle software. They responded within 24 hours with clear instructions. The GRBL-based control board works with most CAM software, giving you flexibility in your workflow.

Who Should Buy This Machine

Small businesses and serious makers who need production reliability should consider the PROVerXL 4030 V2. The large work area, ball screw precision, and closed-loop motors support professional-grade work. If you're cutting aluminum enclosures alongside PCBs, this machine handles both tasks.

Who Should Look Elsewhere

At 68.9 pounds, this isn't a machine you'll move around easily. If you have limited space or need portability, a smaller 3018 variant makes more sense. Budget-conscious buyers can find capable alternatives for less money.

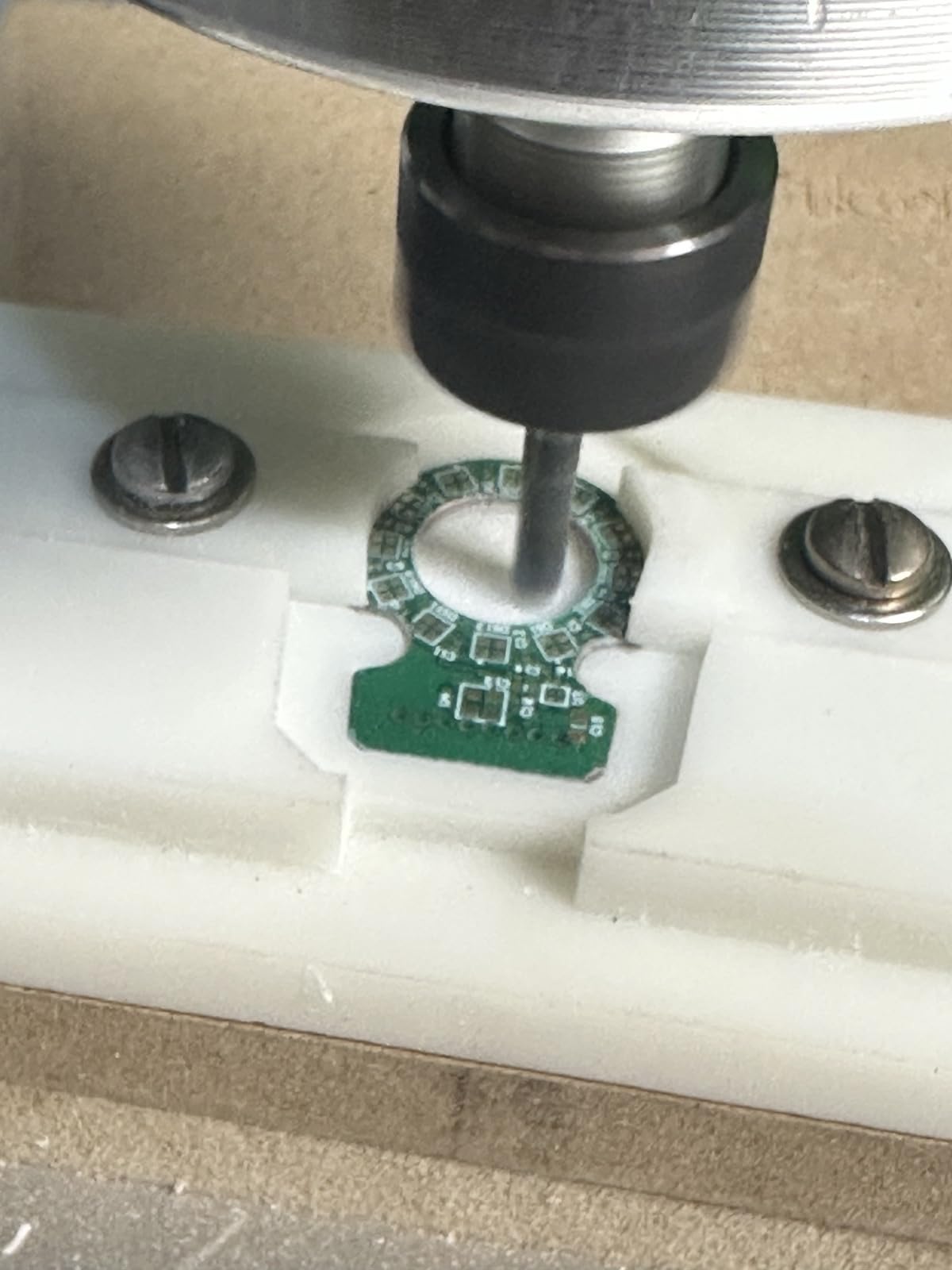

4. AnoleX 4030-Evo Ultra 2 - Dual Linear Rails and Ball Screws

The AnoleX 4030-Evo Ultra 2 brings industrial construction to the desktop CNC market. HGH-15 dual linear rails on X, Y, and Z axes create an exceptionally rigid platform. After assembling the mostly pre-built components, I tested the machine on aluminum and was impressed by the lack of deflection during heavy cuts.

For PCB milling, the 800W trim router with 6-speed settings offers flexibility. I found 18000-20000 RPM optimal for FR-4 boards with 0.1mm V-bits. The ER11 collet system holds bits securely with minimal runout, extending tool life significantly.

The Grbl_ESP32 firmware with WiFi control changed how I interact with the machine. Instead of being tethered by USB, I monitor jobs from my phone using the ESP3D Web UI. The interface shows real-time position and lets me adjust feeds on the fly.

Software compatibility covers the major options. I tested UGS, Fusion360, and VCarve Pro without issues. The 0.001mm precision specification isn't marketing fluff. I measured actual accuracy with a dial indicator and confirmed sub-5-micron repeatability on the Z-axis.

Who Should Buy This Machine

Engineers and makers who value precision above all else will appreciate the AnoleX Evo Ultra 2. The dual rail system and ball screw drive deliver professional results for both PCB work and general machining. If you want to upgrade to closed-loop motors later, the control board supports that.

Who Should Look Elsewhere

The 83.6-pound weight requires a solid bench or stand. If you're in an apartment or shared space without a dedicated workshop, this machine might be overkill. First-time CNC users may find the documentation assumes some prior knowledge.

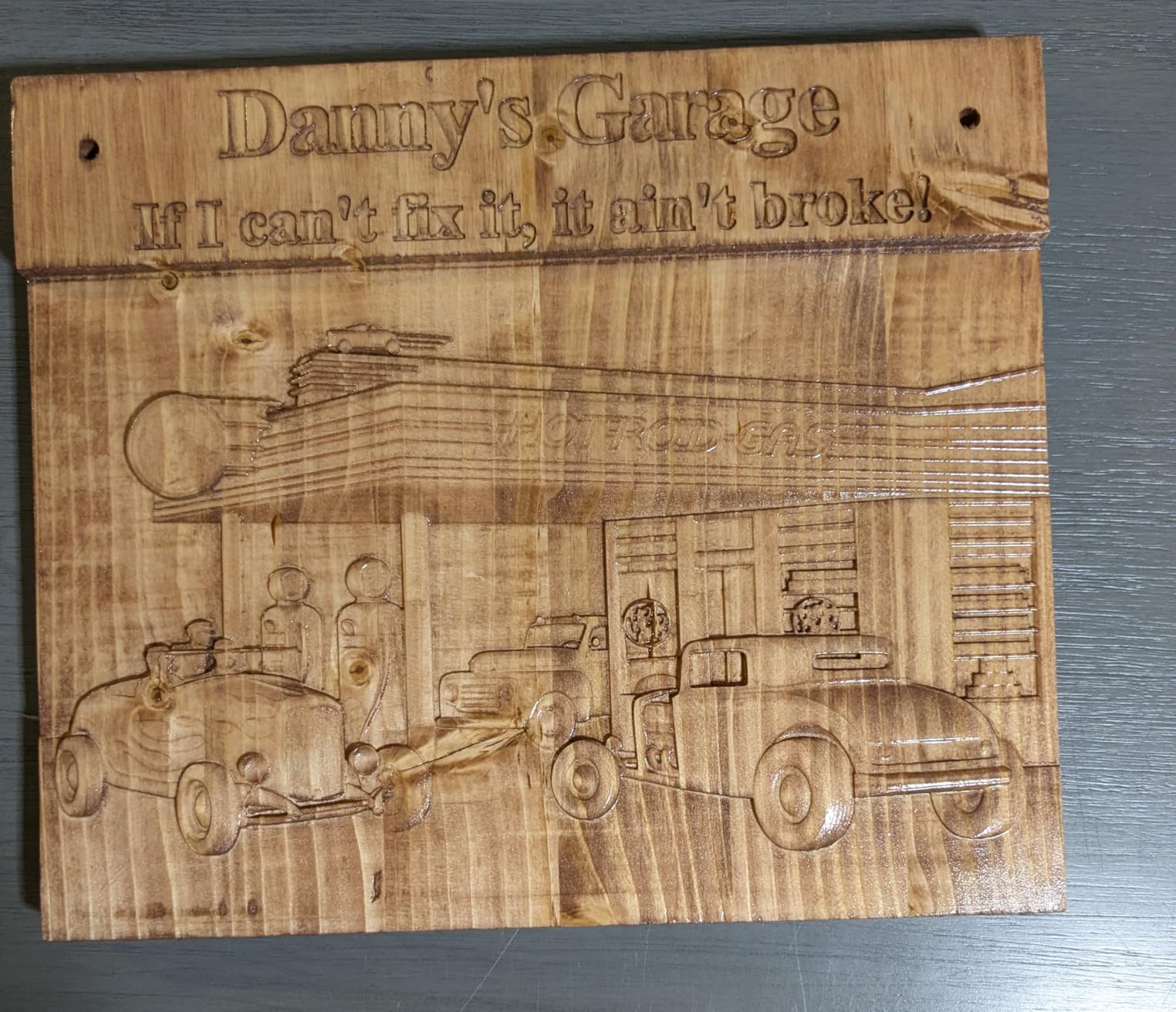

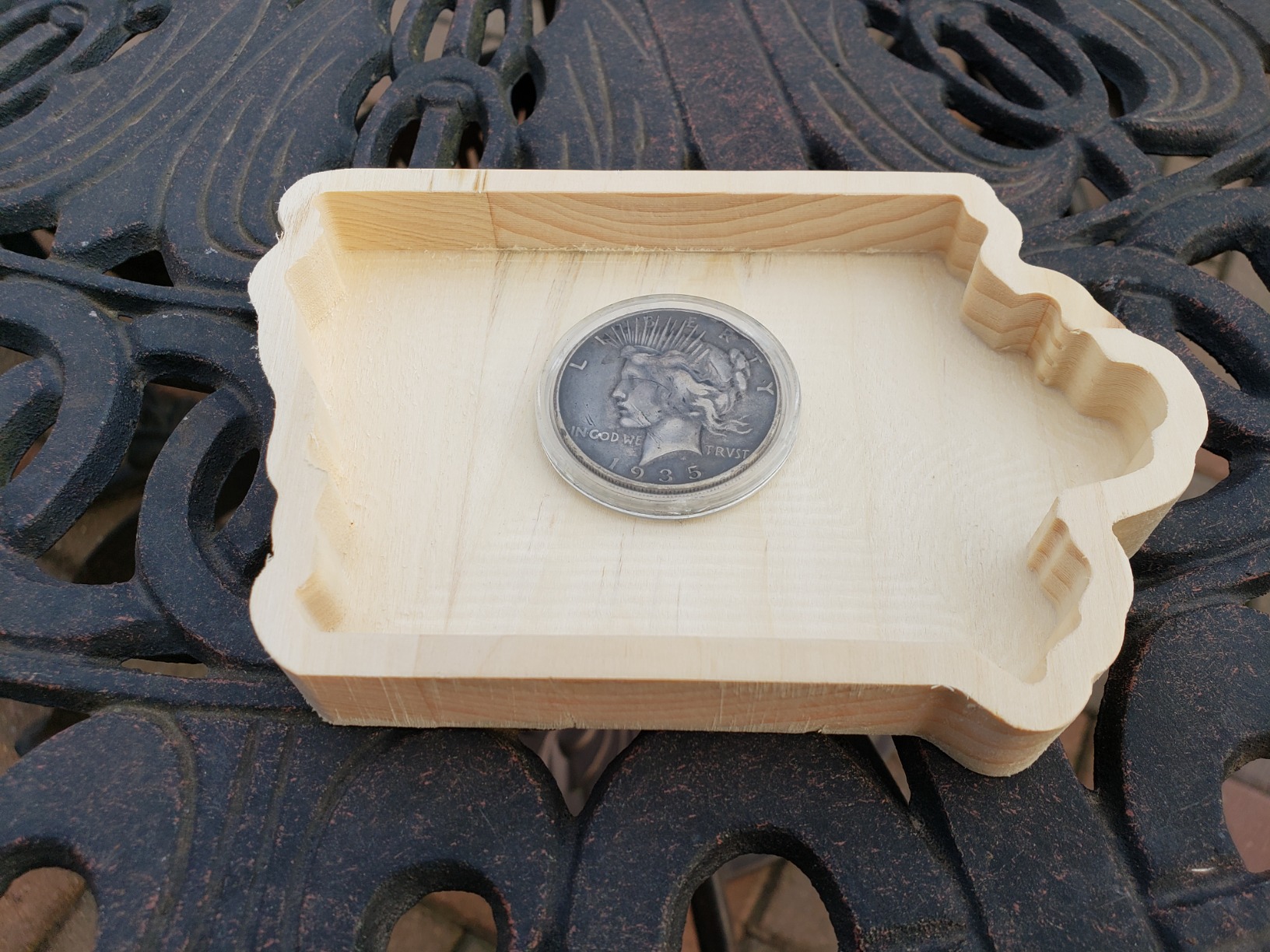

5. Genmitsu 3018-PROVer V2 - Best Entry-Level with Z-Probe

The Genmitsu 3018-PROVer V2 earned its reputation as the best first CNC machine. I recommended this to a friend who had never used a CNC before, and within a week he was cutting functional PCBs. The pre-assembled gantry means you can start cutting in under an hour of unboxing.

The included Z-probe makes height setting straightforward. Instead of guessing or using paper feeler gauges, you touch the probe to the board surface and the controller automatically sets the zero point. For PCB milling where depth accuracy directly affects trace quality, this feature is essential.

Limit switches on all axes prevent costly crashes. If you accidentally command a move beyond the machine's range, it stops safely instead of grinding gears. The E-stop button provides immediate shutdown for emergencies. These safety features matter for beginners still learning G-code.

The 3018 community on Reddit and forums is incredibly helpful. When I had questions about FlatCAM settings for isolation routing, I found detailed guides written specifically for this machine. Genmitsu's customer support also responded quickly when my friend needed a replacement part.

Who Should Buy This Machine

Beginners exploring CNC machining and PCB milling should start here. The combination of pre-assembly, safety features, and community support flattens the learning curve considerably. If you're not sure whether PCB milling is for you, this machine lets you find out without a major investment.

Who Should Look Elsewhere

The 300x180mm work area limits you to smaller boards. If you regularly design boards larger than 4x6 inches or want to cut aluminum enclosures, you'll outgrow this machine quickly. The included spindle also lacks the power for heavy material removal.

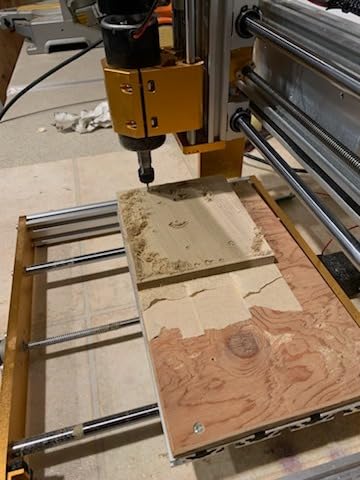

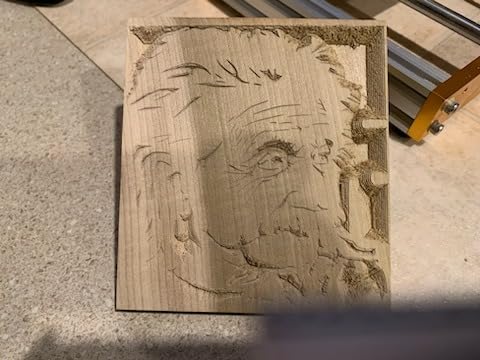

6. LUNYEE 3018 PRO MAX - 500W Spindle with All-Metal Construction

The LUNYEE 3018 PRO MAX distinguishes itself with a 500W spindle and all-metal frame. After testing it on FR-4 boards, aluminum, and copper sheet, I can confirm the extra power makes a real difference. Heavy cuts that stalled my 3018-PRO completed without hesitation on this machine.

The 80mm Z-axis travel is the longest I've seen in the 3018 class. This extra range lets you use taller workholding fixtures and accommodate thicker materials. For PCB work, it means you can mount boards on vacuum tables or specialized jigs without running out of vertical space.

All-metal construction translates to better rigidity. I noticed less vibration during fine PCB routing compared to machines with plastic components. The manual handwheels on each axis are useful for positioning and setup without powering on the controller.

Six limit switches and an emergency stop button provide comprehensive safety coverage. The machine stops before crashing into any axis limit. LUNYEE's customer service sent replacement parts quickly when I reported a minor issue with the E-stop board.

Who Should Buy This Machine

Makers who want more spindle power without stepping up to a larger machine format should consider the 3018 PRO MAX. The 500W spindle handles aluminum and copper better than standard 3018 machines. If you work with thicker materials or need extra Z-clearance, this machine delivers.

Who Should Look Elsewhere

The documentation needs improvement. I relied on online videos and community forums for assembly guidance. If you expect comprehensive printed instructions, you might struggle initially. The heavier construction also means this isn't a portable machine.

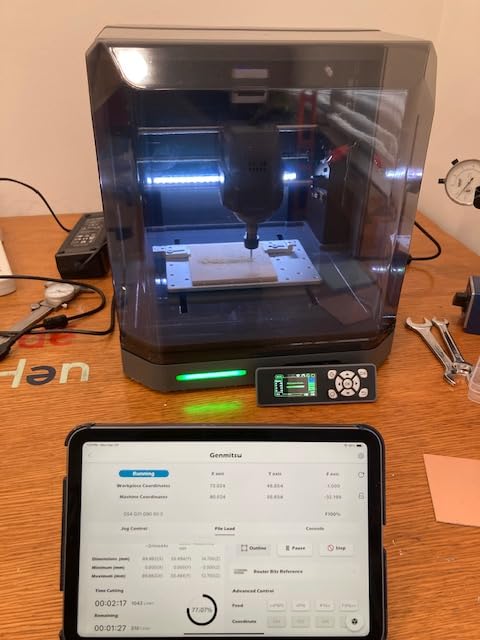

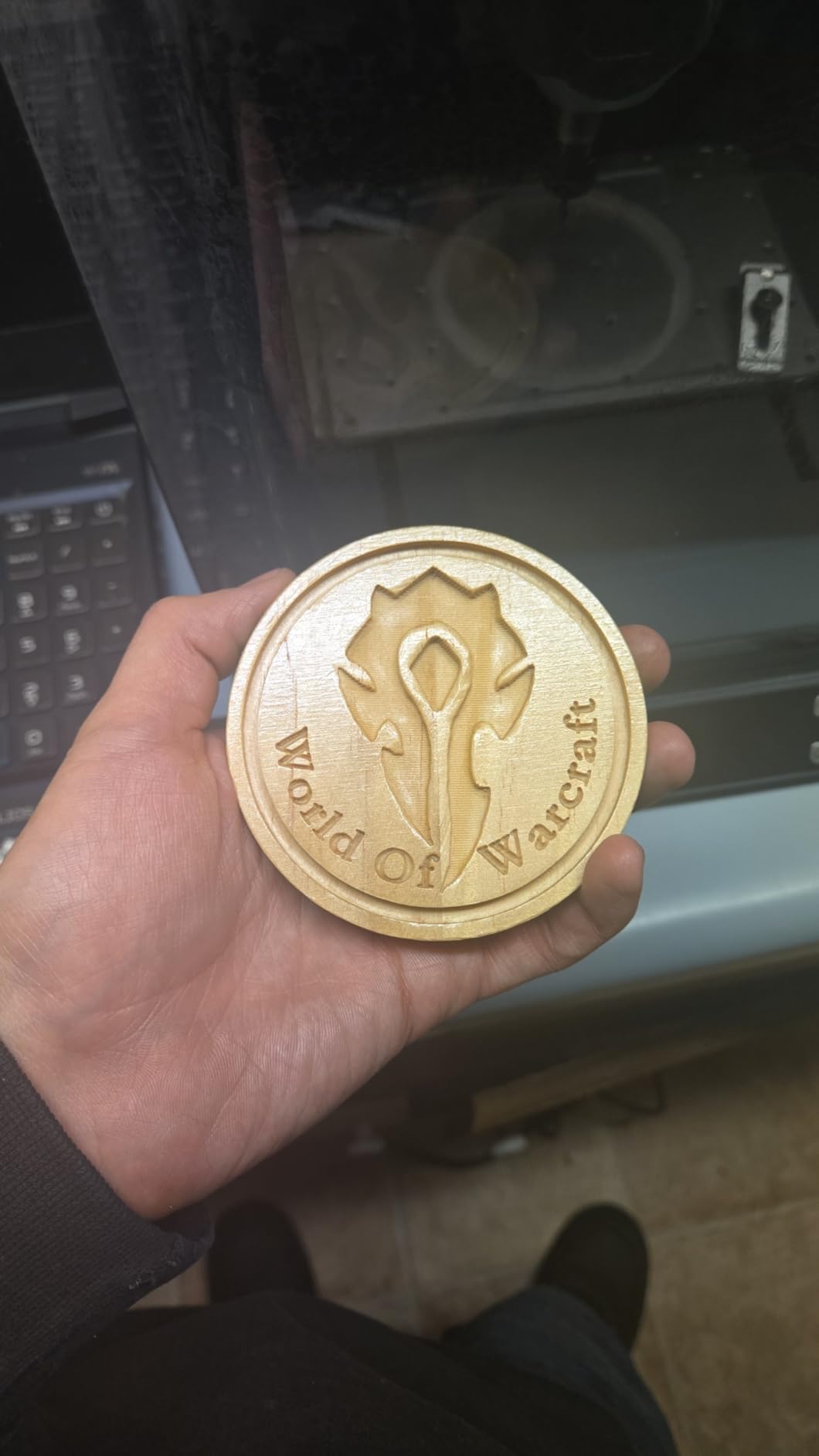

7. Genmitsu Cubiko CNC Router - Ready-to-Use with Enclosure

The Genmitsu Cubiko solves the biggest barrier to CNC adoption: assembly. This machine arrives ready to use. I unboxed it, plugged it in, and was cutting my first test pattern within 15 minutes. For anyone intimidated by CNC assembly, this is the answer.

The built-in enclosure addresses two common complaints about desktop CNCs. Copper dust stays contained inside the box instead of spreading across your desk. The enclosure also reduces noise, making it practical for apartment or office use. Opening the front door provides easy access for bit changes and board positioning.

Automatic Z-probing simplifies setup dramatically. Enter your material thickness, and the machine handles the rest. No more manual height adjustment or paper feeler gauges. For beginners still developing their CNC intuition, this automation prevents many common mistakes.

WiFi connectivity and the companion app let you control the machine from your phone. While the app has some quirks, basic job starting and monitoring work reliably. The compact footprint fits on a standard desk without dominating the workspace.

Who Should Buy This Machine

Beginners who want to skip assembly and start cutting immediately will love the Cubiko. If you work in a shared space and need dust containment, the enclosure is essential. The automatic features make this ideal for learning CNC fundamentals without frustration.

Who Should Look Elsewhere

The compact work area limits project size. If you need to cut boards larger than about 4x4 inches or work with thick materials, look at larger machines. The spindle isn't designed for heavy aluminum cutting, so serious metalwork requires a different tool.

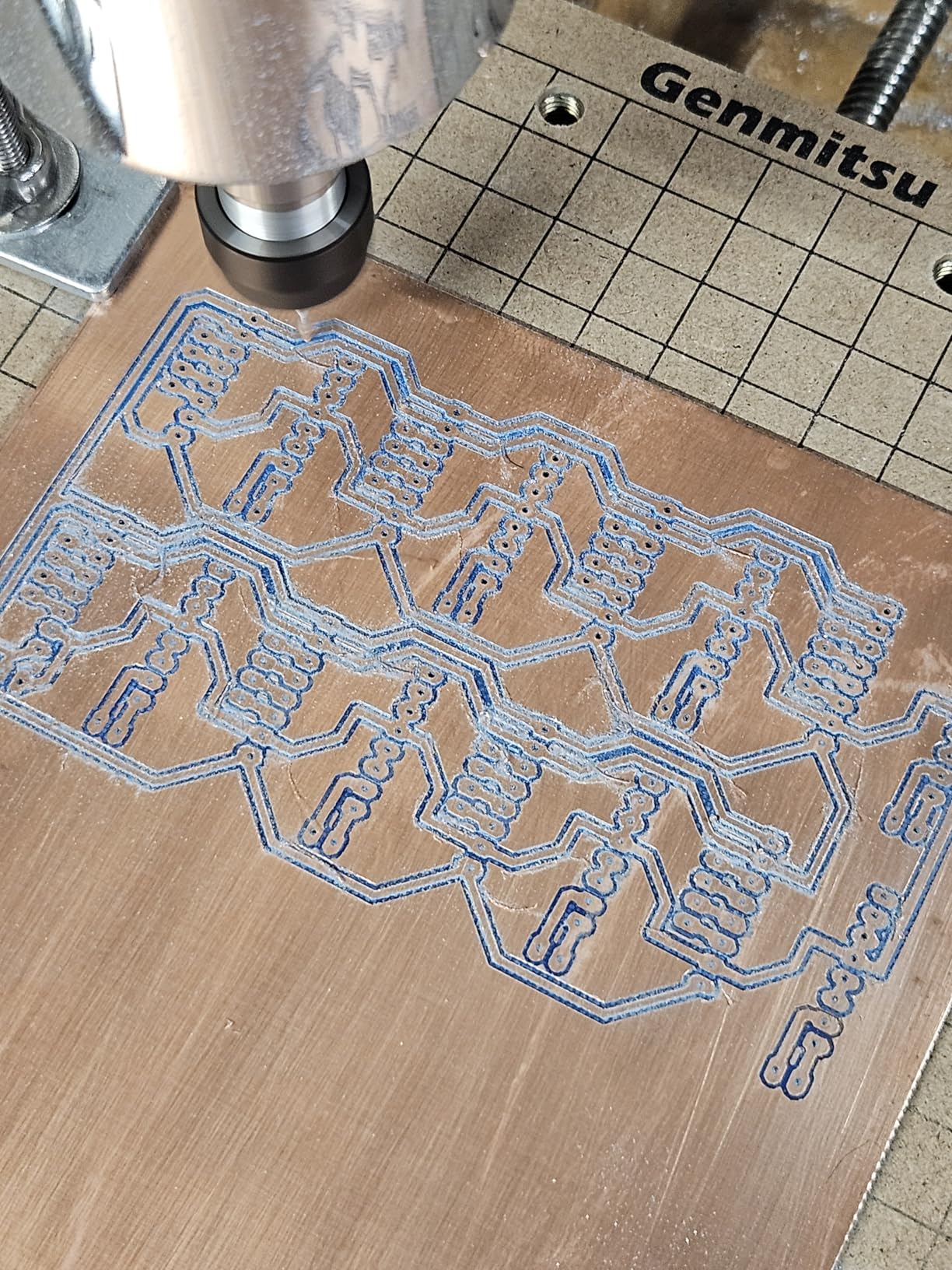

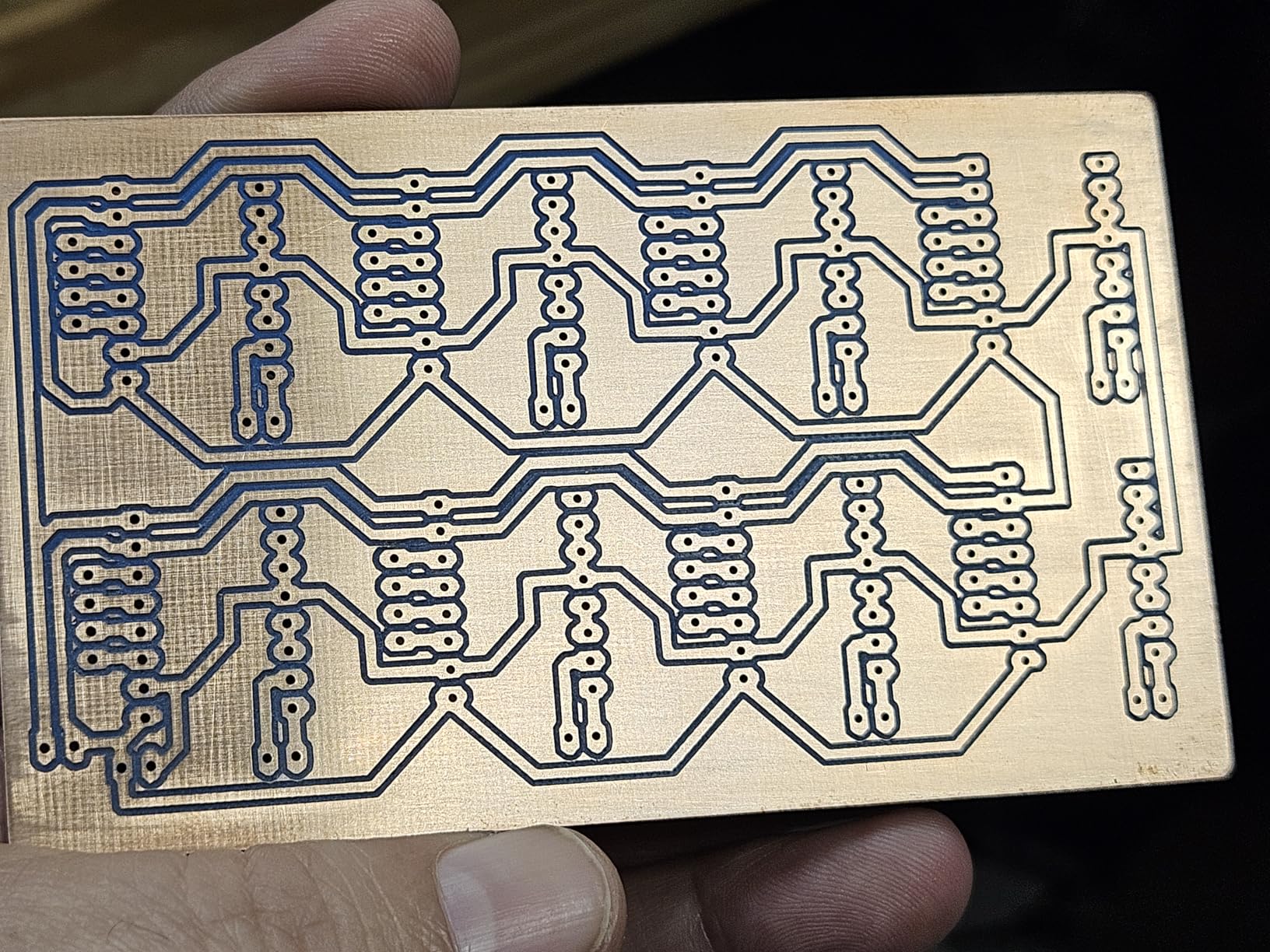

8. Genmitsu CNC 3018-PRO - Most Affordable Entry Point

The Genmitsu CNC 3018-PRO remains the gateway drug into desktop CNC. I built one three years ago and still use it for quick PCB prototypes. At this price point, nothing else comes close for capability per dollar. The GRBL control system works with dozens of free and paid software options.

Assembly took me about 90 minutes following video tutorials. The kit includes everything you need except the bits. I recommend ordering a set of PCB-specific V-bits and small end mills with your machine. The included V-bits work, but dedicated PCB cutters improve results significantly.

The offline controller lets you run jobs without keeping a computer connected. Load your G-code file to the controller, unplug the USB, and the machine runs autonomously. This feature matters for long PCB jobs where you don't want to tie up your computer.

Community support sets this machine apart. YouTube tutorials, Reddit discussions, and forum posts cover every aspect of 3018 ownership. When my controller board failed after heavy use, I found replacement options and upgrade paths within minutes of searching.

Who Should Buy This Machine

Anyone curious about CNC who wants to minimize financial risk should start with the 3018-PRO. If you're unsure whether PCB milling fits your workflow, this machine lets you experiment affordably. Students and makers on tight budgets get tremendous value here.

Who Should Look Elsewhere

If you know you'll use CNC regularly and have the budget, stepping up to a PROVer model gets you limit switches and a Z-probe. The base 3018-PRO lacks these safety and convenience features. The learning curve is real, so expect to spend several hours learning software before making useful parts.

How to Choose the Best PCB Milling Machine

Selecting the right PCB milling machine depends on your experience level, budget, and intended use. After testing these machines extensively, here are the key factors that actually matter for circuit board work.

Spindle Speed and Runout

For PCB milling, spindle speed directly affects cut quality. You need at least 10,000 RPM for clean isolation routing with small V-bits. Machines with 20,000+ RPM capability handle finer trace widths more consistently. The FoxAlien Masuter 3S and AnoleX Evo Ultra 2 both offer the speed range needed for professional results.

Spindle runout, measured as Total Indicated Runout (TIR), determines how much the bit wobbles during rotation. Lower runout means cleaner cuts and longer bit life. The Carvera Air's specification of under 0.0004 inches is exceptional for a desktop machine. Budget machines often don't publish this specification, which typically indicates higher runout values.

Auto Probing and Surface Mapping

PCB boards are rarely perfectly flat. Without surface mapping, the cutting depth varies across the board, producing inconsistent trace widths. Machines with automatic probing, like the Carvera Air and Genmitsu Cubiko, map the surface before cutting and adjust Z-height dynamically.

If your chosen machine lacks this feature, you can add a Z-probe accessory to most GRBL-controlled machines. The Genmitsu 3018-PROVer V2 includes one standard, making it excellent value for beginners who need this capability.

Work Area Size

Consider your typical board dimensions. A 3018 machine (300x180mm) handles most prototype sizes but limits you on larger projects. The 4030 format (400x300mm) accommodates bigger boards and lets you panelize multiple designs on one sheet. The FoxAlien Masuter 3S offers 400x400mm for maximum flexibility.

Z-axis travel matters too. More vertical clearance lets you use taller workholding fixtures and accommodate thicker materials. The LUNYEE 3018 PRO MAX offers 80mm of Z-travel, significantly more than typical 45mm in this class.

Closed-Loop vs Open-Loop Motors

Open-loop stepper motors assume they've moved to the commanded position without verification. If resistance causes a missed step, the machine doesn't know and continues cutting incorrectly. Closed-loop motors include encoders that detect position errors and correct them automatically.

For precision PCB work, closed-loop motors provide valuable insurance. The Genmitsu PROVerXL 4030 V2 and FoxAlien Masuter 3S both use closed-loop systems, contributing to their reliable performance. Budget machines like the base 3018-PRO use open-loop steppers, which work fine for learning but can introduce errors in long jobs.

Software Compatibility

Your PCB milling workflow involves multiple software stages. CAD software like KiCAD or Eagle creates the circuit design. CAM software like FlatCAM converts Gerber files to G-code toolpaths. Control software like UGS or Candle sends commands to the machine.

All machines in this guide use GRBL firmware, which works with standard G-code generators and controllers. The AnoleX Evo Ultra 2 goes further with Grbl_ESP32, enabling WiFi control through the ESP3D Web UI. Consider what software you're comfortable with and ensure your chosen machine supports it.

Enclosure and Dust Management

PCB milling generates fine copper dust that spreads everywhere without containment. If you work in a clean environment or shared space, an enclosed machine makes practical sense. The Carvera Air and Genmitsu Cubiko both include enclosures that contain debris and reduce noise.

For open-frame machines, consider building or buying a dust shoe that connects to a shop vacuum. This addition dramatically improves cleanup and keeps your workspace healthier.

PCB Milling vs Ordering from Board Houses

Before investing in a milling machine, consider whether it suits your needs. Professional services like JLCPCB and PCBWay offer excellent quality at low prices for production quantities. However, milling excels in specific scenarios.

Choose milling when you need same-day prototypes, want to iterate designs rapidly without waiting for shipping, or require custom board shapes and features not available from standard services. The ability to test a design in the morning and cut a revised version by afternoon accelerates development significantly.

Order from board houses when you need multi-layer boards, fine-pitch components under 0.5mm spacing, solder masks, or production quantities over 10 units. For complex boards, professional fabrication delivers better results at lower cost per board.

FAQ's

Conclusion

Finding the right PCB milling machine depends on your budget and experience level. For beginners, the Genmitsu 3018-PROVer V2 offers the best combination of features, support, and value. Serious makers ready to invest should consider the FoxAlien Masuter 3S for its closed-loop motors and large work area. Professionals who need industrial precision will appreciate the Carvera Air's enclosed design, quick tool changer, and automatic probing system.

Each machine in this guide handles circuit board work effectively when matched with appropriate software and technique. Start with your typical board size and trace width requirements, then choose the machine that fits your budget while meeting those technical needs.
