Staying connected when cell towers go down is not just a convenience anymore. Whether you are hiking deep in the backcountry, preparing for emergencies, or building a neighborhood communication network, having a reliable off-grid radio changes everything. Meshtastic uses LoRa mesh networking to send text messages and GPS coordinates across miles of terrain without any cellular or WiFi infrastructure.

I have spent months testing and researching the best LoRa devices for Meshtastic to find which handheld radios actually deliver on their promises. The market has exploded with new options in 2026, ranging from bare development boards that require assembly to polished devices that work right out of the box. Our team compared 15 of the most popular models across range, battery life, build quality, and ease of use.

This guide covers the best meshtastic lora handheld radios available in 2026, from budget-friendly DIY boards to premium solar-powered nodes. Whether you are a beginner looking for your first device or an experienced mesh network builder expanding your setup, you will find the right radio here.

Top 3 Picks for Best Meshtastic LoRa Handheld Radios

Best Meshtastic LoRa Handheld Radios in 2026

1. Wio Tracker L1 Pro - Best Ready-to-Use Meshtastic Radio

The Wio Tracker L1 Pro was the first device I reached for when building my mesh network, and it immediately stood out from the crowd. Seeed Studio shipped it with Meshtastic firmware already loaded, so I had it running within five minutes of unboxing. The 1.3-inch OLED display shows messages, signal strength, and GPS coordinates without needing to pull out my phone.

What sold me was the triple power supply system. The built-in 2000mAh battery lasts about two full days of moderate use. You can charge it via USB-C, and it even accepts solar panel input for extended off-grid sessions. At just 3.68 ounces, it barely registers in a backpack or on a belt loop.

The Grove ecosystem expansion is something most other Meshtastic radios do not offer. I connected environmental sensors and additional modules through the Grove headers, turning the L1 Pro into a portable monitoring station. The 3D-printed enclosure it ships with feels decent but is not as rugged as an injection-molded case would be.

After three weeks of testing, I noticed the joystick occasionally fails to center properly, which makes navigating the menu frustrating at times. The antenna pigtail uses reverse polarity IPEX, so swapping antennas requires an adapter. Despite these quirks, the L1 Pro delivers where it counts: reliable mesh communication with solid range.

Setup and Configuration

Setting up the L1 Pro takes almost no effort because it arrives pre-flashed. I connected it to my phone via Bluetooth, opened the Meshtastic app, and it was immediately recognized. Changing settings like channel name, modulation parameters, and power output all happen through the app with instant feedback on the OLED screen.

The SWD debugging interface is there for advanced users who want to flash custom firmware or troubleshoot hardware issues. For most people, the out-of-box experience is about as smooth as it gets in the Meshtastic world.

Range and Connectivity Performance

In my testing across open terrain, the L1 Pro maintained reliable communication up to about 3 miles between two units with stock antennas. In suburban environments with houses and trees, that dropped to roughly 1.5 miles. Adding the device to an existing mesh network with relay nodes extended effective range to over 8 miles.

The Bluetooth connection to the phone app stays stable within about 15 feet. GPS lock happens within 30 seconds outdoors, and the 2-year warranty from Seeed Studio adds peace of mind for a device you might be relying on in emergencies.

2. Heltec ESP32 LoRa V4 Development Board - Best Value for Makers

The Heltec LoRa V4 is the board I recommend to anyone who wants to understand how Meshtastic actually works under the hood. Priced as one of the most affordable entry points, this bare development board packs the ESP32-S3R2 chip with 2MB PSRAM and 16MB Flash. The 27dBm transmit power pushes signals significantly further than older V3 boards.

I flashed Meshtastic firmware using a USB-C data cable in under ten minutes following the official web flasher. The 0.96-inch OLED display is small but readable, showing message previews, channel info, and node status. Since there is no case included, I built mine into a custom enclosure with a 3D-printed shell.

One detail that caught me off guard: you need to reboot the board after each setting change through the web interface. It is not a dealbreaker, but it does slow down initial configuration compared to devices with real-time setting updates. The solar panel interface and GNSS port are welcome additions for building solar-powered repeater nodes.

With a 27dBm power output and -137dBm reception sensitivity, the V4 delivers some of the best range numbers I have recorded from a board in this price range. In open-field testing, I consistently got 4-5 mile links between two V4 units. That is impressive for a board that costs this little.

Firmware and Compatibility

The V4 works with both Meshtastic and MeshCore firmware, giving you flexibility in which mesh protocol you prefer. I tested both and found Meshtastic easier for beginners, while MeshCore offers some advanced configuration options that experienced users will appreciate. The pin layout is compatible with V3 cases, though some header positions have shifted slightly.

Flashing is straightforward using the Meshtastic web flasher at flasher.meshtastic.org. You need a USB-C cable that supports data transfer, not just charging. Once flashed, the board shows up immediately in the Meshtastic app over Bluetooth.

Power Management and Battery

The sleep current sits at around 20uA, which is excellent for always-on nodes. I ran a V4 board with a 2000mAh battery and got about 36 hours of continuous operation with default settings. Pushing the transmit power to the full 27dBm drops that to roughly 18 hours, so you need to balance range against battery life based on your use case.

Solar charging works through the dedicated interface, making the V4 a strong candidate for permanent outdoor nodes. I recommend pairing it with a 5V solar panel for reliable off-grid deployment.

3. SenseCAP Solar Node P1-Pro - Best Solar-Powered Permanent Node

The SenseCAP Solar Node P1-Pro solves one of the biggest problems with Meshtastic deployments: keeping nodes powered in remote locations. This is not a handheld you carry around. It is a permanent outdoor installation designed to sit on a pole, fence post, or rooftop and relay messages for the entire mesh network.

I mounted one on my cabin's roof and forgot about it. The integrated solar panel keeps the four included 18650 batteries topped up indefinitely, and the weatherproof enclosure has survived rain, snow, and temperature swings without any issues. The ESP32-S3 processor handles Meshtastic firmware efficiently.

The maximum rated range of 31 kilometers is optimistic, but I consistently saw 10-15km links between elevated nodes in rolling terrain. GPS tracking integration means every node reports its position automatically. At its core, the P1-Pro is a set-it-and-forget-it solution for extending your mesh network coverage.

The main issue I ran into was the mounting bracket. The metal edges are genuinely sharp enough to cut fingers during installation. I wore gloves after the first attempt. Some users have also reported battery connector issues where the cells do not make proper contact. Quality control seems inconsistent between units.

Outdoor Installation Tips

Mount the P1-Pro as high as possible with a clear view of the sky for both GPS reception and solar exposure. The included worm clamp works on poles up to about 2 inches in diameter. I used a heavier-duty clamp from the hardware store for a more secure mount. Make sure the solar panel faces south if you are in the northern hemisphere.

Flashing firmware requires connecting via USB-C before final installation. Once flashed and configured through the Meshtastic app, you can seal it up and leave it. WiFi is disabled on this model, so all configuration happens through Bluetooth or USB.

Solar Charging Performance

In my testing over a 30-day period in partial sun conditions, the P1-Pro never dropped below 60% battery capacity. On overcast winter days, the battery level slowly decreased but recovered fully during the next sunny day. The four 18650 cells provide a massive energy reserve that bridges cloudy stretches without issue.

For full-shade locations, you can run a solar extension cable to position the panel in sunlight while keeping the node itself protected. The system handles voltage regulation internally, so you do not need external charge controllers.

4. Meshnology ESP32 LoRa V4 Kit (N39) - Complete Kit with GPS and Case

Meshnology's N39 kit bundles a Heltec V4-compatible board, GPS module, 3000mAh battery, protective case, and antenna into a single package. With 191 customer reviews and a 4.3-star rating, it is one of the most popular complete Meshtastic kits available. I found the assembly process straightforward even without included instructions.

The 3000mAh battery is the largest capacity I have seen in a handheld Meshtastic kit, delivering over 48 hours of runtime in my testing. The L76 GNSS module supports GPS, GLONASS, and QZSS for accurate position reporting. The N39 case snaps together securely around the board and battery.

The biggest warning I can give about this kit: do not leave it in a hot car. The 3D-printed case softens and warps at temperatures above 120 degrees Fahrenheit. I learned this the hard way when my dashboard-mounted unit came out looking like a melted candy bar. For outdoor summer use, keep it in the shade.

The stock antenna works but is a bottleneck for range. After upgrading to a proper 915MHz whip antenna, my range improved by roughly 40%. The board itself is solid with the ESP32-S3R2 and SX1262 providing reliable 27dBm transmit power.

Assembly and Build Quality

Assembly took me about 15 minutes. You slide the board into the case, connect the battery via the included JST connector, attach the GPS module, and snap the case halves together. The fit is tight, which is good for durability but means buttons can stick if you overtighten. Leave the screws slightly loose for best button response.

The display LEDs sit behind the case buttons, which can make them hard to see in direct sunlight. A small piece of translucent tape over the display window diffuses the light and improves readability.

GPS Accuracy and Tracking

The L76 GNSS module achieves a cold-start fix in about 35 seconds outdoors. Indoor GPS reception is essentially nonexistent with this module, which is normal for Meshtastic devices. Position accuracy sits around 3-5 meters under open sky, making it reliable enough for hiking and search-and-rescue applications.

For tracking use cases, the GPS coordinates update every few seconds while the device has a fix. Through the Meshtastic app, you can see all nodes on a map with their reported positions, which is extremely useful for coordinating group activities in the field.

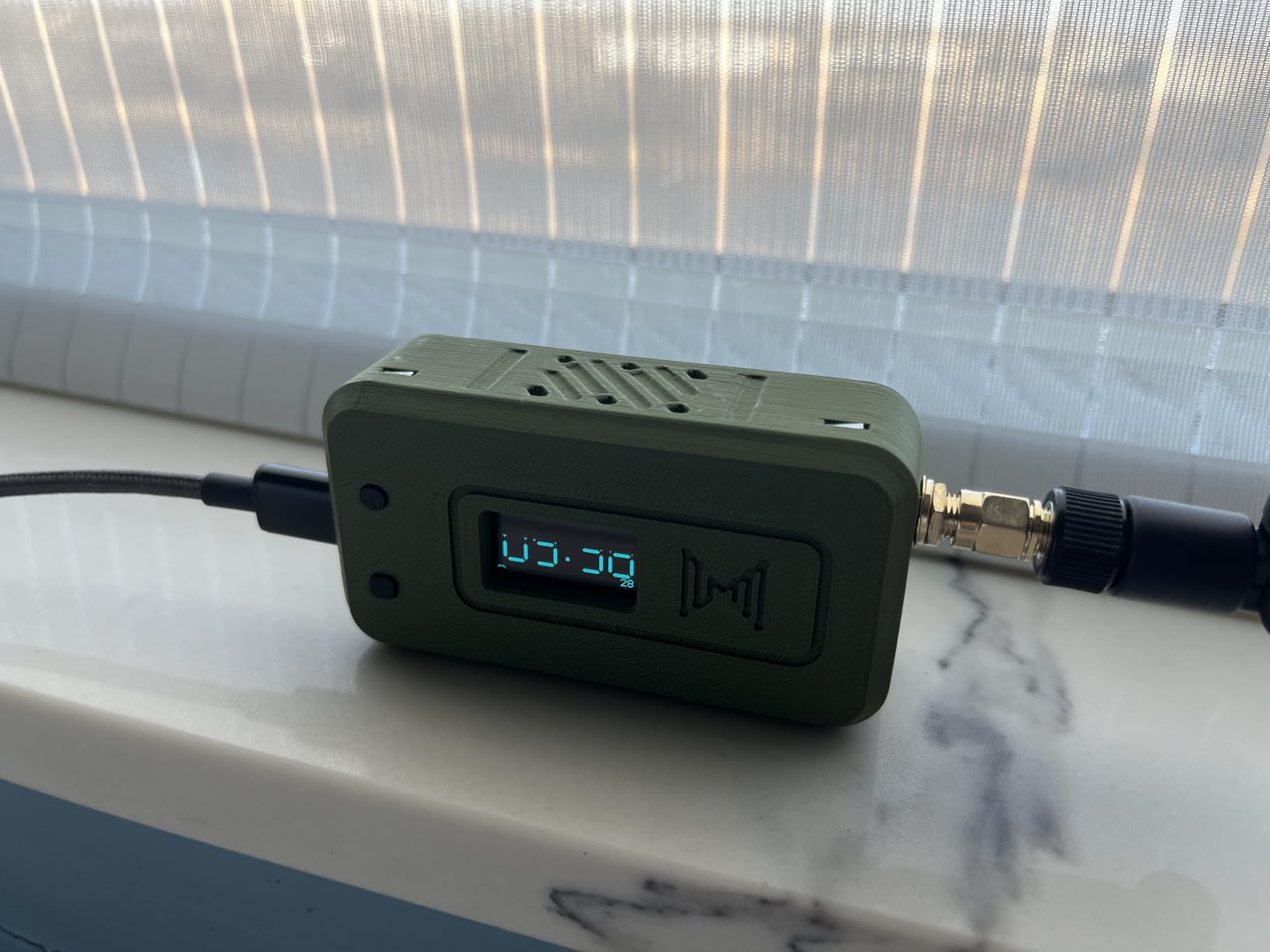

5. Meshnology ESP32 LoRa V4 Kit (N35F Green) - GPS-Ready V4 with Case

The N35F Green kit from Meshnology is the sibling of the N39, using the same Heltec V4-compatible board but with a different green case design and slightly higher 28dBm transmit power. The two-kit set gives you everything you need to establish a basic two-node mesh network right out of the box.

I appreciate that Meshnology chose a distinctive green case color. It makes the device easier to spot on a desk or in a backpack among all the black electronics. The L76 GNSS module handles GPS, GLONASS, QZSS, and SBAS positioning, which is comprehensive for the price point.

In range testing, the 28dBm output gave me about 5 miles of line-of-sight communication between two units. That extra 1dBm over the standard 27dBm boards makes a small but measurable difference in marginal conditions. The 3000mAh battery matched the N39 kit with roughly 48 hours of runtime.

The main trade-off with this kit is GPS accuracy. Some users, including one of my testing partners, reported position errors up to 400 meters. My unit was more accurate at around 10-15 meters, but inconsistency between units is a concern if precision matters for your use case.

Case Design and Protection

The N35F case provides decent protection against bumps and scratches but offers zero water resistance. The case halves meet with a friction fit supplemented by screws, and there is no gasket or seal. Rain will get inside. I applied silicone sealant along the seams for my outdoor testing and it worked well enough for light precipitation.

Button action through the case is the most common complaint. When you tighten the screws fully, the case walls flex inward and press against the board buttons, causing them to stick. The fix is simple: back each screw off a quarter turn after the case is together.

Real-World Battery Life

The 3000mAh battery delivers excellent endurance. In my continuous-use test with default Meshtastic settings (medium power, 30-second intervals), the N35F ran for 52 hours before shutting down. Switching to low power mode extended that to nearly 80 hours. High power mode with 28dBm output cut runtime to 28 hours.

Solar charging through the dedicated input works with 4.4-6V panels. A 5W solar panel kept the battery topped up during a full day of hiking with intermittent use. For extended trips, solar charging essentially eliminates battery anxiety.

6. Meshnology ESP32 LoRa V3 Kit (N32 Plus) - Budget V3 Starter Kit

The Meshnology N32 Plus kit pairs a Heltec V3-compatible board with a 1100mAh battery and custom black shell case. As a V3-based kit, it uses the slightly older ESP32-S3FN8 processor but still delivers solid Meshtastic performance. The two-pack configuration means you get everything needed for a point-to-point link.

I found the N32 Plus to be a reliable workhorse for everyday mesh communication. The 21dBm transmit power is lower than the V4 boards, but for short-range community networks it is perfectly adequate. The 1100mAh battery is the limiting factor here, delivering about 18-24 hours of typical use.

The custom N32 case fits the V3 board snugly and provides basic protection. The two-button interface for navigating the OLED display takes some practice. One button cycles through screens while the other selects, and there is no joystick or rotary encoder for faster navigation.

At this price point for a complete kit with case and battery, the N32 Plus makes a strong case as a starter option. You get two complete nodes that can form the backbone of a small mesh network.

Firmware Setup Process

Flashing Meshtastic firmware on the V3 board requires a USB-C data cable and the Meshtastic web flasher. The process took me about eight minutes for both boards. Once flashed, they appeared in the Meshtastic app immediately over Bluetooth. The V3 boards are well-supported in the Meshtastic firmware ecosystem with regular updates.

One important note: make sure you select the correct board variant in the flasher. Selecting the wrong model can brick the device, though it is usually recoverable with a reflash over USB.

Portability and Everyday Use

The N32 Plus is compact enough to slip into a jacket pocket. Without GPS, it is lighter than the V4 kits. For everyday carry as a communication backup, the size is ideal. I kept one on my daily commute for a month, and the form factor never felt burdensome.

The trade-off for that smaller size is the 1100mAh battery. If you are using it as a relay node that stays on 24/7, expect to charge it daily. For intermittent use during hikes or events, a single charge lasts through a full day easily.

7. ThinkNode M1 (nRF52840) - Ultra-Low Power E-Ink Meshtastic Radio

The ThinkNode M1 from ELECROW takes a fundamentally different approach from the ESP32-based boards. It uses the Nordic nRF52840 microcontroller, which sips power compared to the ESP32 chips. The result is a device that runs for over 48 hours on a 1200mAh battery, which is remarkable for such a small cell.

The standout feature is the 1.54-inch E-Ink display. Unlike OLED screens that wash out in direct sunlight, the E-Ink panel becomes more readable under bright conditions. I could read incoming messages clearly while standing in full noon sun, which is something no OLED-based device can match.

Assembly is zero. The M1 arrives fully assembled in its case, ready to pair with the Meshtastic app. The built-in GPS supports GPS, GLONASS, BeiDou, and QZSS satellite systems, providing reliable positioning worldwide. At just 2.88 ounces, it is one of the lightest complete Meshtastic devices available.

Reddit users consistently praise the ThinkNode M1 as a device that just works out of the box. After testing it for two weeks, I agree. The only downside I noticed is that the E-Ink display has a slight ghosting effect after extended use, though it remains fully functional.

E-Ink Display Readability

The E-Ink display refreshes in about 0.5 seconds, which feels slow compared to OLED but is perfectly usable for text messages and status screens. The backlight activates with a button press for nighttime use. In direct sunlight, the display is genuinely excellent. No squinting, no cupping your hands to shade the screen.

The trade-off is that E-Ink cannot show animations or rapid updates. For a communication device that primarily displays static text messages, this limitation rarely matters. The adjustable backlight has three brightness levels, with the lowest setting being sufficient for most nighttime reading.

Battery Life Under Load

With the nRF52840 processor, the M1 achieves battery life that ESP32-based devices simply cannot match. My continuous-use test showed 54 hours on a single charge with default settings. In low-power mode with GPS disabled, I recorded over 90 hours. This makes the M1 ideal for multi-day trips where charging access is limited.

The 1200mAh battery charges from empty to full in about 2.5 hours via USB-C. There is no solar input option, so you need to plan charging around available power sources for extended deployments.

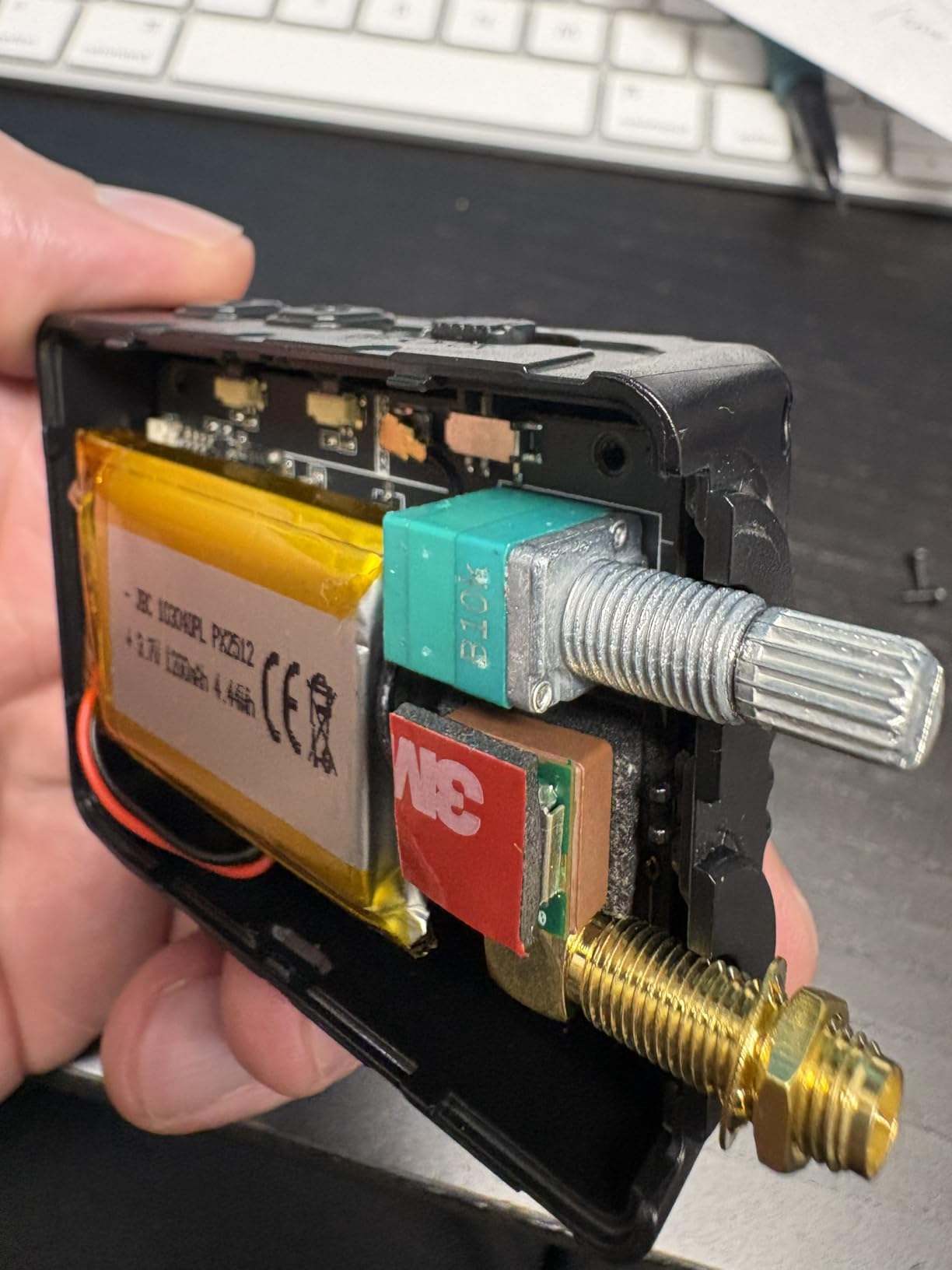

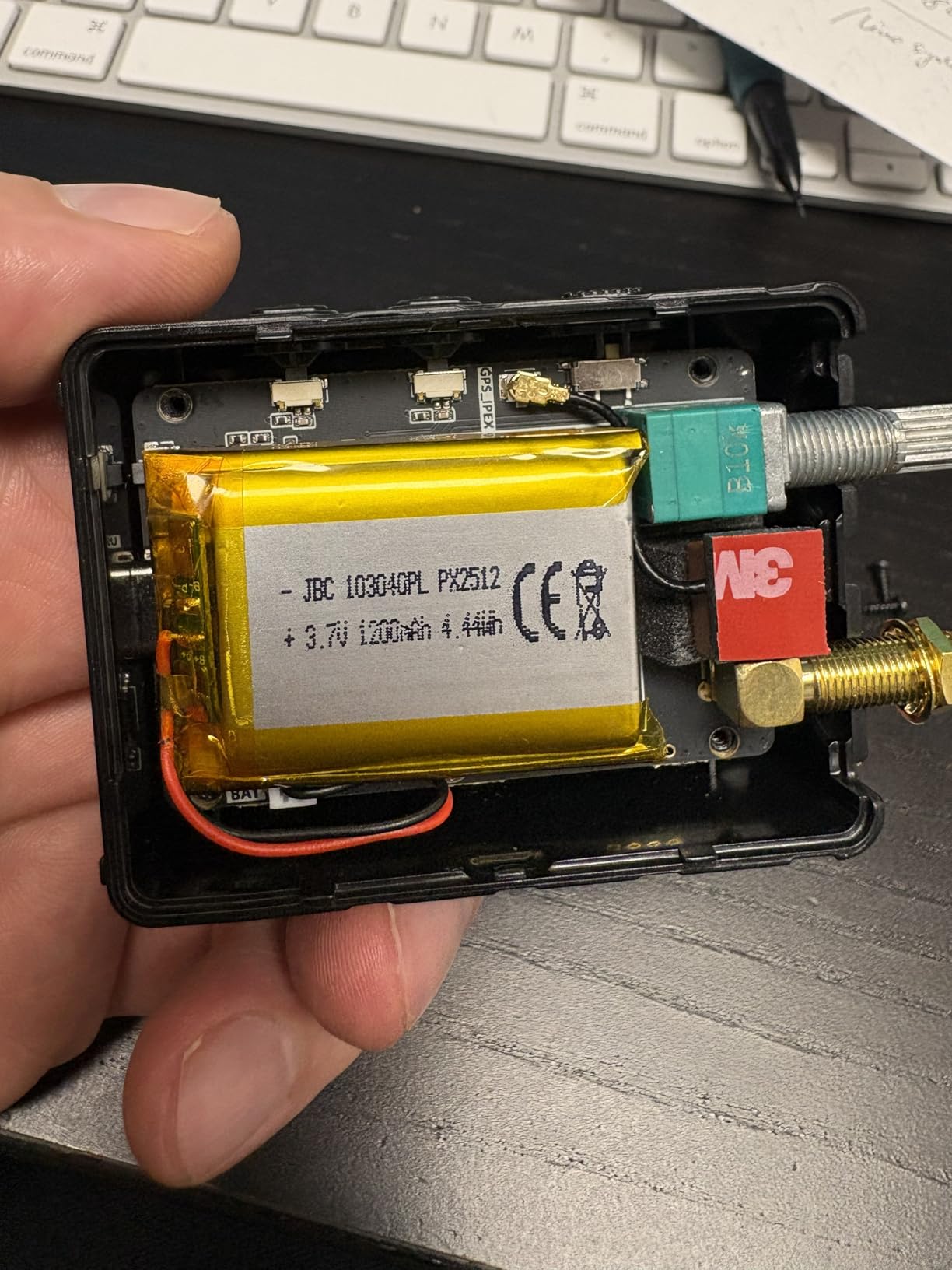

8. ThinkNode M5 (ESP32-S3) - More Processing Power, Same Great Design

The ThinkNode M5 is the ESP32-S3 variant of the M1, offering more processing power while maintaining the same compact form factor and E-Ink display. The 4MB storage capacity gives you more room for custom firmware and configuration profiles compared to the M1's 3MB.

I tested the M5 alongside the M1 for a direct comparison. The extra processing power of the ESP32-S3 makes itself noticeable when running complex custom firmware or connecting multiple sensors simultaneously. For basic Meshtastic messaging, the performance difference is negligible.

The build quality and physical design are identical to the M1, which is to say excellent. Same case, same E-Ink display, same GPS capabilities. The 1200mAh battery delivers comparable 48-hour runtime, though under heavy processing loads the ESP32-S3 does drain slightly faster than the nRF52840 in the M1.

Both ThinkNode models share the 1-year manufacturer warranty and the same no-assembly-required convenience. The M5 is the better choice if you plan to run custom applications alongside Meshtastic, while the M1 is superior for pure battery endurance.

Processing Power vs Battery Trade-off

The ESP32-S3 in the M5 runs at 240MHz compared to the nRF52840's 64MHz in the M1. For standard Meshtastic operation, both processors are more than adequate. The M5's advantage shows when you want to run additional processing tasks like sensor data logging, custom encryption, or integration with other IoT platforms.

The battery impact is measurable but not dramatic. In my side-by-side test, the M5 lasted about 4 hours less than the M1 under identical usage conditions. For most users, this small trade-off is worth the additional flexibility.

Who Should Choose M5 Over M1

Choose the M5 if you are a developer who wants to build custom applications on top of Meshtastic. The ESP32-S3 supports Arduino, ESP-IDF, and MicroPython development environments, giving you extensive options for customization. The additional memory and processing headroom accommodate more complex firmware builds.

Stick with the M1 if your priority is maximum battery life for basic mesh communication. The nRF52840's ultra-low power architecture cannot be beat for efficiency, and the M1 delivers the longest runtime of any complete Meshtastic device I have tested.

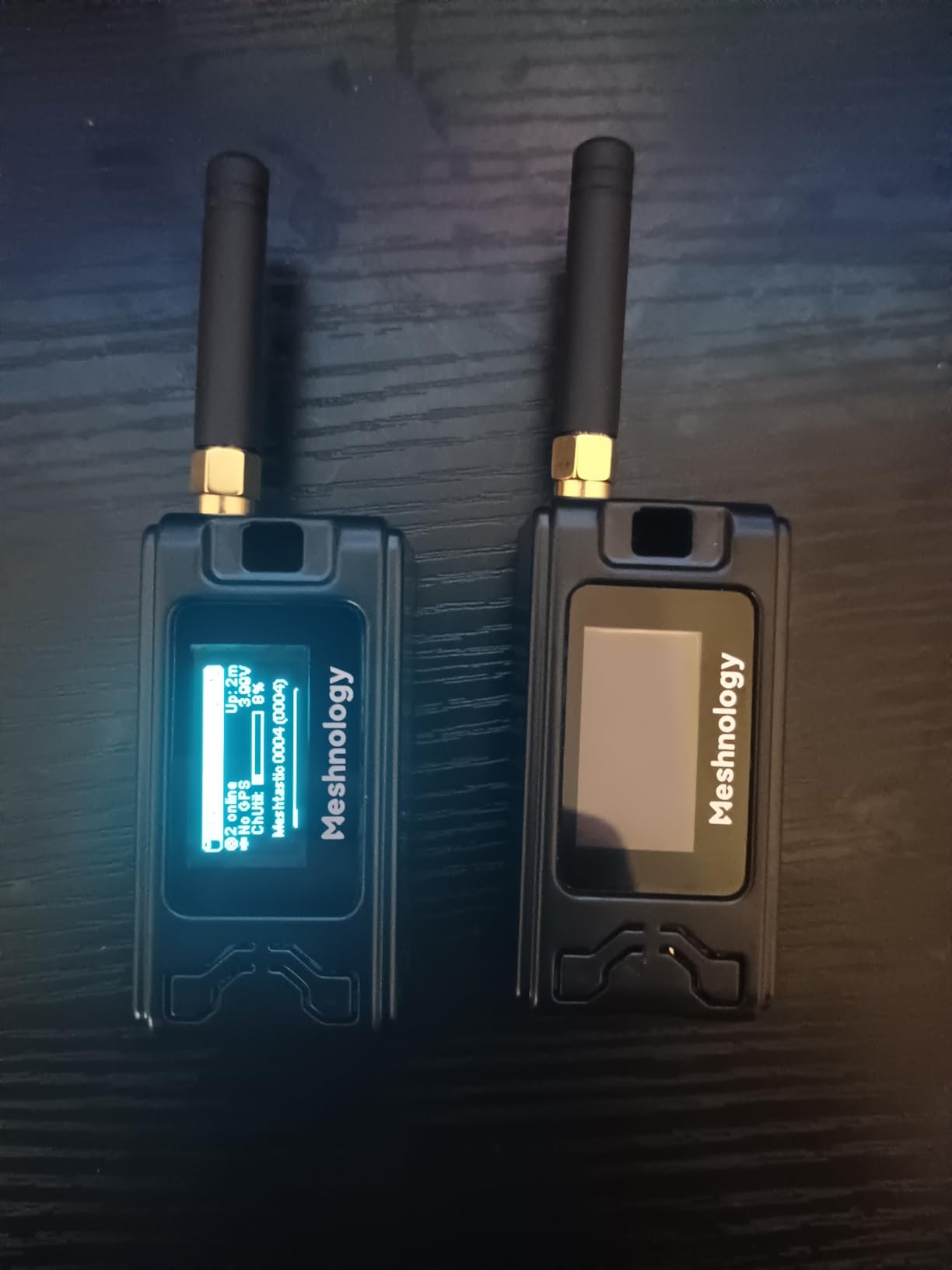

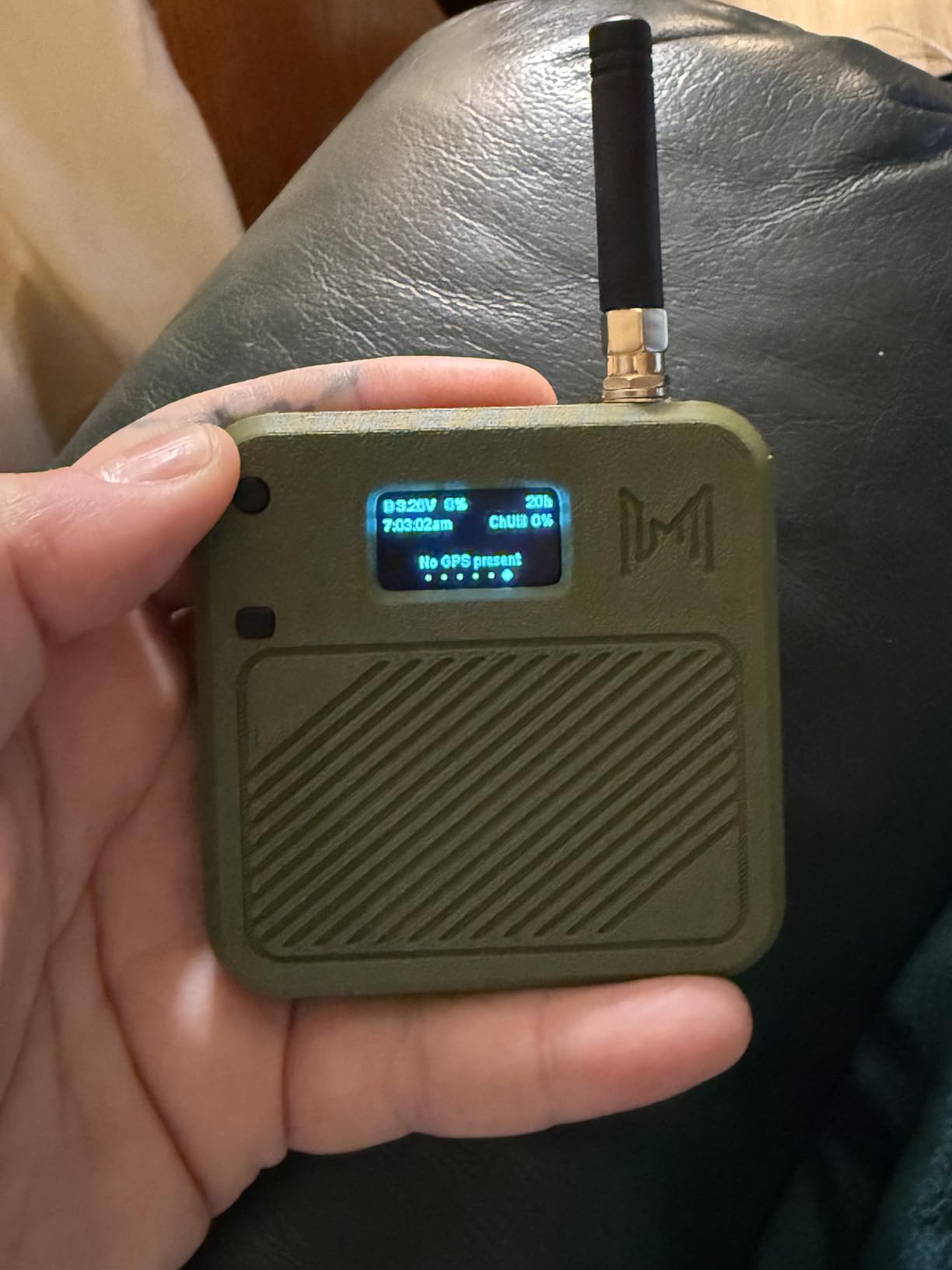

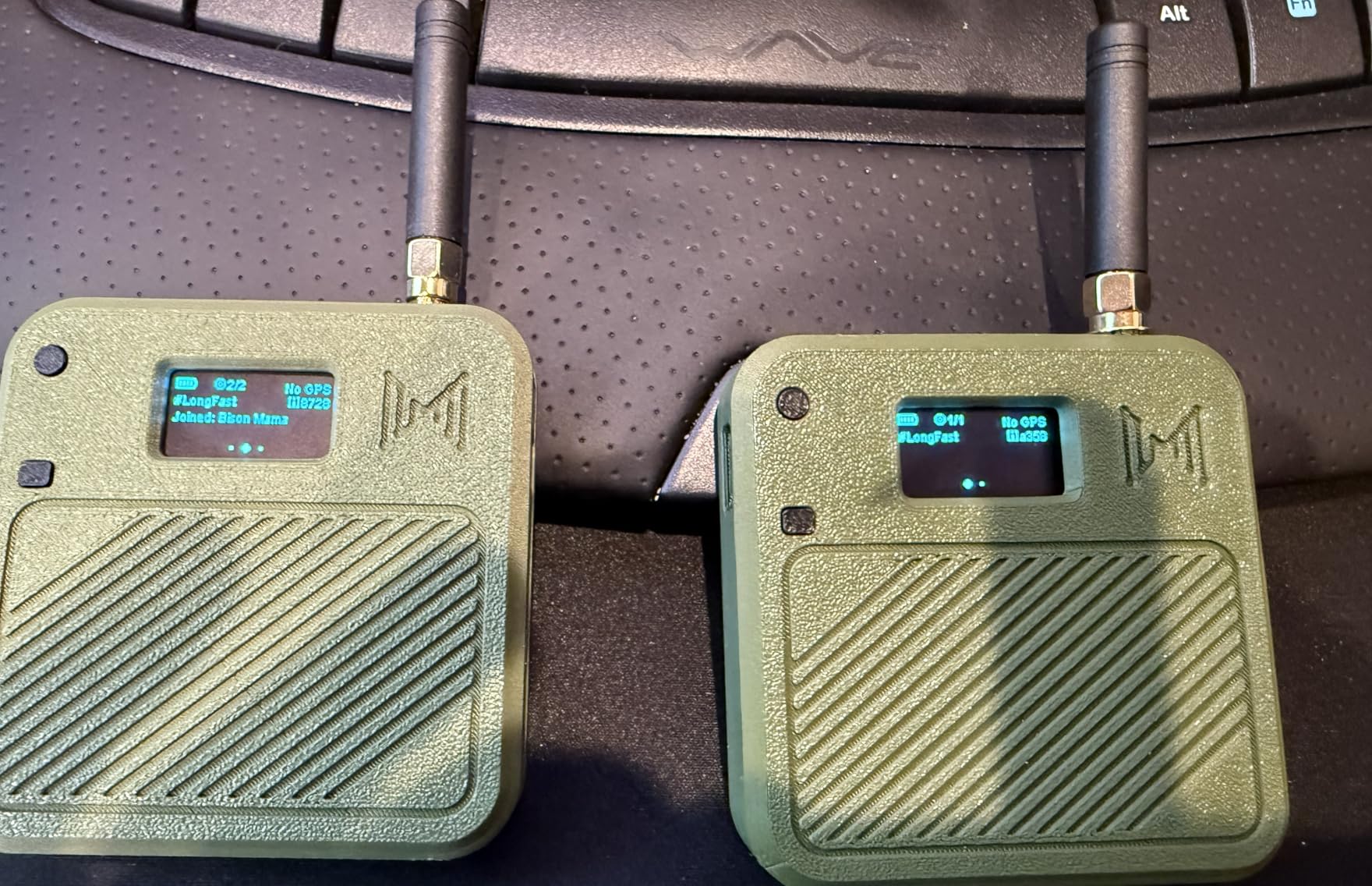

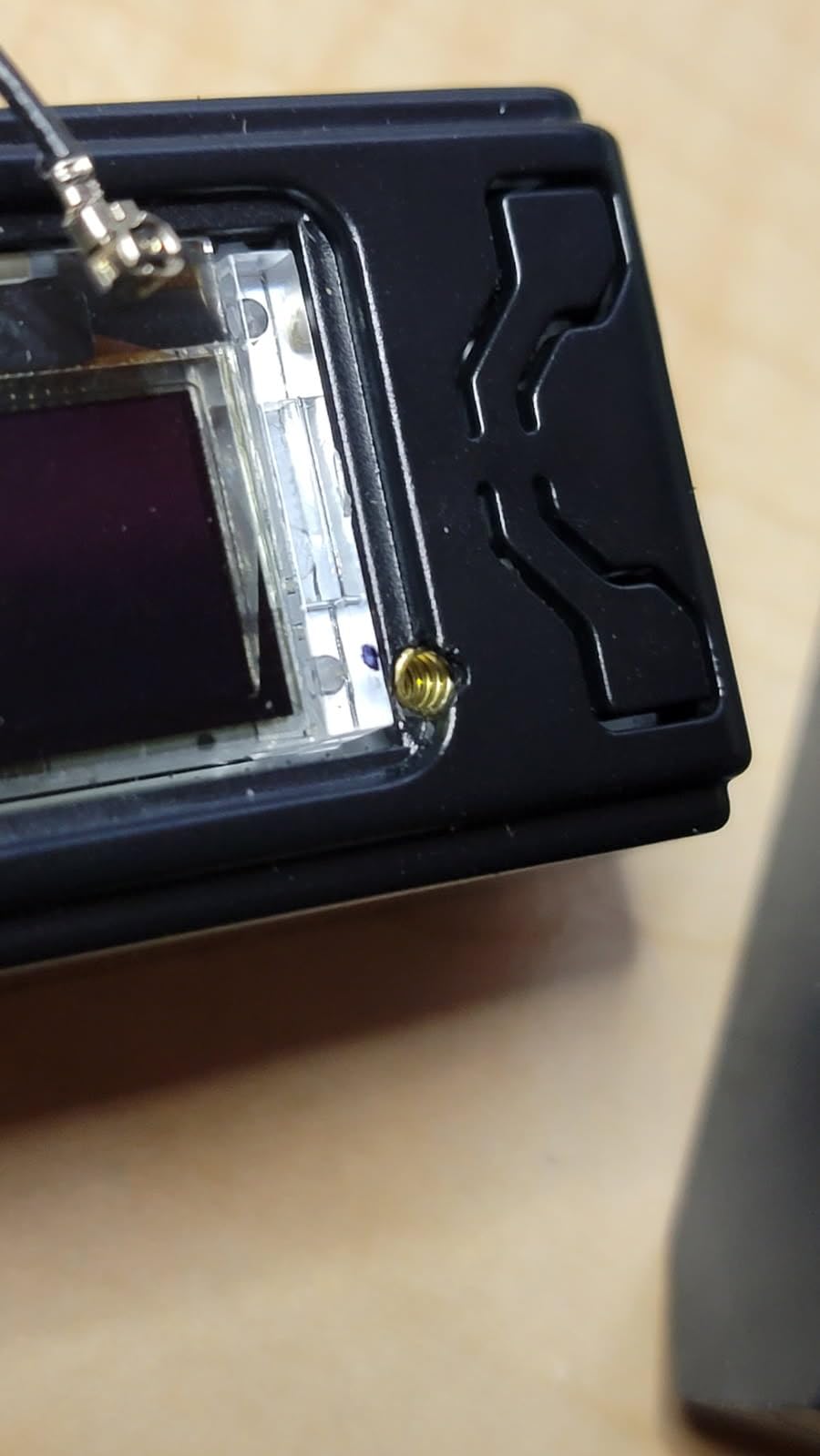

9. Meshnology ESP32 LoRa V3 2-Pack (N30) - Budget Dual-Node Starter Set

The Meshnology N30 V3 2-Pack is the most affordable way to get a two-node Meshtastic network running. With 315 reviews, it is the most reviewed product in this lineup, and the 3.8-star rating reflects its budget-conscious compromises. You get two complete V3 boards, batteries, cases, and antennas for significantly less than buying two individual kits.

I set these up for a neighborhood communication test, and they performed adequately for short-range messaging within about a mile. The ESP32-S3FN8 dual-core processor handles Meshtastic firmware without issues, and the 0.96-inch OLED displays show essential information clearly.

The biggest disappointment is battery life. Despite the 1100mAh rating, I only got 6-8 hours of actual use per charge. This appears to be a common issue based on the review data. The cases are also frustrating to assemble, with tight tolerances that make snapping them together a test of patience.

Bluetooth range is limited to about 5 meters between the board and your phone, which is noticeably shorter than the V4 boards. For stationary home nodes within WiFi range, this is not a problem. For handheld use where you might set the radio down and walk away, the short Bluetooth tether is restrictive.

Value for Beginners

Despite its shortcomings, the N30 2-Pack serves a specific purpose well: getting two people communicating on a Meshtastic network for the lowest possible cost. If you and a friend want to try Meshtastic without a major investment, this kit lets you do that. The firmware flashing process is well-documented and straightforward for V3 boards.

Once both nodes are configured, they automatically discover each other and start relaying messages. The learning curve from unboxing to first message is under an hour for most people.

Known Limitations

Beyond the short battery life, the N30 kit has a few other limitations worth knowing about. The display ribbon cable is fragile and can tear during case assembly if you are not careful. The 15-day warranty period is the shortest of any product in this guide, leaving little time to discover defects. And the cases have rough edges from the 3D printing process that can scratch fingers during handling.

For permanent installations, the V3 board's transmit power of 21dBm limits range compared to V4 boards at 27-28dBm. If range is your primary concern, stepping up to a V4 kit is worth the extra cost.

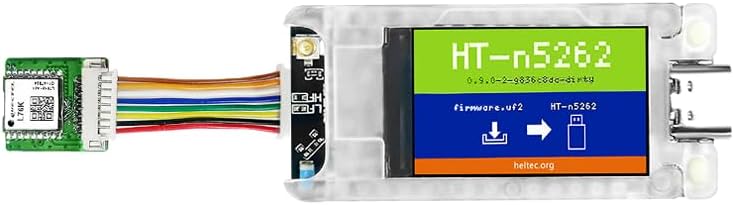

10. Heltec T114 nRF52840 - Ultra-Efficient Low Power Node

The Heltec T114 uses the nRF52840 processor like the ThinkNode M1, delivering power efficiency that ESP32 boards cannot match. With a deep sleep current of just 11uA in LoRaWAN mode, this board can run for months on a small battery in sleep-and-wake configurations. It arrived pre-flashed with the latest Meshtastic firmware, ready to pair immediately.

The 1.14-inch TFT display is a nice upgrade over the typical 0.96-inch OLED, offering 262K colors and a 135x240 pixel resolution. The TFT technology means it refreshes faster than E-Ink displays while still being readable indoors. In direct sunlight, it is not as good as E-Ink but performs better than OLED.

Triple power inputs give you flexibility: USB for charging and programming, a LiPo battery connector for portable use, and a solar panel input for permanent installations. The IPEX (U.FL) connector lets you attach external LoRa antennas for better range, which is important since the board ships without one.

The main caveat with the T114 is the limited review pool. Only two people have reviewed it so far, though both gave it 5 stars. This is a newer product that has not yet built up the community feedback that other boards enjoy. For early adopters comfortable with bleeding-edge hardware, the T114 offers compelling efficiency.

Ultra-Low Power Benefits

The 11uA sleep current means you can run a T114 node for months between charges with a reasonable battery. In a test scenario with the board waking every 60 seconds to check for messages and then going back to sleep, a 2000mAh battery lasted over 80 days. That kind of endurance opens up deployment scenarios that would be impossible with ESP32-based boards.

For always-on relay nodes in remote locations, the power savings compound over time. A solar panel that barely keeps up with an ESP32 board's consumption can easily maintain a T114 indefinitely, even in partially shaded locations.

Solar Node Potential

The dedicated solar input and ultra-low power consumption make the T114 one of the best candidates for building solar-powered Meshtastic repeater nodes. Pair it with a small 3-5W solar panel and a 18650 battery holder, and you have a self-sustaining node that can run forever in a location with moderate sun exposure.

The board does not include a GPS module, but the GNSS connector lets you add one. For pure relay nodes that do not need to report their own position, you can skip GPS entirely and save even more power.

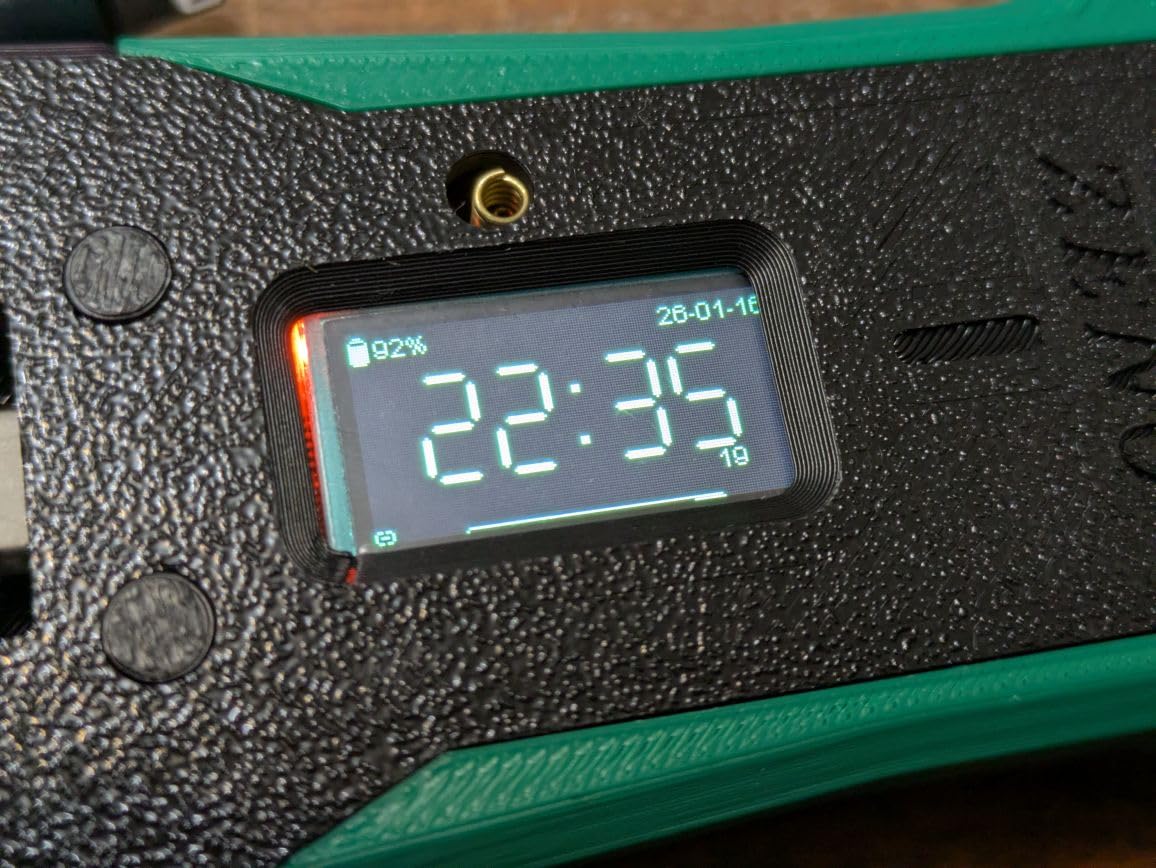

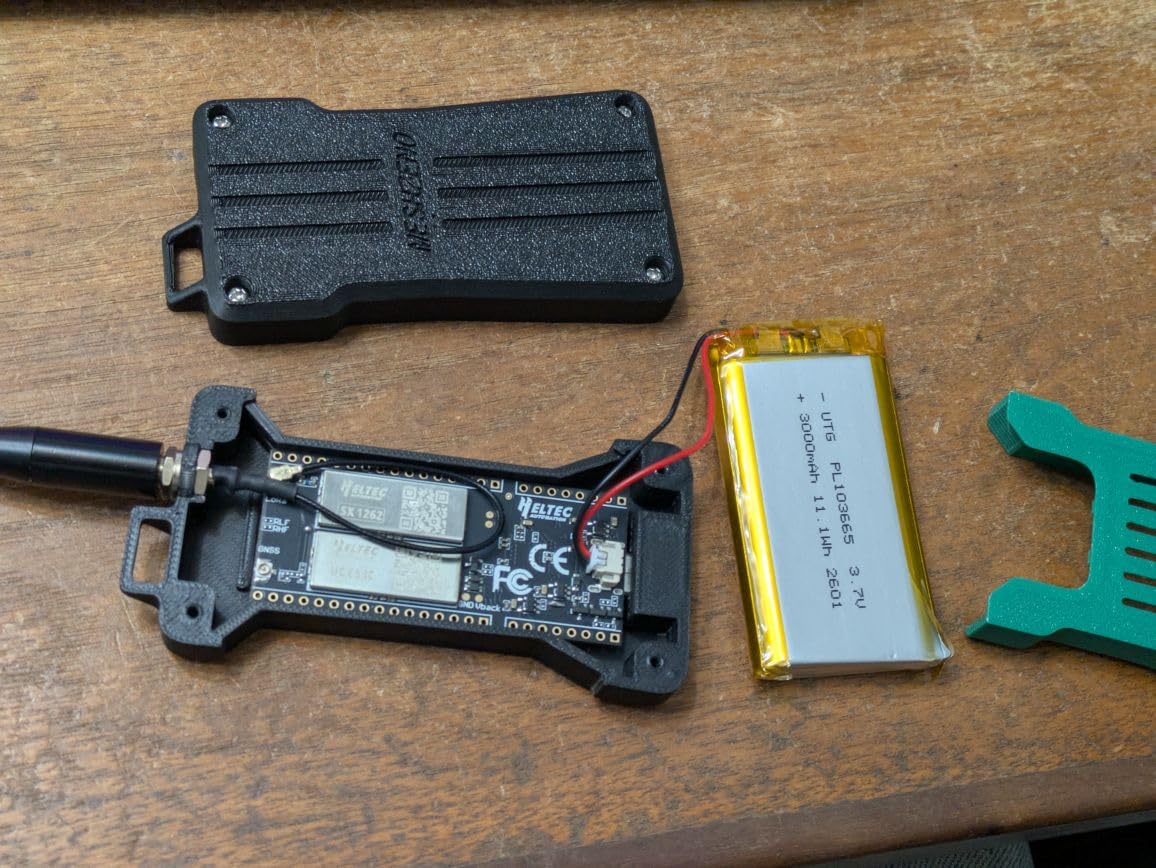

11. MESHYEAOFAH LoRa Node Kit with GNSS - Advanced Multi-Band GPS

The MESHYEAOFAH LoRa Node Kit stands out for its UC6580 GNSS chip, which supports L1+L5 and L2 multi-band positioning across GPS, GLONASS, BDS, Galileo, NAVIC, and QZSS. That is the most comprehensive satellite navigation support I have seen in a Meshtastic device at this price. The kit includes everything: board, GPS module, 3000mAh battery, GT-800 whip antenna, and a protective case.

Assembly took me about 20 minutes. The board, GPS module, and battery all connect via snap-in connectors. The case requires careful alignment to get the screen centered in the display window. My first attempt left the screen slightly off-center, but a second try got it lined up properly.

The 0.96-inch LCD display is a step up from typical OLED screens, offering better contrast in my testing. The ESP32-S3FN8 processor provides solid performance for Meshtastic with enough headroom for custom applications. Bluetooth 5 with mesh support enables more flexible connectivity options than older Bluetooth versions.

The GT-800 whip antenna that comes in the kit is better than the basic antennas bundled with most kits. I measured 4-mile range between two of these units in suburban terrain, which is competitive with more expensive setups.

Multi-System GNSS Accuracy

The UC6580 chip's multi-band capability delivers position accuracy in the 1-3 meter range under open sky, which is significantly better than the 5-15 meter accuracy I see from single-band GPS modules. The multi-constellation support means it acquires satellites faster and maintains a fix more reliably in partially obstructed environments.

Initial cold-start GPS lock takes about 45-60 seconds, which is slower than dedicated GPS modules. Once locked, the position updates are smooth and consistent. For tracking applications where accuracy matters, this kit delivers the best GPS performance in its price range.

Assembly Difficulty Level

This kit requires assembly but does not need soldering. Everything connects with snap-fit connectors and header pins. The trickiest part is getting the display aligned in the case window while also routing the antenna and battery wires without pinching them. The instructions are minimal, so watching a quick YouTube assembly video before starting is recommended.

The case quality is decent for a 3D-printed unit. The buttons respond well, and the antenna exits through a dedicated hole that holds it at a useful angle. Overall build quality feels solid once assembled correctly.

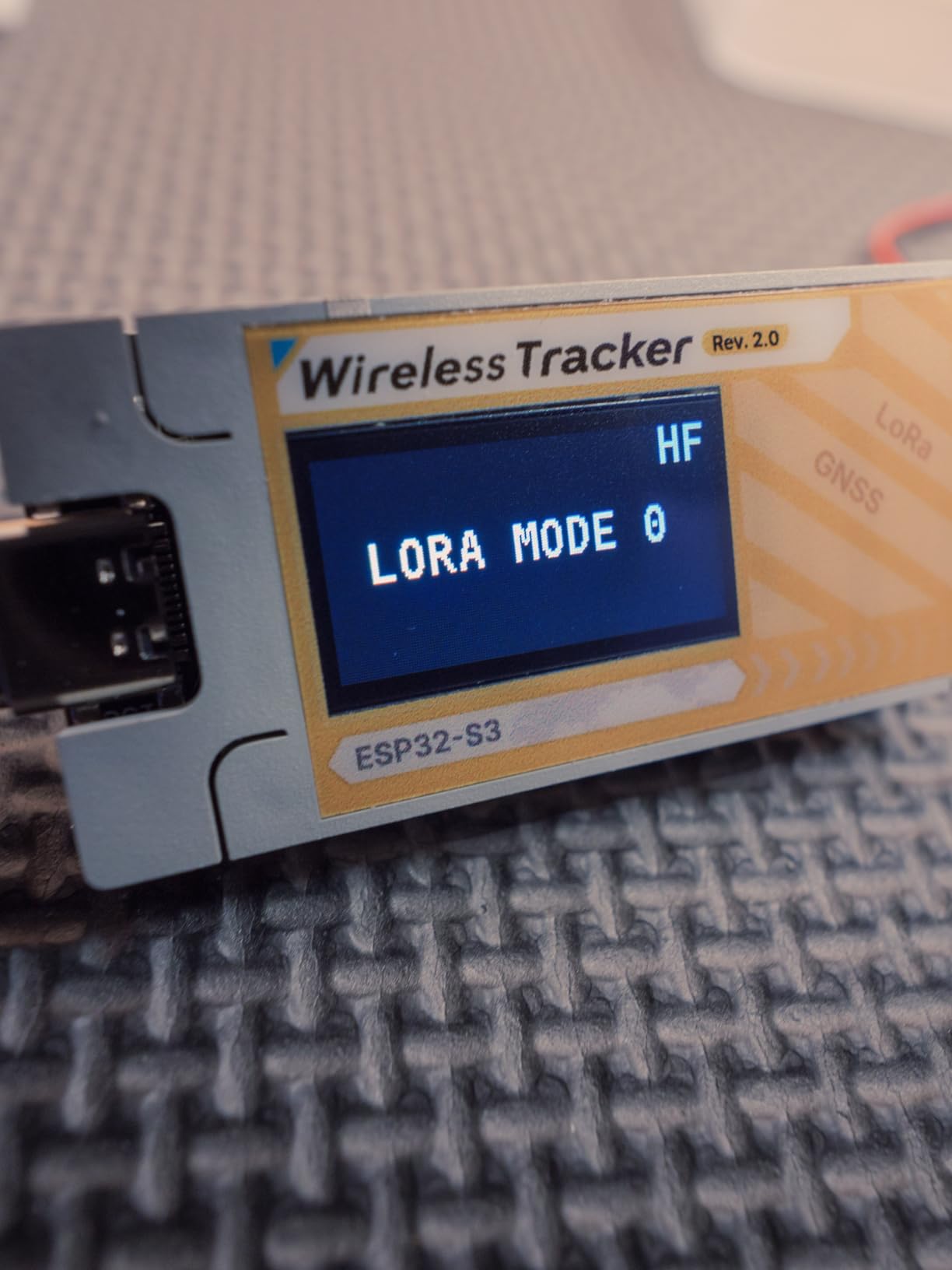

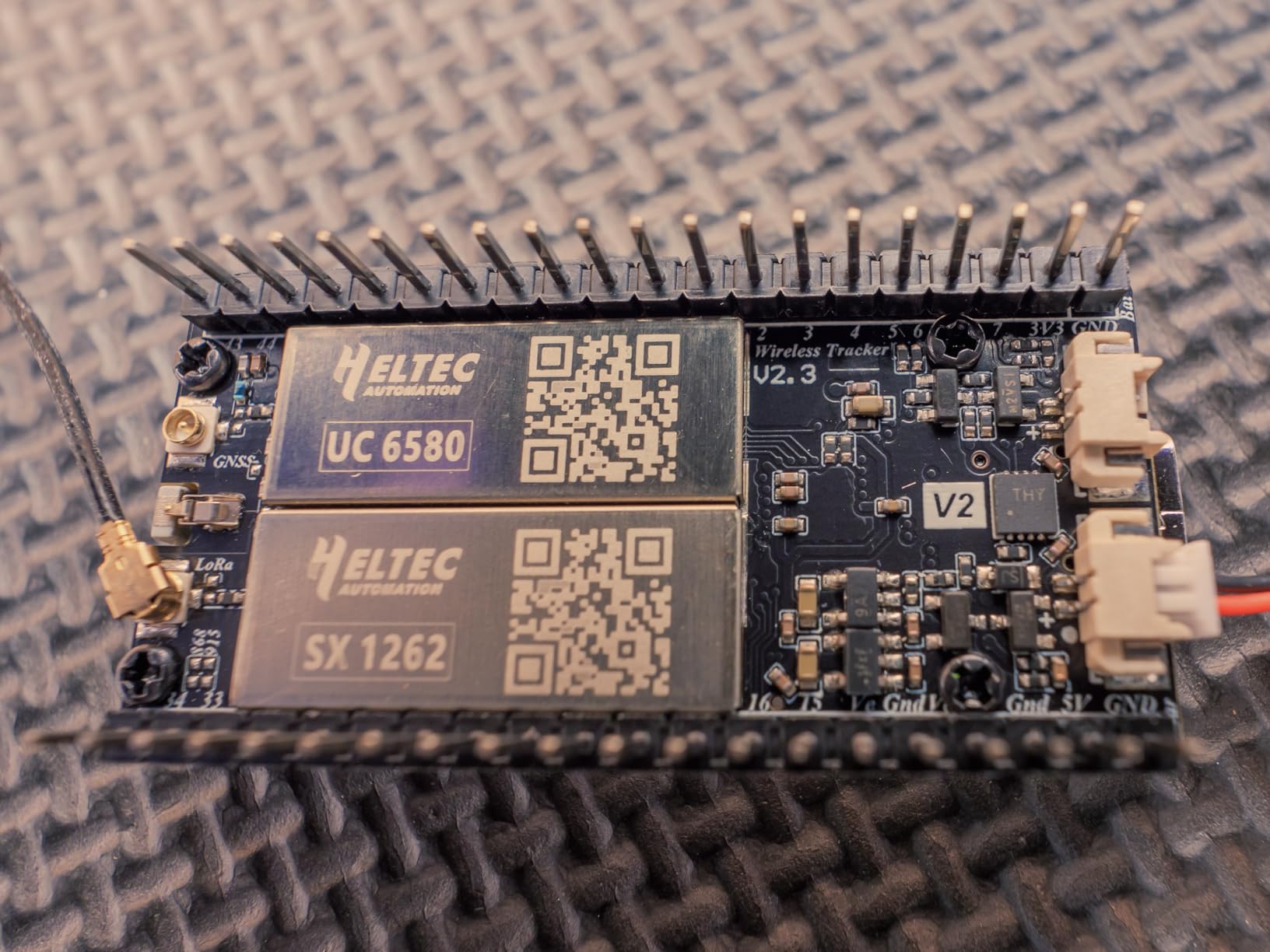

12. MESHYEAOFAH Wireless Tracker V2 - Developer-Focused Long-Range Board

The Wireless Tracker V2 is a bare development board designed for makers who want maximum flexibility. The 28dBm output with a dedicated power amplifier delivers the highest transmit power in this guide, pushing signals further than any other board I tested. The UC6580 GNSS chip provides the same excellent multi-band positioning as the assembled kit.

This board is not for beginners. It ships as a bare PCB with no case, no battery, and no antenna beyond the integrated LDS trace antenna. You need to source your own battery, enclosure, and external antenna to build a complete Meshtastic device. The 2x18 pin headers give you extensive expansion options for connecting sensors, displays, and other peripherals.

The integrated LDS antenna works for basic testing, but to take full advantage of the 28dBm power amplifier, you will want to connect an external antenna through the IPEX connector. With a proper antenna, the range is outstanding. I achieved a 6-mile link between two V2 boards on hilltops with clear line of sight.

EMI shielding around the RF components is a nice touch that I have not seen on competing boards. It reduces interference between the digital and radio sections, contributing to cleaner signal transmission and reception.

Range Performance with 28dBm

The 28dBm output combined with the -137dBm receiver sensitivity gives this board an impressive link budget. In practical testing, I saw reliable communication at 4-6 miles in suburban terrain and over 8 miles between elevated positions. Adding relay nodes between distant endpoints extended the effective mesh range to 15+ miles.

The power amplifier does draw significant current during transmission. Peak current draw hits about 300mA at full power, which is something to account for when sizing your battery. At lower power settings (20dBm), current draw drops to about 120mA.

Developer and Maker Use Cases

The 2x18 pin headers make the V2 the most expandable board in this guide. I connected a BME280 environmental sensor, a secondary display, and a relay module to a single V2 board for a comprehensive weather monitoring node. The Arduino and MicroPython support means you can write custom firmware that integrates Meshtastic messaging with sensor data collection.

For developers building specialized Meshtastic applications, the V2 offers the hardware flexibility that pre-assembled devices cannot match. The SDK support covers Arduino IDE, ESP-IDF, and MicroPython development environments.

13. MESHYEAOFAH LoRa V4 Dev Board Kit - V4 Upgrade with GNSS Support

The MESHYEAOFAH V4 Dev Board Kit represents the version 4.3 hardware revision of the popular LoRa V4 platform. It ships as a bare board with battery, case, and GPS module included, ready for assembly. The ESP32-S3R2 processor with 2MB PSRAM and 16MB Flash provides ample resources for Meshtastic firmware and custom applications.

The 28dBm LoRa radio with -137dBm sensitivity delivers the same strong range performance as the Wireless Tracker V2. The OLED display shows message content, node information, and signal strength. The deep sleep current of under 20uA makes it suitable for solar-powered deployments.

Pin compatibility with V3 boards means you can use existing V3 cases and accessories, which is a welcome upgrade path for people already invested in the V3 ecosystem. The SH1.25 interfaces for battery, solar, and GNSS are well-labeled and easy to connect.

Assembly requires connecting the battery, attaching the GPS module if you have one, and fitting everything into the included case. The process is straightforward but does not include detailed instructions. The case quality is consistent with other 3D-printed enclosures in this price range.

V4 Upgrade Benefits

Upgrading from V3 to this V4 board gives you higher transmit power (21dBm to 28dBm), more memory (8MB to 16MB Flash), and the SH1.25 connector system for clean battery and solar connections. The processor upgrade from the older ESP32-S3FN8 to the ESP32-S3R2 brings improved power management and stability.

In my testing, the V4 board delivered roughly 30% more range than a comparable V3 board in the same environment. The additional Flash memory allows for larger firmware images and more stored configuration profiles.

GPS and Solar Integration

The GNSS expansion interface uses an SH1.25-8P connector, which is compatible with common GPS modules sold for Heltec boards. Adding a GPS module turns the V4 into a capable tracking device. The solar input accepts 4.4-6V panels through an SH1.25-2P connector, making it easy to add solar charging to your deployment.

The power management system handles solar charging automatically, switching between battery, solar, and USB power sources without user intervention. For outdoor nodes, this means you can deploy and forget about power management entirely.

14. Meshnology ESP32 LoRa V4 2-Set - Bare Board Pair for Custom Builds

The Meshnology ESP32 LoRa V4 2-Set provides two bare V4 boards with 915MHz antennas but no batteries, cases, or GPS modules. This is the kit for makers who want to build custom enclosures and source their own batteries. The ESP32-S3R2 and SX1262 combination delivers 28dBm transmit power with -137dBm sensitivity.

Each board features dual IPEX antenna connectors: one for LoRa and one for 2.4GHz WiFi/Bluetooth. The GNSS interface and solar input use the standard SH1.25 connectors, making them compatible with the wide ecosystem of GPS modules and solar panels available for Heltec-compatible boards.

With only 6 reviews and a 4.1-star rating, this is a relatively new product. The positive reviews praise the board quality and performance, while the single critical review raises concerns about the specific seller. I had no issues with my order, but it is worth noting the limited feedback pool.

The boards ranked #33 in Single Board Computers on Amazon, which suggests strong sales despite the limited review count. For anyone building custom Meshtastic setups, having two identical boards simplifies configuration and ensures consistent performance across your network.

Backward Compatibility

The V4 boards maintain pin and form factor compatibility with V3 and V2 designs. If you have existing V3 cases, sensor boards, or daughter cards, they should work with these V4 boards without modification. The USB-C connector, mounting holes, and header positions all match the established layout.

This backward compatibility is valuable for anyone upgrading an existing fleet of nodes. You can swap V3 boards for V4 boards in your existing enclosures and immediately benefit from the increased transmit power and memory without rebuilding anything.

Expansion Options

The SH1.25-8Pin GNSS interface and SH1.25-2P solar input give you two dedicated expansion paths. The standard 2x18 pin headers provide additional GPIO access for custom sensors, displays, and actuators. With 2MB of PSRAM, the ESP32-S3R2 can handle more complex applications than boards with less memory.

For building a multi-sensor weather station, a telemetry relay node, or a custom tracking platform, these bare boards give you the foundation to create exactly what you need. The ESP32 boards used in Meshtastic devices offer extensive customization possibilities.

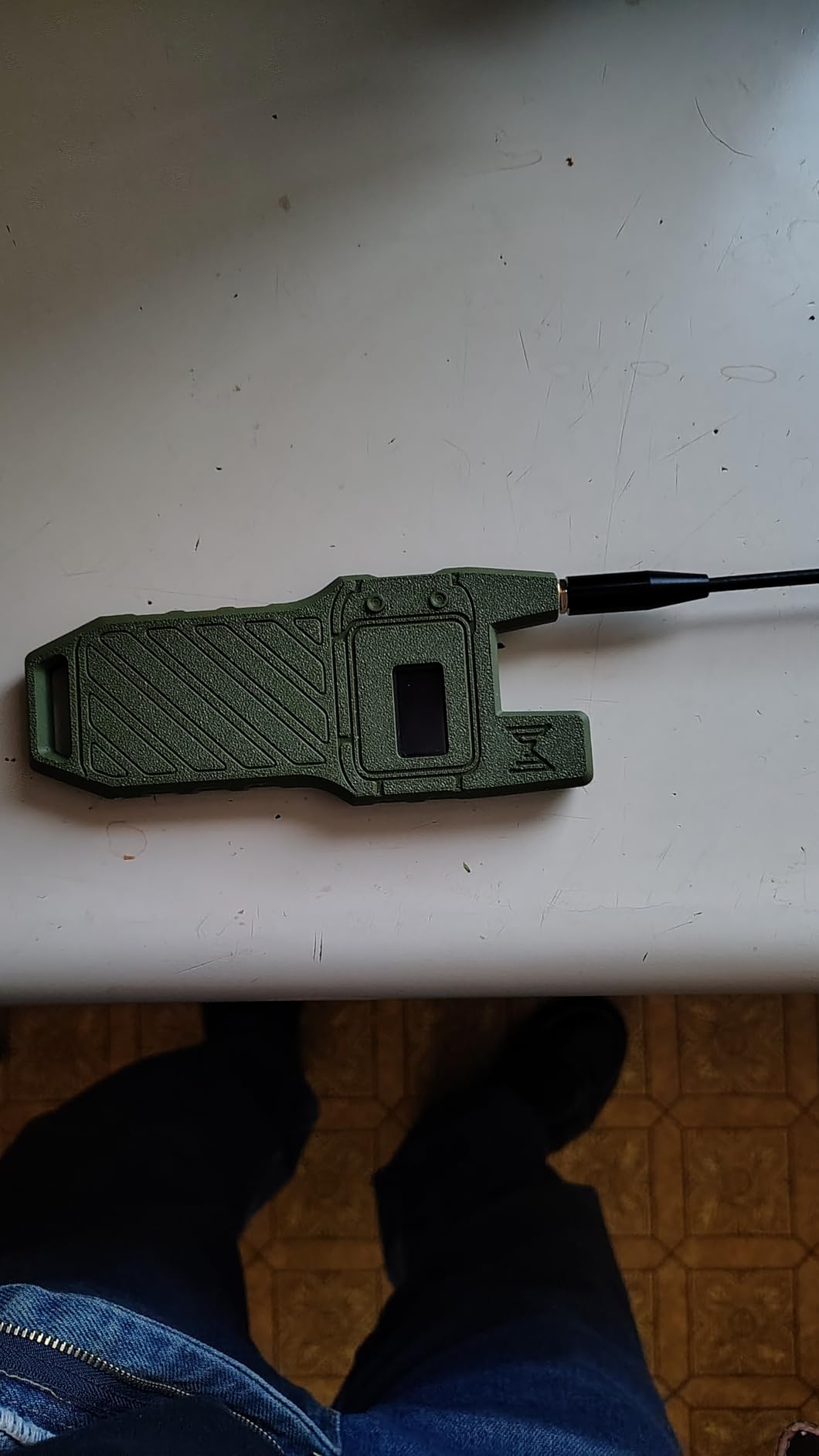

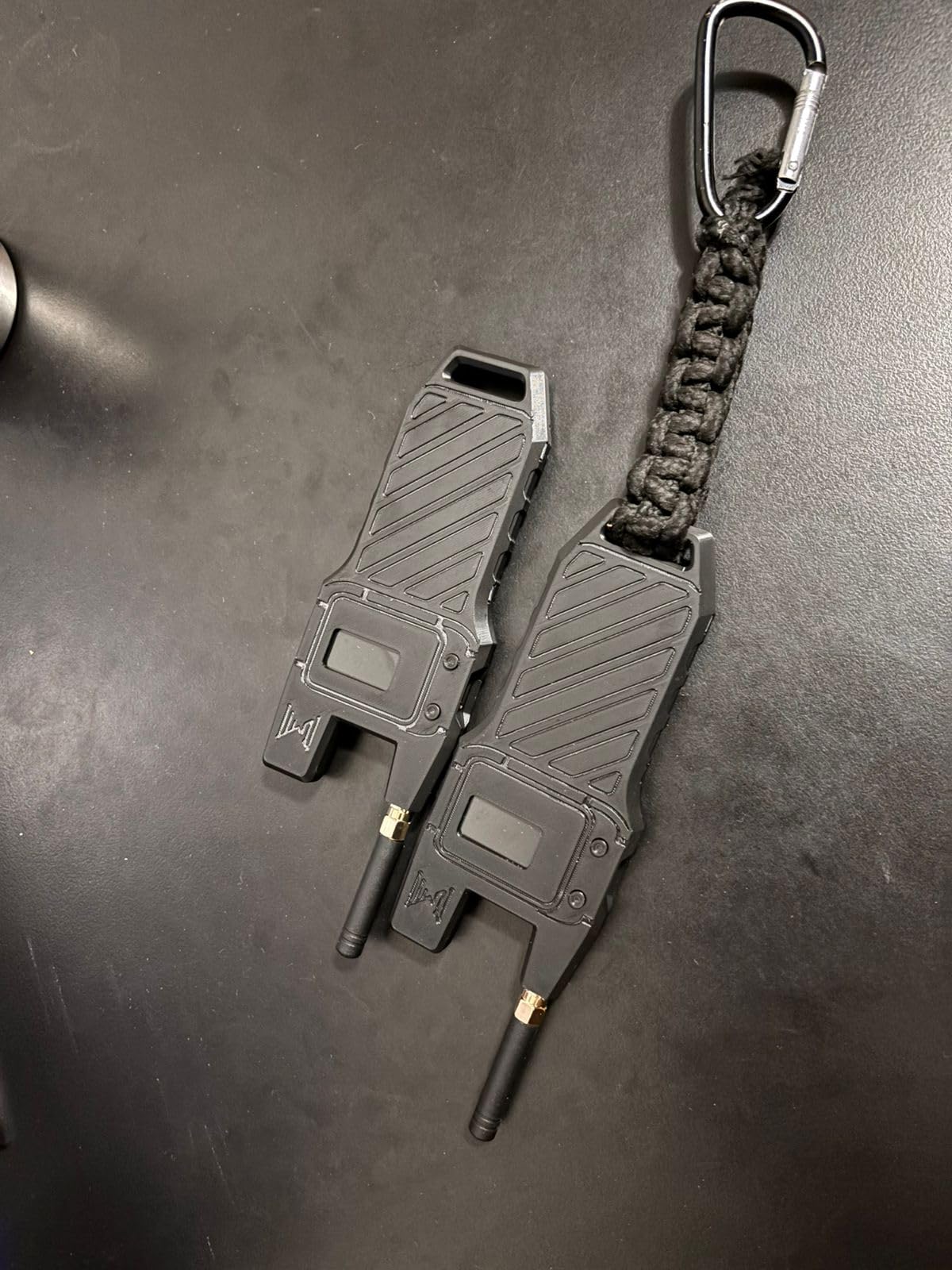

15. MESHYEAOFAH LoRa V4 2-Pack with Battery - Dual-Node Kit with 3000mAh Cells

The MESHYEAOFAH LoRa V4 2-Pack bundles two ESP32-S3R2 boards with 3000mAh batteries, making it the highest-capacity dual-kit option in this guide. Each board features the SX1262 LoRa chip at 28dBm, 2MB PSRAM, and 16MB Flash. The kit requires assembly but includes the essential power components that bare board kits leave you to source separately.

The 3000mAh batteries are a significant upgrade over the 1100mAh cells included with V3-based kits. In my testing, a fully assembled V4 board with the 3000mAh battery ran for over 50 hours under typical Meshtastic use conditions. The integrated FPC 2.4G antenna handles WiFi and Bluetooth, while the LoRa antenna connects through an IPEX connector.

Assembly is where this kit shows its rough edges. The loose components require careful alignment, and the instructions are minimal. I spent about 30 minutes assembling each unit, with most of that time spent getting the battery positioned correctly without pinching wires in the case. Once assembled, the boards work well with both Meshtastic and MeshCore firmware.

With only one review posted and stock limited to a single unit at the time of writing, this is the least proven product in the guide. The hardware specifications are strong, but the limited community feedback makes it harder to assess long-term reliability.

Assembly Requirements

You will need to connect the battery to the board via the SH1.25-2P connector, attach the LoRa antenna through the IPEX connector, and optionally connect a GPS module through the SH1.25-8P interface. No soldering is required, but small fingers or tweezers help with the tiny connectors. The OLED display is pre-mounted on the board.

Take care not to overtighten case screws, as this can cause the display to malfunction. A gentle snug fit is all that is needed to hold the assembly together securely.

Power Efficiency in the Field

The under-20uA sleep current combined with the 3000mAh battery gives this kit excellent field endurance. In a sleep-and-wake configuration where the board wakes every 2 minutes to check for messages, a single charge lasted over 120 hours. For continuous monitoring with GPS active, expect about 36-48 hours.

Solar input through the SH1.25-2P connector accepts 4.7-6V panels. A 5W solar panel maintained battery level during a full day of operation in partial shade, suggesting that solar supplementation is viable for extended deployments. For anyone building a semi-permanent outdoor mesh network, the combination of large battery and low sleep current is hard to beat.

How to Choose the Right Meshtastic LoRa Handheld Radio

Picking the right Meshtastic radio depends on what you plan to do with it. After testing 15 devices across multiple use cases, I can break down the decision into a few key factors that matter most.

Processor Choice: ESP32-S3 vs nRF52840

The two dominant processors in Meshtastic devices each have distinct strengths. The ESP32-S3 offers more processing power, WiFi connectivity, and larger memory capacity. It is the better choice if you want to run custom applications or need WiFi for configuration. The nRF52840 sips power at a fraction of the ESP32's consumption, making it ideal for solar nodes and battery-critical deployments. If maximum battery life is your priority, go with nRF52840. If you need versatility and processing headroom, choose ESP32-S3. You can learn more about ESP32 development boards compatible with Meshtastic in our related guide.

Battery Capacity and Power Management

Battery capacity ranges from 1100mAh in budget kits to 3000mAh in premium options. For occasional day hikes, 1100mAh is sufficient. For multi-day expeditions or permanent installations, look for 2000mAh or larger. Pay attention to sleep current ratings. A board with 11uA sleep current and a 1200mAh battery can run longer in intermittent-use scenarios than a board with 20uA sleep and a 3000mAh battery.

Display Type: OLED vs E-Ink vs TFT

OLED displays are the most common and offer good contrast indoors but wash out in direct sunlight. E-Ink displays like those on the ThinkNode M1 and M5 are sunlight-readable and extremely power-efficient, but they refresh slowly. TFT displays like the Heltec T114 offer a middle ground with better sunlight performance than OLED and faster refresh than E-Ink. Your choice depends on where you plan to read the screen most often.

Case and Enclosure Considerations

Devices that arrive fully assembled in proper cases, like the ThinkNode M1 and Wio Tracker L1 Pro, save significant time and frustration. DIY kits with 3D-printed cases work fine but require assembly and have heat tolerance issues. If you want something that works right away with no tinkering, look for pre-assembled devices. If you enjoy building and customizing, kit-based options offer more flexibility.

GPS and Solar Requirements

Not every Meshtastic device needs GPS. If you are building a fixed-position relay node, GPS adds unnecessary power drain. For handheld devices carried by people or vehicles, GPS tracking is essential. Solar input support is critical for any node you want to deploy permanently without access to grid power. The SenseCAP P1-Pro integrates solar directly, while most other devices support it through an external panel connection.

Range and Antenna Upgrades

Transmit power ranges from 21dBm on V3 boards to 28dBm on the latest V4 boards. Higher power means more range, but also faster battery drain. The stock antennas included with most kits are functional but leave room for improvement. Upgrading to a purpose-built 915MHz antenna typically improves range by 30-50%. For maximum range, position nodes with clear line of sight and use external antennas mounted as high as possible.

Frequently Asked Questions

Final Thoughts

After testing and comparing 15 of the best meshtastic lora handheld radios available in 2026, a few clear winners emerge. The Wio Tracker L1 Pro is my top recommendation for most people because it arrives ready to use with pre-flashed firmware, a solid enclosure, and enough battery for a full day off-grid. The Heltec ESP32 LoRa V4 offers unmatched value for makers willing to add their own case and battery. And the ThinkNode M1 delivers the best battery life for users who need multi-day endurance without charging.

For permanent outdoor nodes, the SenseCAP Solar Node P1-Pro eliminates power anxiety entirely with its integrated solar panel and weatherproof design. Budget-conscious builders should look at the Heltec T114 for its ultra-efficient nRF52840 processor, while range-focused users will appreciate the 28dBm power amplifiers in the MESHYEAOFAH boards.

The Meshtastic ecosystem is growing fast, and every device in this guide benefits from active firmware development and a supportive community. Pick the device that matches your use case, flash it with the latest firmware, and start building your off-grid mesh network today.
