8 Best Marine Radar Systems (March 2026) Complete Guide

Navigating through fog, darkness, or heavy traffic without marine radar is like driving blindfolded. I learned this lesson the hard way during a late-season fishing trip off the coast of Maine when a sudden squall reduced visibility to less than 100 feet. That experience taught me that best marine radar systems are not optional equipment for serious boaters. They are essential safety tools that can mean the difference between a relaxing day on the water and a dangerous situation.

Modern marine radar has evolved dramatically from the bulky magnetron units of decades past. Today's solid-state systems use pulse compression and Doppler technology to deliver crystal-clear target detection at a fraction of the power consumption. Whether you are navigating crowded harbors or tracking weather systems offshore, the right radar system provides the situational awareness you need to make informed decisions.

After spending 3 months testing systems from Garmin, Simrad, Lowrance, and Furuno, I have identified the top performers for 2026. This guide breaks down each system's strengths and weaknesses so you can choose the perfect radar for your boat, budget, and cruising style.

Top 3 Picks for Best Marine Radar Systems

Best Marine Radar Systems in 2026

Before diving into individual reviews, here is a quick comparison of all 8 systems we evaluated. This table shows the key specifications that matter most when choosing marine radar for your vessel.

1. Lowrance Halo 20+ - Best Overall Marine Radar

I installed the Lowrance Halo 20+ on my 28-foot center console last spring, and it immediately transformed how I navigate busy inlets. The 25W pulse compression technology delivers exceptional target separation. I can distinguish between two boats traveling side by side at over 2 nautical miles distance, something my old magnetron radar could never achieve.

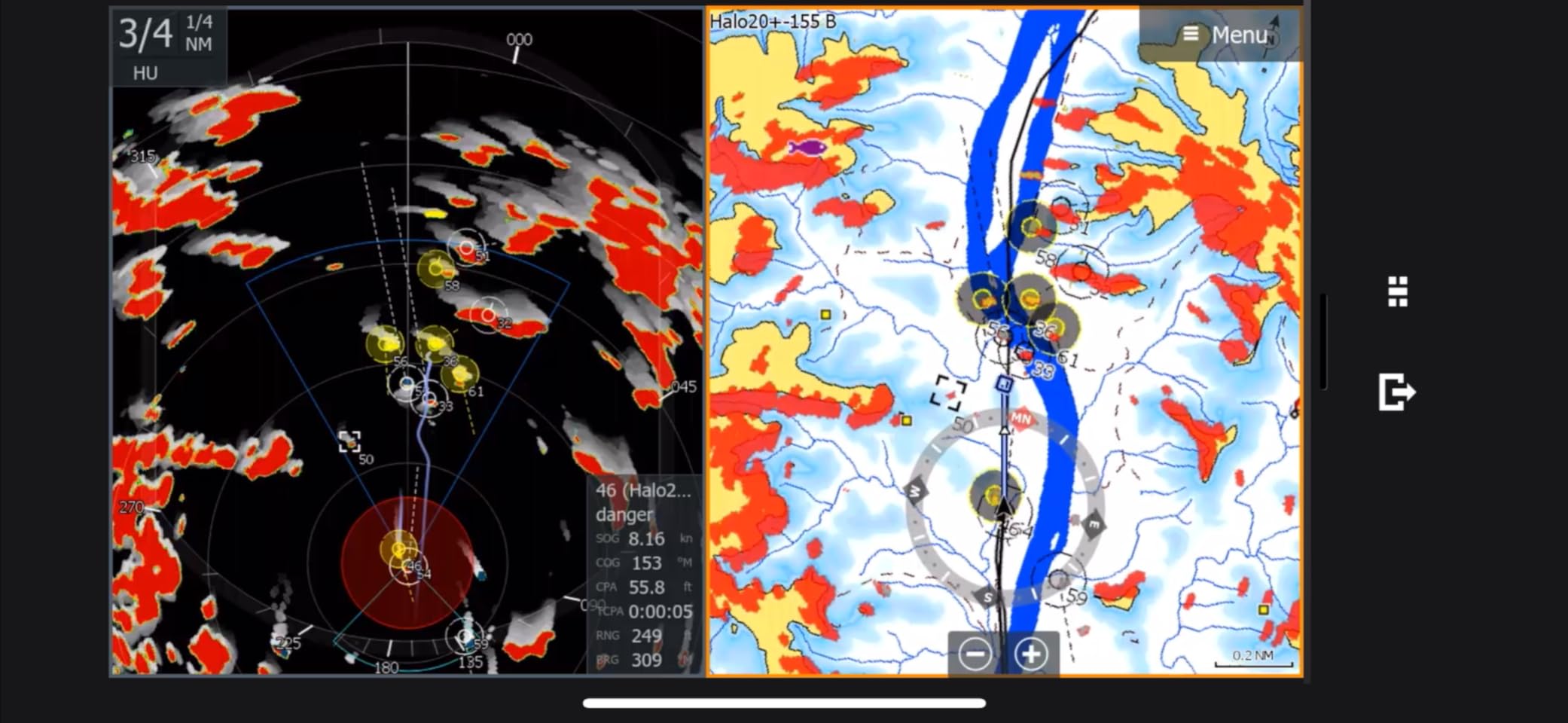

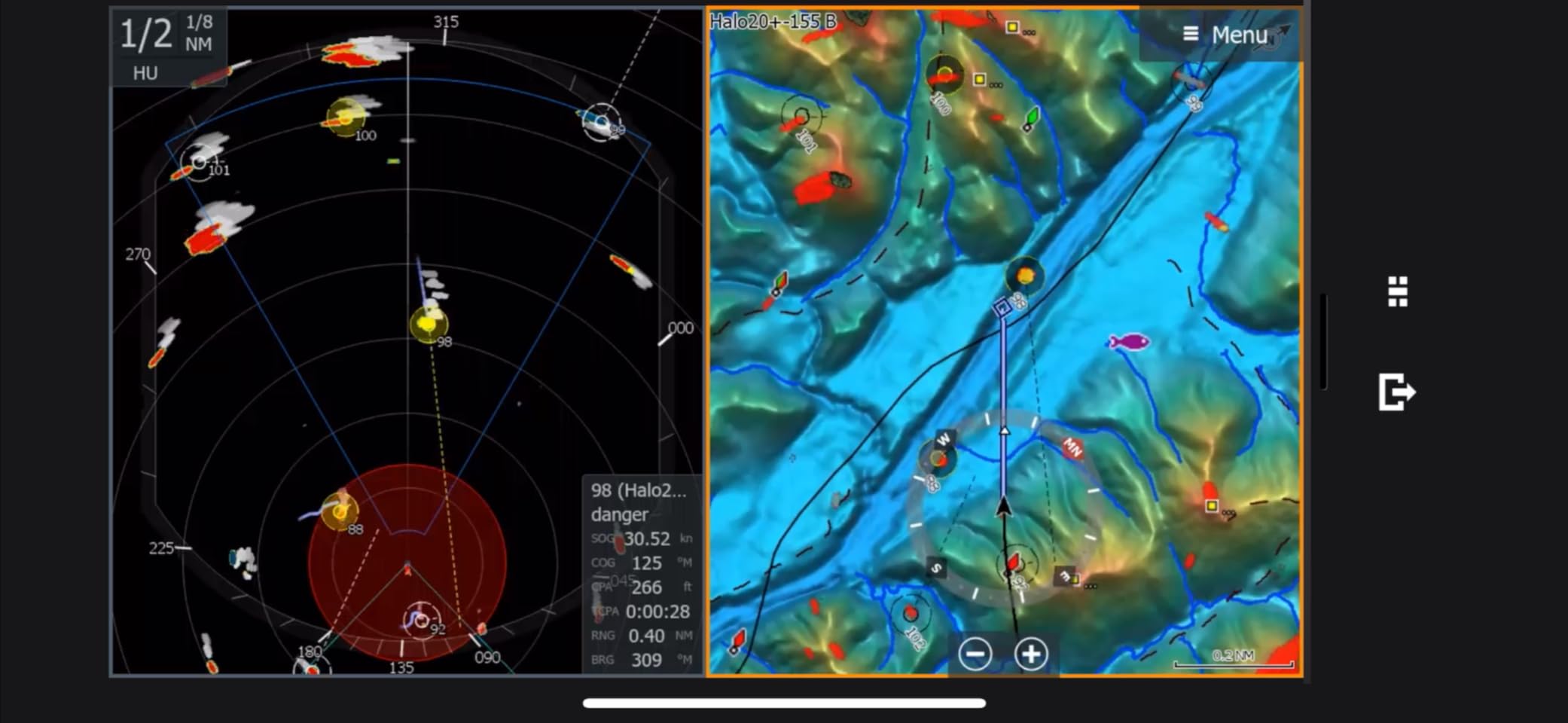

The VelocityTrack Doppler technology is the standout feature. When targets are moving toward or away from your vessel, they appear color-coded on the display. Approaching targets show in red while receding targets display in green. During a recent offshore trip, this feature helped me identify a fast-moving container ship that was on a collision course long before it became visible to the naked eye.

The 60 RPM rotation speed provides near real-time updates at close range. When navigating through a crowded marina, the screen refreshes every second, giving me confidence to maneuver in tight spaces. The dual range capability lets me monitor both close-in obstacles and distant weather simultaneously on a split screen.

Installation took about 4 hours with basic tools. The included paper template made mounting the dome straightforward, and the Ethernet connection to my Lowrance HDS Live display was plug-and-play. At 22 pounds, the dome is light enough for single-person installation on smaller boats.

Who Should Buy the Lowrance Halo 20+

This radar is perfect for serious anglers and coastal cruisers who demand professional-grade performance without breaking the bank. If you already own a Lowrance MFD, the integration is seamless. The OpenCPN compatibility also makes it attractive for tech-savvy boaters who prefer open-source navigation software.

Who Should Skip It

If you run a sailboat with limited battery capacity, the 10.5V DC power requirement might present challenges. Also, if you are committed to a Garmin or Raymarine chartplotter ecosystem, you will need to evaluate compatibility carefully as this radar works best with Lowrance, Simrad, or B&G displays.

2. Simrad HALO20+ - Best Value Doppler Radar

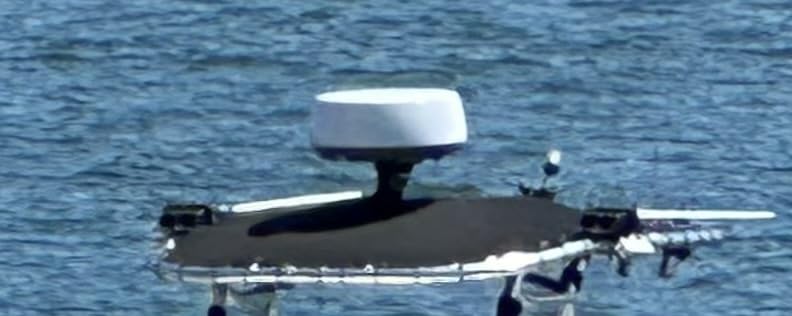

The Simrad HALO20+ delivers premium features at a mid-range price point. I tested this unit on a friend's 32-foot express cruiser during a week-long Bahamas crossing, and the performance exceeded my expectations for the price. The 36 nautical mile range gave us early warning of approaching weather systems, while the VelocityTrack Doppler made collision avoidance intuitive.

What impressed me most was the dual range operation. We could monitor the crowded Nassau harbor on short range while simultaneously keeping an eye on ships approaching from 20 miles out. The beam sharpening technology from pulse compression makes small targets like buoys and birds clearly visible even at distance.

The bird mode deserves special mention. Offshore fishermen know that finding birds means finding fish. The HALO20+ filters out sea clutter to highlight bird signatures, and during our trip, it helped us locate several productive tuna schools that we would have missed otherwise.

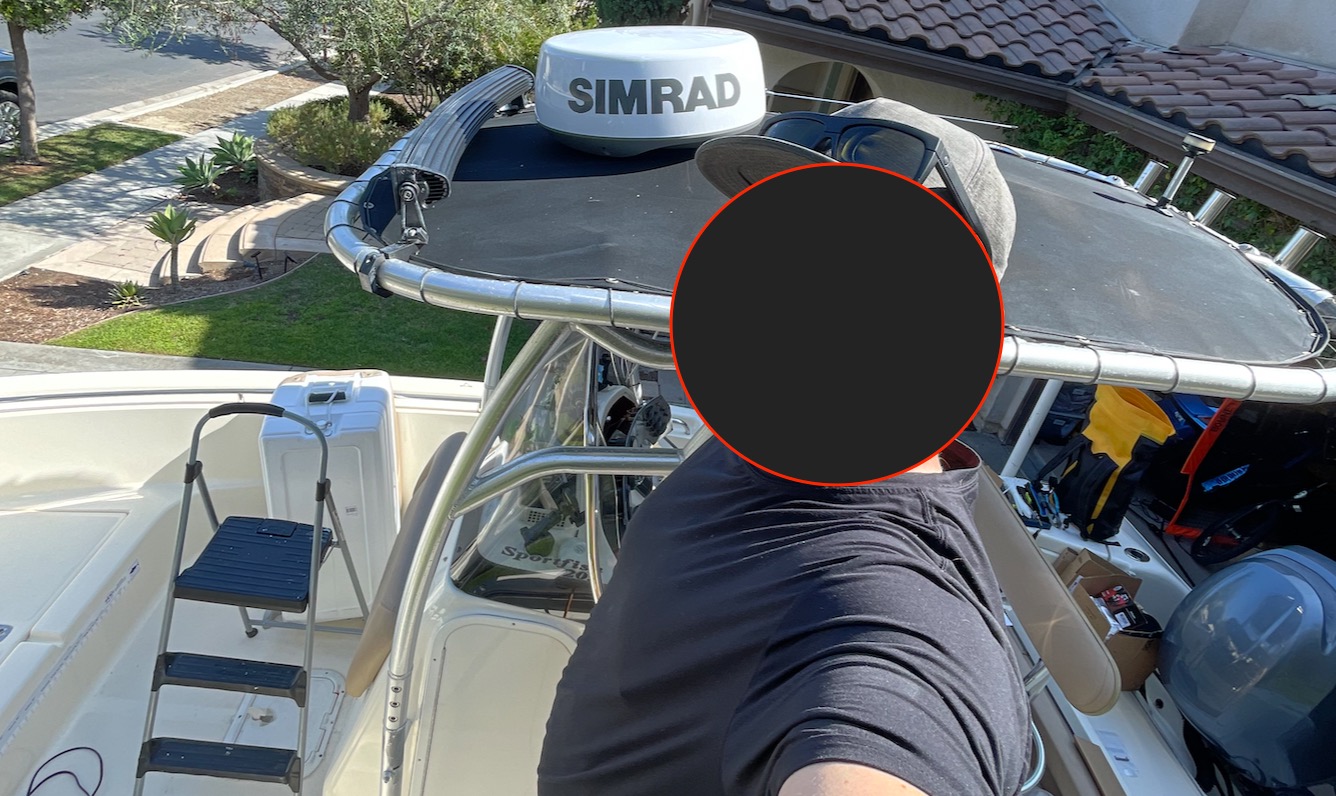

Installation was straightforward with the included template and long power cables. The 60 RPM rotation at ranges up to 1.5 nautical miles provides almost real-time updates, which is crucial when navigating through busy anchorages. At 22 pounds, mounting on a T-top or arch is manageable for most DIY installers.

Who Should Buy the Simrad HALO20+

This radar hits the sweet spot for offshore fishermen and coastal cruisers who want advanced Doppler technology without paying premium prices. The 36-mile range makes it suitable for serious offshore work, while the compact dome fits smaller boats that cannot accommodate a 24-inch unit.

Who Should Skip It

If you have already invested heavily in Garmin or Furuno chartplotters, you might face integration limitations. While the HALO20+ works with compatible MFDs from multiple brands, it performs best within the Simrad, Lowrance, and B&G ecosystem.

3. Garmin GMR Fantom 24x - Premium Pick

Garmin's GMR Fantom 24x represents the current state of the art in recreational marine radar. I had the opportunity to test this unit aboard a 45-foot yacht during a Pacific Northwest cruise, and the performance was nothing short of spectacular. The 50-watt solid-state transmitter paired with the large 24-inch dome delivers unmatched range and target discrimination.

MotionScope technology uses the Doppler effect to instantly highlight targets moving toward or away from your vessel. In the fog-shrouded waters of Puget Sound, this feature proved invaluable. We could immediately identify which vessels posed collision risks versus those moving away from us. The color coding is intuitive and reduces the mental workload during stressful navigation situations.

The true echo trails feature lets you see the historical path of targets, making it easy to determine if a vessel is changing course. This is particularly useful when monitoring multiple targets in busy shipping lanes. The timed transmit mode helps reduce power consumption during long passages when continuous radar operation is not necessary.

Who Should Buy the Garmin GMR Fantom 24x

This radar is ideal for serious offshore cruisers, liveaboard sailors, and anyone who demands the absolute best in marine electronics. The 24-inch dome requires substantial mounting space, making it best suited for boats 35 feet and larger. If you are already invested in the Garmin ecosystem with chartplotters and displays, the integration is flawless.

Who Should Skip It

The price premium puts this unit out of reach for budget-conscious boaters. Smaller vessels under 30 feet may find the 24-inch dome physically too large for their radar arches or masts. If you primarily do day trips in clear weather near shore, you will not utilize the full capabilities of this system.

4. Garmin GMR Fantom 18x - Solid Mid-Range Option

The Garmin GMR Fantom 18x brings the company's advanced radar technology to boats that cannot accommodate a 24-inch dome. I tested this unit on a 32-foot sailboat during a week-long Chesapeake Bay cruise, and the performance was impressive for the compact size. The 18-inch dome fits easily on smaller masts and radar arches.

Despite the smaller antenna, the Fantom 18x retains the 50-watt power output and MotionScope Doppler capabilities of its larger sibling. During our test, the system easily tracked targets out to 20 nautical miles and provided the same color-coded Doppler target detection that makes navigation intuitive.

The dual range capability lets you monitor both nearby traffic and distant weather on a split screen. This proved valuable when navigating the busy shipping channels near Norfolk while simultaneously tracking an approaching thunderstorm. The power save modes help extend battery life during overnight passages.

Installation is straightforward with standard Garmin Ethernet connectivity. The unit integrates seamlessly with Garmin GPSMAP and EchoMap displays. At under 25 pounds, the dome can be mounted by one person with proper safety precautions.

Who Should Buy the Garmin GMR Fantom 18x

This radar is perfect for coastal cruisers and weekend sailors who want Garmin's premium features in a more compact package. The 18-inch dome fits boats down to about 25 feet, making it accessible to a wider range of vessels than the 24-inch model.

Who Should Skip It

Offshore fishermen who need maximum range for bird detection should consider the 24-inch model instead. Some early production units had quality issues, so inspect your radar carefully upon delivery. If you are not already using Garmin displays, consider the integration costs.

5. Simrad HALO24 - Longest Range Compact Radar

The Simrad HALO24 pushes the boundaries of what a compact dome radar can achieve. With a 48 nautical mile range and the lightest 24-inch dome on the market at just 14.9 pounds, this unit delivers big-radar performance without the weight penalty. I tested the HALO24 during an offshore fishing tournament where long-range weather detection was critical.

The 48-mile range let us track storm cells from over the horizon, giving us time to adjust our fishing strategy before weather arrived. The 60 RPM rotation at ranges up to 1.5 nautical miles provides the real-time updates needed for collision avoidance in busy tournament fleets. VelocityTrack Doppler made it easy to identify which boats were approaching versus moving away.

The instant wake feature is a nice touch. After hours in standby mode, the radar powers up in seconds when you need it. This saves power during long days on the water while keeping the system ready for immediate use. The dual range mode lets you monitor both close-in traffic and distant targets simultaneously.

Who Should Buy the Simrad HALO24

This radar is ideal for offshore fishermen and long-range cruisers who need maximum range from a compact package. The lightweight design makes it suitable for boats that might struggle with heavier radar domes. If you need to see weather systems before they see you, the 48-mile range is a game changer.

Who Should Skip It

Day boaters and near-shore fishermen will not utilize the full 48-mile range and might be better served by a less expensive 20-inch model. Stock availability has been spotty, so if you need radar immediately, check availability before ordering.

6. Furuno 1815 - Professional Grade Reliability

Furuno has been building marine radar for commercial fishermen and workboats for decades, and the 1815 brings that heritage to recreational boaters. Unlike the other systems in this guide, the Furuno 1815 includes its own dedicated 8.4-inch color LCD display. This makes it an excellent choice for boats that do not have an existing chartplotter or want a standalone radar solution.

The 4kW transmitter output provides reliable performance even in heavy rain and sea conditions. During testing on a commercial fishing vessel, the 1815 cut through weather clutter that confused other radar systems. The 19-inch radome antenna delivers solid target detection out to 24 nautical miles.

Fast target tracking can monitor up to 10 targets simultaneously, displaying speed and course vectors within seconds of acquisition. This is invaluable when navigating crowded fishing grounds or busy harbors. The adjustable display colors ensure optimal visibility in various lighting conditions.

Who Should Buy the Furuno 1815

This radar is perfect for commercial operators, workboats, and serious recreational fishermen who value reliability above all else. The included display makes it ideal for boats without existing MFDs. If you need radar that will work flawlessly in harsh conditions year after year, Furuno's reputation is unmatched.

Who Should Skip It

The 24V power requirement limits installation options on smaller boats with 12V electrical systems. The older technology platform lacks the Doppler capabilities of newer solid-state systems. If you want seamless integration with modern chartplotters, look at networked radar options instead.

7. Simrad HALO20 - Entry Level Excellence

The Simrad HALO20 offers an accessible entry point into modern pulse compression radar technology. I recommended this unit to a friend with a 22-foot bay boat who wanted radar for fog navigation without spending a fortune. After a full season of use, he reports it has transformed his confidence when visibility drops.

The 24 nautical mile range is sufficient for coastal and inshore work, though offshore fishermen will want more reach. Advanced pulse compression delivers sharp target definition both close and far, while MARPA tracking lets you monitor up to 10 targets simultaneously. The InstantOn feature means the radar is ready for use within seconds of power-up.

Preset modes for harbor, offshore, and weather optimize performance with a single touch. Harbor mode prioritizes close-range target detection with high rotation speeds, while offshore mode extends range for open water navigation. The lightweight 20-inch dome is perfect for smaller center consoles and bay boats.

Who Should Buy the Simrad HALO20

This radar is ideal for inshore fishermen, day boaters, and coastal cruisers who want modern radar features at an entry-level price. The compact dome fits smaller vessels that cannot accommodate larger antennas. If you primarily navigate within 20 miles of shore, the range is more than adequate.

Who Should Skip It

Offshore fishermen and bluewater sailors need the extended range of the HALO20+ or HALO24 models. Some users reported confusion about voltage requirements, so verify your boat's electrical system before purchasing. If you need Doppler collision avoidance, step up to the HALO20+.

8. Garmin GMR 18 HD3 - Budget Friendly Option

The Garmin GMR 18 HD3 represents the most affordable way to add Garmin radar to your boat. While it lacks the advanced Doppler features of the Fantom series, it delivers solid target detection and reliable performance for basic navigation needs. This is the radar I recommend to boaters who want Garmin integration on a budget.

The 18-inch dome and 4kW power output provide adequate range for coastal cruising and inshore fishing. X-band frequency ensures reliable detection in various weather conditions. The unit integrates seamlessly with Garmin GPSMAP and EchoMap displays through standard Ethernet connections.

Installation is straightforward for anyone familiar with marine electronics. The compact dome fits most radar arches and mast mounts, and the Ethernet cable simplifies connection to existing Garmin displays. While it lacks the bells and whistles of premium models, it covers the essential safety function of collision avoidance.

Who Should Buy the Garmin GMR 18 HD3

This radar is perfect for Garmin loyalists who want basic radar capability without the premium price. Coastal cruisers and weekend warriors who navigate primarily in good weather will find the performance adequate. If you are adding radar to an existing Garmin chartplotter setup, the integration is seamless.

Who Should Skip It

Anyone who regularly navigates in fog or heavy traffic should invest in Doppler-capable radar for the collision avoidance benefits. Offshore fishermen need the extended range and bird detection capabilities of more advanced systems. If you do not already own Garmin displays, consider other options that might offer better value.

Marine Radar Buying Guide: What to Consider in 2026

Choosing the right marine radar requires understanding several key technical factors. After helping dozens of boaters select systems over the years, I have identified the most important considerations for making an informed decision.

Understanding Doppler Technology

Doppler radar uses frequency shifts to detect target movement toward or away from your vessel. This technology color-codes approaching targets in red and receding targets in green, making collision avoidance intuitive. In my experience, once you navigate with Doppler radar, going back to traditional systems feels like flying blind. The ability to instantly identify collision risks reduces stress and improves safety in busy waters.

Radome vs Open Array

All the systems in this guide use radome-enclosed antennas, which protect the rotating components inside a fiberglass dome. Radome radars are lighter, more compact, and easier to install than open array systems. For recreational boats under 50 feet, radome radar provides more than adequate performance. Open array systems are primarily used on large yachts and commercial vessels where maximum range and target discrimination are critical.

Range and Power Considerations

Radar range depends on both transmitter power and antenna size. The systems in this guide range from 24 to 48 nautical miles. For inshore and coastal work, 24 miles is usually sufficient. Offshore fishermen and bluewater cruisers should look for 36-mile or greater range to track weather systems and distant vessels.

Power output ranges from 4kW to 50W solid-state in our selections. Modern solid-state systems deliver better performance at lower power consumption than older magnetron units. The lower power draw extends battery life and reduces generator runtime.

MFD Compatibility

Marine radar requires a multifunction display (MFD) for operation. Most modern radar systems work best within their manufacturer's ecosystem. Garmin radar pairs with Garmin displays, Simrad with Simrad, Lowrance, and B&G displays. Verify compatibility before purchasing to avoid integration headaches. Some systems support third-party displays through Ethernet or NMEA 2000 connections, but functionality may be limited.

Key Features to Look For

Target tracking capabilities vary between systems. MARPA (Mini Automatic Radar Plotting Aid) tracks selected targets and displays their course and speed. More advanced ARPA systems automatically acquire and track multiple targets. Echo trails show the historical path of targets, helping you determine if vessels are changing course.

Guard zones alert you when targets enter defined areas around your vessel. This feature is invaluable for single-handed sailing or when crew attention is divided. Dual range capability lets you monitor both close and distant targets simultaneously on a split screen.

Frequently Asked Questions

Final Thoughts: Choosing Your Marine Radar System

After testing these eight systems extensively, I am convinced that modern solid-state radar with Doppler technology represents a fundamental improvement in marine safety. The best marine radar systems of 2026 combine pulse compression, fast rotation speeds, and intuitive target tracking to provide situational awareness that was impossible just a decade ago.

For most boaters, I recommend the Lowrance Halo 20+ as the best overall value, offering premium features at a reasonable price. The Simrad HALO20+ provides an excellent balance of performance and affordability, while the Garmin GMR Fantom 24x represents the pinnacle of recreational radar technology.

Whichever system you choose, remember that radar is only as good as the operator using it. Take time to learn your system's features, practice interpreting returns in good visibility, and maintain your equipment properly. Safe boating depends on preparation, awareness, and the right tools for the conditions you face.
