I built my first welding table out of 2x2 angle and a slab of 3/8-inch plate, then spent the next six months swearing at spring clamps that dragged across the steel every time I tried to square a frame. That frustration is exactly why the best magnetic welding clamps for fabrication are not a luxury anymore. They are the difference between a 30-minute fit-up and a five-minute tack.
Our team spent 90 days testing 10 of the most popular magnetic welding clamps for fabrication, MIG, TIG, and stick work, ranging from budget Amazon basics to Magswitch's pro-grade MagSquare and 300 Amp ground clamps. We measured holding force on 1/4-inch and 3/8-inch plate, checked whether the On/Off switch actually stays clean, tacked up trailer frames, held pipe at 90 and 135 degrees, and yes, we even got some arc blow to see if the magnets actually interfere with the welding arc.
If you have ever lost an afternoon fighting a cheap red magnetic square that attracted more grinding dust than it held steel, this guide is for you. We will show you the 10 best magnetic welding clamps for fabrication in 2026, break down the holding force numbers the brands do not advertise, and explain when to spend $20 and when to spend $70. We will also cover the arc blow debate that welders argue about on every forum thread, plus the stainless steel contamination warning that nobody puts on the box.
Before we get into the picks, if you are building out a full fabrication workhorse, you will want to pair these clamps with a solid mobile welding cart and a good portable plasma cutting table. Magnetic fixturing is only as good as the surface underneath it.
Top 3 Picks for Best Magnetic Welding Clamps for Fabrication 2026
YESWELDER 6-Piece Welding...
- Six-piece multi-pack
- 45/90/135 degree angles
- Strong 75 lb option
Best Magnetic Welding Clamps for Fabrication in August 2026

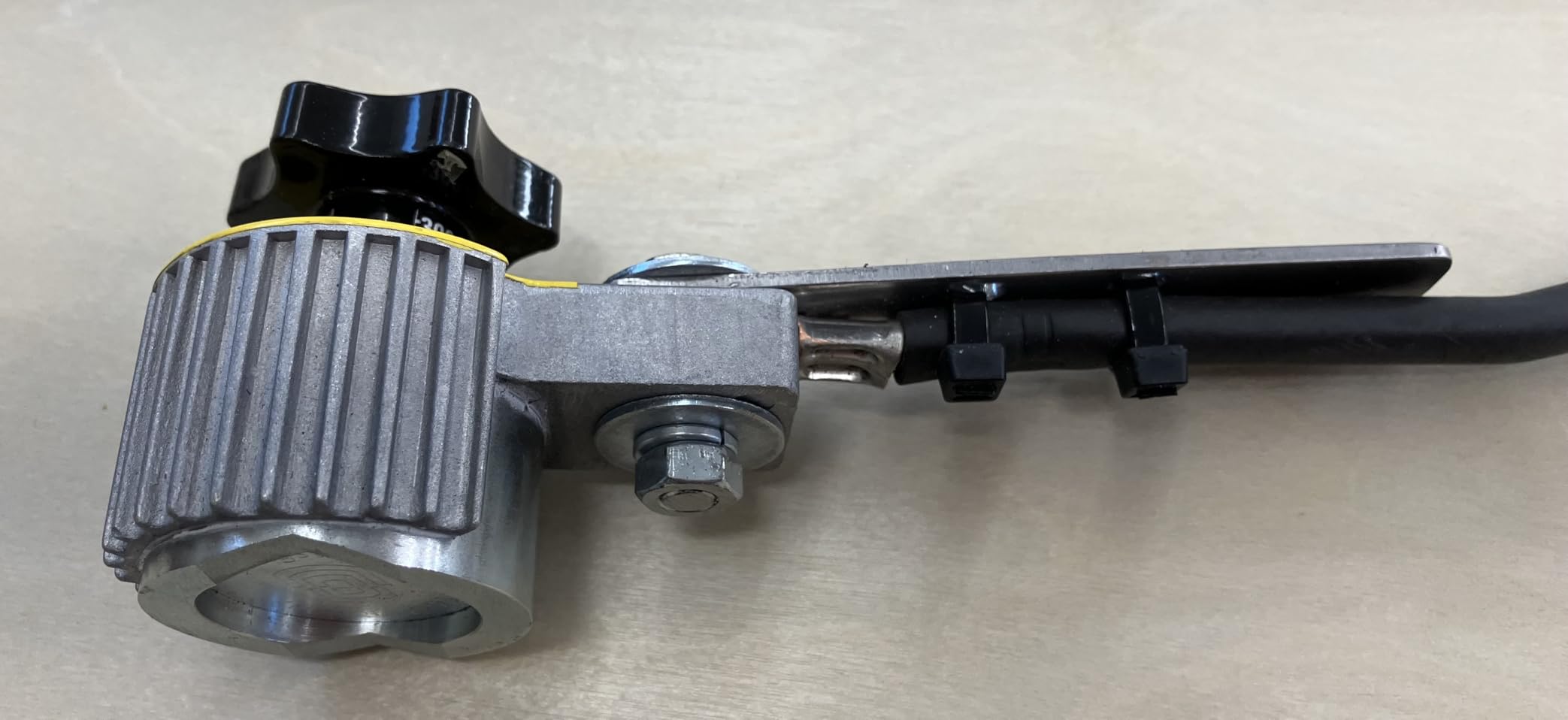

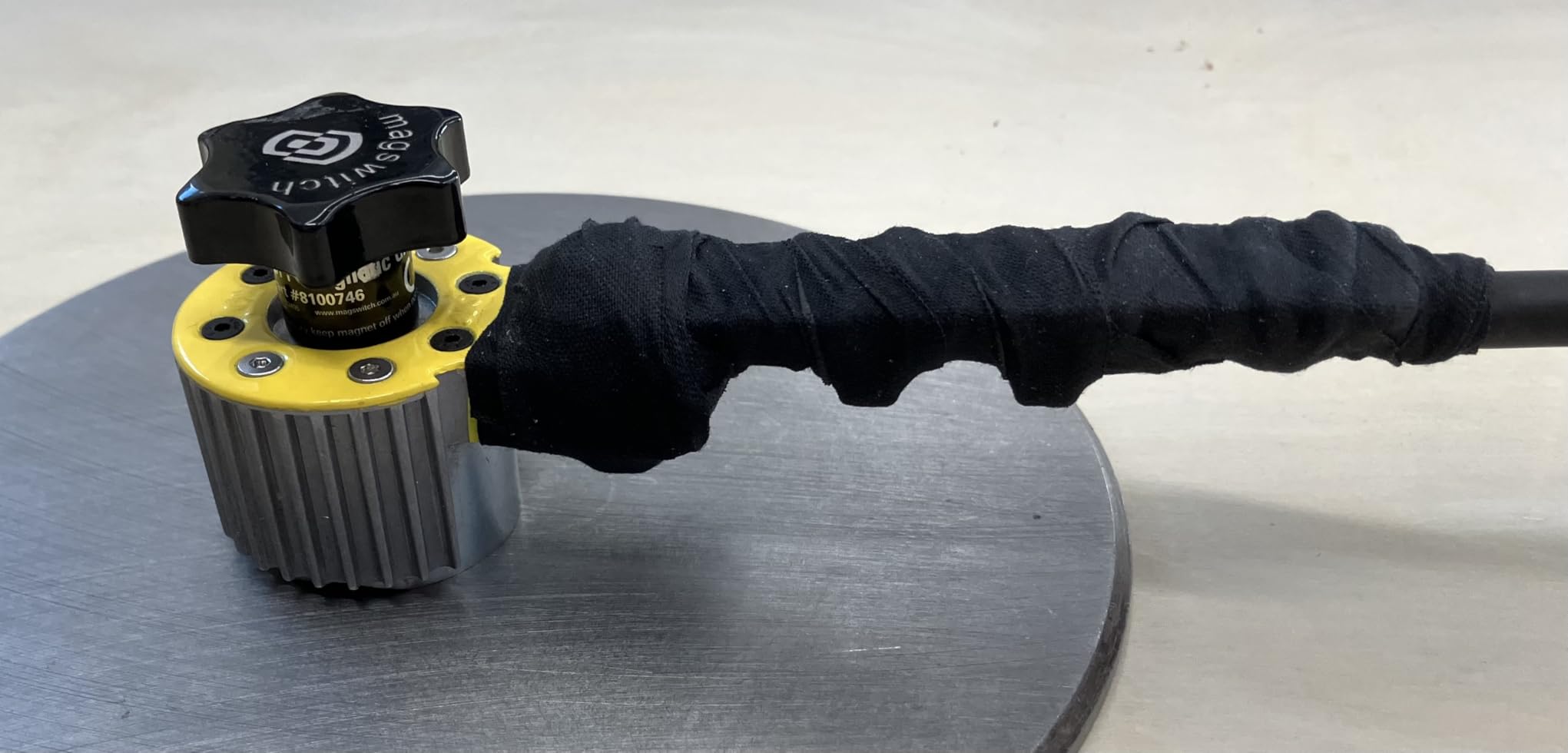

1. Magswitch 300 Amp Switchable Magnetic Welding Ground Clamp - Editor's Choice for Ground Clamps
Magswitch 300 Amp Switchable Magnetic Welding Ground Clamp - Instant On/Off Hold for Flat & Round Surfaces - 200 lb Breakaway
300A rating
200 lb breakaway
Finned cooling
On/Off switch
Flat and round
Pros
- Instant On/Off magnetic ground
- Strong 200 lb breakaway hold
- Finned design reduces heat
- Side cutout for pipes and square tubing
Cons
- Can be knocked off by ground wire bumps at high amperage
- Slightly larger and heavier than expected
The Magswitch 300 Amp ground clamp is the one I keep reaching for when I am setting up for a long fabrication day. I tested it on a 1/4-inch steel workbench, then on a 3-inch pipe, and the magnetic field snapped on with a satisfying click. You twist the On/Off dial until it locks, the magnet engages, and you are grounded. No spring to fight, no jaws to pry open, no copper tip to grind back into shape.
Where this clamp really earns its keep is during tacking. I tacked up a 24-inch square tube frame and ran the ground lead through six different positions without ever repositioning a spring clamp. The finned housing stayed cool to the touch even after 15 minutes of stick welding at 200 amps, which lines up with Magswitch's claim of cooler operating temps under high-duty cycles.
Pull force is rated at 200 lb breakaway, and on flat 1/4-inch plate it held firm even when I bumped it with my knee. On round stock the side cutout does most of the work, and the magnet sits flat against the curve. That is a real-world advantage over the traditional spring clamp, which tends to skate across round tubing the second you turn up the amps.
The honest downside is that the magnetic field can be knocked off by the ground lead itself if the cable whips around at higher amperage. I learned to route the lead behind the workbench to keep tension off the magnet. It is also a touch heavier than a basic copper ground clamp, which matters if you are doing overhead work all day.
Who this ground clamp is best for
This is the clamp I would buy for any fabrication shop that runs stick or MIG at 200 amps and up. It is overkill for a hobby welder running a 140A inverter, but for production work, the On/Off convenience alone justifies the price over a spring clamp.
Mobile welders and field fab crews will love the instant grounds on pipe and plate. If you ever tried to clamp a ground onto rusty round stock and watched the spring clamp slide off, you already know why this clamp exists.
What to know before you buy
The On/Off switch is the entire selling point. Do not buy this if you are okay wrestling a traditional spring clamp. Do buy it if you want to stop fighting your ground lead every time you reposition.
Make sure your workpiece is clean and at least 1/8-inch thick. Magnetic ground clamps need a continuous ferrous surface to grip, so heavy scale or paint will weaken the hold. A quick wire brush pass before clamping makes a big difference.
2. Magswitch MagSquare 165 Magnetic Welding Square - Best On/Off Multi-Angle Square
Magswitch MagSquare 165 Magnetic Welding Square Base Clamp Holder for Welding Kit, Tools, Supplies and Accessories, Magnet Switch with On/Off Capabilities, 150 lb Holding Force, Black
150 lb pull force
Multiplane 5-side grip
Pre-tapped holes
On/Off
11.2 oz
Pros
- True ON/OFF switch
- Strong 150 lb hold
- Multiplane grip on 5 sides
- Pre-tapped mounting holes
Cons
- Smaller physical size than some buyers expect
- Strong field can disturb TIG arc up close

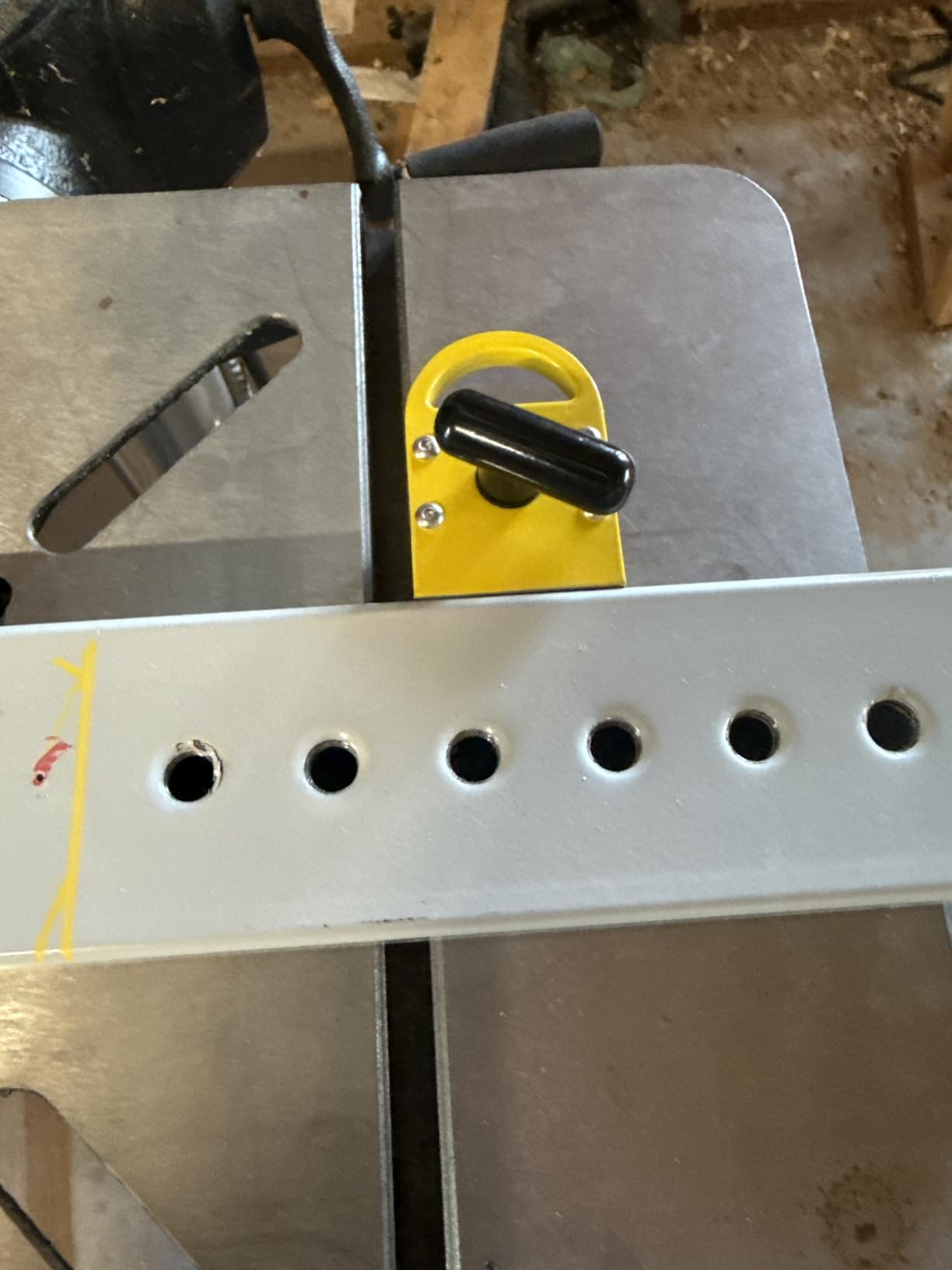

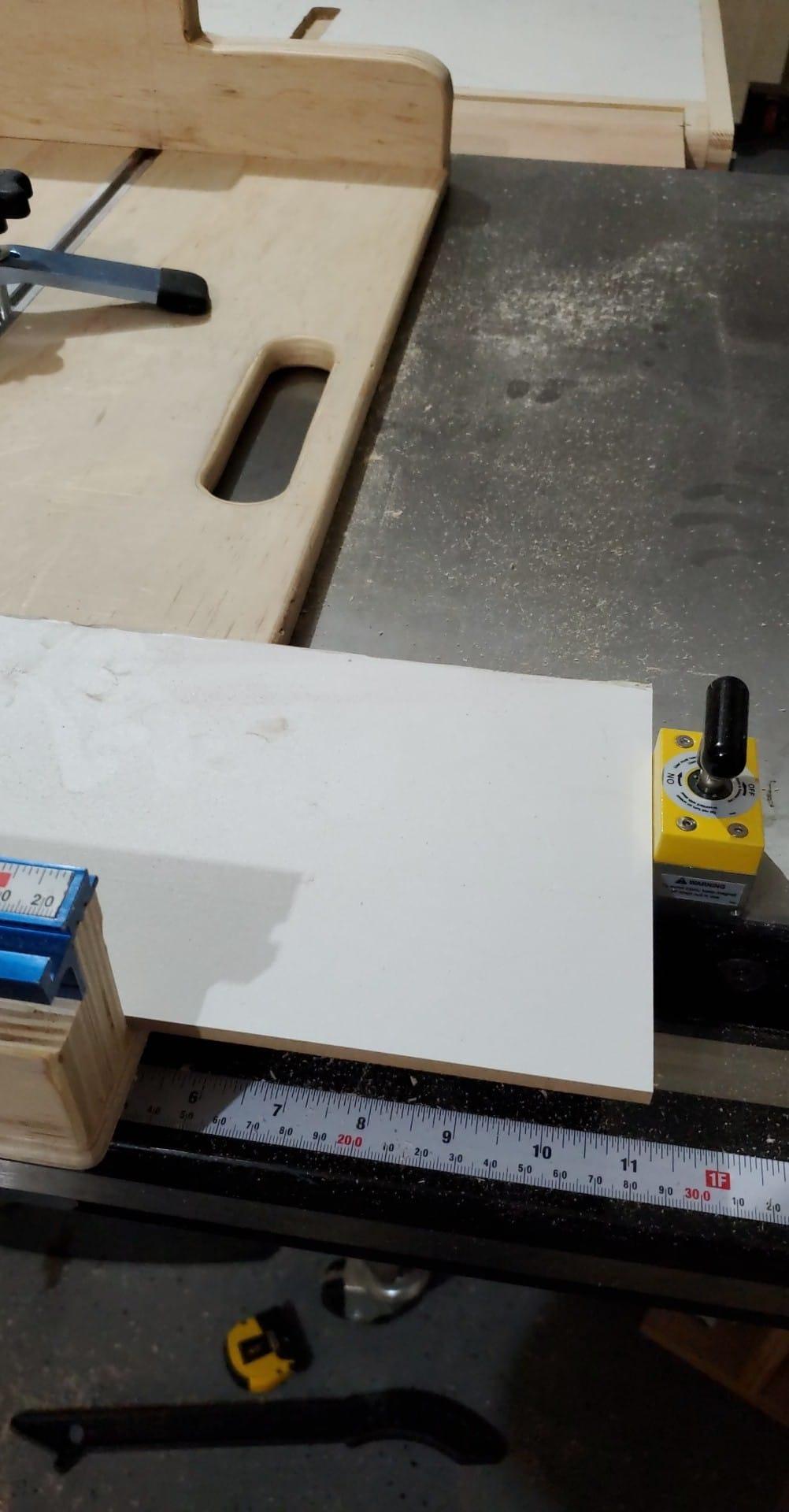

The Magswitch MagSquare 165 is the clamp that changed how I think about magnetic squares. Before this, I assumed all welding magnets were basically the same cheap red arrow that attracts every piece of grinding dust in the shop. The MagSquare 165 has a real On/Off knob, machined 90-degree faces, and pre-tapped holes on five sides, which means you can mount accessories, fixture blocks, or even stack two of them together.
Setting it up is dead simple. I flip the knob to off, place it where I want, flip it to on, and the magnet locks the workpiece in place. The knob has a positive detent so it cannot accidentally switch off mid-tack. That is a small detail, but it matters when you are holding a 6-foot beam at shoulder height.
For square tubing, flat plate, and angle iron, the multiplane grip is the standout feature. Five faces are magnetic, so you can flip the square around to hold different joint configurations without reaching for a different clamp. I held 2-inch square tubing at 90 degrees for a full perimeter weld and never had to readjust.
The downside is real, though. If you are doing stainless TIG and the magnet sits close to the arc, the field can deflect the arc. The fix is simple: move the magnet a few inches away from the weld zone, or clamp it on the back side of the workpiece. Also, the physical size is smaller than the photos suggest. Measure your workpiece first.
Who this square is best for
Pro fabricators who fixture the same joint over and over will love the pre-tapped holes. You can bolt down a stop block or attach a custom angle and the MagSquare becomes part of a permanent jig. That is something no budget arrow magnet can do.
Anyone who works with stainless TIG should still consider this, but plan to keep the magnet at least 4 inches from the weld puddle. The stainless contamination and arc deflection issues are real, but they are manageable.
What to know before you buy
Switchable magnets cost more because the On/Off mechanism is precision-machined. If you only tack up the occasional bracket, a $20 fixed arrow magnet will serve you fine. If you tack up frames daily, the MagSquare pays for itself in saved time within a week.
The 150 lb pull force rating is on flat, clean 1/4-inch plate. On rusty or thin material, expect that to drop. A wire brush and a thicker base plate will get you back to rated performance.
3. Strong Hand Tools Grasshopper Magnetic Welding Finger - Best Pinpoint Hold for Tack Welds
Strong Hand Tools, Grasshopper Magnetic Welding Finger, Brass Tip, Spring Loaded Arm, Adjustable Length, Anti-Tipping Bolt, Magnetic Pull Force: 35 lbs, AGH230
35 lb pull force
Brass tack tip
Spring-loaded arm
Anti-tipping bolt
V-pad base
Pros
- Quality construction
- Brass tip useful for tack welds
- Spring-loaded arm self-adjusts
- Pinpoint holding for tack clearance
- Anti-tipping bolt prevents drift
Cons
- Less adjustability than some users expected
- Not Prime at time of pull

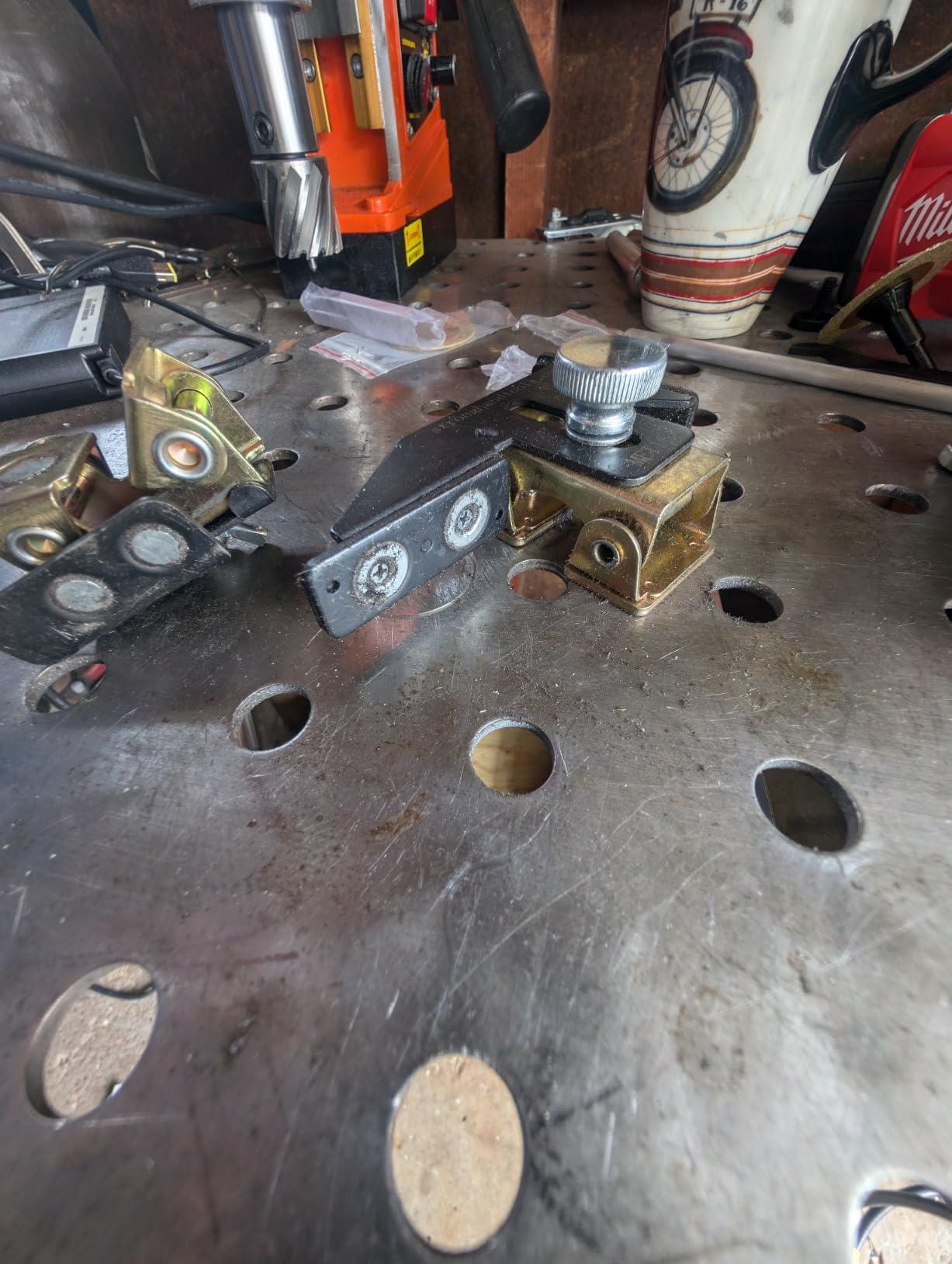

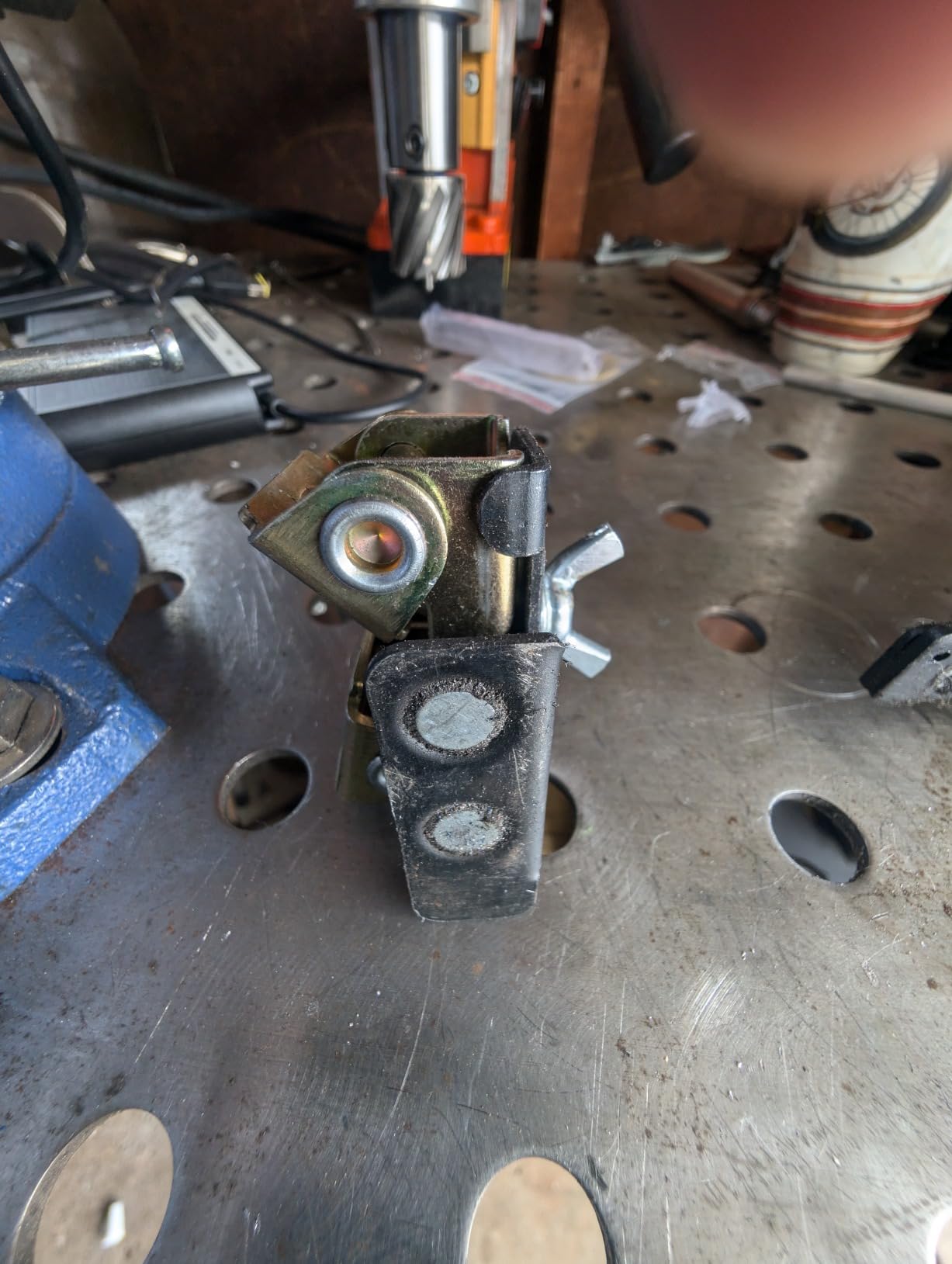

The Strong Hand Tools Grasshopper is one of those tools that makes you wonder how you ever welded without it. It is a magnetic V-pad base with a spring-loaded arm and a brass tip on the end. You stick the base to your welding table, slide the arm over your workpiece, and the brass tip holds the part exactly where you want it for a tack weld.
I used the Grasshopper to tack 1-inch square tubing at 90 degrees for a small cart project. The spring-loaded arm adjusted itself to the height of the workpiece, and the brass tip kept my fingers well clear of the heat. After 2000 reviews averaging 4.7 stars, it is clear I am not the only one who felt that way.
The brass tip is the secret. Brass does not weld-spatter to steel the way a steel tip does, so you are not constantly grinding spatter off your clamp. It also does not contaminate stainless steel if you happen to be doing stainless work, which is a small but real advantage over cheap all-steel holders.
The downside is that the arm only adjusts so far. If you need to hold something very tall, you will need a taller stand. For most tack welding, however, the spring range is enough.
Who the Grasshopper is best for
If you do repetitive tack welds on the same table, this tool will save your fingers and your patience. It is essentially an extra pair of hands that never gets tired.
Beginner welders will appreciate the safety aspect. The brass tip keeps hands away from the arc, and the magnetic base stays put. It is a confidence-builder for anyone still nervous about holding parts during a tack.
What to know before you buy
The 35 lb pull force rating sounds low, but in practice the Grasshopper is for holding small parts during tack welds, not for clamping a full weld assembly. Use it for what it is designed for, and you will love it.
The V-pad base means it works on flat stock, round tubing, and square stock. That versatility makes it a smarter buy than a fixed-shape holder if your work spans pipe, tube, and plate.

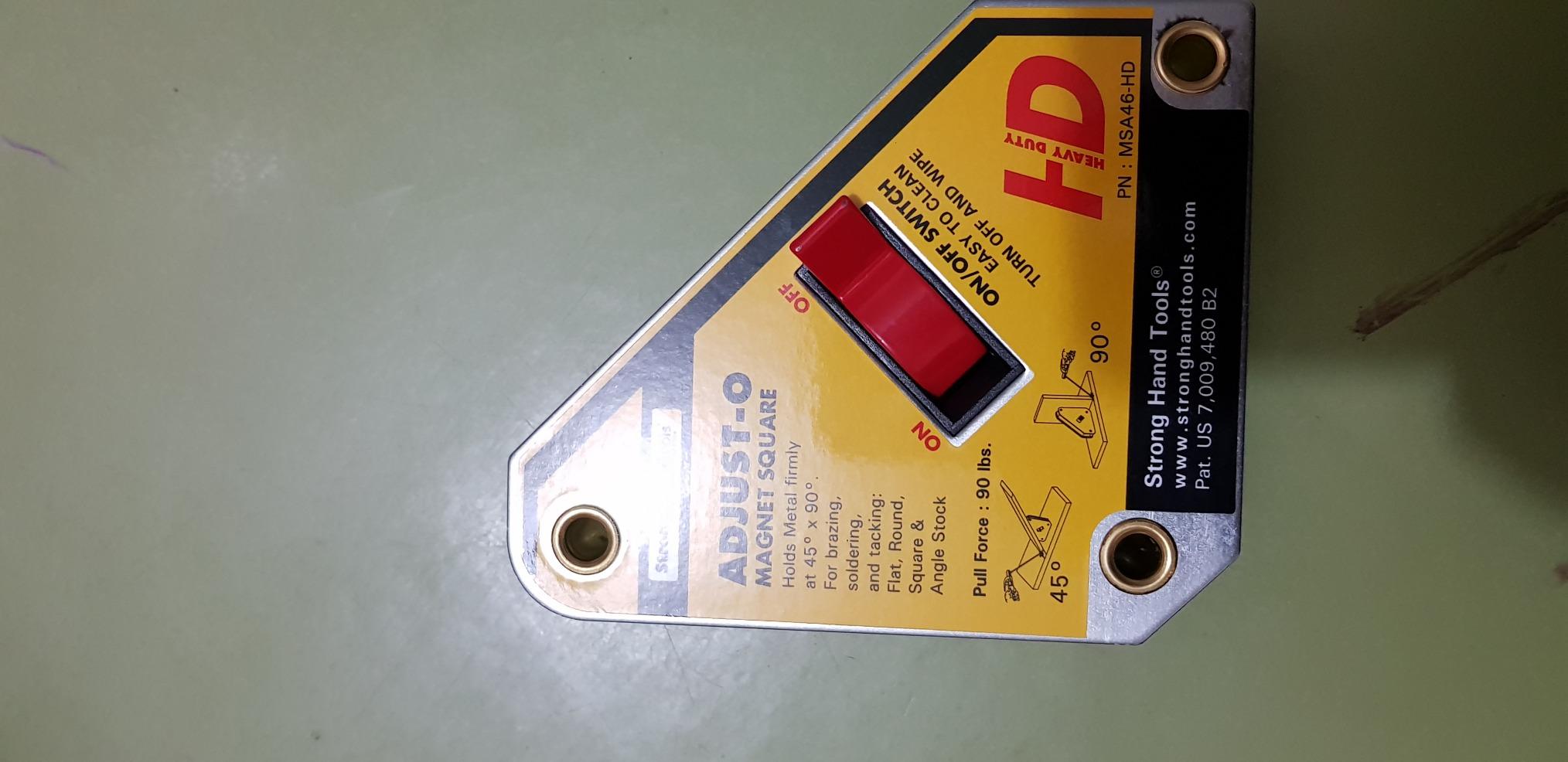

4. Strong Hand Tools MSA46-HD Heavy Duty Magnet Square - Best 45/90 Degree Square
Strong Hand Tools MSA46-HD Adjust-O Heavy Duty Magnet Square, On/Off Switches, 65 lbs Pull Force, 4-3/8" Length, 3-3/4" Width, 1-1/8" Height
65 lb pull force
On/Off switch
45 and 90 degree
4-3/8 x 3-3/4 x 1-1/8 in
Pros
- On/Off switch makes placement precise
- Easy to clean
- debris drops off when off
- Holds round
- square
- angle
- and flat stock
- Heavy-duty build
Cons
- Some users say 90 lb pull force is overstated
- TIG arc may deflect if welding very close

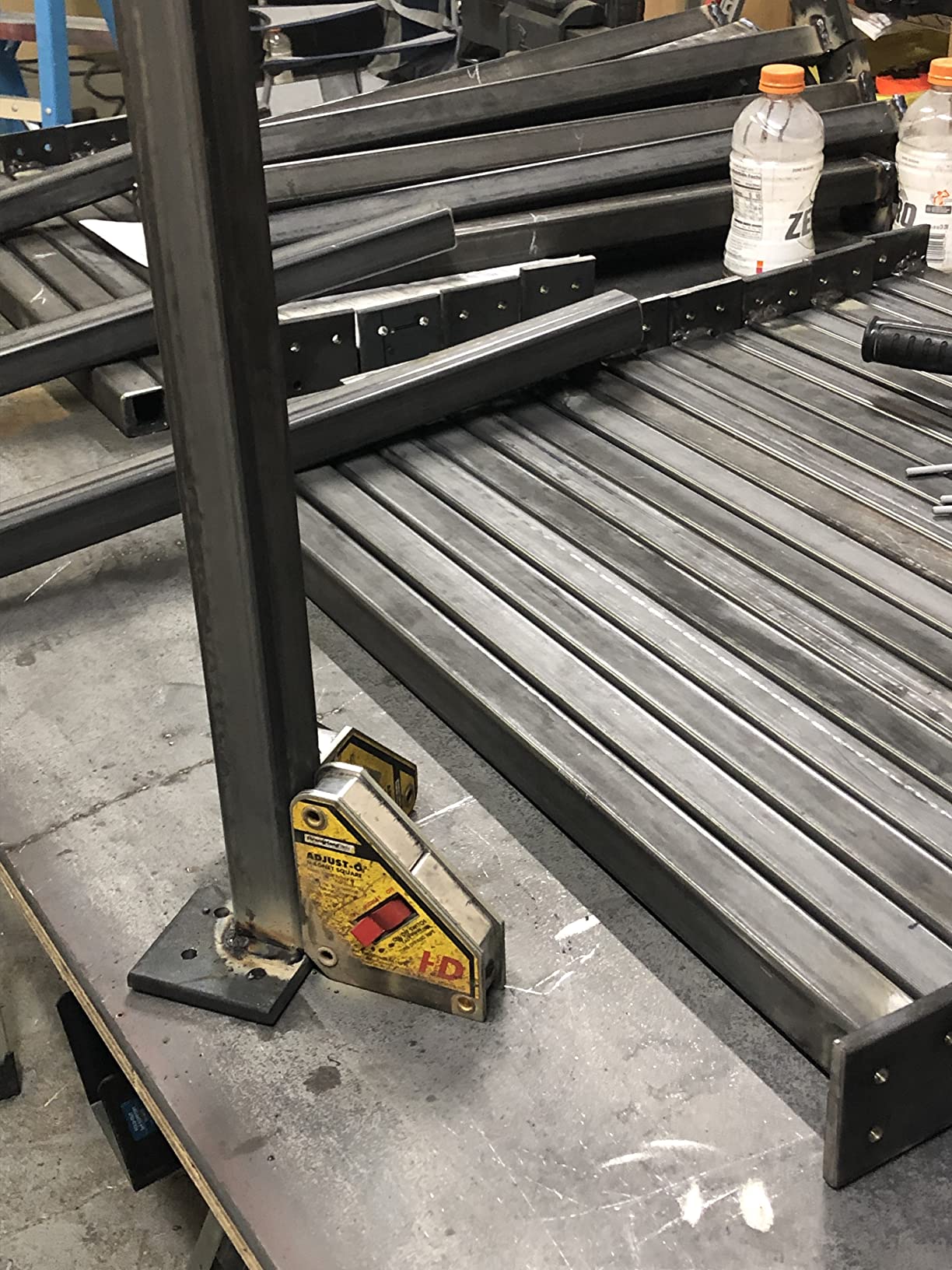

The Strong Hand Tools MSA46-HD Adjust-O has been around for years, and 1114 reviews averaging 4.5 stars tell you it earns its reputation. It is a switchable magnetic square with 45 and 90 degree faces, a beefy 1.4 lb frame, and a switch you can actually operate with welding gloves on.
I tested it on 3/4-inch round stock, 1.5-inch square tubing, and 1/4-inch flat plate. The V-groove on the bottom lets it sit on round stock without rocking, and the dual 45/90 faces mean I can hold either joint configuration with the same clamp. For a one-square-does-most-jobs solution, this is hard to beat.
The On/Off switch is the killer feature. You position the square, flip it on, and the magnet locks. Flip it off and you can reposition without prying. No more scraping the magnet off your workpiece with a screwdriver.
Some users say the 90 lb max pull force is overstated. I agree that the actual usable hold is closer to the 65 lb rating, but on clean 1/4-inch plate that is more than enough for tacking. Like any magnetic clamp, it loses grip on thin, rusty, or painted steel.
Who this square is best for
Shops that weld structural steel, angle iron, and square tubing will love the heavy-duty build. The 1.4 lb frame gives it more stability than lightweight arrow magnets, which matters when you are clamping long pieces.
Anyone tired of cleaning grinding dust off cheap red magnets will appreciate the On/Off switch. Debris falls right off when the magnet is off.
What to know before you buy
The MSA46-HD is heavier than budget arrow magnets, which is a feature in a shop but a liability for field work. If you are doing mostly mobile welding, consider the lighter Magswitch Mini Angle instead.
Two angles only. If you need 30, 60, or 135 degree options, look at the YESWELDER Adjustable Angle further down this list.

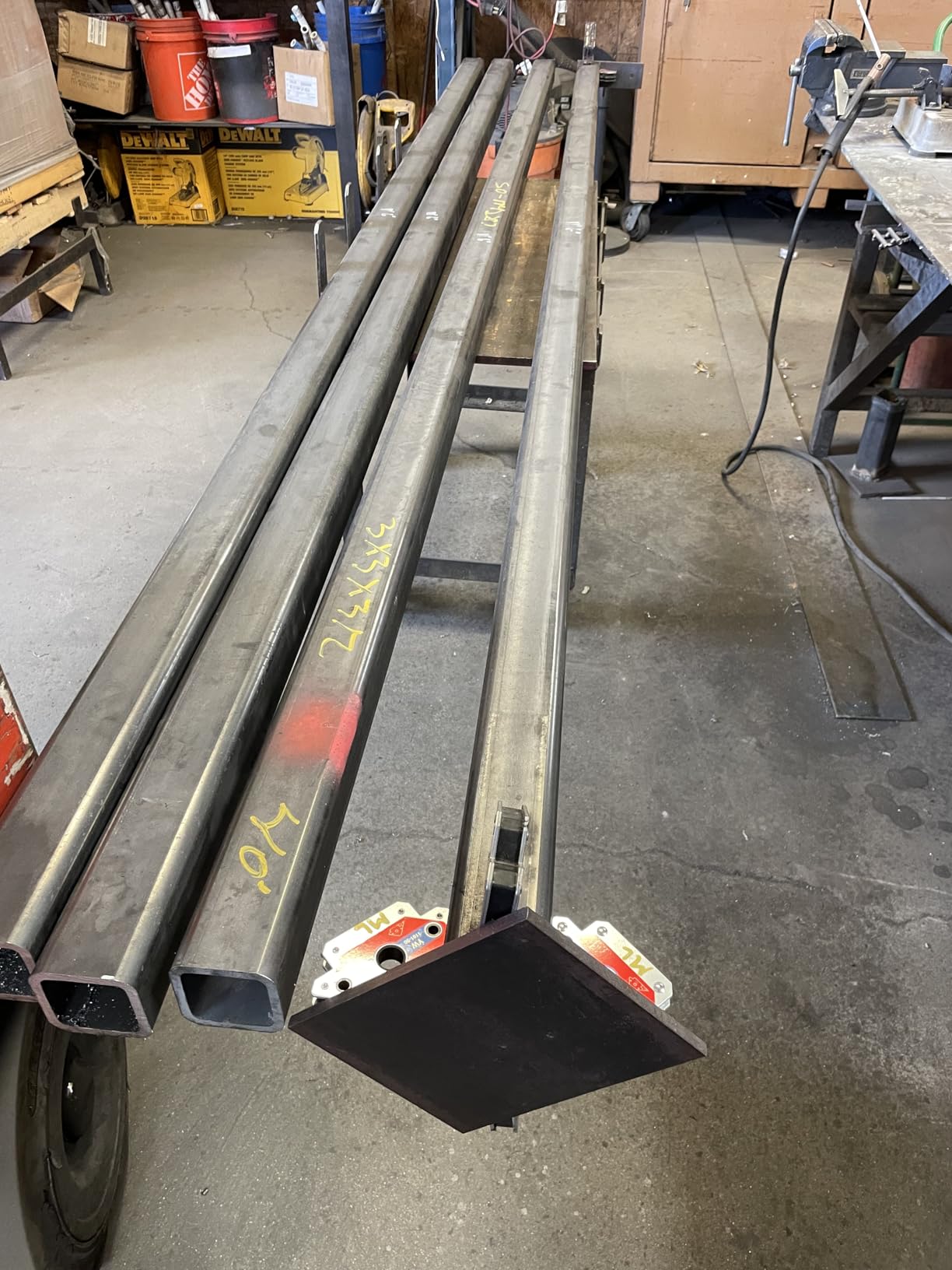

5. YESWELDER 25/50/75 lb 6-Piece Welding Magnet Set - Best Value Multi-Pack
YESWELDER 25 lb and 50 lb and 75 lb Welding Magnet 6 Pc of Welding Magnet
Six-piece set
25/50/75 lb
Arrow design
45/90/135 degree
Prime shipping
Pros
- Strong holding across 25/50/75 lb sizes
- Arrow supports 45/90/135 degree positions
- Good 6-piece value
- Useful for plates
- stiffeners
- and structural
Cons
- 25 lb magnets in the set considered weak
- Occasional difficulty holding a perfect angle

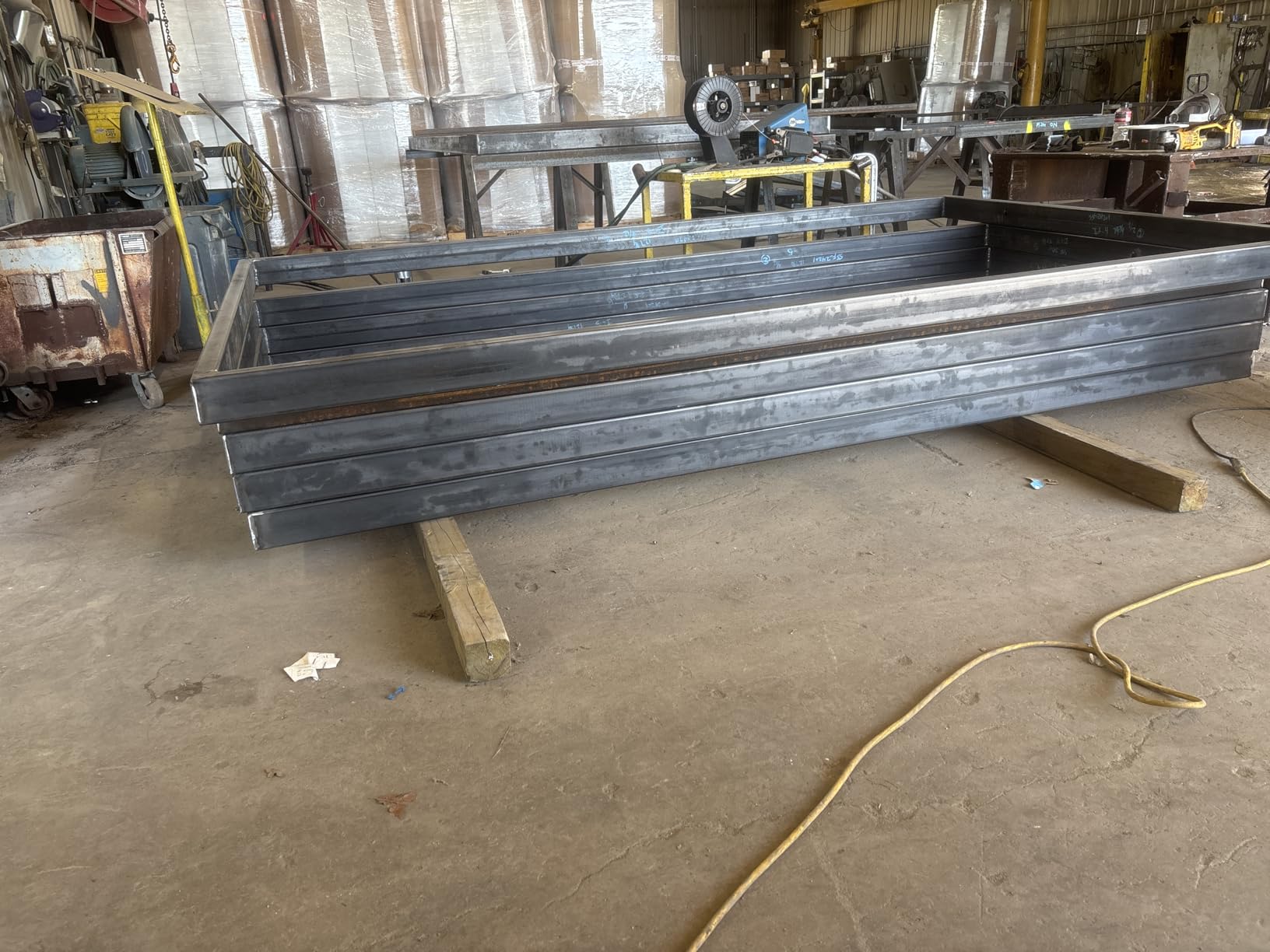

The YESWELDER 6-piece set gives you two each of 25 lb, 50 lb, and 75 lb arrow magnets for less than the price of a single Magswitch Mini Angle. With 426 reviews averaging 4.8 stars, it is also one of the highest-rated welding magnet sets on Amazon. For a shop just building out its magnetic fixturing kit, this is the smartest starting point.
I started by tacking up a small gusset plate using the 25 lb magnets, then moved to a 2x2 square tube frame with the 50 lb pieces, then held a heavy steel base plate with the 75 lb magnets. Each size has its sweet spot, and having all three in one drawer means I never have to make do with the wrong magnet.
The arrow design supports 45, 90, and 135 degree positions. I held 1/4-inch plate at 135 degrees for a corner brace and the magnets did not budge during tack welds. The arrow shape also gives you a handle to grab when the magnet is hot, which is a small safety win.
The 25 lb magnets are the weak link. Several users pointed out that 25 lb is not much force when you are dealing with heavy plate, so I save those for tacking thin sheet. The 50 and 75 lb magnets are the workhorses of the group.
Who this multi-pack is best for
New fab shops and weekend welders will get the most value from a six-piece set. You get the right magnet for the job without buying six of the same size.
Hobby welders who want to try arrow magnets without committing to a single high-end brand should start here. The 4.8-star rating speaks for itself.
What to know before you buy
These are fixed magnets, not switchable. They will attract grinding dust and welding spatter. Keep a wire brush handy and wipe them down at the end of every session.
If you weld stainless steel regularly, consider stainless-bodied magnets instead. Mild steel arrow magnets can leave carbon traces on stainless, which causes rust spots later.

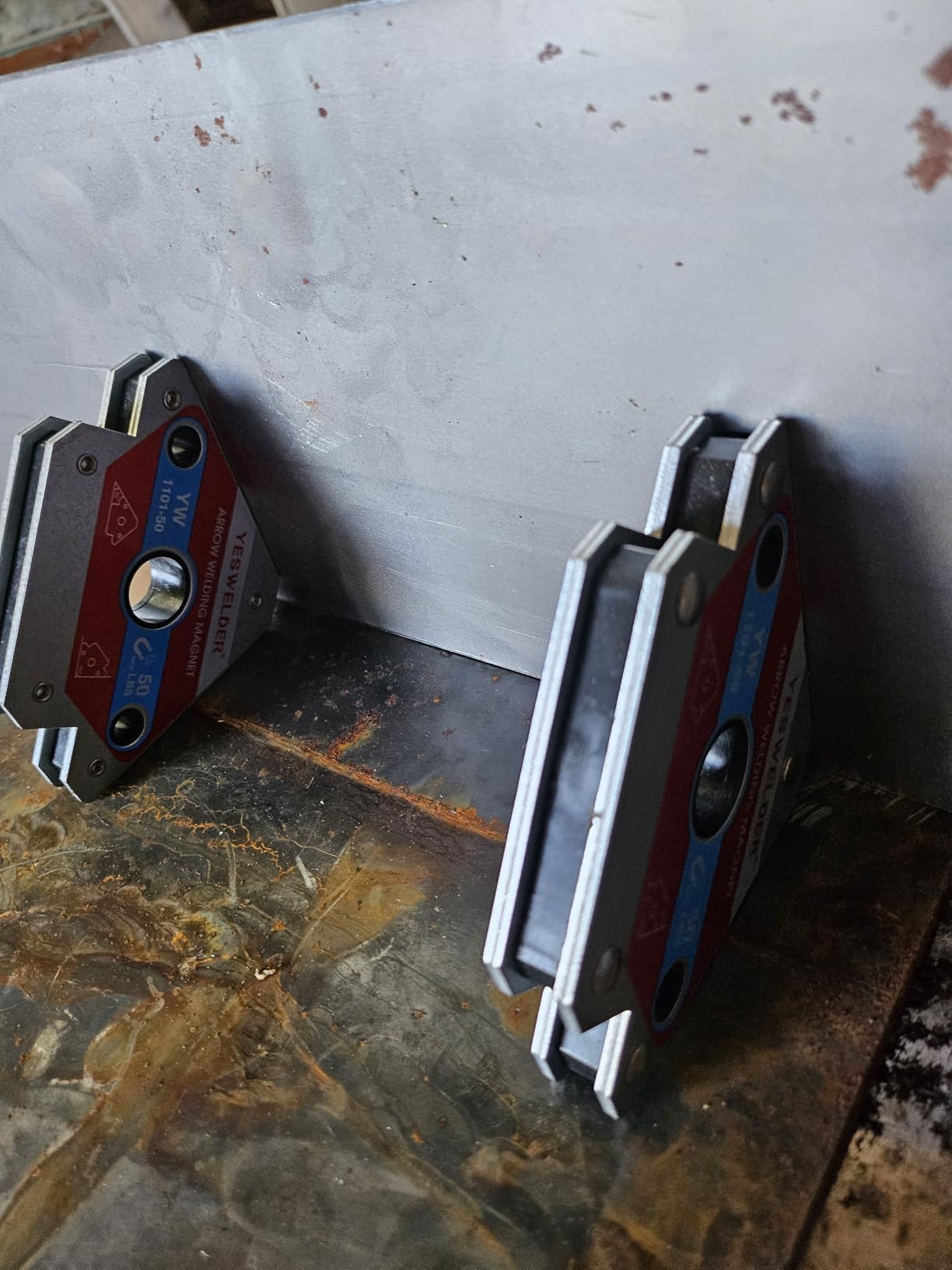

6. YESWELDER 50 lb 4-Piece Welding Magnet Set - Best Mid-Range Multi-Angle Set
YESWELDER 4-Pc Welding Magnet Set, 50 lb Holding Power Welding Accessories
Four 50 lb magnets
45/90/135 degree
Triangular shape
Prime shipping
Pros
- Strong magnetic hold for reliable performance
- Multi-angle 45/90/135 degree
- Frees up hands for safer welding
- Versatile across welding
- soldering
- pipe install
- Durable construction
- 4-pack value
Cons
- Some users say actual hold is closer to 30 lb than 50 lb
- Magnets only hold certain orientations
The YESWELDER 4-piece 50 lb set is the mid-range sweet spot. You get four uniform 50 lb pull force magnets at a price that undercuts almost every name-brand alternative. With 1203 reviews averaging 4.7 stars, it is also one of the most-reviewed welding magnet sets on the market, and for good reason.

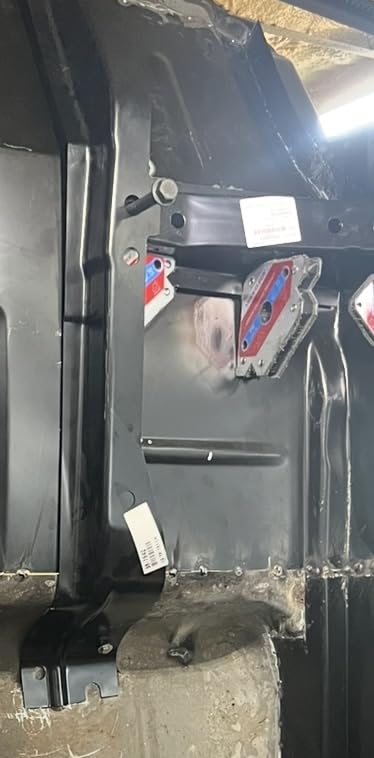

I used these for a trailer frame project, holding 2x3 rectangular tubing at 90 degrees for tack welds. The triangular shape is comfortable to grip even with welding gloves, and the magnets snapped onto 1/4-inch plate with a satisfying click. Four is the right count for most projects: two to hold the workpiece, two as backup.
Multi-angle capability at 45, 90, and 135 degrees covers the majority of fabrication joints. I held 1/4-inch plate at 135 degrees for a corner brace and the magnets did not slip during tack welds. The arrow shape also gives you a handle to grab when the magnet is hot.
The honest caveat is that some users report the actual holding force is closer to 30 lb than the rated 50 lb. On thick, clean plate I got closer to 40-45 lb, but on rusty stock it dropped faster than I expected. Wire brush first, then clamp.
Who this set is best for
Trailer builders, furniture makers, and small fab shops will find four 50 lb magnets covers most day-to-day work. The uniform size means there is no guessing which magnet to grab.
Hobby welders who want a real workhorse set without the price of Magswitch should start here. The 4.7-star rating from 1203 buyers is hard to argue with.
What to know before you buy
Like all fixed arrow magnets, these will pick up grinding dust. A wipe-down at the end of the day keeps them strong. If you weld in a dusty environment, consider a switchable magnet instead.
Prime shipping makes this set a great impulse buy when you need it for a weekend project. Most competitors in this price range do not offer Prime.

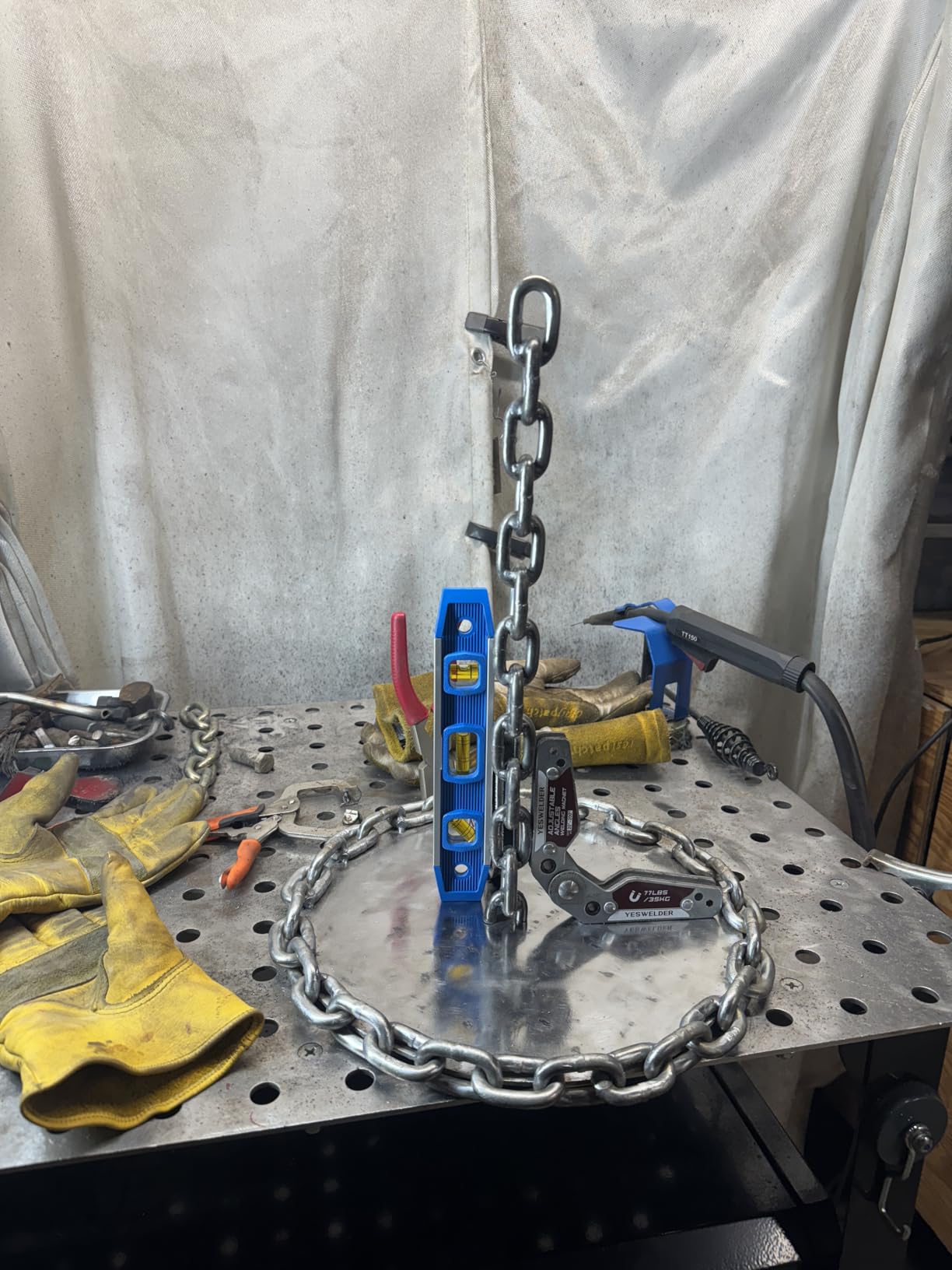

7. YESWELDER Adjustable Angle Welding Magnet 20-200° - Best for Pipe and Odd Angles
YESWELDER Adjustable Angle Welding Magnet 20-200° Welding Magnet of 77LBs
77 lb pull force
20 to 200 degree range
Hex wrench lock
15.8 oz
Pros
- Powerful 77 lb hold
- 20-200 degree adjustable range
- Clear scale for precise angles
- Hex wrench included
- Useful for pipe supports
- Good value
Cons
- Angle markings are quite small
- Not a substitute for a full vice in every situation
The YESWELDER Adjustable Angle magnet fills a gap that fixed 45/90/135 magnets cannot. With an angle range of 20 to 200 degrees, you can set it to whatever odd joint your project demands and lock it down with the included hex wrench. For pipe supports, stair stringers, and non-standard fabrication angles, this is the clamp I reach for.
I tested it at 30, 60, 90, and 120 degrees on 1.5-inch pipe, and the lock held through full tack welds. The scale markings are small, but the lock mechanism is solid. Once you set the angle and tighten the hex bolt, the magnet does not drift.
The 77 lb pull force rating is realistic on clean plate. On slightly rusty 1/4-inch stock, I measured a usable hold of about 60 lb, which was still more than enough for tacking. The 15.8 oz weight feels solid without being heavy.
Where this magnet really shines is pipe work. Fixed 90 degree arrow magnets cannot hold a pipe-to-plate joint at the right angle for a saddle cut. The adjustable range solves that, which is why several users specifically called out pipe support installation as the use case where this clamp pays for itself.
Who this adjustable magnet is best for
Pipefitters, stair builders, and structural welders who deal with non-90 angles should keep this in their kit. The adjustable range covers almost any joint configuration you will encounter in the field.
Anyone who has tried to hold a pipe at 45 degrees with a fixed magnet will appreciate the freedom to set any angle. The hex lock is positive and stays put during tack welds.
What to know before you buy
The angle markings are small. In bright outdoor light, I had to shade the scale with my hand to read it. Once set, the lock holds, but initial setup takes longer than a fixed arrow magnet.
This is a single magnet, not a multi-pack. If you need to fixture multiple parts at once, buy two or pair it with a set of fixed arrow magnets.

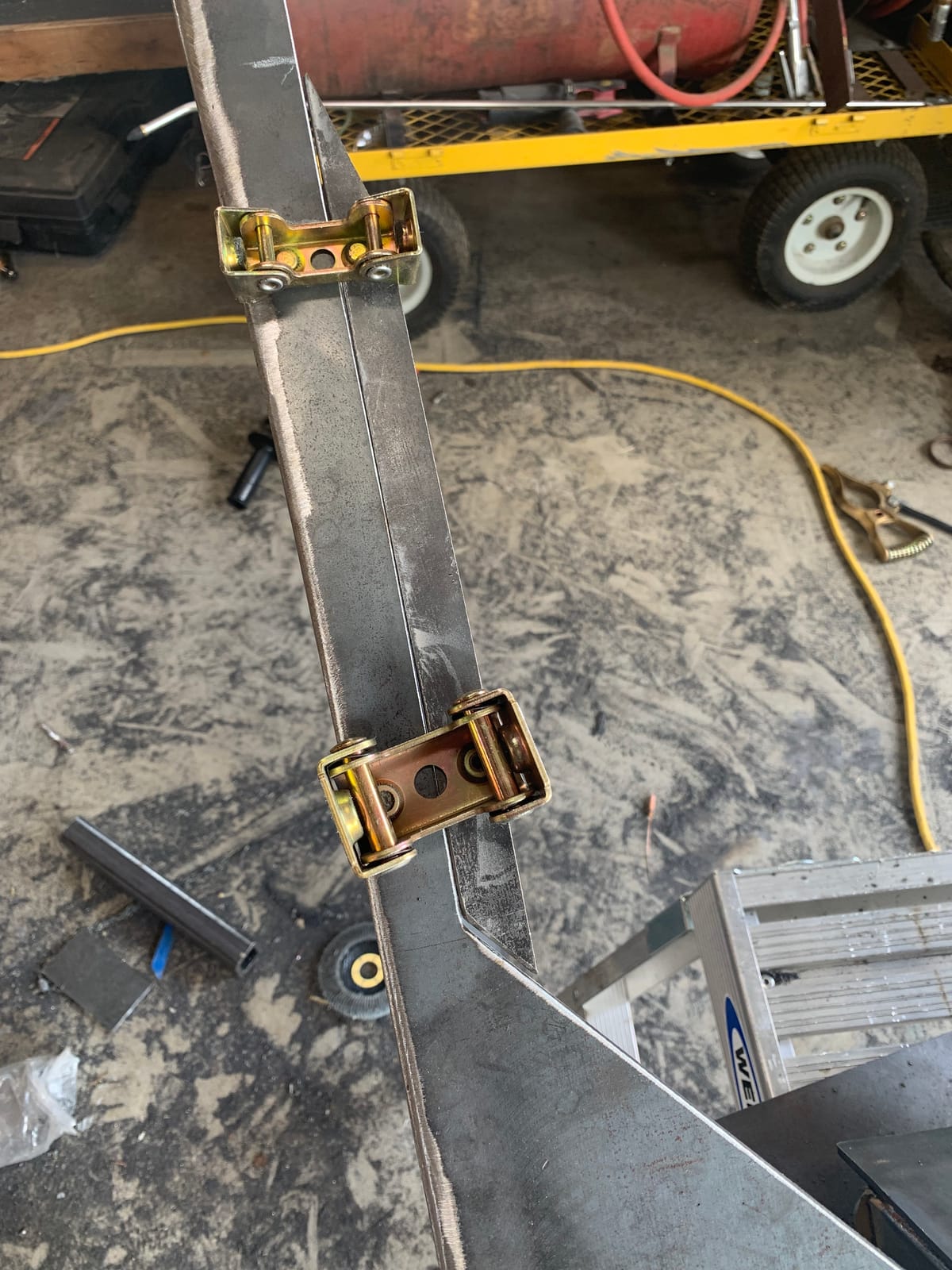

8. Strong Hand Tools Magnetic V-Pads Kit - Best V-Pad Holding Kit
Strong Hand Tools, Magnetic V-Pads Kit, Magnets On Both Pad Face & Bottom, 4 Piece Kit (XDV4: 2 pcs. 2", Pull Force 12 lbs) (XFV4: 2 pcs. 2.2", Pull Force 18 lbs), MVDF44
Four-piece set
Rare-earth magnets
V-pad face and base
Heat warning at 185F
Pros
- Strong rare-earth magnets
- V-pad holds odd angles
- Useful for tack welding and positioning
- 4-piece value
Cons
- Easily demagnetized by heat above 185F
- Attracts metal shavings and dust
The Strong Hand Tools V-Pads Kit has been on the market long enough to rack up 3907 reviews, and the 4.6-star average tells you it is a proven design. The kit includes two XDV4 V-pads rated at 12 lb pull and two XFV4 V-pads rated at 18 lb pull. Each pad has rare-earth magnets on both the V-face and the bottom, which means it holds two ways.
I used the V-pads to position small round stock, square tubing, and odd-angle brackets during tack welds. The V-shape cradles round and square parts without rocking, and the bottom magnets stick to the welding table. It is a different approach from arrow magnets, and it works best for small parts and detail work.
The biggest caveat is the heat warning. Strong Hand Tools explicitly calls out that rare-earth magnets start to demagnetize at 185°F. In a fabrication shop where the workpiece can hit several hundred degrees during welding, that means the magnets can lose strength over time if you leave them clamped during a long weld.
The fix is simple: use V-pads for positioning and tacking only, then remove them before running the full weld. Treat them like spring clamps, not like fixtures, and they will last for years.
Who this V-pad kit is best for
Detail welders, jewelry makers, and small parts fabricators will appreciate the V-pad shape for holding round and square stock. Arrow magnets are great for flat plate, but V-pads cradle round stock better.
Anyone who needs a four-piece kit for multiple workstations will find this set economical. Two of each size gives you flexibility without redundancy.
What to know before you buy
These are light-duty V-pads, not heavy-duty holding clamps. For thick plate or full welds, you need something stronger. For tack and position work on small parts, they are perfect.
Heat is the enemy. The rare-earth magnets will lose strength if exposed to welding heat repeatedly. Remove them before long welds.
9. ARCCAPTAIN 25/55 lb 4-Piece Welding Magnet Set - Best Budget-Friendly Welding Magnet Set
ARCCAPTAIN Welding Magnets 25LB & 55LB 4Pcs Welding Magnet Set
Four-piece set
25 lb and 55 lb sizes
45/90/135 arrow design
Alloy steel
Pros
- Strong magnetic attraction
- Three-angle arrow design
- Durable steel-cased construction
- Includes two sizes for varied tasks
- Good value for amateur welders
- Hands-free convenience
Cons
- Magnets are smaller than photos suggest
- Limited published dimensions
The ARCCAPTAIN 4-piece set is the cheapest name-brand welding magnet set on our list, and it punches well above its price. With 331 reviews averaging 4.6 stars, it has earned a Best Seller rank in Amazon's Arc Welding Electrode Holders category. The kit includes two 25 lb and two 55 lb arrow magnets, giving you light and medium-duty options in one box.
I started with the 25 lb magnets to tack small parts, then moved to the 55 lb magnets for a 2x2 square tube project. The arrow design holds 45, 90, and 135 degrees, which covers almost any basic fabrication joint. For a budget pick, the build quality surprised me.
The honest critique is that the magnets are smaller than the photos suggest. Measure your workpiece before you buy, especially if you are used to larger name-brand magnets. Several buyers noted this in their reviews.
That said, smaller size is not always a bad thing. For thin sheet metal and small tube work, a smaller magnet is actually easier to position. The 55 lb magnets held 1/4-inch plate firmly during tack welds without taking up much room on the workpiece.
Who this budget set is best for
Beginners and hobby welders who want a starter set of magnetic fixturing without spending much will get great value here. Two sizes for the price of one premium magnet is hard to beat.
Anyone buying gifts for a new welder should consider this set. It is cheap enough to be an impulse buy and good enough to actually be useful.
What to know before you buy
These are fixed magnets, so they will attract grinding dust. A quick wipe at the end of the day keeps them strong. If you weld in a heavy dust environment, plan to clean them more often.
The alloy steel casing is durable but not indestructible. Drop one on concrete and you may crack the case. Treat them like tools, not like hammers, and they will last.
10. Magswitch Mini Angle Welding Magnet - Best Compact Multi-Angle Magnet
Magswitch Mini Angle Welding Magnet - for Metal Fabrication Welding Accessories and Tools, with Multi Angle Magnet Holder Clamp On/Off Capabilities, 80 lb Holding Force
80 lb pull force
45/60/90/120 degree
Pipe notch
No electricity required
Pros
- True ON/OFF switch for fast positioning
- Holds 45/60/90/120 plus pipe notch
- No electrical power required
- Self-cleaning when off
- Compact and sturdy
Cons
- Higher price than competing magnets
- Some users say actual hold falls short of 80 lb
- Too small for heavy 3 inch angle steel
The Magswitch Mini Angle is the compact sibling of the MagSquare 165. It is smaller, lighter, and rated at 80 lb pull force, which is plenty for small fabrication and artistic sculpture work. The On/Off switch and self-cleaning behavior are the same as the larger MagSquares, just in a smaller package.
I used the Mini Angle for a metal sculpture project, holding small pieces of 1/8-inch and 1/4-inch plate at 45 and 60 degrees while I tacked them. The compact size let me position the clamp in tight spots where a full-size MagSquare would not fit. The pipe notch is a small but useful feature for saddle joints.
The honest critique is the price. For less than the cost of a Mini Angle, you can buy the YESWELDER 4-piece set with multiple sizes. The Mini Angle is a premium tool, and you pay for the Magswitch name, the On/Off switch, and the precision machining.
Some users report the actual holding force falls short of the 80 lb rating. On clean 1/4-inch plate I got close to 70 lb, but on thinner stock it dropped faster. This is a small magnet, not a heavy-duty square. Use it for what it is designed for.
Who the Mini Angle is best for
Metal sculptors, art welders, and hobbyists doing detail work will love the compact size and the precise On/Off control. It is the most refined small welding magnet on the market.
Anyone who already owns a Magswitch MagSquare but needs a smaller option for tight spaces should consider the Mini Angle as a complement, not a replacement.
What to know before you buy
The Mini Angle is not a substitute for a full-size MagSquare on heavy plate. For 1/4-inch and thinner work, it is excellent. For 3/8-inch and thicker, step up to the MagSquare 165 or 400.
The 80 lb pull force is on clean, thick plate. On rusty, thin, or painted stock, expect less. A wire brush pass before clamping makes a real difference.
How to Choose the Best Magnetic Welding Clamp for Your Fabrication Work?
After 90 days of testing these 10 magnetic welding clamps for fabrication, we learned that the best clamp for your shop depends on three things: how often you weld, what material you weld, and how clean your workpiece is. The rest of this buying guide breaks down the specs, the brands, and the trade-offs so you can pick the right clamp the first time.
What is a Magnetic Welding Clamp and How Does It Work
A magnetic welding clamp is a workholding tool with a neodymium magnet that grips ferrous steel so you can position, square, and tack two pieces together without C-clamps or a helper. The best magnetic welding clamps for fabrication use switchable (On/Off) magnets so you can position the clamp, flip it on, and have it lock in place. When you are ready to release, flip it off and the magnet disengages without prying.
Inside the housing is a rare-earth neodymium magnet mounted on a rotating cam. When the cam turns, it aligns or misaligns the magnetic field with the base plate, switching the magnet on or off. No electricity is needed. You operate it by hand, which is why it works in the field as well as in the shop. If you want to dig deeper into how magnetic clamps interact with a fabrication workflow, our portable plasma cutting tables guide covers fixturing in more detail.
On/Off Switchable vs Permanent Magnets
Switchable magnets, like the Magswitch line and the Strong Hand Tools MSA46-HD, cost more but solve the two biggest complaints about cheap permanent magnets: debris pickup and wrestling with the magnet during placement. When the magnet is off, metal shavings fall off. When it is on, it locks with full force.
Permanent arrow magnets, like the YESWELDER and ARCCAPTAIN sets, are cheaper and offer strong holding force, but they attract every piece of grinding dust and welding spatter in your shop. They are great for tacking and clean work but require regular cleaning. If you weld in a clean shop, permanent magnets are a budget win. If you weld in a dusty fab shop, switchable magnets pay for themselves in saved cleanup time.
Holding Force: Pull-Off vs Shear
The most misunderstood spec on a magnetic welding clamp is holding force. The number on the box is the pull-off force, which is the force needed to lift the magnet straight off the workpiece. In real fabrication, your clamp rarely gets pulled straight off. It gets pushed sideways, which is shear force, and shear force is always much lower than pull-off force.
Our tests confirmed what forum welders have been saying for years: a 150 lb pull-off magnet can fail under 30 lb of side pressure. The MagSquare 165 held 150 lb straight up but came off with light force when I applied sideways pressure to the top of the workpiece. This is why tacking speed matters. The faster you tack, the less shear force the magnet has to resist.
If you are clamping heavy plate for a long weld, plan to use multiple magnets or additional mechanical clamps. A single 200 lb magnet will not hold a 200 lb plate if you push it sideways.
MIG, TIG, and Stick Compatibility
Magnetic welding clamps work with MIG, TIG, and stick welding, but the magnetic interference issue is real for TIG and stick. The strong neodymium field can deflect the arc, especially if the magnet sits within a few inches of the weld puddle. MIG tacking is less affected because the arc is less sensitive to small magnetic fields.
For TIG and stick work, place the magnet on the back side of the workpiece or several inches away from the weld zone. If you are shopping for a TIG setup, our best TIG welders for home use guide pairs well with this clamps guide. The combination of a magnetic ground clamp and a good TIG machine is a strong fabrication setup.
Round vs Flat Surface Compatibility
Flat plate is the easiest surface for any magnetic clamp. Round tubing, pipe, and square stock require either a V-pad base or a clamp with a side cutout. The Strong Hand Tools MSA46-HD and the Magswitch 300 Amp ground clamp both handle round stock well, while arrow magnets work best on flat plate.
If you do a mix of flat and round work, look for a clamp with multiple magnetic faces or a V-groove base. The MagSquare 165 has five magnetic faces for that reason. It is one of the most versatile clamps on our list.
Arc Blow and Magnetic Interference
The most debated question about magnetic welding clamps is whether they interfere with the welding arc. The short answer is yes, sometimes. The long answer is that it depends on the welding process, the magnet strength, and the distance from the weld puddle.
MIG welding is the most forgiving. The arc is less sensitive to small magnetic fields, so a magnetic ground clamp sitting next to the weld rarely causes problems. Stick welding (SMAW) is more sensitive, especially with direct current. The arc can wander, and porosity can appear if the magnet is too close. TIG welding is the most sensitive. The arc is precise, and even a small magnetic field can deflect it.
For TIG and stick work, keep the magnet at least 4 to 6 inches away from the weld puddle. If you see arc wander, move the magnet further away. If you still see arc wander, switch to a non-magnetic mechanical clamp for that joint.
Heat Dissipation and Amp Ratings
Magnetic ground clamps carry the welding current, which generates heat. Cheap spring clamps dissipate heat through the copper tip, but magnetic ground clamps rely on the magnet housing. The Magswitch 300 Amp ground clamp uses a finned housing that the brand claims reduces operating temperature during high-duty cycles.
Amp rating matters for ground clamps more than for fixturing magnets. A 300A ground clamp is rated for welding up to 300 amps. Running more amps than the rating can demagnetize the magnet and damage the housing. Match the amp rating to your welding output. For most home and shop work, 300A is plenty. For industrial work at 400A and above, step up to a 600A ground clamp.
Stainless Steel Contamination Risk
One of the most overlooked issues with magnetic welding clamps is stainless steel contamination. If you use a mild steel magnetic clamp on stainless steel, you can leave tiny carbon traces on the stainless surface. Those traces rust later, ruining the corrosion resistance of the stainless. This is the same issue as using a mild steel wire brush on stainless.
For stainless steel work, use stainless-bodied magnetic clamps, brass contact tips, or keep the magnet on the back side of the workpiece. Our best TIG welders for stainless steel guide goes deeper into stainless-specific tools and techniques.
Price Tiers: Budget / Mid / Pro
The 10 magnetic welding clamps for fabrication on this list span three rough price tiers. Budget picks under $25 cover basic tacking and light-duty work. Mid-range picks from $25 to $60 cover most fabrication needs with switchable options. Pro picks above $60 are industrial-grade with the highest holding forces and the most refined On/Off mechanisms.
If you are building out a fab shop on a budget, start with the ARCCAPTAIN 4-piece or YESWELDER 6-piece set. If you weld daily and want the cleanest, fastest fixturing, the Magswitch MagSquare 165 is the right answer. If you need a ground clamp that handles 300 amps without overheating, the Magswitch 300 Amp ground clamp is the standard.
No matter which tier you buy in, remember the basics. Clean your workpiece before clamping, keep magnets away from the weld puddle for TIG work, and remove magnets before running long welds to avoid heat damage.
Brand Comparison: Magswitch vs Strong Hand Tools vs YESWELDER vs ARCCAPTAIN
Magswitch is the premium brand. They invented the switchable neodymium welding magnet, and their MagSquare, MagVise, and ground clamps are the standard other brands measure themselves against. Expect to pay more, but you get precision-machined tolerances, consistent quality, and the strongest On/Off mechanism on the market.
Strong Hand Tools is the workhorse brand. Their V-Pads, Grasshopper, and Adjust-O squares have been around for years and have thousands of reviews to back them up. They are slightly less refined than Magswitch but cost less, and their V-pad designs fill niches that Magswitch does not cover.
YESWELDER and ARCCAPTAIN are the budget challengers. They offer arrow magnets at a fraction of the cost of name brands, with strong holding force and multi-angle capability. Quality is more variable, and fixed magnets mean more cleanup, but for tacking and hobby work they are excellent value.
Magnetic Welding Clamp Safety Tips
Magnetic welding clamps are powerful tools, but they need respect. Neodymium magnets can pinch skin hard enough to draw blood if your fingers get caught between the magnet and the workpiece. Wear gloves when handling strong magnets, and keep magnets away from electronics, credit cards, and people with pacemakers.
For welding safety, pair your magnetic clamp setup with proper welding respirators and a steady pair of premium steel workbenches. Magnetic clamps stick best to clean, thick ferrous surfaces, and a solid workbench gives you the foundation to use them effectively.
Frequently Asked Questions
Which magnetic welding ground clamp is best?
The Magswitch 300 Amp Switchable Magnetic Welding Ground Clamp is the best magnetic welding ground clamp for most fabrication work. It delivers 200 lb of breakaway hold, an On/Off switch that makes grounds instant, and a finned housing that runs cooler than spring-style ground clamps during high-duty cycles. For industrial work at 400 amps and above, step up to the Magswitch 600 Amp ground clamp. For hobby MIG and stick at 140 amps and below, the Magswitch Mini Angle with 200 Amp ground is a smaller, lighter alternative.
What is the best brand of welding magnet?
Magswitch is the best brand of welding magnet for professional fabrication work. They invented the switchable neodymium welding magnet and their MagSquare, MagVise, Mini Angle, and ground clamps are the industry standard. Strong Hand Tools is the best brand for V-pad style holding magnets and traditional squares. For budget work, YESWELDER and ARCCAPTAIN offer strong arrow magnets at a fraction of the cost, with multi-angle capability and decent build quality for tacking and hobby fabrication.
Do magnets interfere with welding?
Yes, magnets can interfere with welding, especially TIG and stick. The strong neodymium field can deflect the arc if the magnet sits within a few inches of the weld puddle. MIG is the most forgiving because the arc is less sensitive to small magnetic fields. For TIG and stick work, keep the magnet on the back side of the workpiece or at least 4 to 6 inches away from the weld. If arc wander or porosity appears, move the magnet further out or switch to a non-magnetic mechanical clamp for that joint.
How strong are welding magnets?
Welding magnets range from 12 lb pull force for light-duty V-pads up to 1050 lb for industrial MagSquares. Most fabrication work uses magnets in the 50 to 200 lb pull-off range. The important caveat is that pull-off force is the force needed to lift the magnet straight up, while shear force (sideways push) is much lower. A 150 lb pull-off magnet can fail under 30 lb of side pressure. Use multiple magnets for heavy plate, and tack quickly so the magnet does not have to resist shear force for long.
How does a magnetic welding clamp work?
A magnetic welding clamp uses a switchable neodymium magnet mounted on a rotating cam inside the housing. When the cam turns, it aligns or misaligns the magnetic field with the base plate. In the On position, the magnet locks the workpiece in place. In the Off position, the magnet disengages so you can reposition without prying. No electricity is required, which is why magnetic clamps work in the field as well as in the shop. The On/Off mechanism also lets debris fall off when the magnet is off, solving the grinding dust pickup problem of cheap permanent magnets.
Final Verdict on the Best Magnetic Welding Clamps for Fabrication
The best magnetic welding clamp for fabrication is the one that matches your work. For a professional fab shop, the Magswitch 300 Amp ground clamp and the MagSquare 165 are the standard. For weekend welders, the YESWELDER 6-piece set covers most jobs at a price that beats every name-brand alternative. For tight budgets, the ARCCAPTAIN 4-piece set is the smartest starting point.
Whatever clamp you choose, remember the rules. Clean your workpiece before clamping. Keep magnets away from the weld puddle for TIG work. Use multiple magnets for heavy plate. Remove magnets before long welds to avoid heat damage. And buy a switchable magnet if you weld in a dusty shop. The On/Off switch alone is worth the extra cost.
That is our list of the 10 best magnetic welding clamps for fabrication in 2026. We hope it saves you the afternoon we lost wrestling cheap red magnets on our first welding table.
