When an electric motor, feeder cable, or transformer begins to deteriorate, a standard multimeter usually cannot tell you whether the insulation is still healthy. It can show voltage, resistance, and continuity, but it does not apply the controlled high DC voltage needed to expose leakage paths. That is why insulation resistance testers for electricians are a separate class of test equipment rather than an optional meter mode.
A megohmmeter applies a selected test voltage and measures the resulting insulation resistance in megohms or gigaohms. The reading helps reveal moisture, contamination, aging, cracked insulation, and other problems before they cause nuisance trips, equipment damage, or shock risk. The right choice depends on the equipment you service, the voltages you need, and whether you need trend data or PI and DAR tests.
I compared eight current options and focused on the details that matter in the field: selectable test voltages, resistance range, safety category, discharge behavior, multimeter functions, portability, and the quality of customer feedback. This guide reflects the 2026 market, but the underlying principle is timeless: match the tester to the insulation system, then use the correct voltage and a safe, repeatable procedure.
Top 3 Picks in August 2026
Best Insulation Resistance Testers for Electricians in 2026
| Product | Specs | Action |
|---|---|---|
 Klein Tools ET600 |
|
Check Latest Price |
| Fluke 1507 |
|
Check Latest Price |
 Ayitam PM1508 |
|
Check Latest Price |
 UEi IRT807 |
|
Check Latest Price |
 UNI-T UT501A |
|
Check Latest Price |
 KAIWEETS KE1000 |
|
Check Latest Price |
 Supco M500 |
|
Check Latest Price |
 Fluke 1503 |
|
Check Latest Price |
1. Klein Tools ET600: Best Value for Everyday Electrical Work
Klein Tools ET600 Multimeter, Megohmmeter Insulation Tester, 4000 Ohms Resistance, 125V/250V/500V/1000V, Auto-Ranging TRMS Multimeter
125-1000V test range
4000M ohms maximum
True RMS multimeter
Pros
- Lower cost than Fluke
- Backlit display
- Test lock button
- Strong field reliability
Cons
- 4000-count resolution
- Large and heavy
The ET600 is the model I would put in a service van when budget matters but a dedicated insulation tester is still required. Its 125V, 250V, 500V, and 1000V settings cover common low-voltage circuits, motor windings, and general preventive maintenance, while the True RMS multimeter functions reduce the number of instruments carried to a job.
In practice, the backlit display and test-lock button are more useful than their modest names suggest. A long test on a motor or cable is easier to manage when the reading can be held, and the audible continuity function is handy for quick wiring checks. Review feedback repeatedly praises the solid field performance and clear display.
The trade-off is resolution: the insulation range tops out at 4000M ohms, and the 1.4-pound body is bulkier than a basic handheld meter. That does not make it a bad instrument; it simply means an engineer doing precise laboratory comparisons may want a higher-range model.
The product data lists CAT III and CAT IV safety details, a 1000V maximum operating voltage, and automatic ranging. I would still verify the measurement category and lead set against the installation before applying the test, because the tester's category does not replace site-specific safe work procedures.
For whom it is good
This is a strong fit for commercial electricians, apprentices building a first professional kit, and maintenance teams that need an insulation tester plus a capable multimeter without paying for premium branding. It also suits work where 1000V is the normal ceiling and readings above 4G ohms are not central to the diagnosis.
For whom it is bad
I would not choose it for a utility-scale transformer program, high-energy service entrance testing, or jobs that require stored results, PI/DAR calculations, and the lightest possible instrument. The large housing can also feel awkward when reaching into a crowded panel.
2. Fluke 1507: The Professional All-Rounder
Fluke 1507 Digital Megohmmeter Resistance Tester for Advanced Industrial and Electrical Testing, Test Voltages: 50V, 100V, 250V, 500V, 1000V
50-1000V test voltage
Large backlit display
Remote test probe
Pros
- NIST certificate
- Live circuit protection
- Fluke build quality
- Remote probe
Cons
- Battery life concerns
- No protective case
The Fluke 1507 is my pick for a professional who wants a dedicated insulation tester and a familiar name in one instrument. Its 50V setting is important for sensitive equipment, while 100V, 250V, 500V, and 1000V cover the more common service and maintenance applications.
Two details make it especially field-friendly: the remote test probe helps with repetitive or hard-to-reach connections, and live-circuit detection is specified to stop the test when circuit voltage is above 30V. The large backlit display is easy to read in dim electrical rooms, and the included NIST-traceable calibration certificate supports documented quality control.
It is not a multimeter replacement, and the 1507 does not provide the data logging, PI/DAR timing, or PC transfer found on the Fluke 1503. Review data does flag relatively quick battery depletion and the absence of a protective case, so I would buy a case and keep spare batteries in the kit.
For a commercial electrician, the value is not merely the Fluke label. It is the combination of a 50V minimum, a 1000V maximum, remote operation, and a conservative live-circuit check in a handheld package that is straightforward to explain to a customer.
For whom it is good
The 1507 is best for industrial and commercial electricians who need dependable spot checks on motors, feeders, control wiring, and installed equipment. It is also a sensible choice for someone who prefers a focused insulation tester over a combined instrument and values a calibration certificate.
For whom it is bad
Choose a different model if you need long-duration PI or DAR results, automatic storage, or a full multimeter in the same housing. The higher purchase cost and battery complaints are more noticeable for a small business that only performs occasional tests.

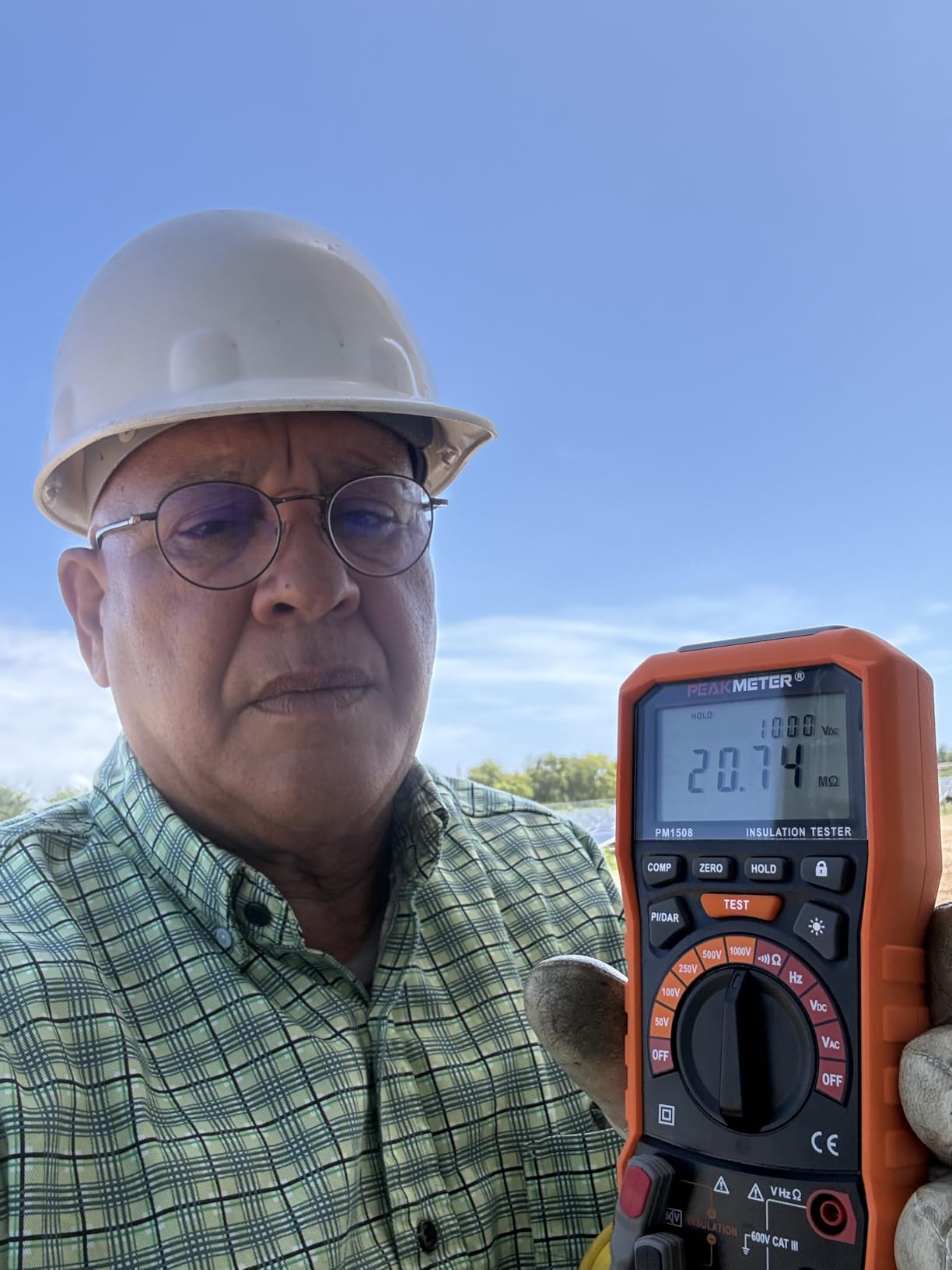

3. Ayitam PM1508: Budget Pick With PI and DAR
Megohmmeter, Insulation Resistance Tester, 50V-1000V Up to 100GΩ
50-1000V test range
100G ohms maximum
PI and DAR calculations
Pros
- Low purchase cost
- Automatic discharge
- Multimeter functions
- 100V option
Cons
- Battery contacts feel flimsy
The Ayitam PM1508 offers an unusually broad set of functions for a budget megohmmeter. It measures up to 100G ohms, supplies five standard test voltages, calculates polarization index and dielectric absorption ratio, and includes frequency, voltage, and low-voltage test functions.
I would consider it when a small team needs diagnostic features but cannot justify a premium instrument. The 50V and 100V selections are useful for low-voltage systems, and automatic discharge helps when testing capacitive loads such as long cable runs. The product data lists a CAT III 600V rating and EN 61010-1 conformity.
The main weakness reported in the available feedback concerns the battery spring contacts. That is a real consideration for field use because a loose contact can turn a routine job into an intermittent failure. I would inspect the contacts, use high-quality batteries, and carry a backup tester if the PM1508 will support critical maintenance.
It is also less established in the field than Fluke, Megger, or Hioki, so I would compare its displayed values against a known-good reference on a regular calibration schedule. That extra verification is normal practice when a low-cost instrument carries advanced labels such as PI and DAR.
For whom it is good
This is a practical budget choice for apprentices, small contractors, HVAC service work, and technicians who want PI/DAR without a large outlay. The included leads, clips, and batteries make it easier to start immediately, provided the user has a safe isolation and discharge procedure.
For whom it is bad
Skip it for high-consequence testing where traceable history, premium support, and confidence in repeated field durability justify a higher-tier purchase. A user who dislikes battery compartment maintenance should also choose a model with more robust power contacts.
4. UEi IRT807: Safety-Focused Diagnostics for Industrial Work
UEi IRT807 Insulation Resistance Tester 1000V AC/DC, Advanced Megohmmeter Measures Insulation Resistance Up to 2GΩ, Voltage Testing Up to 1000V
0.01M-2G ohms
50-1000V testing
CAT IV 600V and CAT III 1000V
Pros
- Automatic PI and DAR
- Backlit LCD and work light
- Kickstand and lead holders
- Auto power off
Cons
- Low-pass filter issue
- Limited stock
The IRT807 stands out for safety-oriented specifications and a practical field layout. It measures from 0.01M ohms to 2G ohms, provides the five common insulation test voltages, and carries CAT IV 600V plus CAT III 1000V ratings. That makes it a serious option for industrial environments where measurement category is part of the purchasing decision.
The automatic PI and DAR calculations save time, while Hold, Zero, Lock, and Compare functions support repeatable checks. A work light, backlit LCD, rubber boot, kickstand, and lead holders are small features that become valuable when the job site is poorly lit and the meter must stay connected to a difficult-to-reach termination.
The available reviews describe accuracy as competitive with more expensive instruments, but one reported issue involves AC voltage readings when the low-pass filter is enabled. That is a reminder to read the manual and confirm the mode before interpreting a voltage reading, not a reason to bypass the safety function.
Its 2G-ohm ceiling is lower than the 100G-ohm range on the Ayitam and KAIWEETS, but many practical insulation acceptance decisions do not require a huge maximum range. The decision is about the equipment and standard you work to, not the largest number printed on the screen.
For whom it is good
I would recommend the IRT807 to industrial electricians and service technicians who work around distribution equipment, want PI/DAR without a complex interface, and appreciate a rugged housing. It is also attractive when CAT IV 600V is specified.
For whom it is bad
It is not my first choice for someone who needs readings well above 2G ohms, a broad base of long-term field history, or a unit that is easy to find in stock. Anyone sensitive to the reported low-pass-filter behavior should test that function before relying on it.
5. UNI-T UT501A: Simple, Light, and Affordable
UNI-T UT501A Megohmmeter, Insulation Tester 1000v, Will Accurately Measure Insulation Values up to 1000 Megohms at 750 Volts, Electrical Tester 0-5G Ohm Meter, 2000 Counts LCD Display with Backlight
1000V maximum
0-5G ohms at 750V
2000-count LCD
Pros
- Lightweight body
- Auto backlight
- Low battery warning
- Standard banana leads
Cons
- Arcing protection concern
- HV warning must be watched
The UT501A is a straightforward, low-cost insulation resistance tester for technicians who mainly need a quick insulation check. Its listed range reaches 0 to 5G ohms at 750V, with a maximum test voltage of 1000V and a 2000-count LCD that illuminates automatically.
The appeal is simplicity. It weighs about 0.6 kg, accepts standard banana-plug leads, warns when batteries are low, and shuts down after 10 minutes of inactivity. Those are sensible features for occasional field use where a small kit is easier to carry than a multi-function platform.
There is an important safety warning in the supplied product data: reviews say it lacks internal protection against arcing faults, and one review reports catastrophic failure during an arcing test. I would not connect it across an unknown or potentially arcing circuit without an isolation procedure, appropriate PPE, and a tester whose fault protection is clearly understood.
It also does not offer PI, DAR, data storage, or a remote probe in the listed specification. That is acceptable for a basic pass/fail or trending workflow only if the user has a separate instrument for advanced diagnostics.
For whom it is good
Choose the UT501A for simple checks of motors, transformers, cables, switches, and appliances when a low purchase cost and light weight matter most. It can be a sensible secondary tester for a team that already owns a higher-end instrument for critical measurements.
For whom it is bad
I would avoid it as the sole tester for energized or fault-prone installations, high-energy switchgear, and work where an unexpected arc could have serious consequences. The lack of listed arcing protection deserves more weight than a low price when safety is the priority.
6. KAIWEETS KE1000: Feature-Rich Testing With Memory
KAIWEETS Megohmmeter Insulation Tester 3MΩ-100GΩ 1000V DAR/PI Pro Ohm Meter
3M-100G ohms
50-1000V test range
DAR/PI and memory
Pros
- Five voltage choices
- Threshold alarm
- Store and recall
- Protective housing
Cons
- Eight AA batteries
- Lower low-resistance sensitivity
The KAIWEETS KE1000 packs a useful amount of diagnostic equipment into one meter. It measures 3M ohms to 100G ohms, selects 50V through 1000V, calculates DAR and PI, stores readings, and supports a custom PASS/FAIL threshold alarm.
The timer helps a technician apply a test for a consistent duration, which improves repeatability on a maintenance route. A large backlit LCD, data hold, protective housing, and three-in-one voltage, continuity, and insulation functions make it a credible all-in-one tool for service work. The product data lists CAT III 1000V and CAT IV 600V ratings.
The trade-offs are practical rather than cosmetic. The meter uses eight AA batteries, and the listed low-resistance performance is less sensitive than a dedicated multimeter. If you need to measure a winding's low ohms, use a separate instrument rather than expecting one meter to optimize both tasks.
The stored readings are helpful, but there is no PC transfer listed in the supplied data. I would record the test date, equipment, voltage, result, and environmental condition manually, then use the memory as a convenience rather than a complete reporting system.
For whom it is good
This model fits electricians who want a wide range, PI/DAR, thresholds, and saved readings without moving to the top price tier. It is particularly useful for routine motor, cable, solar, and HVAC checks where the same test sequence is repeated.
For whom it is bad
Choose another model if low-resistance accuracy, USB or Bluetooth reporting, or a compact battery system is essential. The 1.6kg listed weight and eight-cell power requirement also deserve consideration for a technician walking a large site.
7. Supco M500: A Practical Choice for HVAC and Appliance Work
Supco M500 Electronic Megohmmeter, 0 to 1000 Megohms
500V test voltage
1000M ohms maximum
Automatic discharge
Pros
- Compact and portable
- Magnetic alligator clips
- Simple operation
- Carrying case
Cons
- C batteries
- 20M ohm lower cutoff
- Shorter leads
The Supco M500 is designed around a narrow job: checking insulation in HVAC equipment, hermetic compressors, motors, and portable appliances. Its 500V test voltage and 1000M-ohm maximum cover the common compressor and motor troubleshooting workflow, while automatic discharge helps after a capacitive test.
The magnetic alligator clips are a genuinely useful touch. They let me connect to a compressor terminal or equipment case and keep both hands available while observing the meter, which is often more valuable than a long list of secondary functions. The soft case and simple LED display also keep the setup uncomplicated.
The limitations are important. It uses C batteries, the listed lower cutoff is 20M ohms, and the leads are shorter than ideal for some panels. It is not the right instrument for a transformer specialist who needs selectable test voltages above 500V or a full GΩ-scale diagnostic report.
With 1,593 reviews in the supplied data, it also has the strongest evidence of repeated use in the HVAC channel. That history matters when a technician wants a tool that does one job, does it consistently, and can be left in a service vehicle without a complicated charging routine.
For whom it is good
The M500 is a good match for HVAC and refrigeration technicians, appliance repairers, and electricians who regularly inspect hermetic compressors. It is also useful as a portable secondary meter for quick field checks.
For whom it is bad
Do not choose it as your only tester for broad industrial work, high-voltage systems, sensitive 100V tests, or detailed PI/DAR analysis. If a site requires long leads or a battery format that is easy to replenish from common stock, another model will be less frustrating.
8. Fluke 1503: Advanced Recording in a Proven Platform
Fluke 1503 Insulation Resistance Tester
PI and DAR
99 stored results
PC upload
Pros
- Timed tests to 99 minutes
- Leakage and capacitance
- Fluke reliability
- CAT IV 600V
Cons
- High cost
- Limited stock
- Some package concerns
The Fluke 1503 is the most reporting-focused Fluke option in this group. It calculates PI and DAR, runs timed tests for up to 99 minutes, stores up to 99 results, and can upload results to a PC. It also measures leakage current up to 2mA, capacitance up to 20 microfarads, and voltage up to 600V.
For a maintenance contractor, those features turn insulation testing from a single reading into a documented trend. I would use the timed tests when a customer needs evidence of insulation condition, then save the result with the asset name, date, test voltage, and ambient condition. The PC connection is a meaningful advantage over meters that only hold readings in memory.
The listed ratings reach CAT IV 600V and CAT III 1000V, which supports its professional positioning. The available reviews mention concerns about limited stock, packaging, and an instruction booklet that may not be in English, so I would confirm the package contents and documentation before relying on it for a deadline.
Its maximum features also make it less appealing for someone who only needs a quick 500V spot check. More functions usually mean more settings to understand, and a dedicated basic tester can be faster when PI, DAR, capacitance, and data transfer are not required.
For whom it is good
The 1503 suits industrial electricians, commissioning teams, and maintenance providers who must produce records and trend results. It is a strong alternative when the 1507's simpler interface is not enough but a full high-voltage system is unnecessary.
For whom it is bad
I would choose a less expensive meter for occasional residential checks or for a small toolkit where reports are handwritten. Limited availability and concerns about the supplied documentation also make purchase verification important.
Buying Guide: How to Choose the Right Insulation Resistance Tester?
Match test voltage to the insulation system
Test voltage is not a "more is better" setting. A 50V or 100V option helps when testing sensitive low-voltage equipment, while 250V, 500V, and 1000V are used for many motors, feeders, and control circuits. Always follow the equipment manufacturer, applicable maintenance standard, and your company's procedure before applying voltage.
For motors, the test voltage is commonly selected according to the motor's operating voltage and the guidance in the applicable standard. For long cable runs and transformers, a higher voltage can expose insulation weakness, but capacitance and stored energy make isolation and discharge more important. Never test equipment that is energized, and never assume a discharge LED means the circuit is safe to touch.
Check whether the tester provides a guard terminal or a clearly defined two-terminal method. A guard connection can help remove surface leakage from the measurement, which is especially useful in damp or contaminated environments.
Use a resistance range that preserves useful resolution
A 100G-ohm maximum sounds impressive, but range alone does not guarantee a useful diagnosis. I look for a range that suits the insulation values expected on the equipment and enough resolution to distinguish a stable result from a declining one.
For a basic HVAC compressor check, a 500V tester such as the Supco M500 may be sufficient. For motors, feeders, and industrial assets, a model with 1000V, a 2G-ohm range, or a 100G-ohm maximum gives more room to work, provided the selected range is not being used to justify an unsafe voltage.
Record the result in MΩ or GΩ, test voltage, test duration, temperature, humidity, and asset location. A single high reading is not a complete trend, and a single low reading should be investigated before equipment is returned to service.
Prioritize safety category and discharge behavior
Look for a tester with clear live-circuit detection, automatic discharge, overload protection, a robust lead set, and an appropriate CAT III or CAT IV rating. A CAT rating describes the installation environment in which the instrument is intended to be used; it does not make a live test safe.
Fluke and UEi models in this list explicitly list CAT IV 600V and CAT III 1000V ratings. Klein and KAIWEETS list CAT III/CAT IV details, while the Ayitam lists CAT III 600V. The UNI-T product data does not provide a comparable category claim, so I would seek the manufacturer's full safety documentation before using it in a high-energy installation.
Use proper lockout/tagout, verify de-energization with a suitable voltage tester, isolate the asset from other circuits, remove surge protective devices when the procedure requires it, and keep unqualified people away. For a guide to companion measurements, see our picks for true RMS multimeters for electricians and professional clamp meters.
Choose data functions when the job needs evidence
PI compares insulation resistance after a longer interval with resistance earlier in the test, while DAR compares readings over a shorter absorption period. Both can add information about moisture and insulation aging, but only when the test duration, temperature, and equipment condition are controlled.
If you only need a quick service check, a simple megohmmeter may be easier to explain and faster to deploy. If you maintain a fleet, a tester with automatic PI/DAR, timed tests, memory, and PC upload can pay back in consistent records and fewer handwritten notes.
Data storage is not the same as calibration traceability. Keep calibration records, use known reference resistors where appropriate, and compare the tester with a trusted instrument after a suspected overload. A field meter should be treated as part of a measurement system, not as a magic number generator.
Portability and total cost of ownership matter
Battery life is a recurring field concern, particularly when a tester is used all day. The Fluke 1507 reviews mention battery depletion, while the KAIWEETS uses eight AA cells and the Supco M500 uses C batteries. I would buy the type of battery my team can replace quickly, carry spares, and remove during long storage.
For cable diagnostics, a dedicated tester can also complement a network cable tool; our cable testers for diagnostics guide covers a different cable category. For tracing energized or de-energized conductors, a circuit tracer can reduce panel-opening time, and our circuit tracers for troubleshooting roundup is a useful companion read.
Avoid these common field mistakes
Testing a live circuit: Use isolation and live-circuit detection every time.
Choosing voltage by habit: Follow the equipment standard and manufacturer instructions.
Ignoring temperature and humidity: These conditions can change leakage and PI/DAR results.
Removing probes before discharge completes: Keep the test circuit isolated and wait for automatic discharge.
Using a low-cost meter as the only protection: A meter does not replace training, PPE, lockout/tagout, or a safe work procedure.
Frequently Asked Questions
What testers do electricians use?
Electricians commonly use a True RMS multimeter for voltage and continuity, a clamp meter for current, and a dedicated megohmmeter for insulation resistance. The dedicated tester applies a controlled high DC test voltage and measures leakage through insulation, which a normal multimeter is not designed to do.
Which is better, Megger or Fluke?
Neither brand wins every job. Fluke models such as the 1507 and 1503 are known for field-oriented operation, safety features, calibration documentation, and service support. Choose based on the required voltage, resistance range, safety category, data functions, accessories, and budget rather than brand alone.
How do electricians test the electrical insulation of a circuit?
First isolate, lock out, and verify that the circuit is de-energized. Disconnect the conductors as required, select a test voltage allowed by the equipment procedure, connect the test leads, start the test, and wait for the reading. Keep the equipment isolated until the tester has discharged stored energy and the safe-touch procedure is complete.
Why is a Megger better than a multimeter?
A Megger, or megohmmeter, is better for insulation testing because it applies a controlled high DC voltage and measures the resulting insulation resistance. A standard multimeter uses a much lower test signal and may show an open circuit even when contaminated or deteriorating insulation is leaking under test conditions.
What voltage should I use for insulation testing?
Use the voltage specified by the equipment manufacturer, applicable standard, or maintenance procedure. Sensitive low-voltage equipment may call for 50V or 100V, while many motors, feeders, and industrial assets are tested at 250V, 500V, or 1000V. Do not select a higher voltage simply because the meter offers it.
Final Verdict
The best insulation resistance tester is the one that matches your lowest required test voltage, the resistance range of your equipment, and your reporting needs. The Fluke 1507 is the best professional all-rounder, the Klein ET600 is the strongest value for everyday work, and the Ayitam PM1508 is the budget option when PI and DAR are useful.
For industrial records, the Fluke 1503 earns its place through timed tests, storage, and PC upload. For HVAC work, the Supco M500 is hard to beat for focused compressor checks. Whichever model you choose, make the safe isolation, discharge, and manufacturer-approved test procedure part of the job every time.
