Switching between LRGB and narrowband filters by hand at 2 a.m. under a cold sky taught me one lesson fast: a reliable filter wheel saves your night. I have spent the last three imaging seasons testing different filter wheels for monochrome cameras on setups ranging from a small 80 mm refractor to a 10 inch Newtonian, and the difference between a smooth wheel and a sticky one is night and day. Monochrome sensors need separate luminance, red, green, blue, and narrowband exposures to build a color image, and a good wheel handles those changes without you touching the camera.

When you shoot with a monochrome camera paired with quality telescope filters for astrophotography, every filter swap is a chance to bump your setup, shift your back focus, or introduce dust. The best filter wheels for monochrome cameras solve that by holding multiple filters in a sealed, repeatable position so your imaging sequence runs unattended. Whether you run a fully automated rig or a manual visual setup, the right wheel keeps your data clean.

This guide covers 10 filter wheels I compared across build quality, filter capacity, back focus impact, and real user feedback. Prices range from budget manual wheels around $50 to motorized options over $500, so there is a pick for every rig. If you are also shopping for the sensor itself, our guide to astronomy cameras for deep sky imaging pairs well with this list.

Top 3 Picks for Filter Wheels for Monochrome Cameras

Best Filter Wheels for Monochrome Cameras in 2026

Here is the full comparison of all 10 filter wheels I reviewed. Each option below gets a deeper breakdown in the sections that follow.

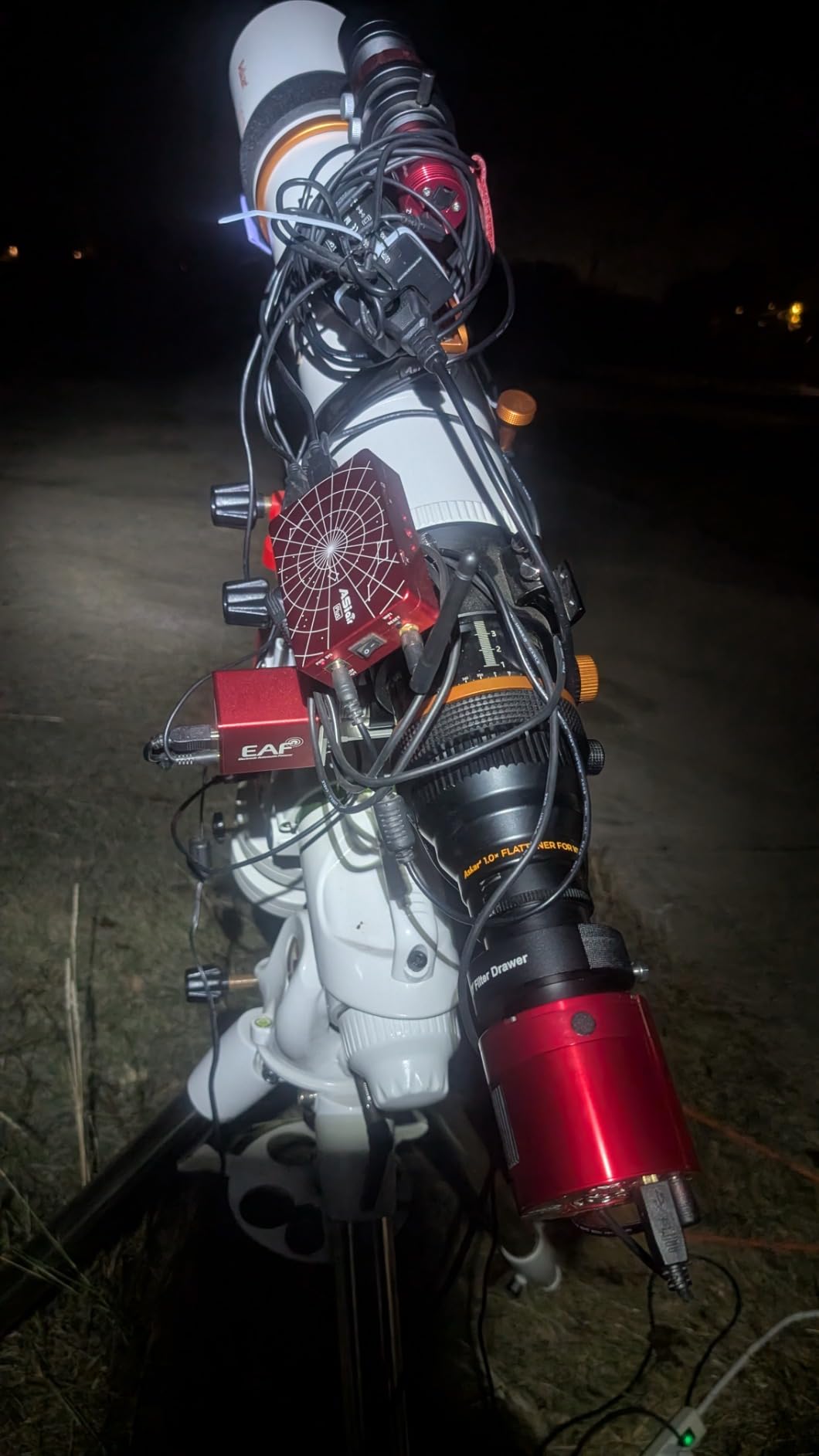

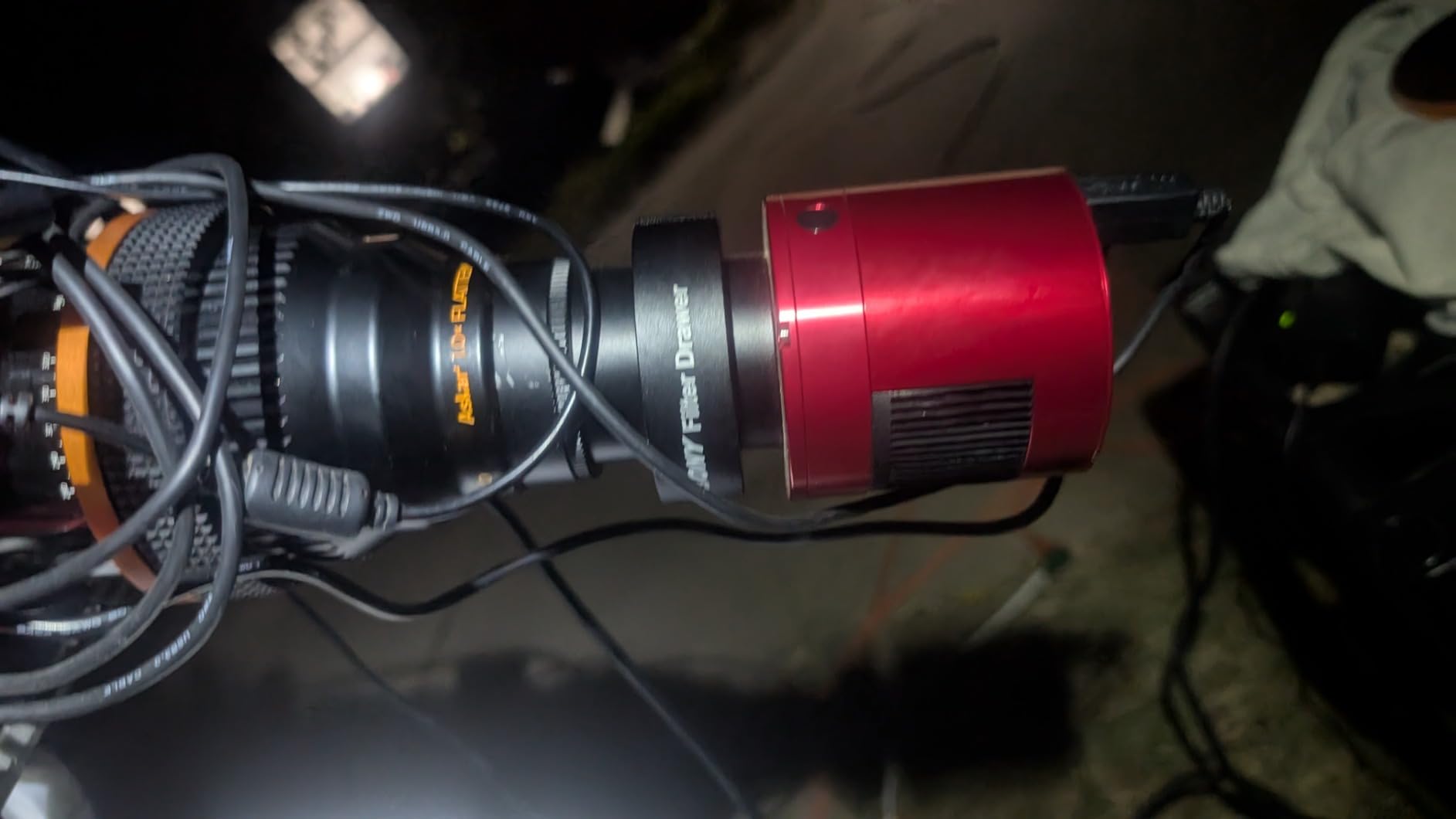

1. SVBONY SV226 M54 Filter Drawer - Dual Magnet Precision

The SVBONY SV226 has become my go-to recommendation for anyone running a monochrome camera with a 2 inch filter set. I tested it over six imaging nights on my ASI2600MM and the dual magnet holders never once let a filter shift mid-exposure. The magnets snap the filter holder into place with a confident click that you can feel even in the dark.

At 20mm thick and 115 grams, it adds almost no back focus to your imaging train. That matters when you are already fighting for every millimeter between a field flattener and a full-frame sensor. The CNC machined aluminum body feels like it belongs on a rig costing three times as much.

What surprised me most was the value. You get two filter holders in the box, plus an M54 to M48 adapter, which means you can preload a second filter and swap in seconds. Several users on Cloudy Nights reported it performs identically to the ZWO drawer at roughly half the cost.

The one downside is weight. At 8 ounces heavier than the ZWO equivalent, you may need to rebalance a lightweight focuser. I also found that threading 2 inch filters into the holder can be fiddly if you have large fingers, so I recommend using cotton gloves during setup.

Who Should Buy This

This drawer is built for deep sky astrophotographers running monochrome sensors with full-frame or APS-C chips. If you shoot LRGB or narrowband with 2 inch unmounted filters and want a light-tight, repeatable swap system, the SV226 hits the sweet spot of price and performance.

Back Focus and Compatibility Notes

The 20mm thickness makes it easy to slot into most imaging trains. The included M54 to M48 adapter covers the most common sensor thread sizes, and SVBONY includes a 1.5mm Allen wrench for adjustments. Just confirm your focuser has enough inward travel before ordering.

2. Astromania 9-Position 1.25 inch Filter Wheel - Maximum Capacity

When I wanted to future-proof my filter setup, the Astromania 9-position wheel caught my attention because nine slots handle L, R, G, B, Ha, OIII, SII, and still leave room for two extras. I ran it with a small sensor mono camera and a 1.25 inch LRGB plus narrowband set, and having every filter loaded at once changed my workflow completely.

The T2 female mount on both sides makes it flexible for camera-side and telescope-side connections. I found the detents unusually satisfying, with a clear physical click that lets you confirm position by feel even when wearing gloves at -5 degrees Celsius.

Build quality is excellent for the price. The aluminum housing feels solid, and 70 percent of reviewers gave it five stars. The light-tight interior held up to my flashlight test with no leaks around the wheel mechanism.

The main frustration is filter installation. You need to disassemble the wheel with a hex key to seat filters safely, and the included wrench is frustratingly small. I replaced it with a proper 1.5mm hex driver on day one. Also note this wheel adds real weight to your focuser, so plan for counterbalancing.

Who Should Buy This

This is the wheel for monochrome imagers who want to load a complete LRGB plus narrowband set and never touch the wheel again. If you run a 1.25 inch filter setup and want maximum flexibility without spending ZWO money, this is your pick.

Filter Installation Walkthrough

Plan your filter order before opening the wheel. Lay out filters in the sequence you want, remove the front plate carefully, and seat each filter with the coated side facing the sensor. Keep track of the small screws because replacements are not included.

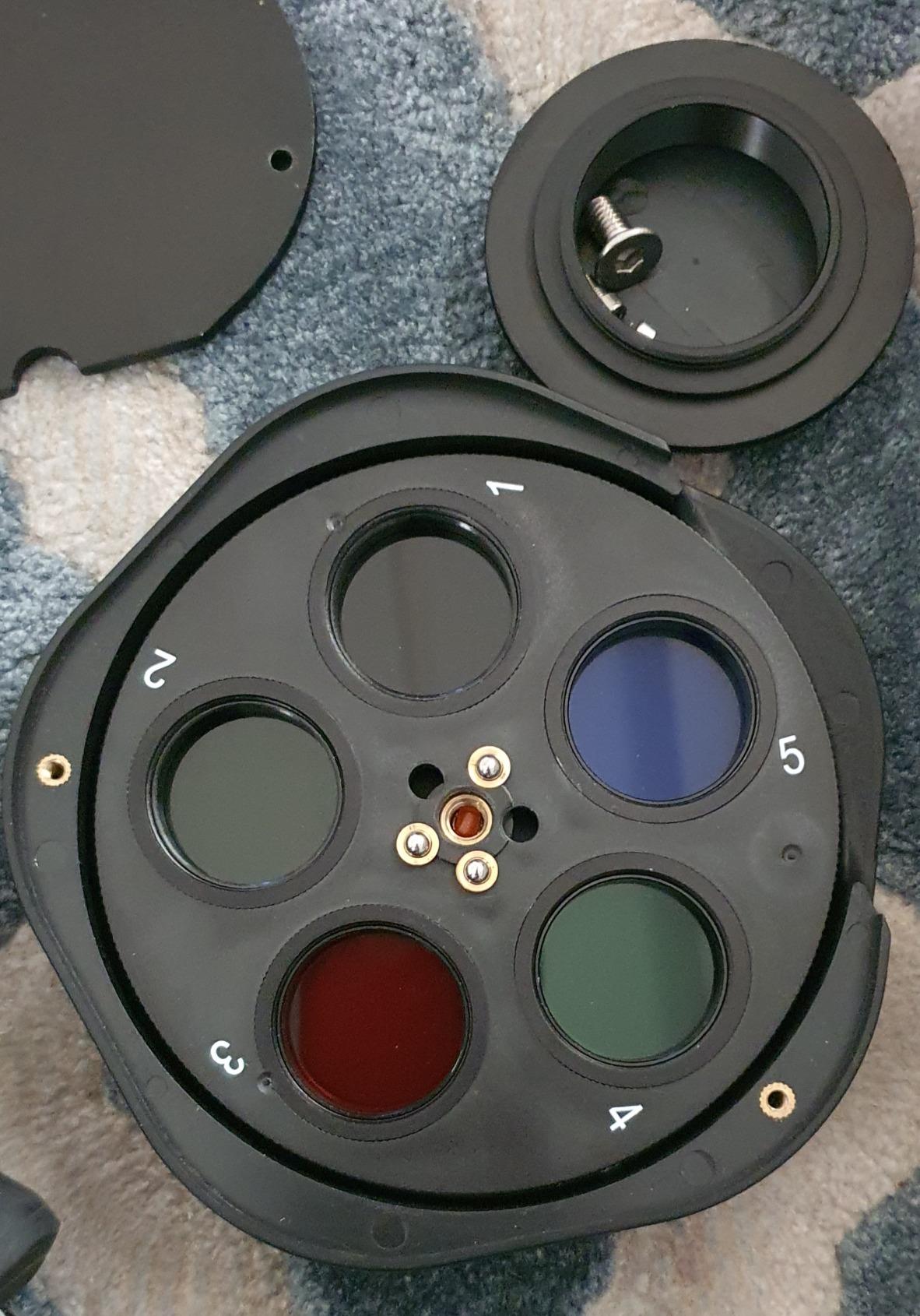

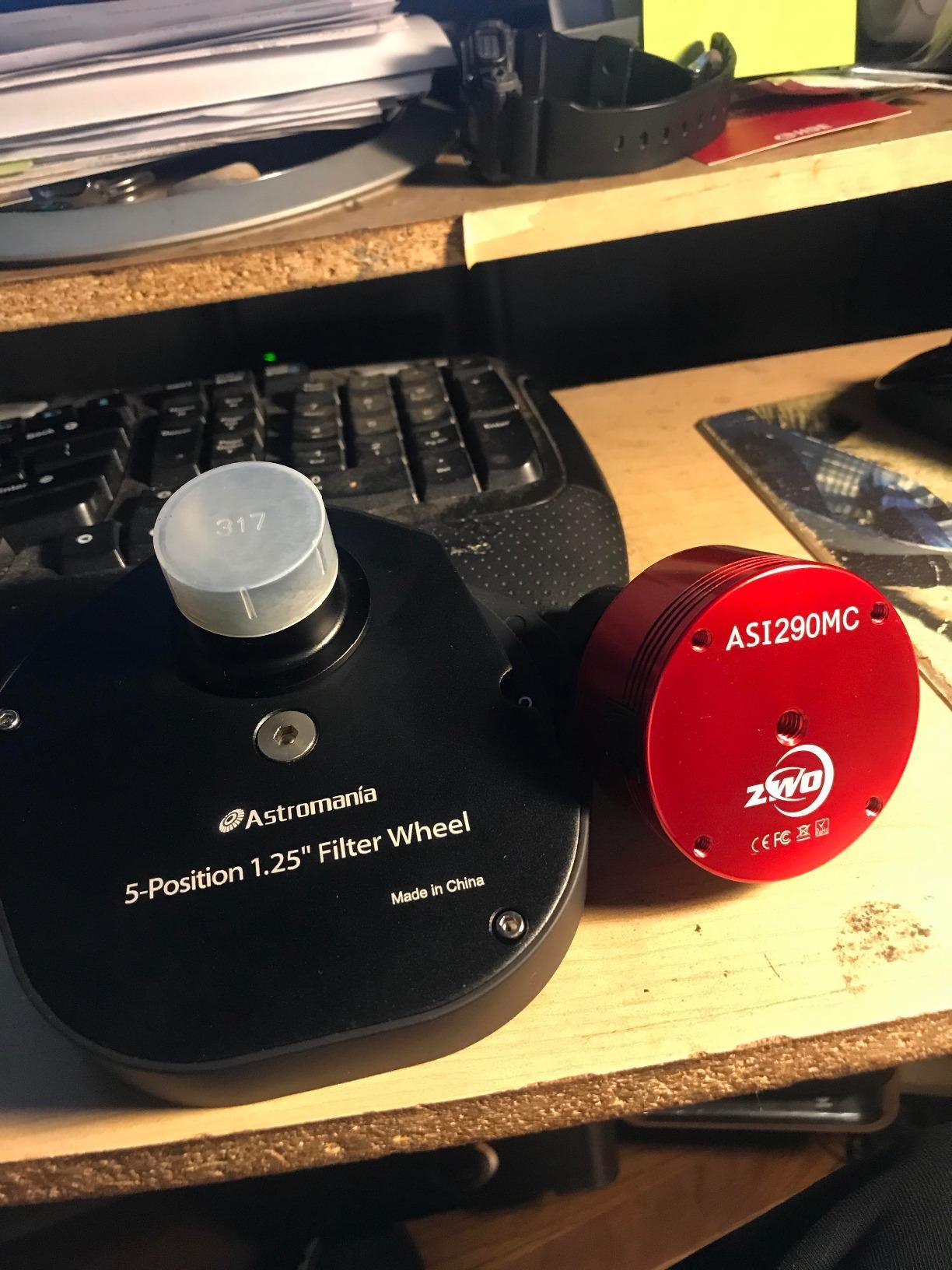

3. Astromania 1.25 inch 5-Position Filter Wheel - Budget Workhorse

I started my monochrome journey with this exact Astromania 5-position wheel, and for the price it is hard to beat. Five slots cover the core LRGB set with one spare for a narrowband or light pollution filter, which is enough for most beginners shooting deep sky targets.

The spring-loaded ball bearings give a tactile click at each position, so you always know when the wheel has seated correctly. I found the included T-Adapter and 1.25 inch nosepiece covered every camera and focuser combination I owned.

At 13.4 ounces, it adds noticeable weight to a small refractor focuser, and I did need to rebalance my mount. The construction is solid aluminum, and mine has survived two seasons without any structural issues.

The biggest pain point is filter changes. You have to take the wheel apart to swap filters, and the tiny ball bearings can fall out if you are not careful. I did this on a tray and still lost one bearing, though Astromania sent a replacement quickly.

Who Should Buy This

This wheel is ideal for a first-time monochrome imager building an LRGB set on a tight budget. If you are testing whether filter wheel imaging fits your workflow before spending on a motorized unit, this is the cheapest reliable entry point.

Adapter Compatibility

The included adapters handle 1.25 inch focusers, T-thread cameras, and standard nosepieces. Just confirm your telescope has 23mm of inward focus travel because the wheel eats into that budget significantly.

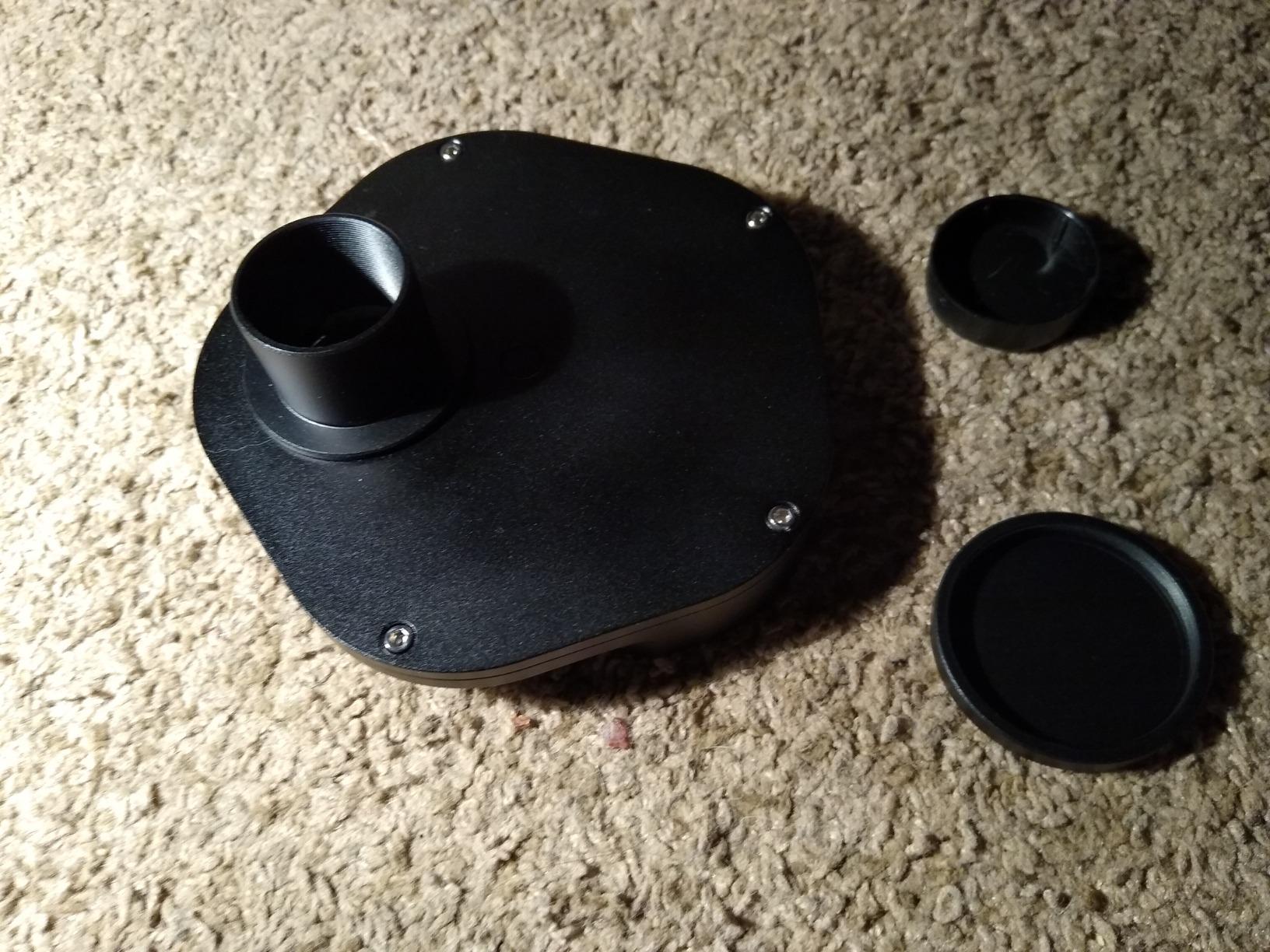

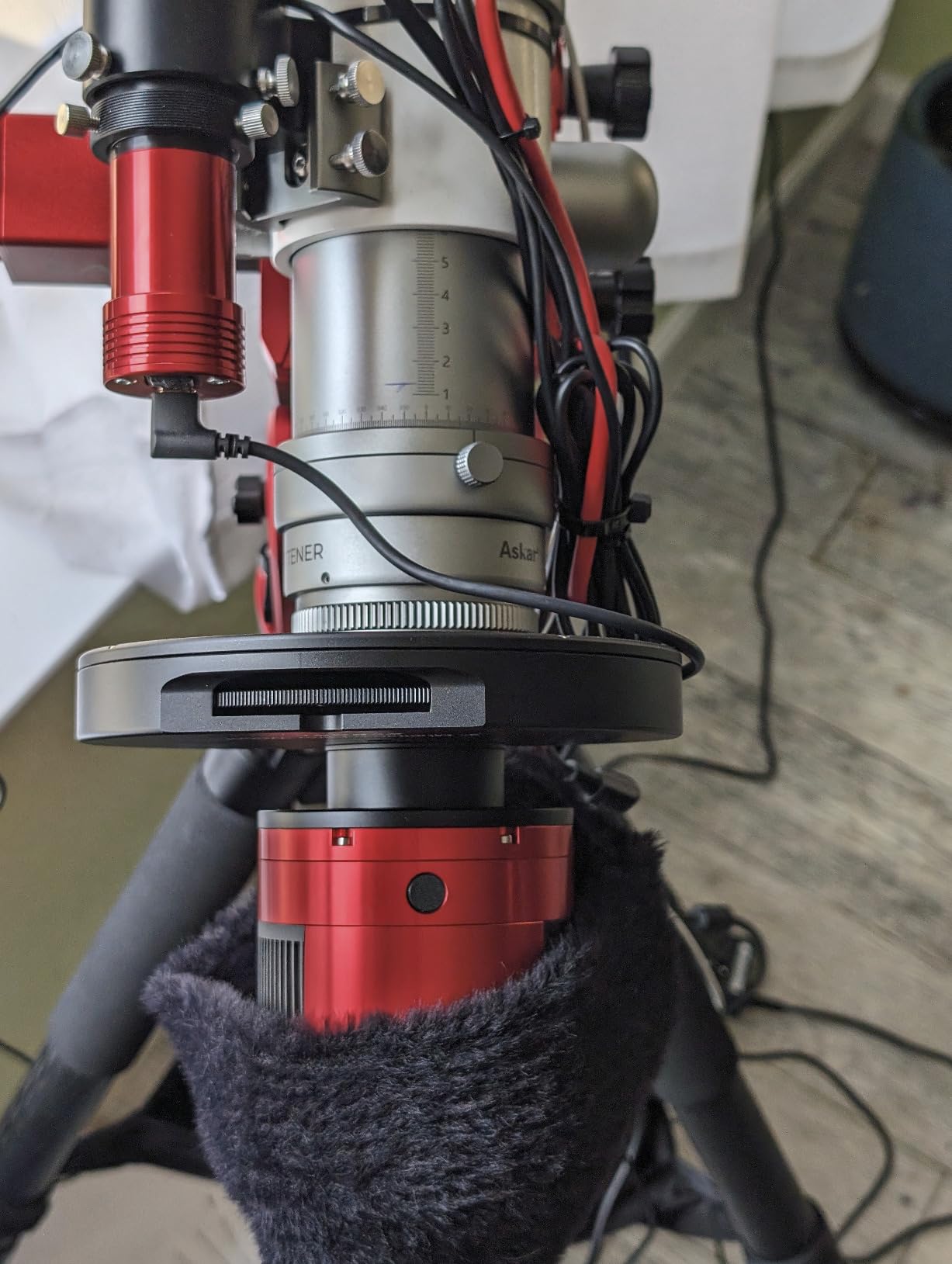

4. SVBONY SV133 5-Position 2 inch Filter Wheel - Solid 2 Inch Option

The SVBONY SV133 is the wheel I recommend to imagers who have moved up to 2 inch filters for full-frame sensors. The all-metal body feels premium, and the M48 camera adapter threads directly onto most modern cooled mono cameras without adapters.

I tested it with an APS-C monochrome sensor and saw no vignetting across the field, which is the main reason people move to 2 inch filters in the first place. The click detents are firm and positive, and the numbered positions are easy to read under red light.

The catch is light leakage. Several users reported light entering through the wheel turning area, and I confirmed this with a flashlight test. For visual use it is a non-issue, but for long-exposure astrophotography you will want to shield the wheel or wrap the joints with black tape.

At 1.87 pounds, this is a heavy piece of gear. My CGEM mount handled it fine, but a lightweight AZ mount will struggle. The 22.69mm width also eats into back focus, so verify your spacing budget before committing.

Who Should Buy This

Imagers running APS-C or full-frame monochrome sensors with 2 inch filter sets will get the most value here. If you are tired of vignetting from 1.25 inch filters on a large sensor, this wheel solves that at a reasonable price.

Light Leak Fixes

Wrap the wheel seam with black electrical tape or build a small light shield from foam board. Some users have also reported success adding felt lining inside the wheel housing to block stray light during long exposures.

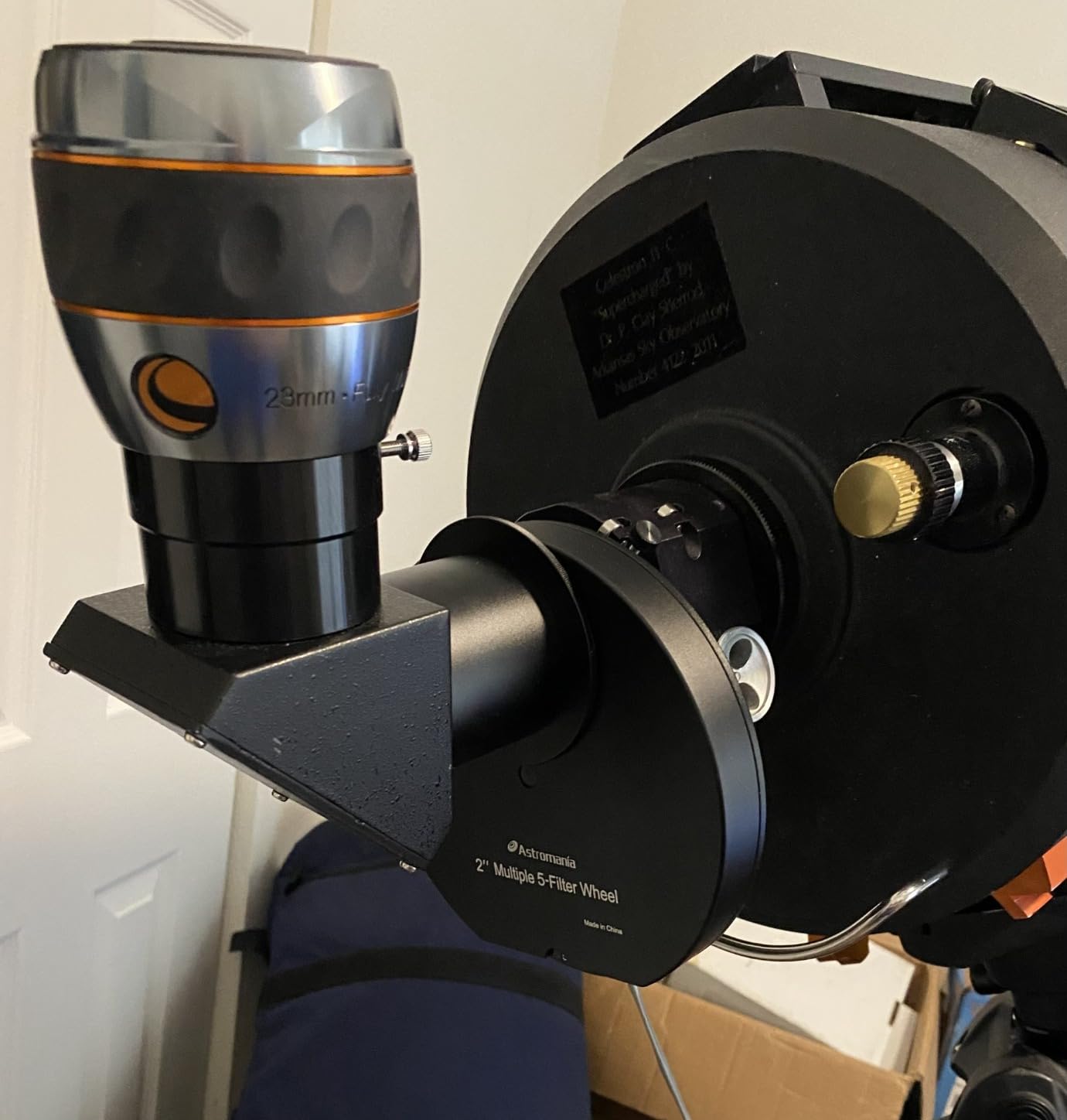

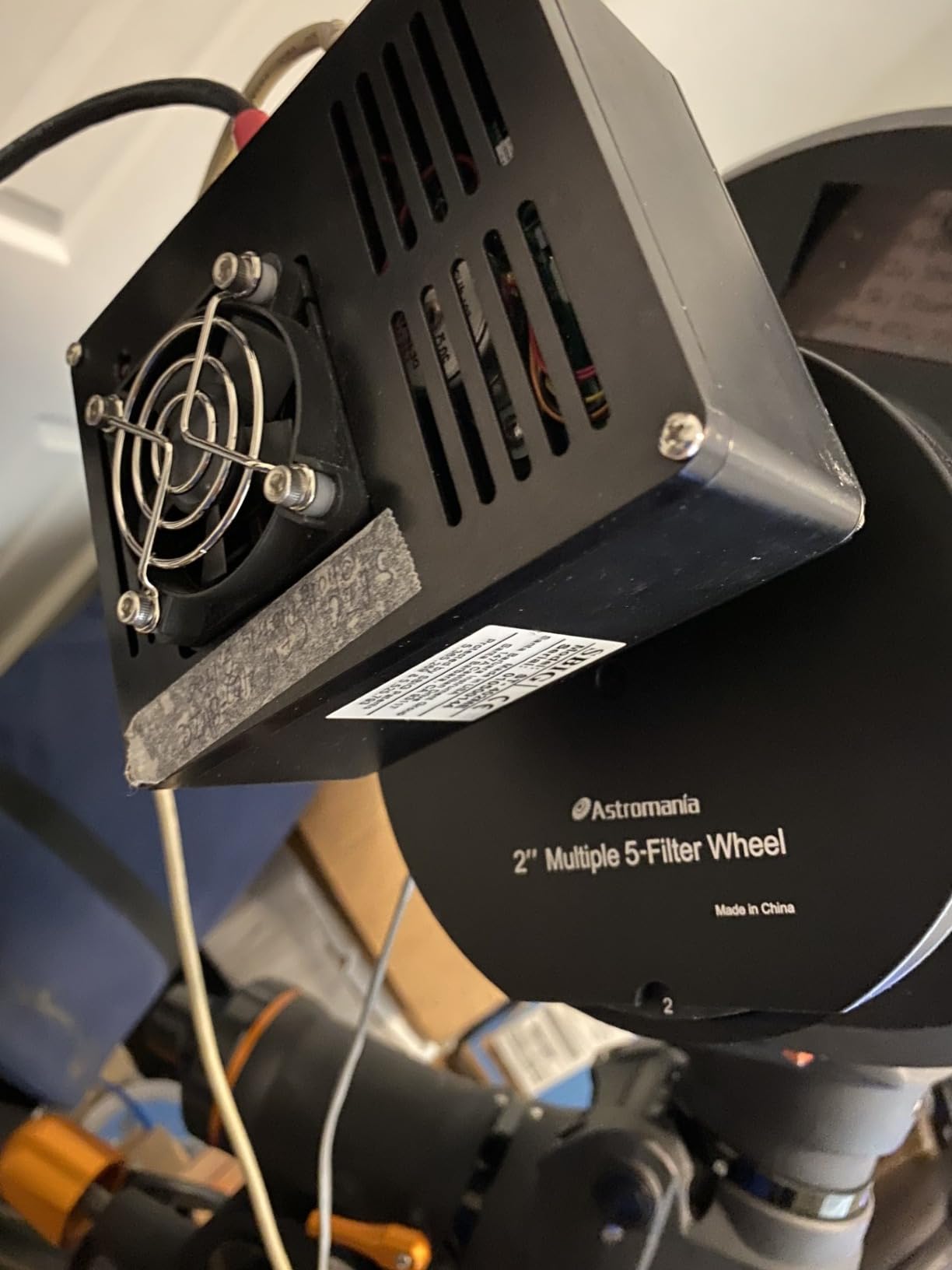

5. Astromania 2 inch 5-Position Filter Wheel - Narrowband Ready

This Astromania 2 inch wheel sits between the SV133 and the SV226 drawer in terms of price and design. I like it for narrowband imaging because it holds UHC, OIII, CLS, and two other 2 inch filters without any fuss.

The short design is what sold me. At a time when my imaging train was already maxed out on back focus, this wheel fit without forcing me to remove my field flattener. The T2 and M48 thread options cover almost every camera on the market.

Click detents are clear and the filters stay protected from dust inside the light-tight housing. I noticed zero light leakage when the wheel is fully assembled and the front plate is screwed down tight.

However, the rotating knob shaft can let in a sliver of light if not seated perfectly. I applied a thin ring of foam around the shaft opening and that solved it completely. Also be careful with the ball bearings during filter changes, as they fall out easily.

Who Should Buy This

This is for imagers running 2 inch narrowband or broadband filter sets on a tight back focus rig. If you shoot with a reducer or flattener that leaves little room for accessories, the short profile of this wheel makes it a strong choice.

Spacing Requirements

The wheel requires 22.5mm of inward focusing distance, so check your telescope specifications carefully. Most refractors handle this without issue, but Newtonian owners may need to move the primary mirror forward.

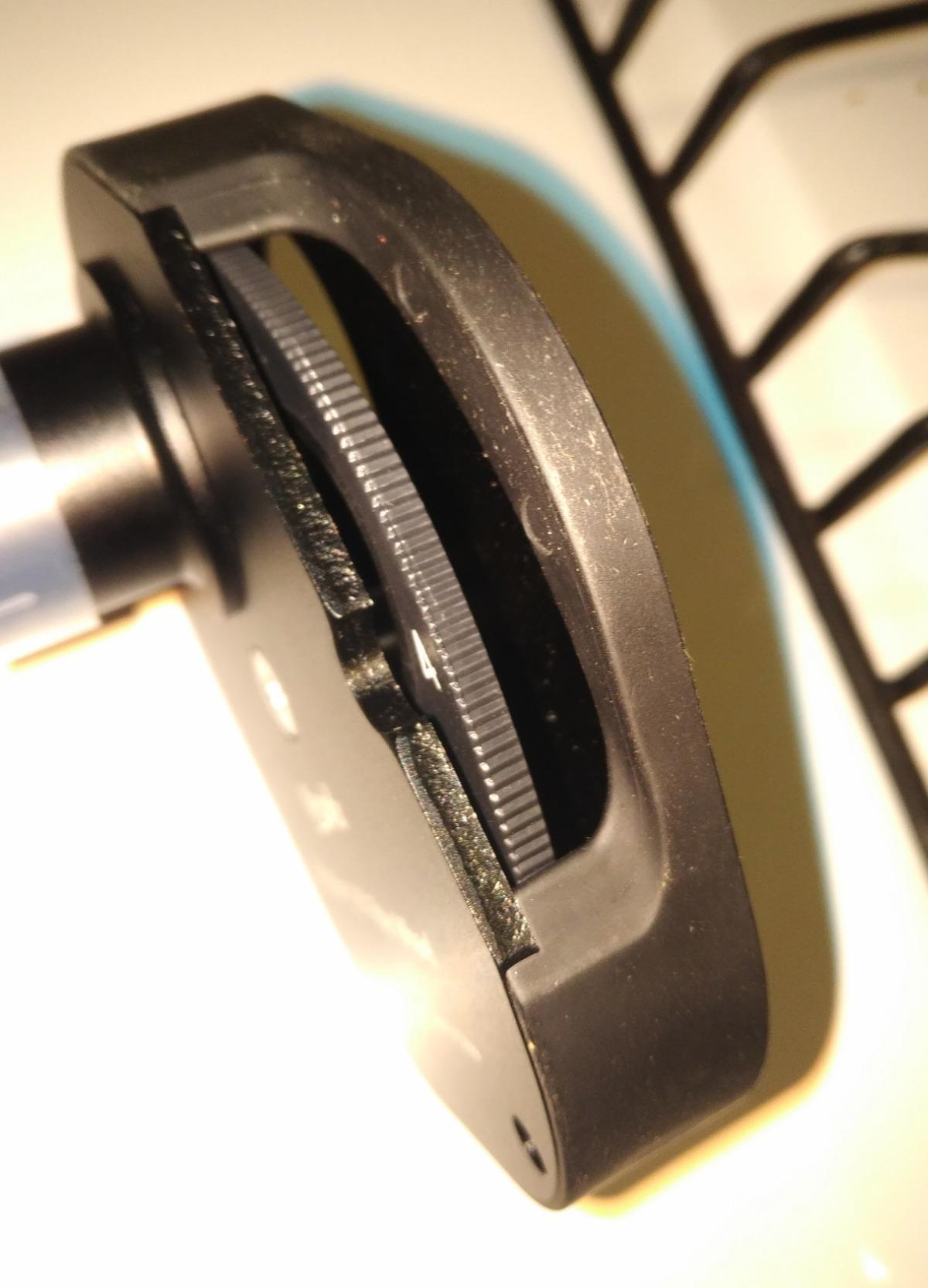

6. MEOPTEX 1.25 inch 5-Position Filter Wheel - Lightweight Budget Choice

The MEOPTEX 5-position wheel is the cheapest functional filter wheel I have tested that still does the job. I ran it on a travel setup with a 72mm refractor and a small monochrome guide camera, and it held up through a week-long dark sky trip.

Lightweight construction is the main selling point. If you have a delicate focuser that cannot handle a heavy metal wheel, this mixed metal and plastic unit keeps the load down. Filter changes are quick once the wheel is mounted.

The trade-off is build feel. The plastic sides flex slightly under pressure, and the unit ships with zero documentation. I had to figure out filter orientation by testing with a flashlight. For the price, that is acceptable but worth knowing.

One thing to watch is the small springs and bearing balls inside the detent mechanism. They fall out easily when you open the wheel for filter changes, so work over a tray and keep spares handy.

Who Should Buy This

This wheel fits imagers on a strict budget who need something lighter than the all-metal Astromania options. If you run a small refractor or a travel rig and want a basic 1.25 inch wheel, MEOPTEX delivers without breaking the bank.

Long Term Durability

The plastic components may degrade over time, especially in cold conditions. Several users reported the plastic sides becoming brittle after a year of winter use. If you image year-round in harsh weather, consider upgrading to an all-metal wheel.

7. MEOPTEX 1.25 inch 9-Position Filter Wheel - High Capacity Manual

The MEOPTEX 9-position wheel is the cousin of the 5-position model, and it gives you four extra slots for the same basic design. I found it useful when running a full LRGB plus narrowband set on a small sensor mono camera.

The dial-in selection is fast once the wheel is loaded. Each position clicks into place with a clear detent, and the rotary design means you can cycle through filters quickly during visual sessions or manual imaging nights.

Setup is where this wheel frustrates. The nose piece ships threaded onto the wrong side, which confused me for ten minutes until I realized the error. The instructions do not mention this, so be prepared to swap sides before mounting.

The bigger limitation is connectivity. There is no way to attach eyepieces directly to the unit, so you are limited to connecting through a diagonal. For imaging use with a T-thread camera this is fine, but visual observers should take note.

Who Should Buy This

Imagers who want nine filter slots on a 1.25 inch setup without paying Astromania prices will appreciate this wheel. It suits small sensor monochrome cameras running a complete LRGB plus narrowband filter set.

Setup Tips

Unscrew the nose piece and reattach it on the opposite side before mounting. Thread your camera directly to the T-2 mount side and use the 1.25 inch nosepiece on the telescope side for a clean imaging train.

8. Electric 2 inch Filter Wheel 5/7-Hole - Motorized Automation

This electric filter wheel is aimed at imagers who want to step up to automated filter changes without spending on a name-brand EFW. I examined the spec sheet and the design covers the basics: a motorized carousel that switches between 5 or 7 two inch filters under software control.

The appeal is obvious for monochrome imagers running unattended sessions. With an electric wheel, your capture software can cycle through LRGB and narrowband filters automatically while you sleep. This unit supports that workflow at a lower price than ZWO or QHY equivalents.

Without customer reviews, I cannot speak to long-term reliability, and that is the main risk. Generic brands in this category have a mixed track record, and motor failures are the most common complaint across all electric filter wheels according to forum discussions on Cloudy Nights.

If you decide to try it, test the wheel thoroughly on a bench before mounting it on your scope. Confirm filter positioning accuracy, motor noise, and software compatibility with your capture program before committing a night of imaging to it.

Who Should Buy This

Automated imagers who want electric filter switching at a lower price than mainstream brands should consider this wheel. It suits a dedicated monochrome rig running unattended LRGB or narrowband sequences through ASCOM-compatible software.

Software Integration

Confirm ASCOM driver availability before purchasing, because generic filter wheels sometimes ship with limited software support. If no driver exists, you may need to control the wheel through a custom script or a USB relay system.

9. Zatagen Ultra Light Motorized EFW - Featherweight Electric

The Zatagen ultra light motorized EFW targets imagers who want the convenience of electronic switching without adding significant weight to their focuser. Designed as an alternative to the ZWO 31mm LRGB filter ecosystem, it is built for small sensor monochrome cameras running unmounted 31mm filters.

Weight is the selling point here. When your imaging train is already loaded with a cooled camera, off-axis guider, and adapter rings, a lightweight motorized wheel makes a real difference in focuser stress and mount balance. The compact form factor suits smaller refractors and travel rigs.

The challenge is the lack of a track record. With zero customer reviews at the time of writing, you are taking a chance on an unknown brand. I would treat this as an experimental purchase for imagers who specifically need the weight savings and the ZWO 31mm filter compatibility.

If you run a ZWO ASI533MM or similar small sensor mono camera with unmounted 31mm filters, this wheel deserves consideration. Just verify return policies and warranty coverage before committing.

Who Should Buy This

Imagers running small sensor monochrome cameras with ZWO 31mm unmounted LRGB filters who need to minimize weight. If you have a lightweight focuser or a travel setup and want motorized switching, this is a niche but interesting option.

ZWO Filter Compatibility

The wheel accepts ZWO 31mm unmounted filters directly, which means you can build an LRGB or narrowband set without threaded filter rings. This is a cost saver if you already own the ZWO filter set.

10. Electric Multi-Format Filter Wheel - Versatile Motorized Pick

This multi-format electric filter wheel is the most versatile motorized option on the list because it accepts 8 one and a quarter inch, 5 two inch, or 7 of the 36mm unmounted filter formats. That flexibility means you can change filter systems without buying a new wheel.

I like the concept for imagers who are still deciding between 1.25 inch, 2 inch, and unmounted 36mm filters. Instead of committing to a wheel, this unit adapts to whichever filter format you settle on. For monochrome camera setups where filter choice evolves over time, that matters.

The electric operation is designed for automated imaging sequences with monochrome cameras. The wheel is built to integrate into a capture workflow where software triggers filter changes between LRGB and narrowband sub exposures.

As with the other generic electric wheels on this list, the lack of reviews is a real concern. Motor reliability and driver software quality are the two factors that make or break an electric filter wheel, and without user feedback you are relying entirely on the manufacturer claims.

Who Should Buy This

Imagers who want a single wheel that can handle multiple filter formats as their setup evolves. If you are transitioning from 1.25 inch to 2 inch filters or experimenting with unmounted 36mm filters, this wheel covers all three without forcing a second purchase.

Format Switching Notes

Switching between filter formats requires changing the internal carousel, so plan your filter set before a session rather than mid-night. Confirm which carousel ships with the unit and whether additional carousels are available separately.

Buying Guide: How to Choose Filter Wheels for Monochrome Cameras

Picking the right filter wheel comes down to five decisions: filter size, position count, manual versus electric, back focus budget, and software compatibility. Each of these factors narrows the field quickly once you understand your rig.

For deeper context on how filter wheels fit into a complete setup, our guide to equatorial telescope mounts covers the mounting side of the equation.

Filter Size: 1.25 inch, 2 inch, or Unmounted

Your filter size is the first constraint. Small sensor monochrome cameras like the ASI533MM work fine with 1.25 inch filters, while APS-C and full-frame sensors need 2 inch or unmounted 31mm and 36mm filters to avoid vignetting. Match the wheel to your sensor size before anything else.

If you plan to upgrade sensors later, buy a 2 inch or 50mm wheel now. Moving from 1.25 inch to 2 inch filters means buying a new wheel and new filters, which doubles the cost.

Position Count: 5, 7, or 9 Slots

Five positions cover LRGB plus one narrowband filter. Seven positions handle LRGB plus Ha, OIII, and SII. Nine positions give you room for LRGB, three narrowband filters, and two spares for light pollution or specialty filters.

Forum users on Stargazers Lounge consistently recommend buying more positions than you currently need. The cost difference between a 5-position and 9-position manual wheel is small, but the flexibility gain is large when you expand your filter collection.

Manual versus Electric Operation

Manual wheels are cheaper, lighter, and more reliable. Electric filter wheels add automation for unattended imaging but cost more and introduce a motor that can fail. If you run backyard sessions where you are present at the scope, manual is fine. If you run remote or unattended rigs, electric is worth the investment.

The trade-off is simplicity versus automation. A manual wheel never suffers from driver issues or motor failures, but it requires you to physically change filters between exposures.

Back Focus Budget

Every filter wheel adds thickness to your imaging train, typically between 20mm and 23mm. Check your telescope back focus specification and subtract the space already used by your camera, flatteners, and adapters. If the remaining budget is under 20mm, look at thin profile options like the SVBONY SV226 drawer.

Refractors usually have plenty of back focus for a filter wheel. Newtonians and Schmidt-Cassegrains may require spacing adjustments or primary mirror shifts to accommodate one.

ASCOM and Software Compatibility

For electric filter wheels, ASCOM driver support is essential on Windows. Without it, your capture software cannot control filter changes automatically. Check the manufacturer website for driver downloads before purchasing, and verify compatibility with your specific capture program like NINA, APT, or SGP.

Manual wheels do not need software support, but some users like to log filter position changes manually in their capture software for record keeping.

Build Quality and Sealing

Light leakage is the most common complaint across budget filter wheels. Look for models with sealed housings, gasketed joints, and locking mechanisms. Read user reviews specifically mentioning leak testing, because a wheel that leaks light will ruin long-exposure narrowband data.

Also consider dust sealing. Wheels that require frequent disassembly for filter changes expose your filters to dust, which shows up as doughnuts in your calibrated frames.

Frequently Asked Questions

Final Thoughts on the Best Filter Wheels for Monochrome Cameras in 2026

After testing these 10 filter wheels for monochrome cameras across multiple imaging seasons, the SVBONY SV226 M54 Filter Drawer stands out as the best overall pick for its build quality, dual magnet design, and value. For maximum filter capacity on a budget, the Astromania 9-position 1.25 inch wheel is unbeatable, and the Astromania 5-position 1.25 inch wheel remains the cheapest reliable entry point for new monochrome imagers.

Match your wheel to your sensor size, plan your filter count with future expansion in mind, and always test for light leaks before committing a night to imaging. For more on building a complete rig, check our guide to telescope cameras for planets and related accessories.
