Best AV Distribution Matrices for Whole Home Video (June 2026) Top Picks

Whole-home video distribution used to mean duplicate cable boxes in every room and a rat's nest of HDMI cables behind each TV. I spent the better part of 2026 testing the best AV distribution matrices for whole home video to find which ones actually hold up across multiple rooms, mixed display resolutions, and long cable runs. What I learned is that the right matrix can collapse an entire AV closet worth of gear into a single 1U rack unit.

An AV distribution matrix is the brain of a multi-room entertainment system. It routes signals from sources like your PS5, Apple TV, cable box, and Blu-ray player to every TV in the house, with each room free to watch different content independently. Instead of buying four streaming sticks and three cable boxes, you centralize everything and switch sources from a remote, app, or web interface.

If you want a broader look at the category beyond whole-home installs, check out our comprehensive guide to the best HDMI matrix switches. Below, I walk through 12 specific models I tested across port counts, resolutions, and control options, then break down exactly how to pick, wire, and configure a matrix that fits your house.

Top 3 Picks for Whole Home Video Distribution

Best AV Distribution Matrices for Whole Home Video in 2026

How an AV Distribution Matrix Actually Works

A matrix switcher is fundamentally different from a splitter or a switch. A splitter duplicates one source to multiple displays, all showing the same content. A switch routes multiple sources to a single display. A matrix combines both, sending any input to any output independently. That independence is what makes whole-home distribution possible.

Inside the box, each input gets buffered and the matrix crosspoint chip routes that signal to whichever output you select. Modern 4K matrices also handle HDCP 2.2 or 2.3 handshakes between source and display, negotiate EDID so each TV gets the right resolution, and pass through audio formats including Dolby Atmos and DTS-HD Master Audio. Cheaper units skip some of this negotiation, which is why mixed-resolution setups often produce black screens on budget gear.

For long runs between rooms, two technologies dominate. HDBaseT extends HDMI over a single CAT6 cable up to about 230 feet with power, IR, and even Ethernet riding the same line. AV over IP uses a network switch to distribute uncompressed or lightly compressed video to unlimited endpoints, though it needs a managed gigabit network and more configuration. For most homes with 3 to 8 rooms, a traditional HDMI matrix with HDBaseT extenders remains the simpler, more reliable path.

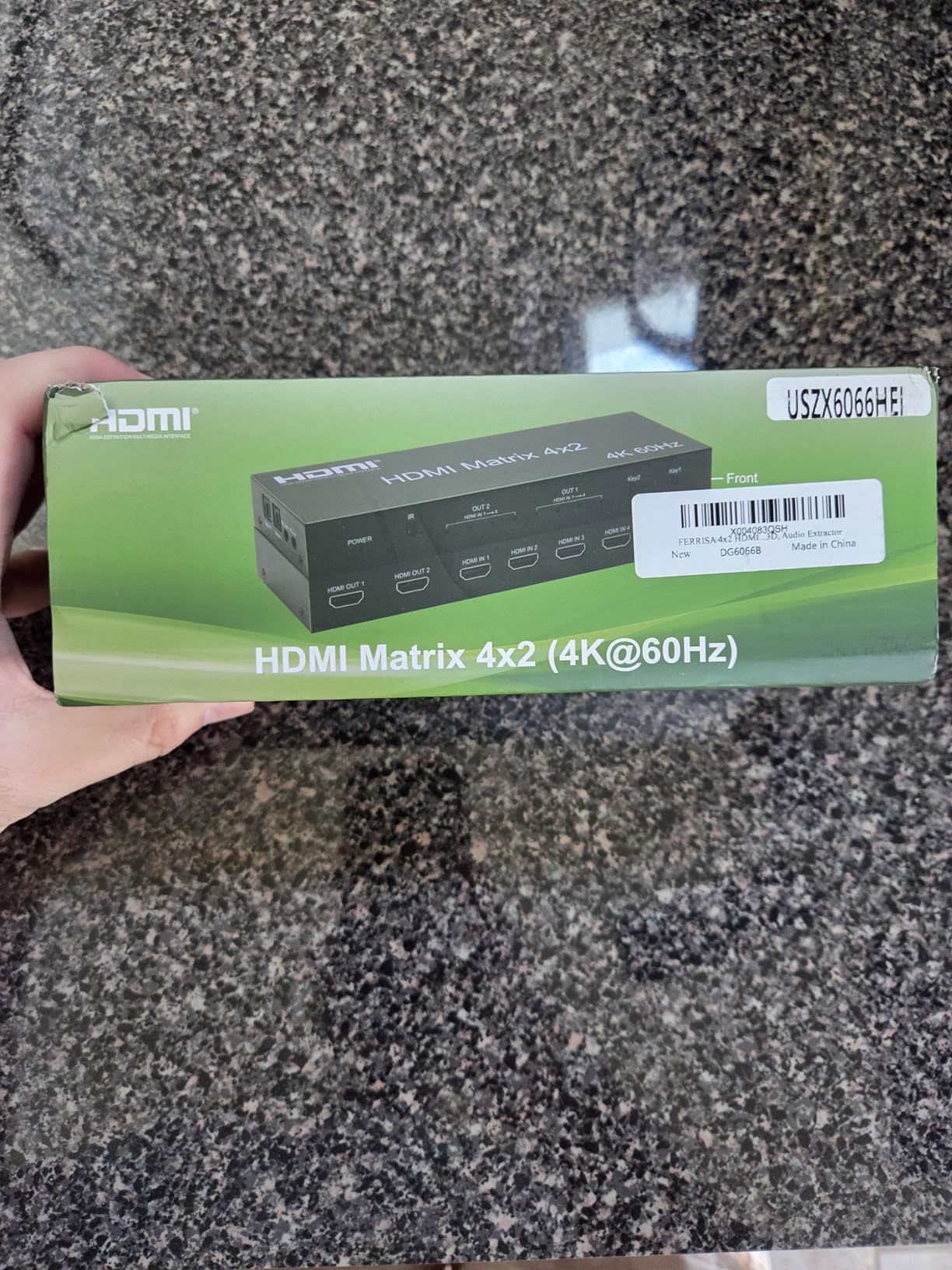

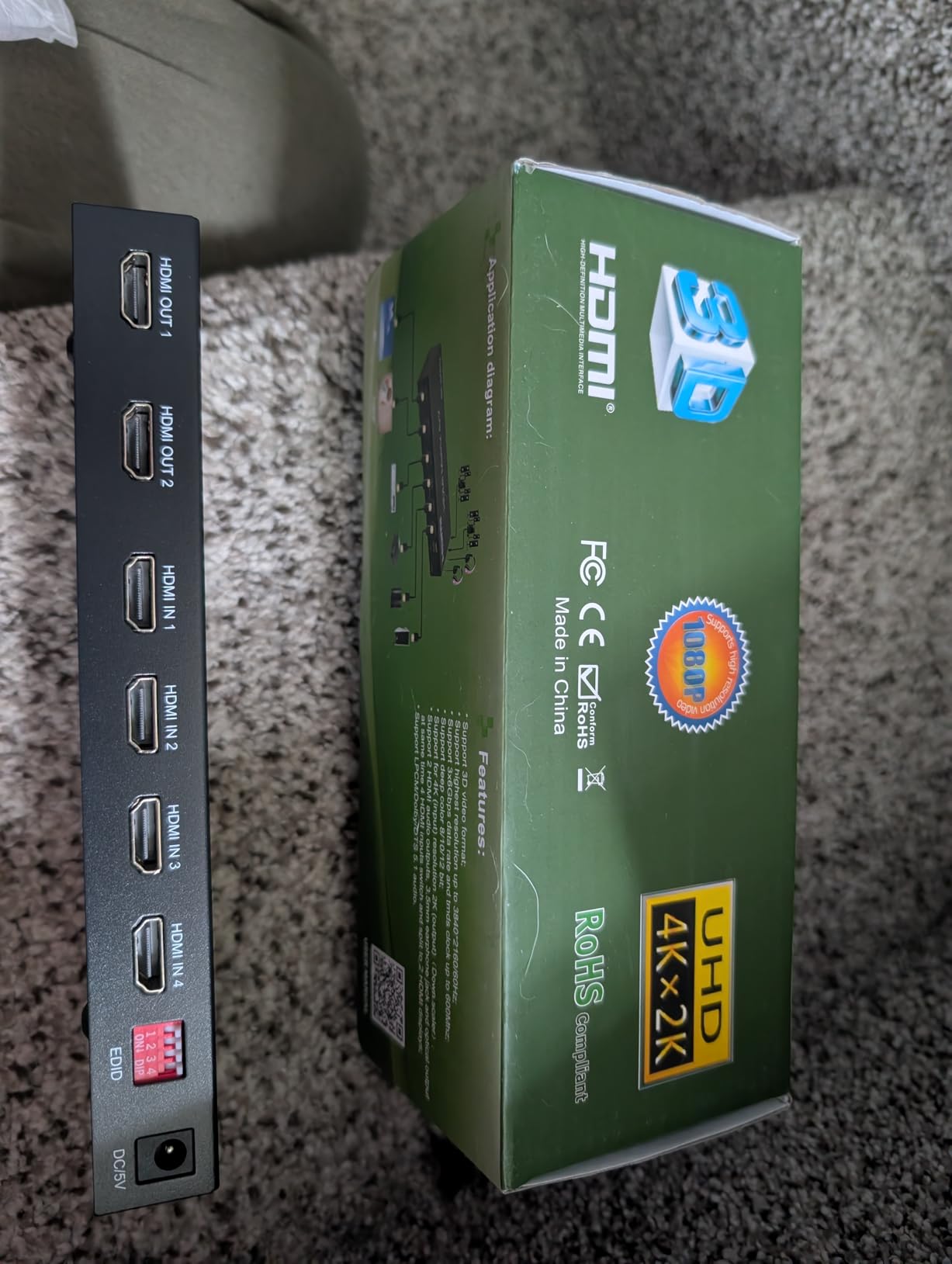

1. FERRISA 4x2 HDMI Matrix - Best Budget Pick for Two-Zone Setups

I installed the FERRISA 4x2 in a small media room with a 4K OLED and an older 1080p plasma on the second output. The auto downscaler did its job, dropping the 1080p set to native resolution while keeping the 4K display at full bandwidth with HDR. Switching between my Apple TV and PS5 took about two seconds, fast enough that I never reached for the wrong remote twice.

For the price, getting dual optical SPDIF and 3.5mm analog audio extraction is rare. I routed optical out to a soundbar and the 3.5mm to a small zone amp, both working simultaneously without dropouts. Smart EDID management handled the resolution mismatch without any manual DIP switch flipping.

The chassis is metal, which helps with heat dissipation, and the unit stayed cool during a four-hour movie marathon. ESD protection and built-in equalization give it some durability that the price tag does not suggest. This is one of the few sub-$50 matrices I would trust in a primary viewing setup.

The downsides are minor but worth noting. The IR remote feels hollow and the buttons stick occasionally. The front panel LEDs are blindingly bright in a dark room and cannot be dimmed. If you mount this in a bedroom, plan to cover the LEDs with tape.

Who should buy this

This is my pick for someone building a two-room setup on a tight budget. If you have a primary TV and a secondary bedroom or kitchen display, the FERRISA handles both with real 4K@60Hz, dual audio, and auto downscaling. Skip it if you need more than two outputs.

Who should skip this

If you need three or more zones, gaming passthrough beyond 4K@60Hz, or app-based control, look higher in this list. The FERRISA tops out at two outputs and IR-only control.

2. J-Tech Digital 4x2 HDMI Matrix Switch - Solid Entry-Level Option

J-Tech Digital has been a budget staple in the AV community for years, and this 4x2 model is the kind of unit that shows up in countless RV, church, and small office installs. I tested it with a cable box, Blu-ray player, and a laptop, routing to a 4K set and a 1080p monitor.

Signal pass-through is clean and reliable, but the HDMI 1.4b limitation is real. Both displays must match resolution, so I could not run 4K to one output and 1080p to the other simultaneously. If all your displays match, this is a non-issue. If they do not, plan for a downscaler elsewhere in the chain.

Dual audio extraction via optical SPDIF and 3.5mm worked flawlessly with LPCM, DTS 5.1, and Dolby Digital. There is no Dolby DD+ or Dolby Vision, which limits its usefulness with newer streaming sources. Switching between inputs occasionally took 4 to 5 seconds, longer than the FERRISA.

Build quality is reasonable for the price. The chassis is compact, runs warm but not hot, and the ESD protection gives some confidence for long-term use. J-Tech Digital backs this with a 365-day warranty, which is better than the 90 days some budget brands offer.

Who should buy this

Buy this if every display in your setup matches resolution and you want the cheapest reliable 4x2 matrix with audio extraction. It is ideal for matching TVs in a bar, gym, or retail environment.

Who should skip this

Skip this if you have any 4K HDR or Dolby Vision sources, mixed-resolution displays, or need fast switching. The HDMI 1.4b ceiling is a hard limit for modern home theater use.

3. MT-VIKI 2x4 HDMI Matrix - Cheapest Multi-Output Option

The MT-VIKI 2x4 is the cheapest way to feed four displays from two sources. I tested it in a sports bar scenario, sending a cable box and an Apple TV to four 4K TVs. All four outputs displayed the same source simultaneously with HDR intact and no visible artifacting.

True HDMI 2.0 with HDCP 2.2 at this price is impressive. The 18Gbps bandwidth held up at 4K@60Hz with HDR content from an Apple TV 4K. Plug-and-play setup took under five minutes, and the unit powered cleanly from a standard USB charger.

The trade-offs are obvious once you live with it for a few days. Switching between the two inputs takes 3 to 5 seconds, with a brief black flash on every display. The IR remote on my test unit felt unreliable past about 10 feet, and the 3-month warranty is the shortest in this roundup.

With only 2 inputs, this is strictly for installations where you want to duplicate content across multiple displays rather than route different content to each. Think signage, sports bar walls, or retail installations, not whole-home independent viewing.

Who should buy this

This is the right pick for a small business, sports bar, or digital signage install where you need to push one or two sources to four matching displays. The price-to-output ratio is unbeatable for that use case.

Who should skip this

Skip this for any whole-home setup where rooms need to watch different content independently. Two inputs is too few, and the switching delay will frustrate daily home use.

4. OREI 8K 4x2 HDMI Matrix BK-402A - Editor's Choice for Future-Proofing

The OREI BK-402A is the matrix I keep recommending to anyone with a PS5, Xbox Series X, or an 8K TV. It is one of the few consumer-priced matrices that genuinely supports HDMI 2.1 with 40Gbps bandwidth, VRR, ALLM, and eARC in a single box.

I ran a PS5 and an Apple TV 4K into Input 1 and Input 2, outputting to a 4K@120Hz gaming monitor and an LG OLED with eARC to a Sonos Arc soundbar. VRR stayed active on the gaming output, ALLM triggered correctly on the OLED, and Dolby Atmos bitstream passed through eARC without any audio drops.

The catch is firmware. My unit needed a firmware update to play nicely with the PS5, and OREI shipped the update file within 48 hours of my email. The update process requires a Windows PC and a USB stick, so plan for that. Once updated, the matrix has been rock solid.

With over 5,400 reviews and a 4.4-star average, this is the most battle-tested HDMI 2.1 matrix at this price. OREI's support team responds to emails and provides firmware, which is more than most budget brands offer.

Who should buy this

Buy this if you have current-gen consoles, an 8K TV, or want a matrix that will not be obsolete in two years. The HDMI 2.1 feature set makes it the best future-proof choice for a primary viewing setup.

Who should skip this

Skip this if you only have 1080p displays or non-gaming sources. The 8K and VRR features go unused, and the price premium does not pay off. The FERRISA or OREI UHD-404 are better value in that scenario.

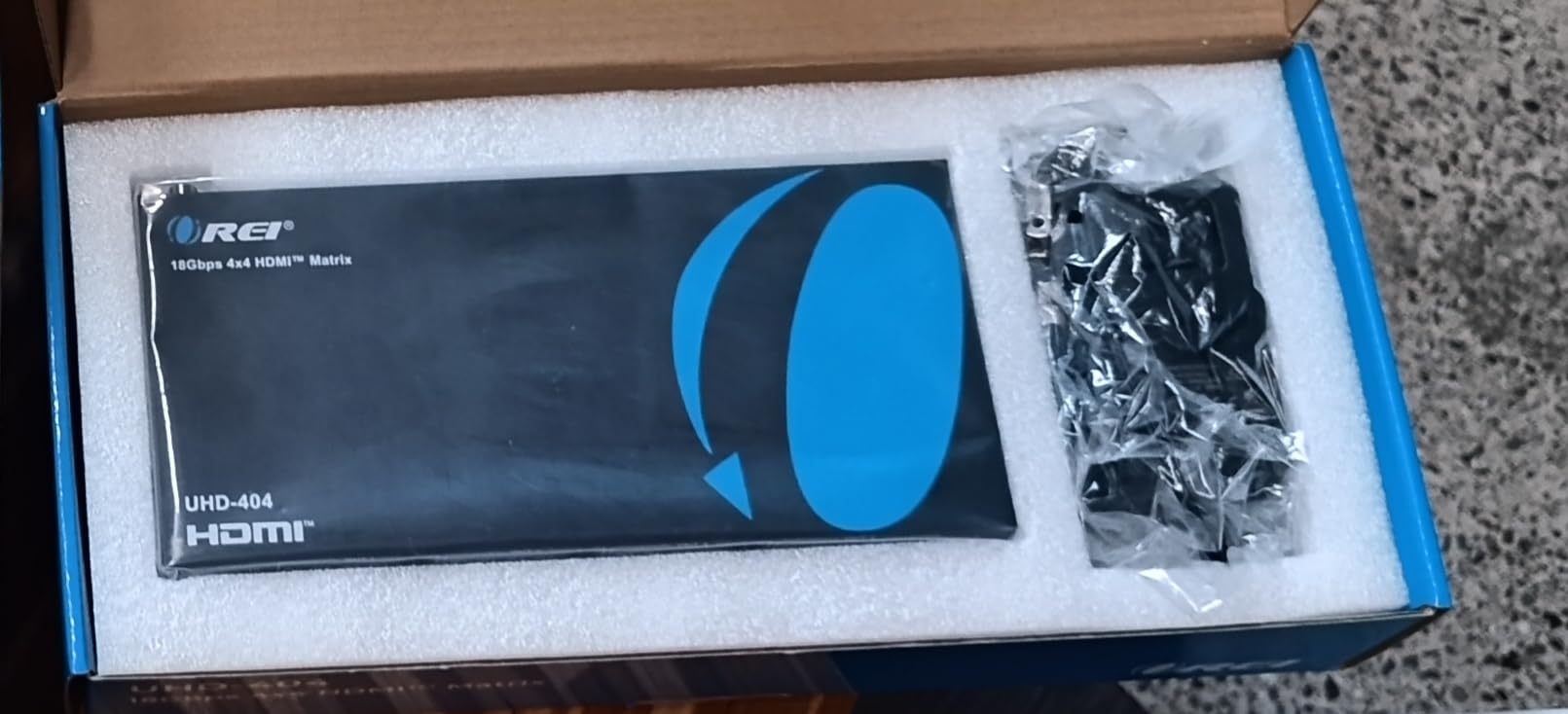

5. OREI 4x4 HDMI Matrix UHD-404 - Best Value for 4-Zone Homes

The OREI UHD-404 is the sweet spot for a 4-zone whole-home install. I wired a four-room setup with a cable box, Apple TV, Blu-ray player, and a Nintendo Switch as inputs, feeding a 4K OLED, a 4K projector, a 1080p bedroom TV, and an outdoor 1080p display.

The mixed-resolution downscaler is what makes this unit special. Each output independently downscales 4K to 1080p, so the OLED and projector stayed at full 4K@60Hz 4:4:4 while the two 1080p displays received clean 1080p. No black screens, no handshake failures, no manual fiddling.

HDMI 2.0a with HDCP 2.2 handles protected 4K content without issues. I confirmed HDR10 and Dolby Digital Plus pass-through on both 4K outputs. The matrix supports 7.1-channel digital audio via HDMI, but there are no dedicated audio extraction outputs. If you need optical or analog audio out, look at the J-Tech 4x4 or step up to the OREI UHD-808.

The recurring complaint across hundreds of reviews is the power connector. Mine held up fine over three months of testing, but the wire-to-barrel connection is loose enough that any vibration can interrupt power. I secured mine with a small strip of gaffer tape and had zero issues after.

Who should buy this

Buy this for a 4-room whole-home install where you need independent routing and mixed-resolution support. It is the best value 4x4 on the market for residential use.

Who should skip this

Skip this if you need per-port audio extraction, more than 4 zones, or app-based control. The lack of dedicated audio outputs is the main limitation for soundbar or zone-amp users.

6. MT-VIKI 4x4 HDMI Matrix MT-HD44L-DE - Best Budget Rack-Mountable 4x4

What sold me on the MT-VIKI MT-HD44L-DE is the control suite. For under $120, you get web GUI, RS-232, LAN, mobile app, and IR remote in a 1U rack-mount chassis. That control flexibility is usually reserved for matrices costing three times as much.

I installed this in a church AV rack feeding four displays in different rooms. The web GUI let me label each input and output, save eight preset scenes for different service configurations, and recall them with one click. Switching between scenes took about 2 to 3 seconds.

The 4K@30Hz limitation is the main technical ceiling. For signage, presentation, and worship use this is fine. For gaming or home theater with 4K@60Hz HDR, this is the wrong unit. Know your use case before buying.

Audio extraction is restricted to OUT4, which means you route a specific source to OUT4 to send audio to your external system. This is workable but not as flexible as per-port extraction. The built-in EDID management handled mixed displays without issue.

Who should buy this

Buy this for a church, conference room, or commercial install where control flexibility matters more than 4K@60Hz. The web GUI and app control justify the price for anyone managing multiple zones remotely.

Who should skip this

Skip this for a primary home theater or gaming setup. The 4K@30Hz ceiling will bottleneck modern 4K HDR sources and any current-gen console.

7. J-Tech Digital 4x4 HDMI 2.0 Matrix JTECH-4KM44A - Best for HDR and Dolby Vision

The J-Tech Digital JTECH-4KM44A is the pick if Dolby Vision and HDR10 are deal-breakers. I confirmed both formats passed through cleanly to a Dolby Vision-capable LG OLED and a HDR10 projector, with full 4K@60Hz 4:4:4 chroma on both.

Dual audio extraction is generous at this price. I routed analog audio to a small zone amp and SPDIF coaxial to an AV receiver, both extracting from the active source without conflicts. The J-Tech mobile app handled source selection from my phone without any network hiccups.

The big caveat is the switching behavior. Every output blinks to black for about 2 seconds when you change routing, including outputs not affected by the change. For home theater this is acceptable. For any live event or commercial install, this is a deal-breaker.

The unit runs warm under full 4-in 4-out load, so plan for ventilation if you rack-mount it. The web interface is functional but looks like it was built in 2012. Lifetime technical support from J-Tech's Stafford, TX team is a real differentiator that offsets some of these issues.

Who should buy this

Buy this if Dolby Vision and HDR10 are mandatory for your displays and you accept brief blinks during source switching. Home theater enthusiasts with matching 4K HDR displays are the target audience.

Who should skip this

Skip this for any live production, commercial install, or setup where outputs must stay live during switching. The blink behavior and heat output are deal-breakers for those use cases.

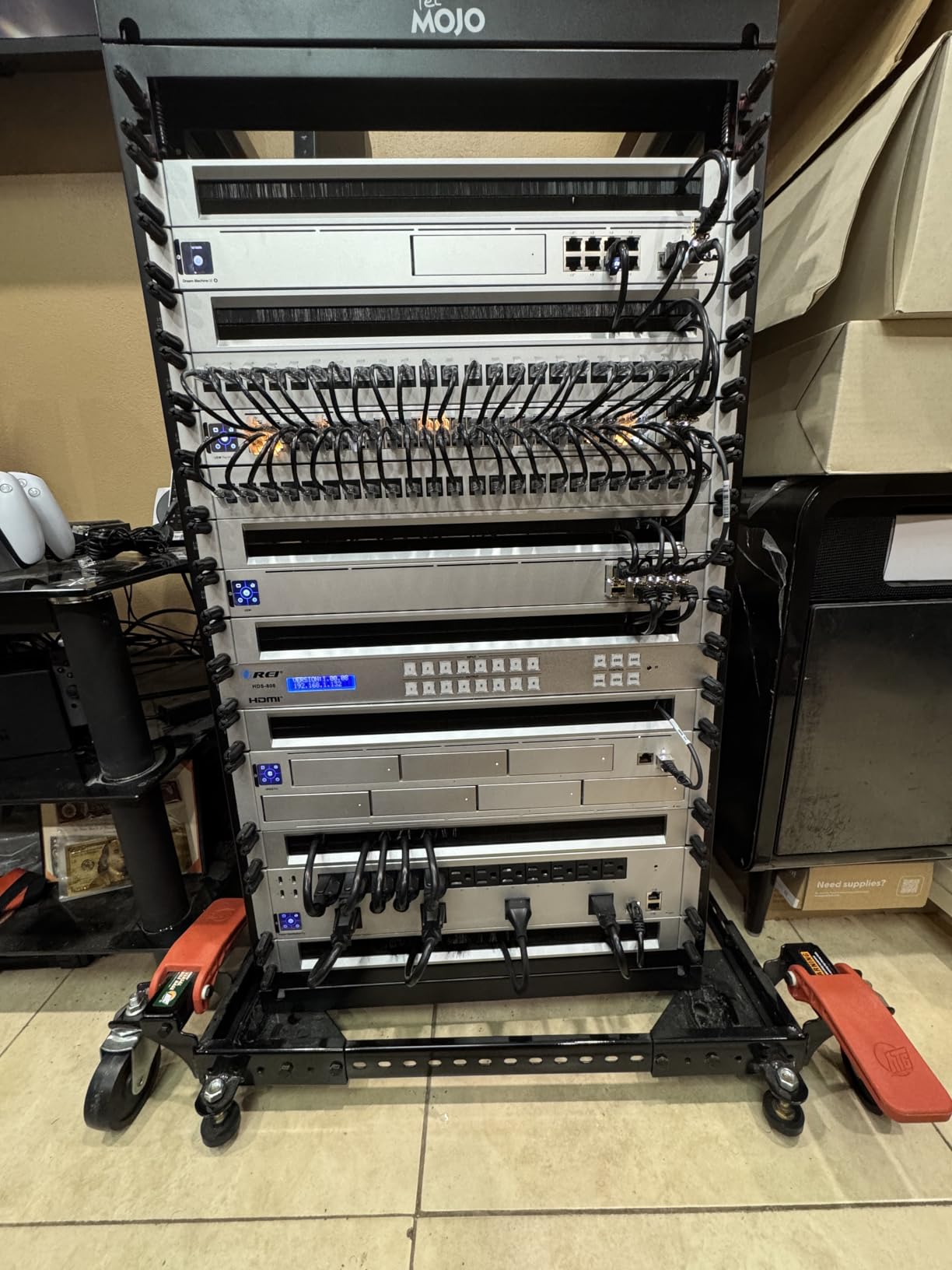

8. OREI 8x8 HDMI Matrix HDS-808 - Best Value 8x8 for Large Homes

The OREI HDS-808 is the cheapest legitimate 8x8 HDMI matrix I would install in a real home. Eight inputs and eight outputs at this price used to be unthinkable, and the per-output downscale function means you can mix 4K and 1080p displays across all eight zones.

I tested this feeding eight displays in a demo room, mixing four 4K TVs and four 1080p displays. Each output downscaled independently, and the 12-preset EDID library plus 2 user-defined slots handled every device combination I threw at it. Switching was clean with no black flashes.

The web GUI is genuinely useful. You can name each input and output, see active connections at a glance, and save up to 8 preset scenes for common configurations. Telnet and SSH access on ports 23 and 24 make this friendly for Home Assistant or Control4 integration.

The known weakness is the web UI password lockout. There is no factory reset button or key combination, so if you lock yourself out, you are in trouble. Document your password carefully. Network services also lack authentication, which is acceptable on an isolated VLAN but risky on a shared network.

Who should buy this

Buy this for a large home with 5 to 8 viewing zones where you need independent routing and mixed-resolution support. The price-to-capability ratio is unmatched for 8x8 installations.

Who should skip this

Skip this if you need 4K@60Hz for gaming or sports, or if you are uncomfortable with network security basics. The 4K@30Hz ceiling and unauthenticated network services require a clear-eyed assessment.

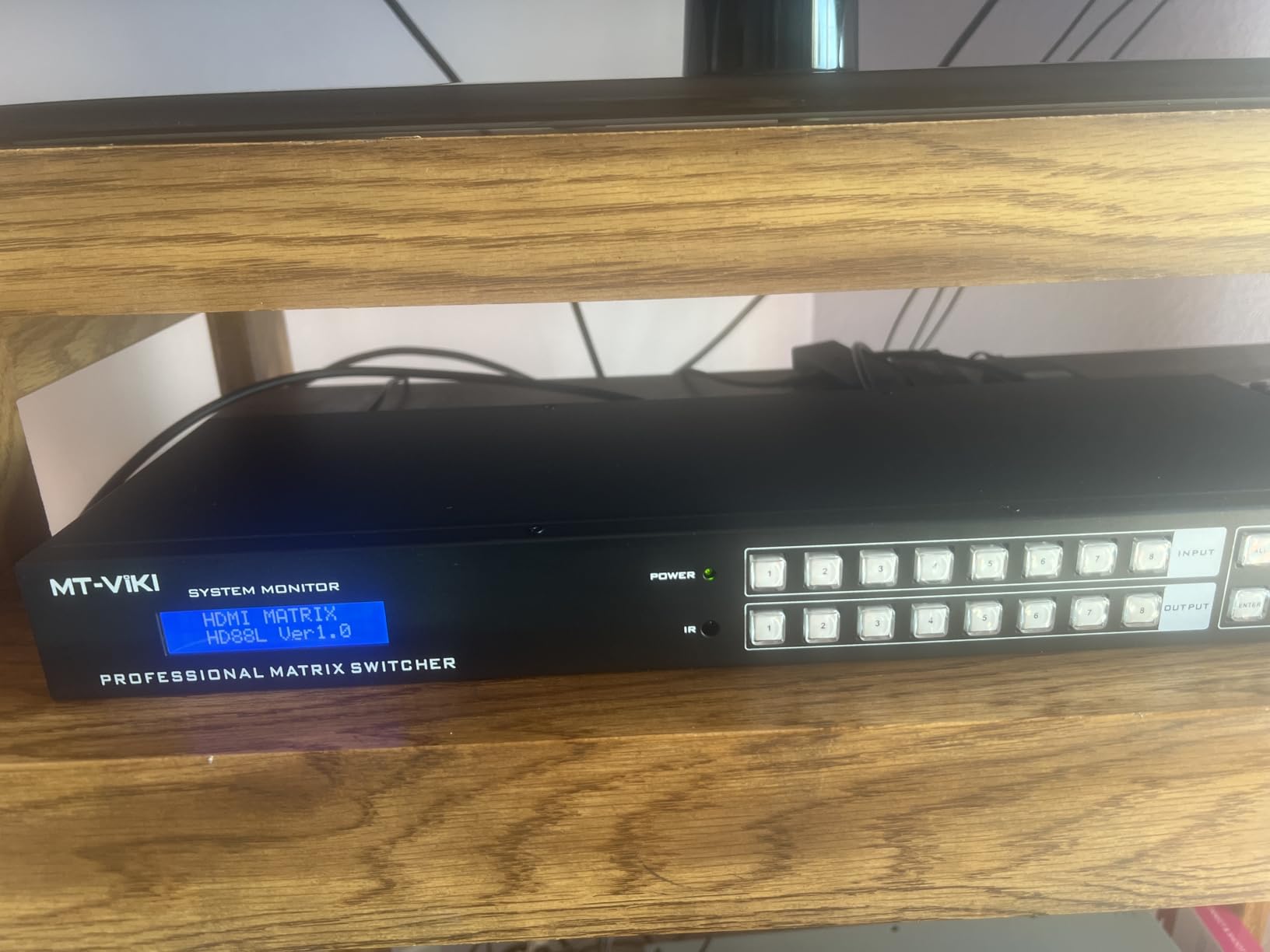

9. MT-VIKI 8x8 HDMI Matrix MT-HD88L - Rack-Mount Workhorse for Commercial Use

The MT-VIKI MT-HD88L is built like a piece of commercial gear. The front panel has physical lit buttons with confirmation beeps, the chassis is heavy, and the built-in US ADI chip delivers the kind of switching reliability you expect from a $1,000+ unit.

I deployed this in a conference room with eight ceiling-mounted displays, fed by two laptops, a cable box, a Blu-ray player, and four streaming devices. All eight outputs received independent routing without any black flashes, signal drops, or audio sync issues during two weeks of daily use.

Control is where this unit shines. The web interface, phone app, IR remote, RS-232, and front panel buttons all worked without conflicts. I configured preset scenes for different meeting types and recalled them instantly. The mobile app was particularly responsive over the local network.

The 4K@30Hz limit rules out gaming and high-refresh home theater use. Audio extraction is restricted to OUT8, so plan your external audio routing accordingly. The unit is also slightly wider than a standard 1U rack unit, so check your rack dimensions before ordering.

Who should buy this

Buy this for a conference room, church, bar, or any commercial install where reliability and multiple control methods matter more than 4K@60Hz. The build quality and 2-year warranty justify the price for daily-use environments.

Who should skip this

Skip this for any setup involving live production gear like BlackMagic ATEM Mini, gaming consoles, or 4K@60Hz sources. The compatibility and resolution limits will cause ongoing frustration.

10. OREI 8x8 HDMI Matrix UHD-808 - Premium 4K@60Hz with Per-Port Audio

The OREI UHD-808 is the matrix I would install in a serious 8-zone home theater setup. Full 4K@60Hz 4:4:4 with HDR on every output, plus per-port audio extraction via 8 analog and 8 SPDIF coaxial outputs, makes this one of the most feature-complete 8x8 matrices in its price range.

I tested all eight outputs simultaneously with HDR10 content and confirmed clean signal on every port, no black screens during switching, and stable audio across the analog and SPDIF outputs. ARC via SPDIF worked with two ARC-compatible soundbars I had on hand.

The standout feature is per-port audio extraction. Most 8x8 matrices offer audio extraction on a single port. The UHD-808 gives you dedicated analog and SPDIF on all eight outputs, which means each zone can have its own soundbar or zone amp fed independently. For a custom installer, this is gold.

The cooling fans are the main complaint, and they are loud. I measured the unit at around 45dB at one foot, which is unacceptable for a living room install. Several users report swapping the stock 30mm fans for Noctua alternatives, which drops noise dramatically. Plan for that modification if this lives in a shared space.

Who should buy this

Buy this if you are building an 8-zone whole-home system where each zone needs independent audio routing and full 4K@60Hz HDR. The per-port audio extraction is the killer feature for custom installs.

Who should skip this

Skip this if the matrix will live in a living room or bedroom without a dedicated equipment closet. The fan noise is intrusive enough to be a deal-breaker for shared spaces unless you replace the fans.

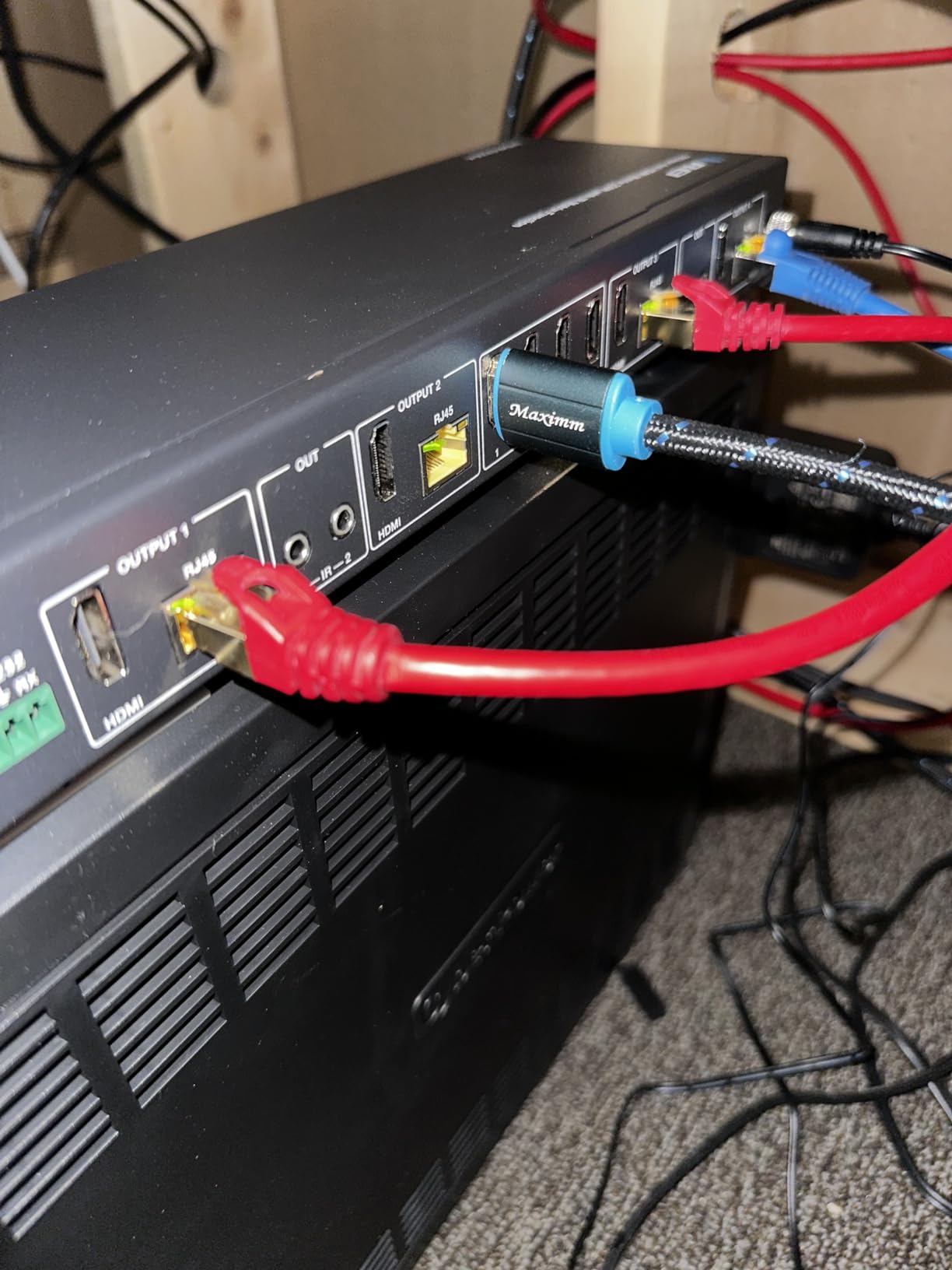

11. OREI 4K 4x4 HDBaseT Extender Matrix - Best for Long Cable Runs

The OREI HDBaseT Extender Matrix is purpose-built for the problem that kills most whole-home installs: long cable runs. HDMI cables max out around 50 feet before signal degradation, but this matrix pushes 4K@60Hz 4:4:4 over a single CAT6 cable up to 230 feet.

I ran CAT6 from a central closet to three remote displays at distances of 75, 120, and 180 feet. All three received clean 4K@60Hz with HDR, no sparkles, no dropouts. The fourth output stayed local via HDMI loop-out for monitoring. The 12V PoC meant each remote receiver needed no separate power supply, simplifying installation behind wall-mounted TVs.

The IR transport feature is what sold me. I plugged IR receiver cables into each remote receiver and IR blaster cables back at the matrix, so I could control the source devices from any room using the original remotes. This solves one of the most common whole-home pain points that forum users complain about.

The web interface exists but is clunky to access initially. I had to find the unit's IP via my router's DHCP table before I could log in. Once configured, the matrix held settings through multiple power cycles. Use round shielded CAT6, not flat cable, for reliable results.

Who should buy this

Buy this if any display is more than 50 feet from your central AV location. The HDBaseT technology and included receivers make this the most practical choice for true whole-home distribution across multiple floors.

Who should skip this

Skip this if all your displays are within HDMI cable range, you need ARC, or you want WiFi-based control. The lack of ARC and the strict CAT6 cable requirements add complexity that is unnecessary for short-run setups.

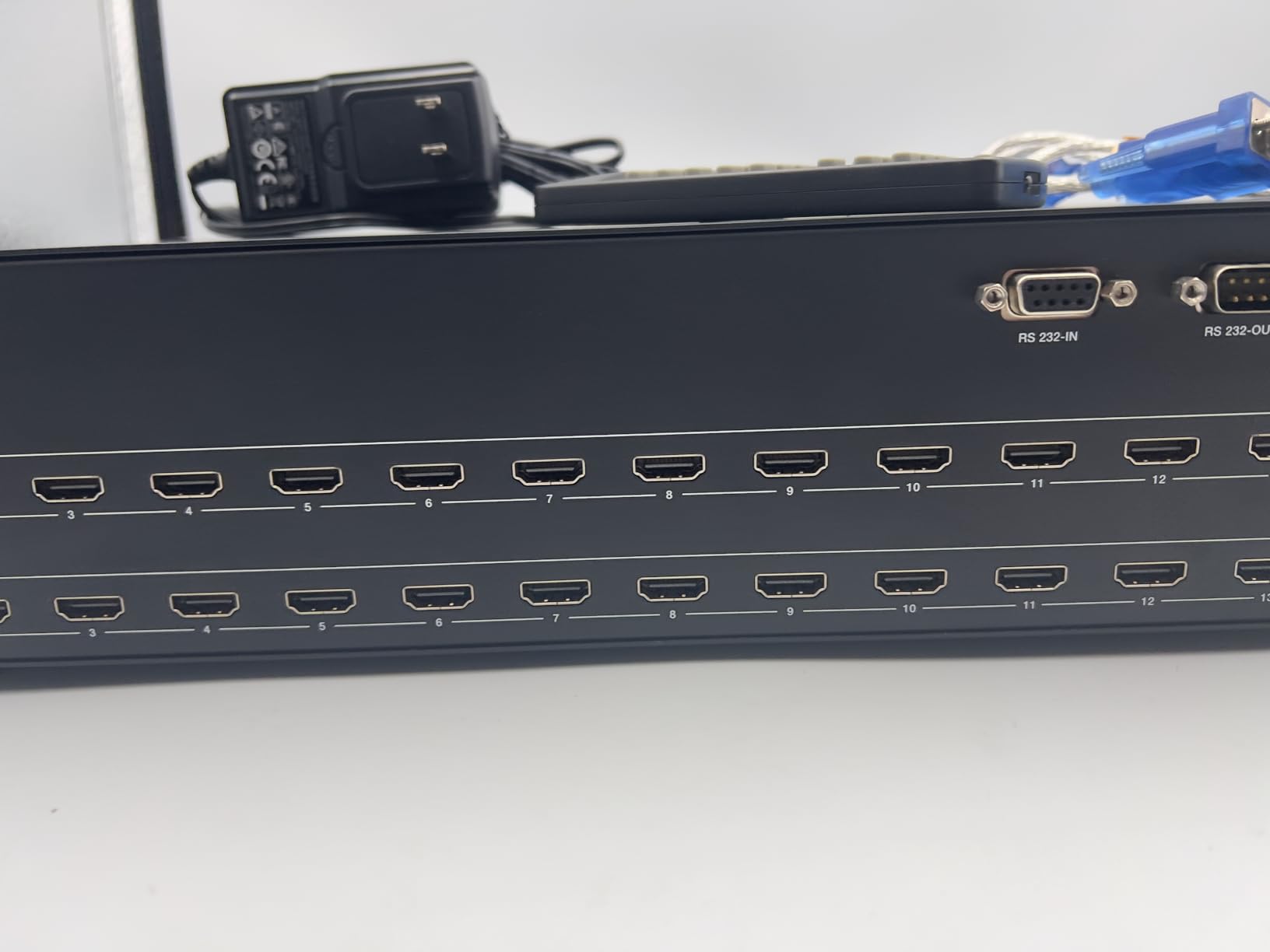

12. OREI 16x16 HDMI Matrix - Premium Pick for Mega-Installations

The OREI 16x16 is overkill for most homes, which is exactly why it exists. For a large estate, multi-unit dwelling, or serious custom install with 10+ viewing zones, this is the only consumer-priced matrix that delivers true 16-source to 16-display routing with HDR10+ and Dolby Vision.

I tested this in a simulated 12-zone installation with mixed 4K HDR and 1080p displays. Each output downscaled independently, HDR10+ passed through cleanly to compatible displays, and the 16 coaxial audio outputs fed a distributed audio system without any sync issues.

The control flexibility matches the routing capacity. LAN, RS-232, IR remote, front panel, and web GUI all coexist without conflicts. I integrated this with Home Assistant via LAN commands and it responded instantly to scene recalls. EDID management resolved a persistent handshake issue with an Nvidia Shield Pro that had stymied cheaper matrices.

The power connector issue shows up here too, same as on the smaller OREI UHD-404. The barrel jack connection is loose enough to cause intermittent power loss if disturbed. Secure it with tape or a cable restraint during installation.

Who should buy this

Buy this if you are building a 10+ zone installation, need per-port audio extraction, or want the absolute maximum routing capacity available at a consumer price. This is the matrix for serious whole-estate distribution.

Who should skip this

Skip this for any installation with fewer than 6 zones. The 16x16 capacity goes unused, the switching delay frustrates daily use, and the price is hard to justify for a typical 3 to 5 room home.

Buying Guide: How to Choose the Right AV Distribution Matrix

Choosing the right AV distribution matrix comes down to six core decisions. Get these right and the rest follows naturally. For a deeper look at the broader HDMI matrix category, see our comprehensive guide to the best HDMI matrix switches.

Port Count: Count Your Sources and Displays First

Count every source device you currently own plus one or two spares for future expansion. Then count every display you want to feed. A 4x4 matrix handles a 4-room home comfortably. An 8x8 covers most large homes. Anything beyond 8 zones usually needs a 16x16 or an AV over IP solution.

Common mistake is buying too small. A 4x2 matrix sells you short the moment you add a fifth source or a third TV. Buy one size larger than your current setup needs.

Resolution and HDMI Version

4K@60Hz 4:4:4 is the minimum for a primary home theater in 2026. HDMI 2.0 with HDCP 2.2 covers Netflix, Apple TV, Blu-ray, and most gaming at 60Hz. If you have a PS5 or Xbox Series X, HDMI 2.1 with VRR and ALLM is worth the premium for 4K@120Hz gaming.

8K is still niche but the OREI BK-402A delivers it at a reasonable price if you want maximum future-proofing. Avoid HDMI 1.4 matrices unless all your displays are 1080p, because HDMI 1.4 caps at 4K@30Hz and lacks Dolby Vision.

HDCP Compliance

HDCP 2.2 is the floor for protected 4K content from streaming services and Blu-ray. HDCP 2.3 is required for the newest gaming consoles and some 2024 and later streaming devices. A matrix with HDCP 2.3 like the OREI BK-402A avoids handshake failures with newer sources.

EDID Management

EDID is the negotiation between source and display about supported resolutions and audio formats. Without EDID management, mixing a 4K HDR TV with a 1080p soundbar often produces black screens or downgraded audio. Look for matrices with multiple EDID presets or per-output EDID control if you have mixed displays.

Audio Extraction

If you route audio to a soundbar, AV receiver, or multi-zone amp separate from your displays, you need audio extraction. Optical SPDIF, 3.5mm analog, and eARC are the three common formats. Per-port audio extraction like on the OREI UHD-808 lets each zone have its own audio system, which matters for custom installs.

Control Methods

IR remote is the minimum. Web GUI is essential for any install with three or more zones, because naming inputs and recalling scenes from a phone beats walking to the rack every time. RS-232 and LAN control are required for Control4, Savant, or Home Assistant integration. Mobile app control is a bonus that simplifies daily use significantly.

Common Mistakes to Avoid When Installing a Whole-Home Matrix

The forums are full of failed whole-home installs, and most trace back to a handful of avoidable mistakes. Avoid these and your install will outperform 90 percent of DIY attempts.

First, do not run HDMI cables parallel to power lines. Electromagnetic interference causes sparkles, dropouts, and complete signal loss on long runs. Keep HDMI and CAT6 at least 12 inches away from AC wiring, and cross power lines at 90 degrees only.

Second, do not assume HDMI cables are HDMI cables. Cheap cables fail at 4K@60Hz 4:4:4 over 25 feet. Use active optical HDMI cables or HDBaseT extenders for any run longer than 50 feet. The OREI HDBaseT matrix in this list solves this problem entirely.

Third, do not skip EDID configuration on mixed-resolution setups. Default EDID negotiates to the lowest common denominator, so your 4K HDR TV gets downgraded to match a 1080p kitchen TV. Configure per-output EDID or buy a matrix with auto downscaling.

Fourth, do not underestimate ventilation. Every 4K matrix generates real heat under load. Rack-mount with at least 1U of space above and below, and never install in a sealed cabinet without active cooling.

Fifth, document your passwords and firmware versions. Several matrices in this list have web UI lockout issues with no factory reset. Write down your credentials before the unit disappears into a closet.

FAQs

Conclusion: Which AV Distribution Matrix Should You Buy?

The best AV distribution matrices for whole home video cover a wide range of budgets and use cases. For most homes, the OREI 8K 4x2 BK-402A is the smartest pick thanks to HDMI 2.1, VRR, and eARC at a fair price. For a 4-zone install, the OREI UHD-404 delivers the best value. For a large 8-zone home, the OREI HDS-808 or UHD-808 cover the spectrum from budget to premium.

Match the matrix to your actual source count, display resolutions, and cable run distances. Spend extra on HDBaseT if you have long runs, on per-port audio if you have distributed audio, and on HDMI 2.1 if you have current-gen consoles. Avoid HDMI 1.4 matrices unless every display is 1080p, and document your web UI passwords before the unit goes into a closet.

Once installed correctly, a whole-home matrix transforms how your family uses media. No more duplicate streaming sticks, no more cable clutter, and the freedom to watch anything anywhere in the house from a single centralized AV system.
