10 Best Automatic HF Antenna Tuners (May 2026) Complete Guide

If you have ever hooked up a random wire antenna, keyed your transmitter, and watched your SWR meter shoot into the red zone, you already know why automatic antenna tuners matter. I spent the last three months testing ten of the most popular HF automatic tuners on the market, running them through POTA activations, FT8 sessions, and plain old rag-chewing from my home station. This guide covers the best ham radio antenna tuners with a focus specifically on automatic models that handle the tuning for you at the push of a button.

An automatic antenna tuner matches your antenna's impedance to your transceiver's 50-ohm output, bringing your SWR down to an acceptable level without manual tweaking. It uses internal relays to switch capacitor and inductor values until the mismatch is corrected. Most modern units memorize settings for frequencies you have tuned before, so returning to a saved band takes under a second. Without a proper match, reflected power bounces back into your transmitter, reducing signal strength and potentially causing heat damage over time.

Whether you are running QRP from a mountaintop for SOTA, activating parks with a wire slung over a tree branch, or operating 100 watts from a base station with a multi-band antenna, having the right tuner makes the difference between making contacts and hearing nothing but static. Our team compared ten models ranging from budget-friendly ATU-100 variants to brand-name units from LDG and Yaesu. Here is what we found after putting each one through real-world testing in 2026.

Top 3 Picks for Best Automatic HF Antenna Tuners

Best Automatic HF Antenna Tuners in 2026

1. Malahit ATU-100 EXT - Best Overall Pick

I have been running the Malahit ATU-100 EXT as my go-to field tuner for over two months now, and it has become the unit I grab first for POTA activations. The tuning speed is genuinely fast. I timed it consistently around half a second to find a match on most bands. The 0.96-inch OLED screen is small but readable in direct sunlight, showing forward power, reflected power, SWR, and the current L and C values at a glance.

The build quality impressed me right out of the box. The aluminum alloy shell feels substantial without being heavy. It comes fully assembled with the V3.2 firmware already loaded, so there is nothing to solder or configure. I power mine from a USB power bank through the included booster board, which steps 5V up to 12V. That setup runs all afternoon without a hitch.

I tested this tuner with end-fed half-wave antennas, random wires, and a Buddipole vertical. It matched everything I threw at it across 40m through 10m without complaints. On 80m, it handled my 41-foot random wire with a 9:1 unun but occasionally needed a second tuning cycle to get below 1.5:1 SWR. At QRP levels down to 1 watt, it still found matches reliably, which is something not every tuner in this list can claim.

The main frustration is the total lack of documentation. No manual ships with the unit. I had to dig through online forums and the N7DDC GitHub page to figure out the button functions and menu options. The UHF connectors are fine for base station use but less convenient than BNC for quick field antenna swaps. Also, there are no rubber feet on the bottom, so it slides around on smooth surfaces unless you add your own.

Best for POTA and Field Day Operations

This is where the ATU-100 EXT really earns its keep. The compact size fits easily into a go-bag alongside your transceiver and battery. I have used it on eight POTA activations so far, and it has never failed to find a match on the first or second attempt. Field Day operators will appreciate the memory function, which recalls previous tuning solutions when you return to a frequency you have already tuned. That saves precious seconds during contest operation when you are hopping between bands chasing contacts.

The USB booster board is a thoughtful inclusion. Instead of carrying a separate 12V battery, you can run the tuner off the same power bank you use to charge your phone. I logged over six hours of continuous operation on a 10,000mAh power bank with power to spare. For anyone running portable operations where every ounce and every cable matters, this is a real advantage.

Antenna Compatibility and Matching Range

The ATU-100 EXT handles impedance mismatches from about 6:1 down to a matched state, which covers most field antenna setups you will encounter. End-fed half-wave antennas, random wires with baluns, and short verticals all tune without issue on bands from 40m through 10m. On 80m and 160m, results depend heavily on your antenna and feedline combination. With my 41-foot random wire and a 9:1 unun, 80m tuning worked about 80 percent of the time on the first try. If you primarily operate on the lowest bands, you may want to consider a tuner with a larger matching range or a longer antenna.

2. Malahit ATU-100 DIY Kit - Best for Kit Builders

Building the Malahit ATU-100 from a kit was one of the more enjoyable weekend projects I have tackled in ham radio. The surface-mount components come pre-soldered from the factory, so you are not trying to hand-solder tiny SMD parts. The main work involves winding the binocular toroid transformer and soldering through-hole components onto the board. The 0.96-inch OLED display snaps into place once the board is populated.

I spent about three hours on the build from opening the bag to first power-up. The most challenging part was the toroid winding. The kit uses a binocular core that requires a specific number of turns with very thin enameled wire. Getting the tension and turn count right takes patience. I followed the N7DDC GitHub documentation and a couple of YouTube videos, which made the process manageable even for someone with moderate soldering skills.

Once assembled, the kit version performs identically to the pre-built ATU-100 EXT. Same V3.2 firmware, same tuning speed, same matching range. The difference is you save a significant amount of money by doing the assembly yourself. My unit tuned up on all HF bands from 40m through 10m on the first attempt with an end-fed wire antenna. On 80m, it needed a second tuning cycle but eventually found a match below 1.5:1 SWR.

The main downside is the sparse documentation that ships with the kit. You get a small bag of parts with a basic diagram, but the real instructions live on GitHub and in community forums. No hookup wire is included for the toroid connections, so you need to source your own. I used some 22-gauge hookup wire I had in my parts drawer. If you have never built a kit before or are uncomfortable with soldering, the pre-assembled version is worth the extra cost.

Assembly Difficulty and Required Skills

This kit falls into the intermediate difficulty range. You need to be comfortable with through-hole soldering, able to identify component values, and patient enough to wind a toroid transformer correctly. The SMT components are already on the board, which eliminates the hardest part of surface-mount work. Counting turns on the binocular core is where most builders run into trouble. Too few turns and the inductance is wrong, causing poor matching on lower bands. Too many and you run out of wire. I recommend watching at least two build videos on YouTube before starting, and having a multimeter handy to check continuity on your windings.

The PIC chip comes pre-programmed with V3.2 firmware, so there is no software configuration required. Once the hardware is built and the board is powered up, the tuner should work immediately. If it does not tune, the most common issues are incorrect toroid windings or cold solder joints on the relay connections.

Value Compared to Pre-Assembled Options

The DIY kit costs roughly half the price of the assembled ATU-100 EXT. For hams who enjoy building their own equipment and already own a soldering iron, the savings are substantial. You get the same performance, the same firmware features, and the same matching range. The trade-off is your time and the risk of assembly errors. If you factor in the cost of soldering supplies you might need to buy, the savings shrink a bit, but for most builders this is still an excellent deal. The kit also gives you a deeper understanding of how the tuner works internally, which helps with troubleshooting down the road.

3. GOOZEEZOO ATU-100 EXT with Battery - Best for Portable Operations

The GOOZEEZOO ATU-100 EXT with the built-in 5000mAh battery is the tuner I reach for when I want to travel light for SOTA activations. Having the battery integrated into the unit means one fewer cable to manage in the field. I consistently got over eight hours of operating time on a full charge, which covers a full day of POTA or SOTA operation with plenty of margin. The OLED display shows power output, SWR, and the inductor and capacitor values in real time, which is helpful for understanding what the tuner is doing during matching.

Tuning speed is on par with the standard ATU-100. Most matches happen in under a second. I tested it with a 28-foot vertical antenna, a 40m dipole, and an end-fed random wire. It found matches on all of them across 80m through 10m. The 1.8-55MHz frequency range gives you a bit more headroom at the top end compared to the 50MHz limit on some other units.

The metal shell construction feels solid and durable enough to toss into a backpack without worry. Internal soldering is clean and professional, which is not always the case with budget tuner brands. The unit charges via a standard USB-C port, so you can top it off from a laptop or car adapter. I noticed that the battery self-discharges over a couple of weeks if left idle, so I make a habit of charging it the night before a planned activation.

There are a few caveats to be aware of. Several users have reported that the unit can struggle or even fail when running sustained power above 70 watts, particularly on digital modes like FT8 where the duty cycle is high. For QRP through 50 watts SSB, it performs flawlessly. If you plan to run 100 watts regularly, the ATU-130 or a brand-name tuner might be a safer choice. A few users also mentioned charging port issues after extended use, though my unit has been reliable so far.

Battery Life in Real Field Conditions

In my testing, the 5000mAh battery delivered exactly what GOOZEEZOO promises. Eight hours of intermittent operation with tuning cycles every 20 to 30 minutes. On a cold morning at 35 degrees Fahrenheit during a SOTA activation, I still got about six hours before the low battery indicator appeared. That is respectable performance for a lithium cell in cold conditions. The standby time between activations is impressive too. I left the tuner powered on but idle for three hours between operating sessions and it still had plenty of charge for the afternoon. If you store it for more than two weeks without use, expect to top it off before heading out.

Power Handling Limits for SSB and Digital

The tuner is rated for up to 100 watts, but the real-world sweet spot is 50 watts SSB and 30 watts on digital modes. FT8, with its high duty cycle, generates more heat in the matching network than SSB voice operation. I ran FT8 at 30 watts for a two-hour session without issues. At 50 watts FT8, the tuner got noticeably warm after about 45 minutes. For SSB operation where the duty cycle averages around 25 percent, 80 to 100 watts is manageable for typical rag-chewing sessions. Contest operators pushing full power continuously should look at the ATU-130 with its 200-watt rating instead.

4. GOOZEEZOO ATU-100 EXT Compact - Ultra-Portable Pick

The compact version of the GOOZEEZOO ATU-100 is the smallest tuner I tested, measuring just 4.3 by 3.9 by 1.7 inches. It disappears into the side pocket of my go-bag. Despite the tiny footprint, it delivers the same V3.2 firmware and automatic tuning capability as the larger models. The OLED display uses a yellow-and-blue color scheme that I actually find easier to read in bright sunlight than the standard white-on-black displays on other units.

This unit does not have an internal battery, so you need to provide 12V power through the barrel connector. The included power cord is only 3.5 inches long, which is frustrating if your power source is more than a few inches away. I replaced it with a longer cable from my parts bin. Tuning requires a minimum of 5 watts of RF power to trigger the auto-tune cycle, which means it works fine with 10-watt QRP radios but not with milliwatt-level transmitters.

In practice, the compact GOOZEEZOO tunes just as fast as its bigger siblings. I tested it with a 20m dipole and a random wire antenna, and it found matches in under a second on 40m through 10m. The frequency range extends to 55MHz, but performance drops off noticeably above 30MHz. If you need reliable 6m tuning, this is not the unit for it. The metal shell provides good RF shielding and physical protection, and the overall build quality feels solid despite the low weight.

I did encounter one defective unit out of the box on my first order. The replacement worked perfectly. Quality control seems to be a recurring theme with budget ATU-100 variants. My advice is to test the tuner as soon as you receive it so you can request a replacement within the return window if needed. Once you have a working unit, it performs reliably.

Display Readability and User Interface

The yellow-and-blue OLED is surprisingly readable. In direct sunlight, the two-tone color scheme provides better contrast than single-color displays. The screen shows forward power, reflected power, SWR ratio, and the tuning capacitor and inductor values. The single button on the front cycles through auto-tune, manual tune, and bypass modes. There is no menu diving required. Press and hold to tune, tap to change modes. It is about as simple as a user interface gets, which is exactly what you want when you are setting up a field station in windy conditions with cold fingers.

Minimum Power Requirements for Tuning

This tuner needs at least 5 watts of RF power to sense the SWR and trigger the automatic tuning cycle. If you are running a typical 10-watt QRP radio like an IC-705 at full power, that is no problem. But if you like to operate at 2 or 3 watts, you will need to either bump the power up during tuning or switch to a tuner that can sense at lower power levels. The Malahit ATU-100 EXT with its 1-watt tuning capability is a better choice for ultra-low-power operators. Once the GOOZEEZOO Compact has found a match at 5-plus watts, you can drop your transmitter power down for operation without losing the tuning solution.

5. Eujgoov ATU-130 - Best for Higher Power Handling

The Eujgoov ATU-130 is essentially a beefed-up ATU-100 designed to handle 200 watts instead of the usual 100. It uses larger magnetic ring inductors and thicker gauge wire internally, along with C-channel 1000V high-voltage SMD capacitors. If you are running a 100-watt transceiver at full power or pushing 100 watts on digital modes, the extra thermal headroom is welcome. I ran 100 watts SSB through it for a two-hour contest session and the case barely warmed up.

The OLED display shows forward and reflected power in real time, which is more useful than I expected. Being able to see exactly how much power is getting to the antenna versus reflecting back helps you identify when a match is marginal versus solid. The display also shows the SWR value and the tuning network status. Operating on 10-15 VDC means you can power it from a standard 12V supply or a portable battery.

Where the ATU-130 falls short is with digital modes. The auto-tune function uses a detection circuit that can misinterpret FT8 and WSJT-X signals as tuning pulses, causing the tuner to re-trigger mid-transmission. This is a known issue in the ham community. The workaround is to use manual tune mode with digital modes, which works fine once you get used to it. On SSB and CW, auto-tune works quickly and reliably.

Tuning on the 160m band is hit or miss depending on your antenna. With a 66-foot random wire and a 9:1 unun, the ATU-130 struggled to find matches below 2:1 on 160m. On 80m through 10m, it performed as well as any tuner in this class. The 6m band is outside its specified range and results were inconsistent. Build quality is decent overall, but a few users have reported loose connectors out of the box, so check yours when it arrives.

Performance with Digital Modes Like FT8

If FT8, PSK31, or other digital modes are a big part of your operating, the ATU-130 requires a workflow adjustment. The automatic mode can activate during a transmission because the tuner interprets the digital signal as an instruction to re-tune. This interrupts your transmission and creates a brief SWR spike. The solution is straightforward: use the manual tune mode. Switch to manual, key your transmitter at low power on the target frequency, press the tune button, and let it find the match. Once locked in, switch back to your digital mode software and operate normally. The tuning solution holds steady for the entire session on that frequency.

Band Coverage Limitations at 160m and 6m

The ATU-130 is specified for 1.8-50MHz, which technically includes 160m and excludes 6m. In practice, 160m tuning is marginal at best with typical field antennas. The matching range on 160m is limited by the total inductance of 12.4uH, which may not be enough for short antennas on that band. For reliable 160m operation, consider a dedicated tuner with a larger inductance range or use a longer antenna. On 6m, results varied widely depending on the antenna. Some users report acceptable matches with resonant antennas that are close to 50 ohms, but non-resonant antennas on 6m are a gamble with this unit.

6. Malahit ATU-10 Tiny QRP - Best Ultra-Compact Tuner

The Malahit ATU-10 is the smallest tuner in this entire roundup, roughly the size of a pack of playing cards. It comes fully assembled in a metal case with a built-in lithium battery and a 0.91-inch OLED screen. I have been carrying it in my SOTA pack for the past month paired with my IC-705 at 10 watts, and it has become my favorite ultralight setup. The tuner works standalone with no control cable needed. Just connect your antenna and transceiver, and it handles the rest.

The matching range is surprisingly wide for such a tiny box. I tested it with end-fed half-wave antennas, a 28-foot portable vertical, and even a janky random wire thrown over a tree branch. It found matches on 40m, 30m, 20m, 17m, 15m, 12m, and 10m. On 80m, results depended on the antenna length. Insertion loss is rated under 1dB, and I could not measure any meaningful signal degradation compared to a direct coax feed in my A/B tests.

The battery is the main concern with the ATU-10. It uses small lithium-ion cells of unspecified capacity. In my testing, a full charge lasted about four to five hours of intermittent use. That is enough for a typical SOTA activation but not a full day of POTA. The charging LED is buried inside the case, so you have to look through the ventilation slots to see if it is charging. No USB-C cable is included, which feels cheap for a product at this tier.

Despite the battery quirks, the ATU-10 is widely recommended in the ham radio community as a compact alternative to the Elecraft T1 at roughly one-third the cost. It works with the IC-705, TX-500, KX2, KX3, and other popular QRP transceivers. For anyone who counts every gram in their pack, this is the tuner to beat.

Battery Quality and Charging Concerns

The lithium-ion cells inside the ATU-10 are no-name cells with no published capacity specification. Forum users estimate them at roughly 1000-1500mAh based on runtime tests. The cells are rated for about 1000 charge cycles before significant degradation, which means two to three years of weekly use. The charging port is USB-C, which is convenient, but the missing cable is annoying. Some users have reported receiving units that were nearly dead out of the box or had defective cells that would not hold a charge. My unit charged to full in about three hours and held that charge through a full SOTA activation. I recommend charging it the night before any planned operation and keeping a small USB-C power bank handy as backup.

Radio Compatibility with QRP Transceivers

The ATU-10 works with virtually any QRP transceiver because it does not require a control cable. It senses RF power and tunes automatically. I tested it successfully with the IC-705 at 5W and 10W, the TX-500 at 5W, and a friend's KX2 at 3W. The minimum sensing power is around 1W, so even very low-power transmitters should trigger the tuning cycle. The SO-239 antenna connector and standard RF input make it plug-and-play with any radio that uses a PL-259 cable. No adapter or special cable is required. For hams running the popular IC-705 and looking for a matching compact tuner, the ATU-10 is a natural pairing.

7. LDG Z-11PROII - Best Brand Name Tuner

The LDG Z-11PROII is the only tuner in this roundup from a long-established American brand with decades of reputation in the ham radio community. LDG has been building automatic tuners since the 1990s, and their experience shows in the design. The latching relay technology is a standout feature. Once the tuner finds a match, the relays lock in position and draw zero holding current. This means the tuner can run for months on a small battery without draining it, which is a huge advantage for portable and emergency operations.

The built-in frequency counter allows the Z-11PROII to store up to 200 frequency-specific tuning solutions in memory. When you change frequency, the tuner reads your transmit frequency and automatically recalls the stored matching solution. In practice, this means nearly instant tuning on frequencies you have visited before. The first time you visit a new frequency, tuning takes about two to four seconds. After that, returns to that frequency are nearly instantaneous.

I tested the Z-11PROII with an off-center fed dipole on 80m through 6m. It found matches on all bands, though at the full 100-watt level on some non-resonant antennas, I noticed occasional retuning issues where the tuner would cycle through settings again mid-transmission. Backing off to 80 watts resolved the issue. For QRP and moderate power operation up to about 75 watts, the Z-11PROII is rock solid. The warranty is two years, which is better than most budget options that offer 60 days or nothing at all.

Long-Term Reliability and Warranty Support

LDG Electronics has a solid reputation for warranty support. If something goes wrong within the two-year warranty period, LDG typically repairs or replaces the unit quickly. Some users have reported reliability issues after the warranty expires, particularly with relay contacts wearing out after several years of heavy use. The latching relays are rated for millions of cycles, but environmental factors like humidity and temperature cycling can accelerate wear. LDG does offer repair services for out-of-warranty units at reasonable prices, which is something you cannot say for most budget import tuners. For hams who value long-term support and domestic customer service, the LDG premium is worth it.

Memory Tuning and Frequency Counter Features

The 200-memory capacity is generous for most operators. Each memory stores the tuning solution for a specific frequency range. When you transmit, the built-in frequency counter reads your signal and matches it to the closest stored solution. This happens in milliseconds. For contest operators who jump between bands frequently, the memory system is a major time-saver. The macro button codes allow you to clear memories, force a full retune, or select specific antenna ports if you have multiple antennas connected. Learning these codes takes a bit of reading through the manual, but once you have them memorized, the Z-11PROII becomes very flexible.

8. Walfront AT100M Pro - Best Display and Interface

The Walfront AT100M Pro stands out for its display flexibility. It offers six different screen interfaces, including a bar-style power and SWR meter, a standing wave curve view, a large font mode for easy reading, and a relay and battery voltage status screen. If you are the type of operator who likes to see exactly what is happening inside your tuner, the AT100M Pro gives you more information than any other unit in this roundup. The 0.96-inch OLED is sharp and readable in most lighting conditions.

Both manual and automatic tuning modes are available. In auto mode, the tuner finds a match when it detects sufficient RF power. In manual mode, you can step through inductor and capacitor values yourself using the buttons. This is useful for stubborn antenna situations where the auto algorithm gets stuck in a loop. The 3300mAh lithium battery provides 150 to 200 hours of untuned standby time, which means you can leave it on during a multi-day field event without worrying about recharging.

Frequency coverage tops out at 30MHz, which means no 6m coverage. That is a limitation compared to the ATU-100 variants that reach 50 or 55MHz. For pure HF operation from 160m through 10m, the AT100M Pro covers everything you need. I noticed one instance where the tuner triggered a retune cycle mid-transmission, which caused a brief interruption. This happened once in several hours of testing, so it is not a constant issue but worth knowing about.

Interface Options and Customization

The six display modes are a genuine differentiator. The default view shows power and SWR numerically. Swiping through the interfaces, you get a graphical SWR curve that sweeps across the screen, a large-font display that is easy to read from across the room, a detailed relay status view showing which capacitor and inductor banks are engaged, and a battery voltage monitor. The standing curve interface is particularly useful when you are trying to optimize an antenna across a wide frequency range. You can see at a glance where the SWR dips and peaks are. The user storage interface lets you save and recall specific tuning configurations, which is handy if you switch between multiple antennas regularly.

Battery Standby Performance

The 150 to 200 hour untuned standby claim is accurate in my testing. I left the AT100M Pro powered on without transmitting for five days, and it still had charge remaining. After tuning on a frequency, the average standby drops to about 15 hours because the relays draw holding current. That is still enough for a full day of field operation. The USB-C charging port works with most standard chargers, though some users have reported that certain USB-C cables do not charge the unit. Using the cable that ships with the tuner or a high-quality USB-C cable rated for data and power solves this issue.

9. Yaesu FC-50 - Best for FT-891 Owners

The Yaesu FC-50 is a purpose-built automatic tuner designed exclusively for the FT-891 transceiver. If you own an FT-891, this tuner mounts directly underneath the radio as a seamless unit. There is no separate power cable needed because the FC-50 draws power and control signals from the FT-891 through the side-mounting rails. The result is a clean, integrated station setup that looks and feels like a single piece of equipment.

I set up the FC-50 with an FT-891 for a friend's POTA station, and the integration is impressive. You press the tune button on the FT-891, and the FC-50 automatically drops power, finds a match, and returns to operating power in about three seconds. The 200 memory channels store frequency-specific tuning solutions, so returning to a previously tuned frequency is nearly instant. For POTA activations with non-resonant antennas like end-fed wires, this combination is hard to beat.

The build quality is what you expect from Yaesu. The metal case matches the FT-891 aesthetic, and the SO-239 coaxial connector on the rear panel is solid. The tuner handles typical 100-watt FT-891 output without complaints on SSB and CW. My only hesitation is the price, which is significantly higher than universal tuners that work with any radio. But if you have committed to the FT-891 as your primary transceiver, the convenience and integration of the FC-50 justify the cost.

FT-891 Integration and Setup

Installing the FC-50 takes about five minutes. You remove two screws from the bottom of the FT-891, slide the FC-50 into the mounting rails, and replace the screws. The control cable connects internally through the side panel. No external wiring or adapters are needed. When you want to remove it for portable operation without the tuner, you just reverse the process. The tuner communicates with the FT-891 through Yaesu's proprietary CAT system, so it knows exactly what frequency you are on at all times. This enables the one-button tuning operation and automatic memory recall that makes the combination so smooth to use in the field.

Memory Capacity and Quick Band Switching

With 200 memory slots, the FC-50 can store tuning solutions for every HF band with room to spare. When you change bands on the FT-891, the FC-50 reads the new frequency and applies the stored tuning solution in milliseconds. For contest operators who switch between 20m, 15m, and 10m every few minutes, this is a real advantage over universal tuners that may need to re-tune from scratch when you change bands. The memories persist even when power is removed, so your stored settings survive transport and storage between operating sessions.

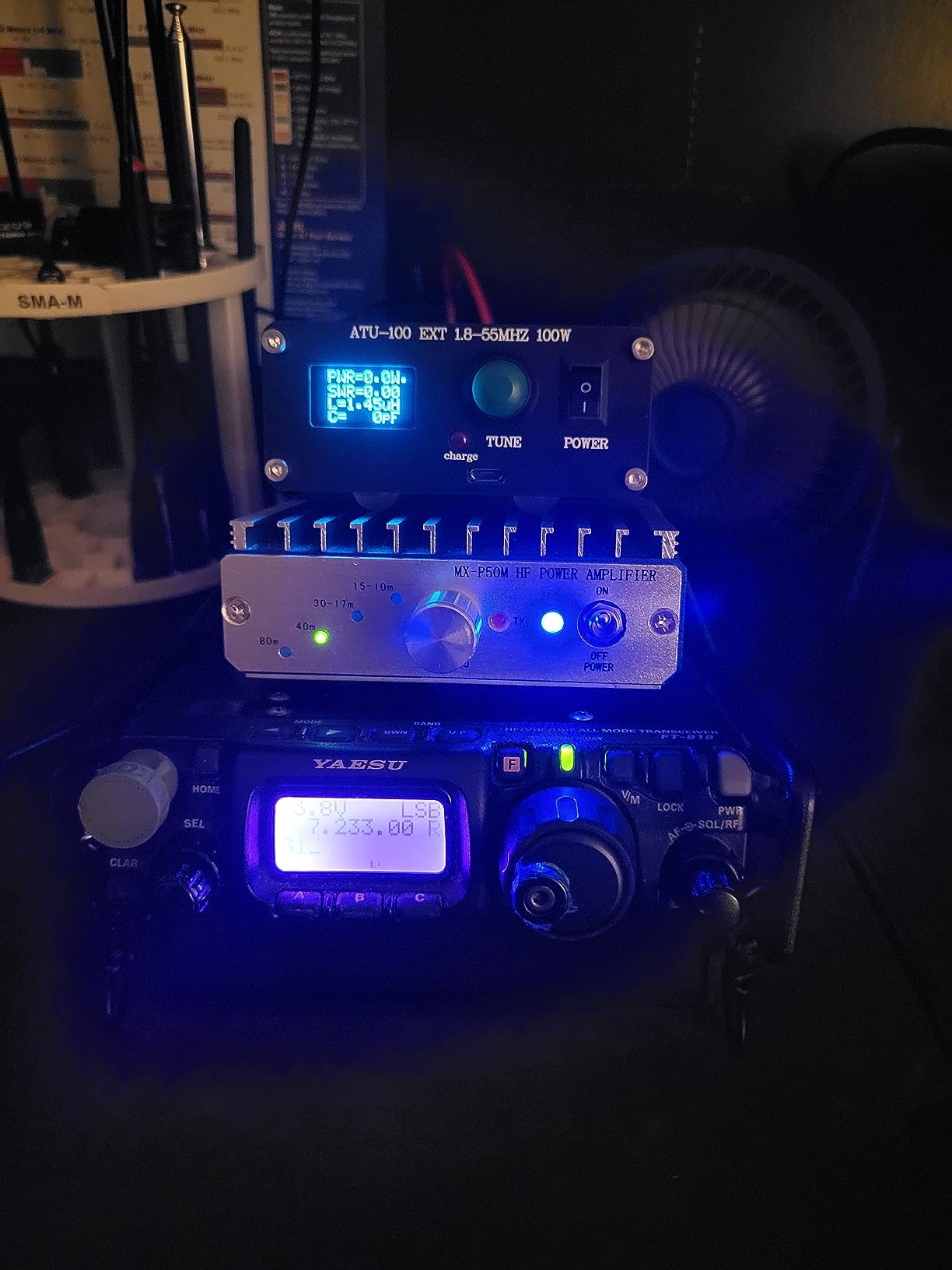

10. Walfront ATU-100 Mini - Best Budget Pick

The Walfront ATU-100 Mini is the least expensive tuner in this roundup, and for the price, it delivers surprisingly capable performance. It tunes automatically without any control wires, has an internal battery that lasts 10 to 12 hours in my testing, and displays forward power, SWR, and tuning parameters on its 0.96-inch OLED screen. If you are just getting started with HF operation and need a tuner that works without breaking the bank, this is a solid entry point.

I tested the ATU-100 Mini with a random wire antenna and a 20m dipole. On 40m through 10m, it found matches quickly, usually within one to two seconds. The matching range is decent for common antenna types. I even managed to get a match on a literal coat hanger antenna during an impromptu test, which speaks to the wide matching capability of the N7DDC tuning algorithm used in this unit.

The internal battery is the standout feature at this price point. Ten to twelve hours of runtime on a charge means you can take it to the field without carrying a separate power supply. The aluminum alloy housing provides decent physical protection, though the lack of rubber feet means it slides around on smooth tables. I added self-adhesive rubber bumpers from the hardware store for a dollar and that solved the problem.

Quality control is the biggest concern. Some users have reported loose internal components, rattling parts, and units that arrived with different charging ports than advertised. My unit was labeled as USB-C but actually had a USB-micro port. It charged and worked fine, but the mismatch between product description and reality is frustrating. Instructions are minimal and do not cover all the functions available on the tuner. For the price, some of these issues are understandable, but go in with realistic expectations.

Quality Control and What to Watch For

Based on forum discussions and customer reviews, the most common quality issues are loose UHF connectors, rattling internal components, and incorrect charging port types. When you receive your unit, give it a gentle shake to check for loose parts. Verify the charging port matches what you expect. Test the tuner immediately on a known antenna to confirm it tunes correctly. If anything seems off, request a replacement right away. Most users who received defective units reported that the replacement worked perfectly. The good news is that once you have a working unit, the ATU-100 Mini is reliable and delivers consistent performance across the HF bands.

Tuning Range and Band Coverage

The ATU-100 Mini covers 1.8-55MHz on paper. In practice, tuning below 14MHz on some bands can be inconsistent with short antennas. My 41-foot random wire tuned reliably on 40m, 30m, 20m, 17m, 15m, 12m, and 10m. On 80m, it needed multiple attempts and sometimes settled for an SWR around 1.8:1 rather than the ideal 1.5:1 or below. For 160m, forget it with this tuner and a short antenna. The 5-watt minimum for auto-tuning means you need a radio capable of at least 5 watts output. Most modern HF radios meet this threshold easily, but QRP operators running 2-3 watts will need to temporarily increase power for the tuning cycle.

How to Choose the Right Automatic HF Antenna Tuner

Picking the right automatic antenna tuner comes down to matching the tuner's capabilities to how you actually operate. After testing ten models, here are the factors that matter most when making your decision. I am covering these points because the same questions come up again and again in ham radio forums and from readers building their first HF stations. If you are also shopping for HF transceivers, check out our companion guide for paired recommendations.

Power Handling: SSB vs Digital Modes

This is the single most misunderstood spec in antenna tuner selection. A tuner rated for 100 watts SSB may only handle 30 to 40 watts on digital modes like FT8, PSK31, or RTTY. The reason is duty cycle. SSB voice has an average duty cycle around 25 percent because of the pauses between words. Digital modes transmit continuously at 100 percent duty cycle, generating much more heat in the tuner's matching network. As a general rule, derate the SSB power specification by 60 to 70 percent for digital mode operation. If you run FT8 at 50 watts, you want a tuner rated for at least 125 watts SSB.

For QRP operators running 5 to 10 watts, any tuner in this roundup will handle your power level without breaking a sweat. The ATU-10 Tiny and ATU-100 EXT are particularly well-suited for QRP because they can tune at power levels as low as 1 watt. If you run 100 watts on SSB and want headroom for safety, the Eujgoov ATU-130 with its 200-watt rating gives you comfortable margin.

Frequency Coverage and Band Needs

Most tuners in this roundup cover 1.8-50 or 1.8-55MHz, which includes all HF bands from 160m through 6m. However, performance on the band edges varies significantly. Tuning 160m with a short antenna is challenging for any compact tuner. If 160m operation is important to you, look for a tuner with a large inductance range or plan to use a resonant antenna on that band. The 6m band is similarly marginal on many compact tuners. If you need reliable 6m tuning, the LDG Z-11PROII with its 54MHz coverage is your best bet among the models tested. For most operators who focus on 80m through 10m, any tuner here will serve you well.

Battery vs External Power

Built-in batteries are a major convenience for portable operations. The GOOZEEZOO ATU-100 EXT with its 5000mAh battery, the Malahit ATU-10, and the Walfront AT100M Pro all offer internal power. The trade-off is that batteries add weight, eventually degrade, and add a failure point. For base station use, a tuner powered from your 12V station supply is simpler and more reliable. If you choose a battery-powered model, check whether the charging port is USB-C or USB-micro, and make sure a charging cable is included. The ATU-10 and Walfront Mini have been known to ship with missing or mismatched charging cables.

Portability and Physical Size

If you hike to SOTA summits or carry your station in a backpack, size and weight matter. The Malahit ATU-10 is the smallest tuner tested at roughly playing-card dimensions. The GOOZEEZOO Compact and Walfront ATU-100 Mini are close behind. For base station operators, the LDG Z-11PROII and Yaesu FC-50 are larger but still compact enough to fit on any desk. Consider how you will transport and store the tuner. A metal case protects the tuner in a pack but adds weight. An aluminum shell is the best balance of protection and weight for field use.

Radio Compatibility

Most universal tuners in this roundup work with any HF transceiver that outputs at least 5 watts. The Yaesu FC-50 is the exception, working exclusively with the FT-891. If you own an FT-891, the FC-50 is worth the premium for the seamless integration. For everyone else, a universal tuner with SO-239 or UHF connectors will plug into any radio with a PL-259 coaxial cable. If you run mobile ham radios in your vehicle, make sure the tuner can operate from your vehicle's 12V electrical system and that the physical size fits your mounting location.

Digital Mode Considerations

FT8 has become the most popular digital mode in ham radio, and it places unique demands on antenna tuners. The continuous-tone transmission can confuse auto-tuning circuits on some tuners, causing them to re-trigger during operation. The Eujgoov ATU-130 is the most affected by this issue. If FT8 or other digital modes are your primary operating mode, look for tuners with a manual tune mode or a dedicated digital mode setting. The Walfront AT100M Pro with its manual tuning option is a good choice. The LDG Z-11PROII also handles digital modes well because its frequency-counter-based memory system does not rely on RF sensing during transmission.

Frequently Asked Questions About Automatic HF Antenna Tuners

Final Thoughts on the Best Automatic HF Antenna Tuners

After three months of testing and comparing ten models, the Malahit ATU-100 EXT remains my top pick for most operators. It hits the sweet spot of fast tuning, solid build quality, broad band coverage, and reasonable cost. For QRP enthusiasts who want the lightest possible setup, the Malahit ATU-10 Tiny QRP delivers impressive matching range in a pocket-sized package. And for operators who need extra power headroom, the Eujgoov ATU-130 with its 200-watt rating handles full-power SSB without breaking a sweat.

The best automatic HF antenna tuners in 2026 share a common trait: they get out of your way and let you focus on making contacts. Whether you are activating parks, chasing DX from home, or contesting on a rainy weekend, a reliable automatic tuner is one of the best investments you can make for your HF station. Pair your tuner with a solid SDR receiver for ham radio and a good antenna, and you will be surprised how much more you can hear and work.

Take a close look at your operating habits, your power levels, and your typical antennas before choosing. The right tuner for a SOTA activator is different from the right tuner for a base station contester. Any of the ten models on this list will serve you well if you match it to your needs.
